CSL series Skid steer loader uses the full hydraulic drive and the original Sauer hydraulic system imported from the United States

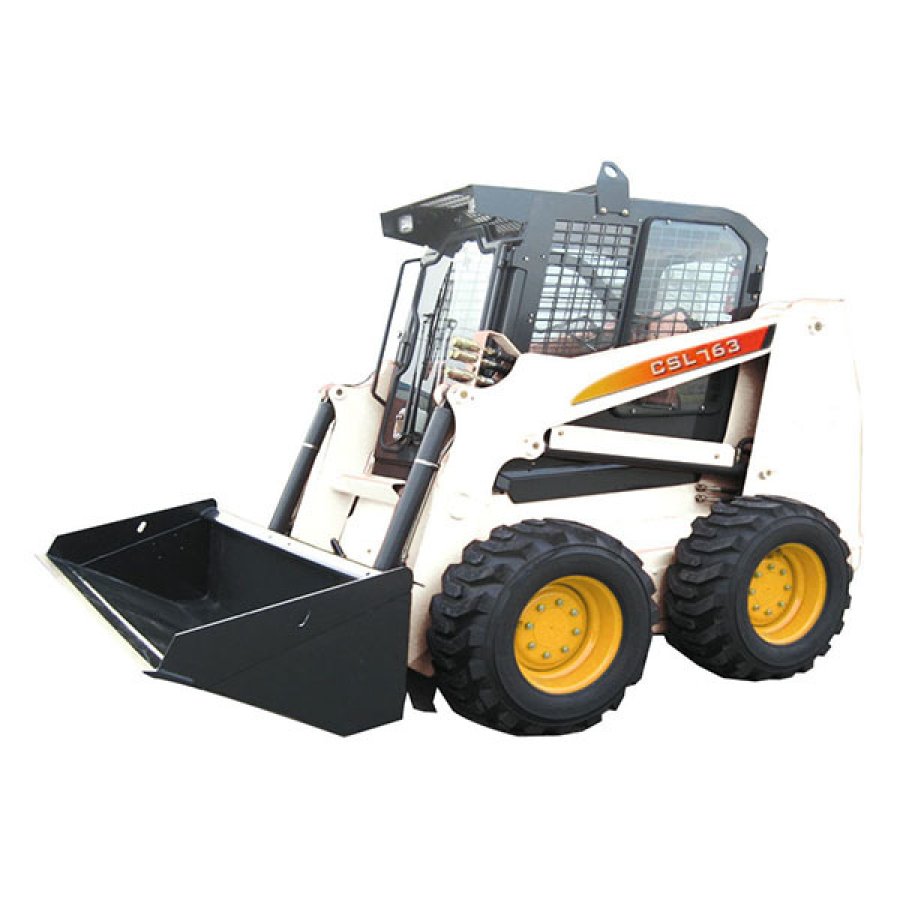

CSL Skid Steer Loader
Wheel Loader
Main Features
■ CSL series Skid steer loader uses the full hydraulic drive and the original Sauer hydraulic system imported from the United States
■ The glide steering can make skid steer loader self rotation and turning radius minimum
■ The Skid steer loaderwith compact structure, flexible movement, it has great power and extremely high efficiency in operation
■ This series Skid steer loader has luxurious modeling and comfortable completely closed cab with a broad view
■ The Skid steer loader hydraulic boosting dual-joystick can be controlled easily
■ Through the accompanied quick-change, loading, mining, fork movement, bulldozers, holes digging, trenching and other operations can be realized. This machine is a loader of latest model in accordance with high-quality, high-efficiency and multifunction required by modern engineering work.
■ The Skid steer loadercan be widely used in the road engineering, municipal sanitation, construction, railway stations ,docks, warehouses, material yard, urban and rural construction and on various other occasions for shipment of materials and many job executions in the narrow space where it is difficult for large machinery to work
Technical Specifications
Model | CSL563 | CSL663 | CSL763 | CSL963 | CSL1253 |
Engine model | China engine | China engine | Japan engine | Japan engine | Japan engine |
Rated power | 36.8kW | 36.8kW | 44kW | 54kW | 67kW |
Rated speed | 2650rpm | 2650rpm | 2500rpm | 2600rpm | 2650rpm |
Rated load | 560kg | 660kg | 760kg | 960kg | 1250kg |
Operating weight | 2300kg | 2600kg | 3600kg | 3250kg | 3980kg |
Tiping load | 1500kg | 1700kg | 1900kg | 1900kg | 2600kg |
Bucket capacity | 0.42m3 | 0.47m3 | 0.55m3 | 0.57m3 | 0.67m3 |
Max. gradeability | 20% | 20% | 20% | 20% | 20% |
Max.bucket break force | 1300kg | 1500kg | 1700kg | 2480kg | 2500kg |
Max.lift arm break force | 1100kg | 1300kg | 1500kg | 2430kg | 2400kg |
Travel speed | 0-10.3km/h. | 0-11.2km/h. | 0-11.2km/h. | 0-12.6km/h. | 0-.8/0-23km/h. |
Tire specification | 10.0/75-15.3 | 10.0/75-15.3 | 12-16.5 | 12-16.5 | 12-16.5 |
Overall length with bucket | 3145mm | 3450mm | 3500mm | 3590mm | 3900mm |
Overall width | 1680mm | 1680mm | 2020mm | 1880mm | 2020mm |
Overall height | 1935mm | 2030mm | 2260mm | 2100mm | 2320mm |
Wheel base | 991mm | 991mm | 1050mm | 1116mm | 1300mm |
Tread width | 1430mm | 1460mm | 1660mm | 1475mm | 1680mm |
Overall operating height | 3850mm | 3900mm | 3970mm | 4020mm | 4230mm |
Height to hinge pin,fully raised | 2900mm | 2960mm | 2970mm | 3123mm | 3300mm |
Max. dumping height | 2200mm | 2150mm | 2200mm | 2395mm | 2570mm |
Dumping distance | 480mm | 750mm | 640mm | 625mm | 770mm |
Dumping angle | 44° | 44° | 37° | 43° | 37° |
