Fully enclosed cab, bright and spacious; new cab damping system to make work more comfortable.

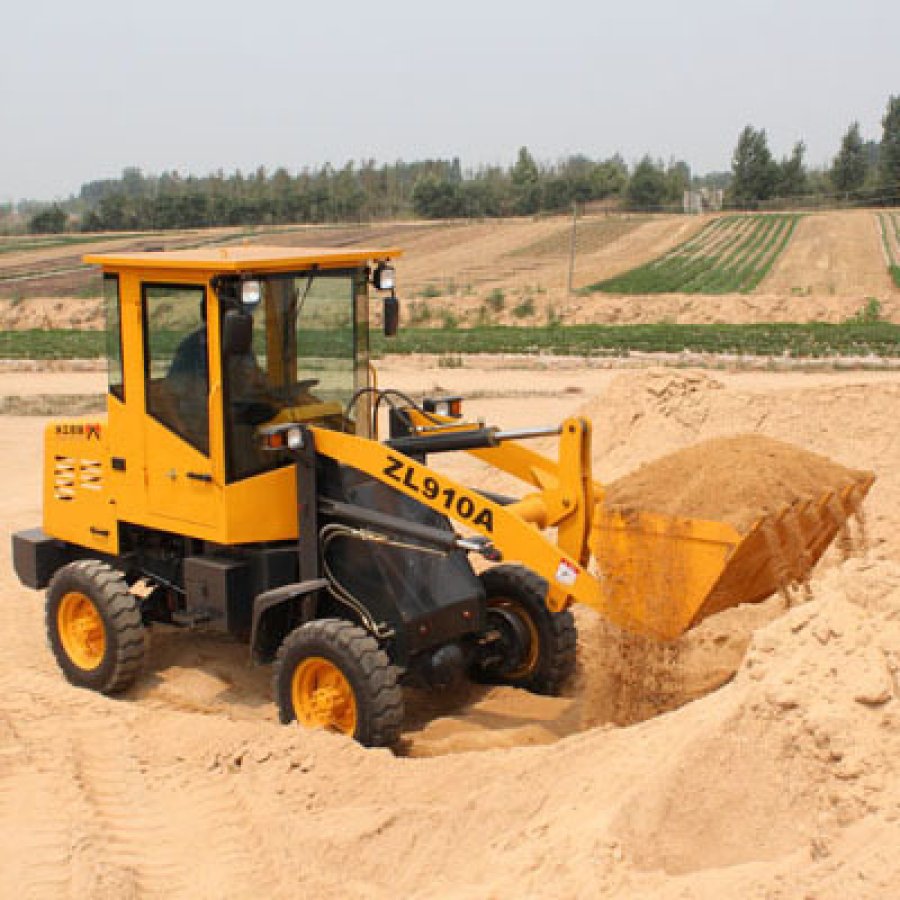

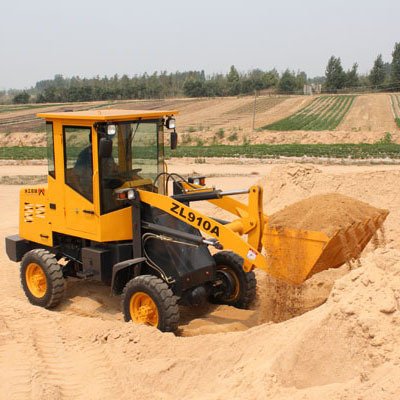

ZL910 Wheel Loader
Wheel Loader
Main Features
■ Fully enclosed cab, bright and spacious; new cab damping system to make work more comfortable.
■ Adopting Changchai L28M diesel, reliable, low fuel consumption, long service life.
■ Hydraulic load-sensing steering system and short body makes cornering more flexible and lightweight.
■ Working device with automatic leveling function, greatly reducing the driver's work intensity.
■ New dual seal piping, make the hydraulic system is more reliable and stable.
■ Hydraulic brake system, make the shortest braking distance.
Technical Specifications
Model | ZL910 Wheel Loader |
Rated Load (kgs) | 1000 |
Rated Bucket Capacity (m3) | 0.3 (W1200) |
Overall Dimensions (L×W×H) (mm) | 4850×1540×2500 |
Wheel Base (mm) | 2020 |
Wheel Tread (mm) | 1320 |
Min. Turning Radius (mm) | 4200 |
Max.Gradeability (°) | 30 |
Min. Ground Clearance (mm) | 210 |
Max.Dumping Angle (°) | 45 |
Max.Dumping Height (mm) | 2950 |
Min. Dumping Reach (mm) | 770 |
Tyre and Pressure | 7.50-16;210KPa |
Max.Speed (km/h.) | 22 |
Operating Weight (kgs) | 2350 |
Engine | |
Model | ChangchaiL28M |
Rated Power (kw) | 20 |
Rated Speed (r/min.) | 2200 |
Cooling Type | Evaporating |
Transmission | |
Gearbox | 4 forward shift,2 reverse shift |
Brake | Hydraulic power assisted |
