Fully enclosed cab, bright and spacious; new cab damping system to make work more comfortable.

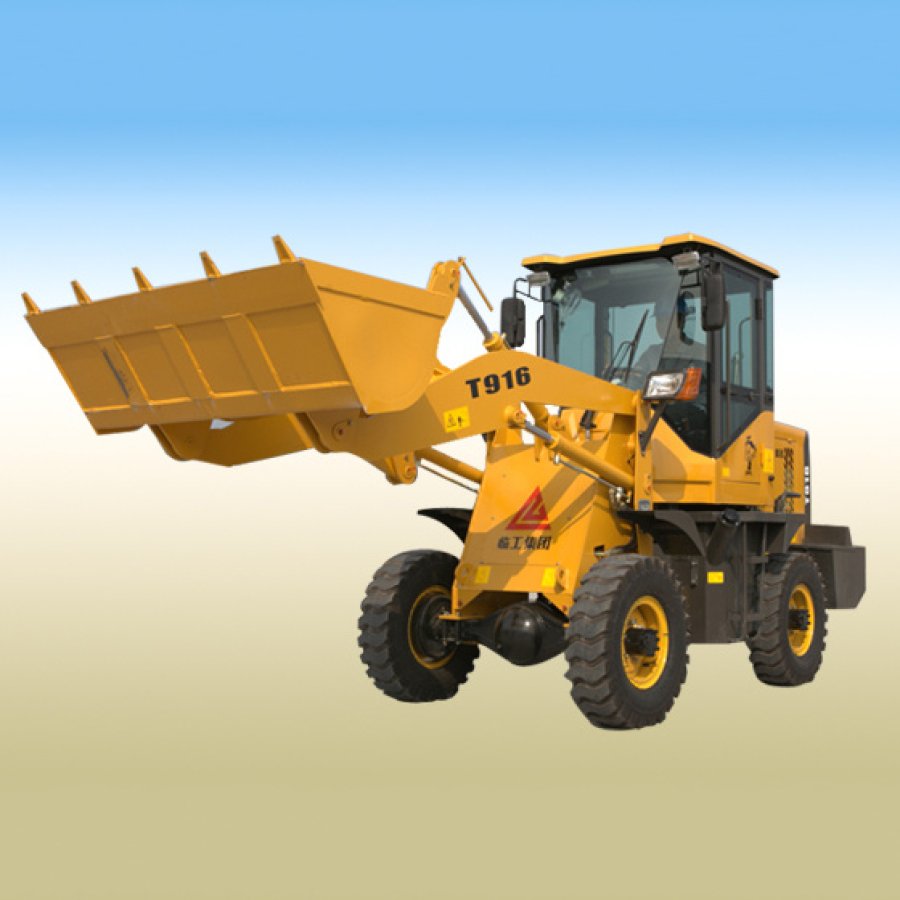

ZL916 Wheel Loader
Wheel Loader
Main Features
■ Fully enclosed cab, bright and spacious; new cab damping system to make work more comfortable.
■ Adopting Xichai diesel, reliable, low fuel consumption, long service life.
■ Hydraulic load-sensing steering system and short body makes cornering more flexible and lightweight.
■ Working device with automatic leveling function, greatly reducing the driver's work intensity.
■ New dual seal piping, make the hydraulic system is more reliable and stable.
■ Hydraulic brake system, make the shortest braking distance.
Technical Specifications
Model | ZL916C Wheel Loader | ZL916A Wheel Loader | ZL916 Wheel Loader | ZL916G Wheel Loader |
Rated load (kg) | 1200 | 2000 | 1600 | 1600 |
Rated bucket capacity (m3) | 0.42 (Wx1600) | 0.7 (Wx1600) | ||
Overall dimension (L*W*H) (mm) | 6900*2040*3000 | 5520*1700*2750 | 5200*1700*2750 | 5330*1700*2560 |
Wheelbase (mm) | 2190 | 2010 | 2080 | |
Wheel track (mm) | 1470 | 1340 | 1400 | |
Min. turning radius (mm) | 5000 | 4250 | 4200 | |
Max. climbing ability (°) | 30 | 30 | ||
Min. ground clearance (mm) | 265 | 235 | 220 | |
Max. dumping angle (°) | 45 | 45 | ||
Max. dumping height (mm) | 4220 | 2850 | 3200-4200 | |
Min. discharge distance (mm) | 1430 | 800 | 840 | |
Type and pressure of Tyre | 14/90-16;210KPa | 12.00-16;210KPa | 12.00-16;210KPa | |
Max. Speed (km/h.) | 25 | 25 | 25 | |
Overall weight (kg) | 4100 | 3000 | 3050 | |
Engine | ||||
Model | Xichai 4DW81-37 | Xichai 4DW91-45 | ||
Power (kW) | 33 | 37 | ||
Rotate speed (r/min.) | 2300 | |||
Cooling type | Water cooling | |||
Loader | ||||
Transmission (mechanical | 2 forwards,2 reverses | 3 forwards,2 reverses | ||
Clutch | Dry single disc combined | |||
Brake control | Hydraulic power | |||
