Adopting advanced performance engine, the machine has many advantages such as Easy to Start, Low Fuel consumption, Strong Power, Low Noisy, Elecrcmagnetic Flameout.

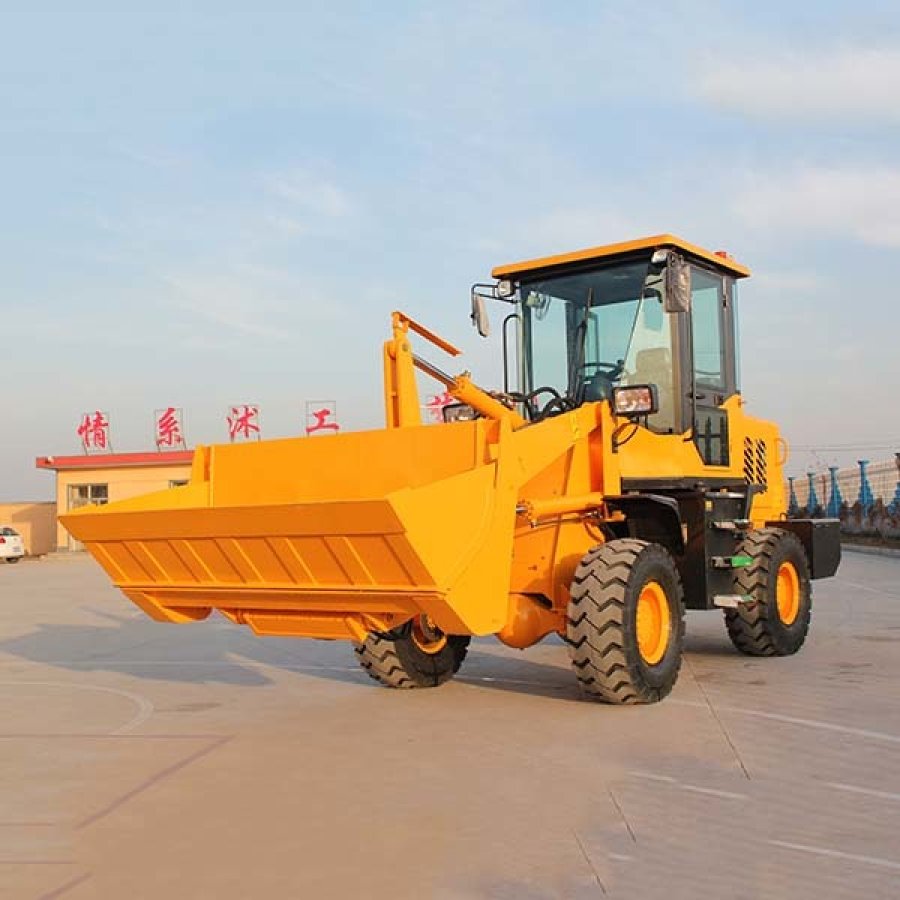

ZL928 Wheel Loader
Wheel Loader
Main Features
■ Adopting advanced performance engine, the machine has many advantages such as Easy to Start, Low Fuel consumption, Strong Power, Low Noisy, Elecrcmagnetic Flameout.
■ Using high quality gearbox and transmission assembly. Easy to operate and maintenance.
■ Adopting strengthened drive axle, rear axle swing directly and easy to maintain with long working life.
■ Adopting high quality tyres, meet different working conditions. We are the first company equip wide tyres on small loaders.
■ Hydraulic load-sensing steering system makes turning more flexible and lightweight.

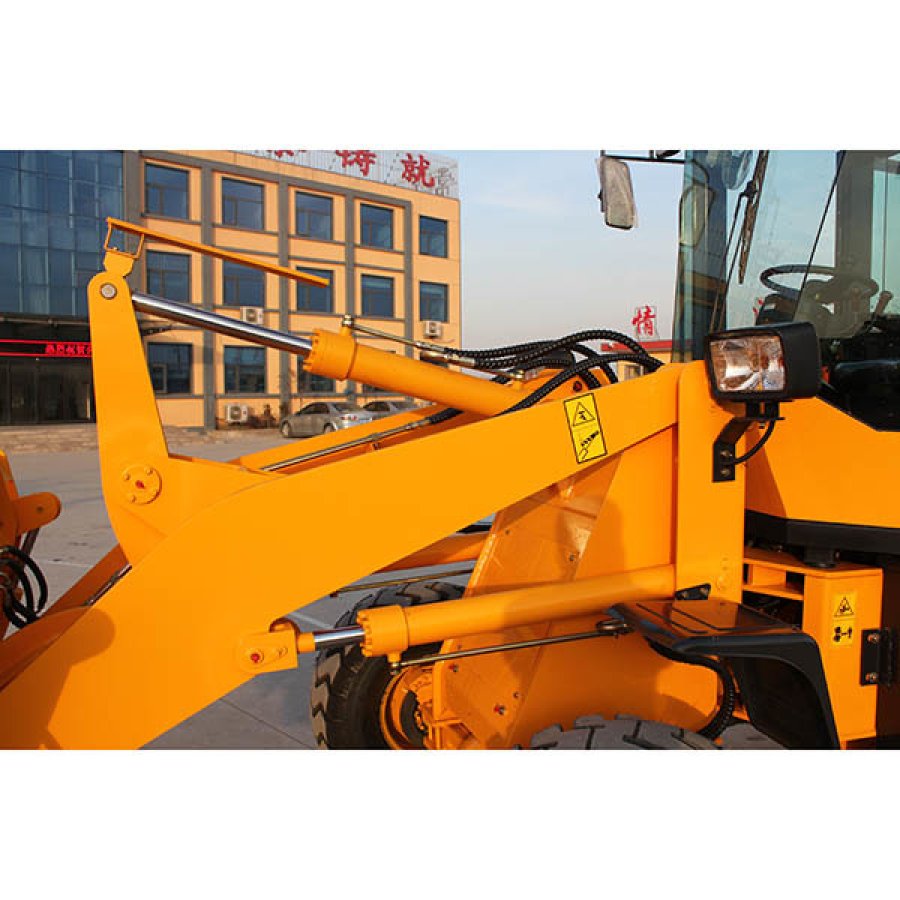

■ Working device with automatic leveling function, greatly reducing the driver's work intensity.
■ Using new dual seal piping, so that the hydraulic system is more reliable and stable.
■ Foot brake system with dual afterburner pump gas oil caliper disc brake, braking force, easy, safe and reliable.
Technical Specifications
Model | ZL928 Wheel Loader |
Rated load (kg) | 2000 |
Rated bucket capacity (m3) | 0.7(1900) |
Overall dimension (L*W*H) (mm) | 6000×1900×2810 |
Wheelbase (mm) | 2200 |
Wheel track (mm) | 1510 |
Min. turning radius (mm) | 4250 |
Max. climbing ability (°) | 30 |
Min. ground clearance (mm) | 345 |
Max. dumping angle (°) | 45 |
Max. dumping height (mm) | 3200 |
Min. discharge distance (mm) | 960 |
Type and pressure of Tyre | 16/70-20;210KPa |
Max. Speed (km/h.) | 24 |
Overall weight (kg) | 4400 |
Engine | |
Model | Huadong ZH4102G2 |
Power (kW) | 47 |
Rotate speed (r/min.) | 2400 |
Cooling type | Water cooling |
Loader | |
Transmission (mechanical | 2 forward shift,2 reverse shift |
Clutch | One-phase、single-stage、three element |
Brake control | Air assisted clamp type brake |
