Adopting advanced performance engine, the machine has many advantages such as Easy to Start, Low Fuel consumption, Strong Power, Low Noisy, Elecrcmagnetic Flameout.

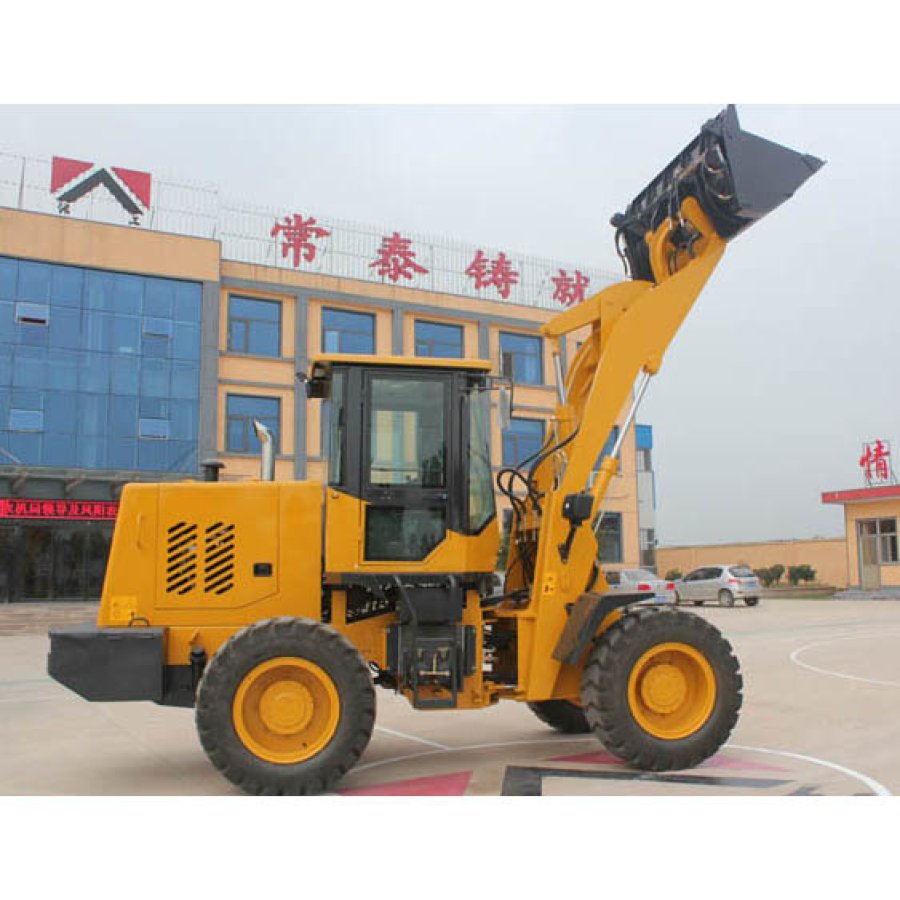

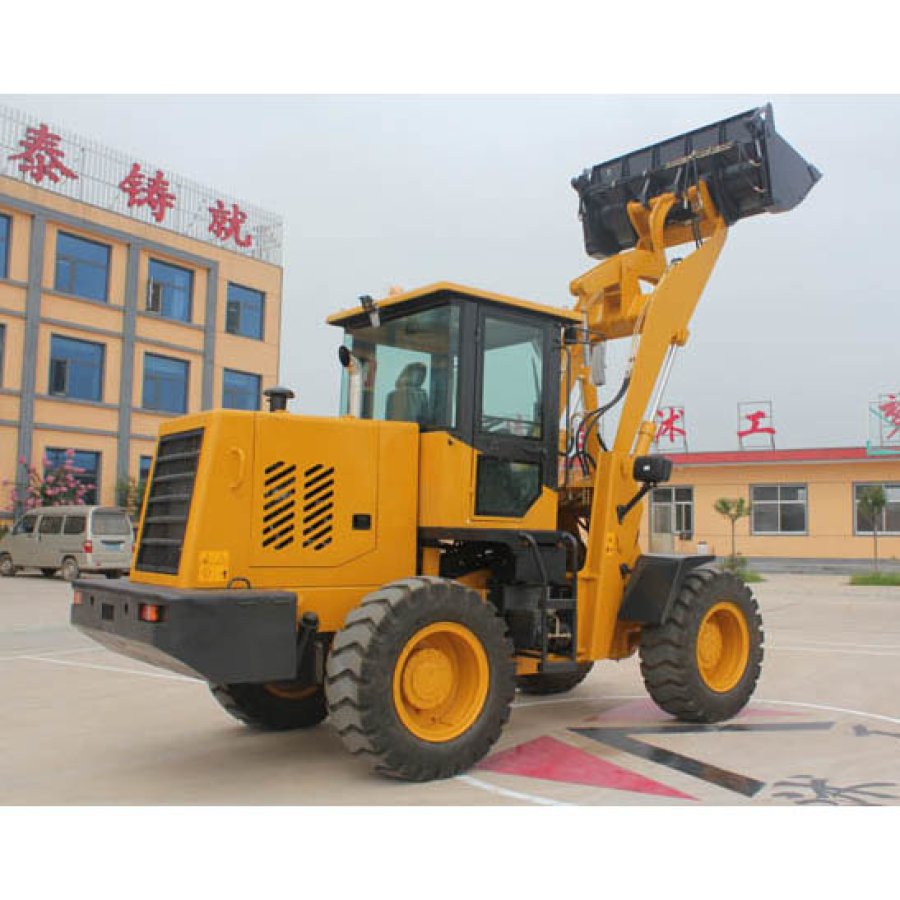

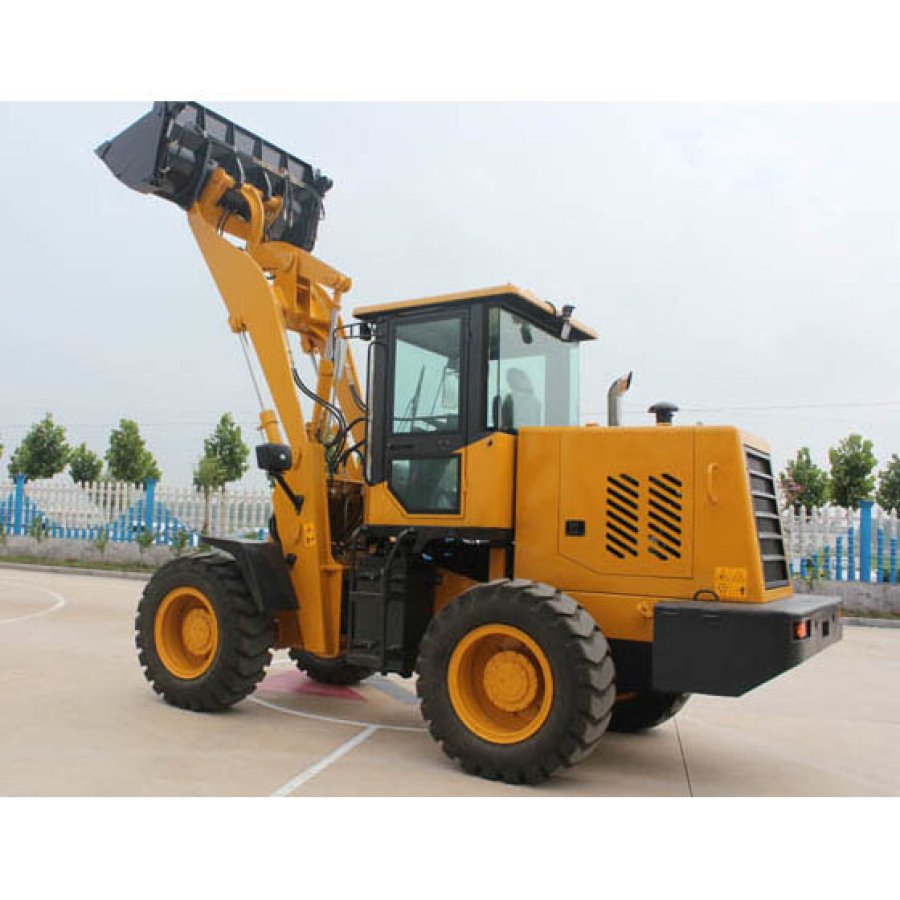

ZL932 Wheel Loader
Wheel Loader
Main Features
■ Adopting advanced performance engine, the machine has many advantages such as Easy to Start, Low Fuel consumption, Strong Power, Low Noisy, Elecrcmagnetic Flameout.
■ Under the working conditions of loading marble, the fuel consumption is reduced by 8.78%, and overall operating efficiency gains by 11.47%, thus an annual fuel consumption saving will be more than 39,500 RMB.
■ Super traction power. Improve the allocating torque and engine, the power of inserting into material is more than 16.5 ton,the whole machine is equipped with high traction power.
■ Perfect bucketing and grubbing capabilit and stability. Equipped with turning cylinder,the breakout force reach 17.5 ton. Equipped with lifting cylinder, the lifting force at ground reach 15.4 ton. Long shaft space, equipperd more , increase the machine’s stability. Overturning loading capability exceed 12.5 ton.
■ Reliable structure. High rigidity structure can be competent for more complicated working condition , the frame experienced high intensity test for 200,000 times can still work reliably.
Technical Specifications
Model | ZL932 Wheel Loader |
Rated load (kg) | 2000 |
Rated bucket capacity (m3) | 1 |
Overall dimension (L*W*H) (mm) | 6300×2050×3050 |
Wheelbase (mm) | 2620 |
Wheel track (mm) | 1680 |
Min. turning radius (mm) | 5200 |
Max. climbing ability (°) | 28 |
Min. ground clearance (mm) | 370 |
Max. dumping angle (°) | 45 |
Max. dumping height (mm) | 3600 |
Min. discharge distance (mm) | 1020 |
Type and pressure of Tyre | 16/70-24;210KPa |
Max. Speed (km/h.) | 25 |
Overall weight (kg) | 6150 |
Engine | |
Model | Yuchai YC4108G |
Power (kW) | 58 |
Rotate speed (r/min.) | 2400 |
Cooling type | Water cooling |
Loader | |
Transmission (mechanical | 2 forward shift,2 reverse shift |
Clutch | One-phase、single-stage、three element |
Brake control | Air assisted clamp type brake |
