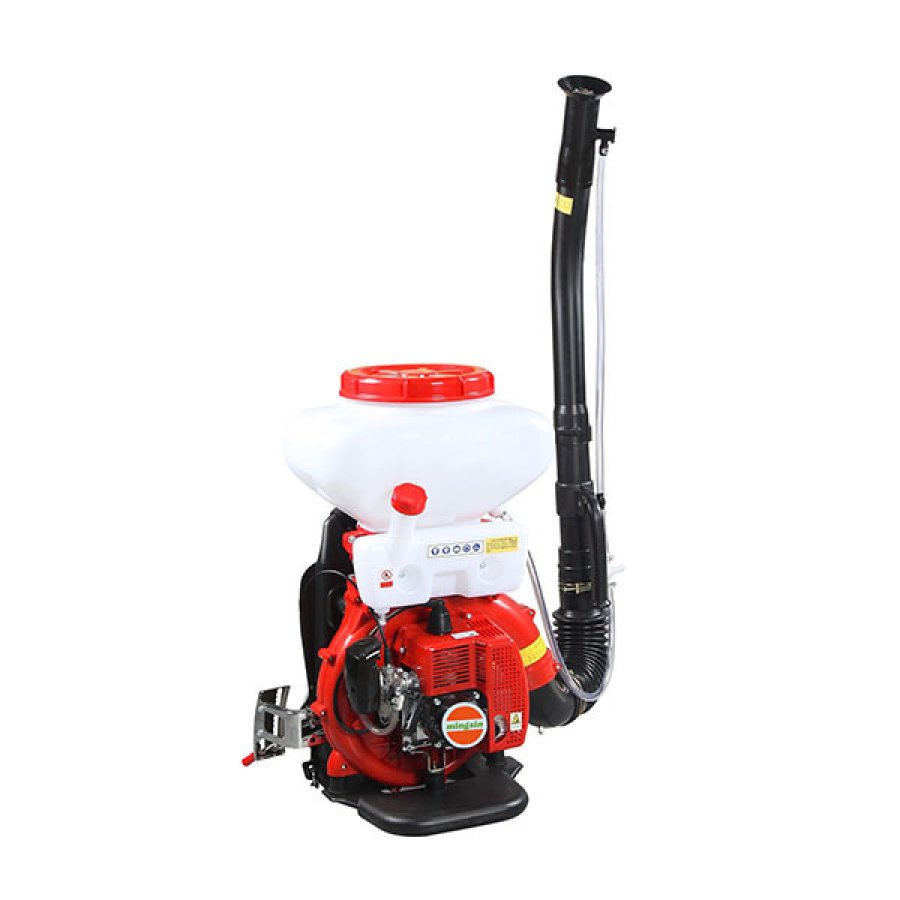

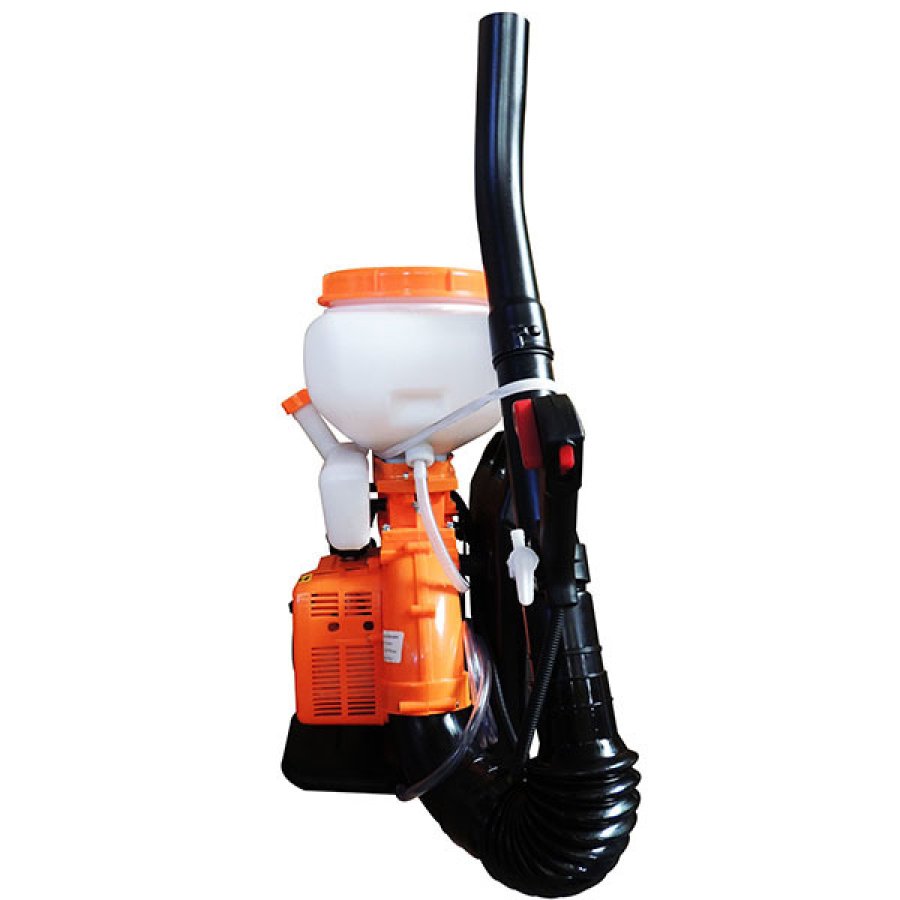

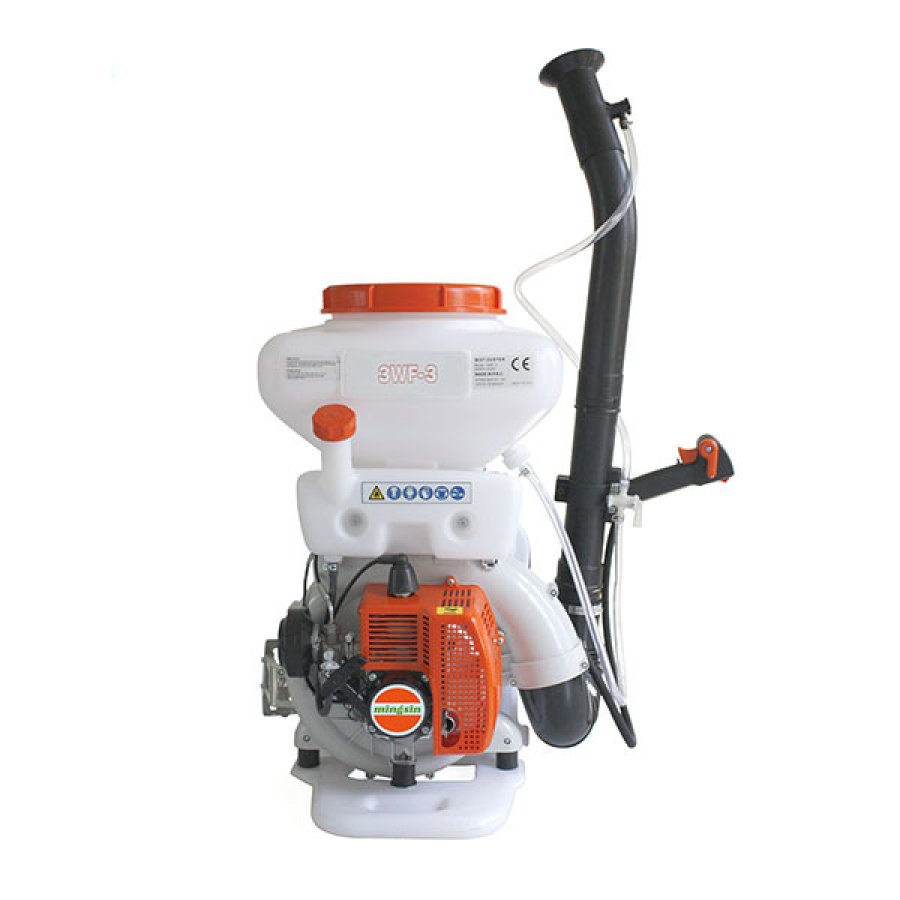

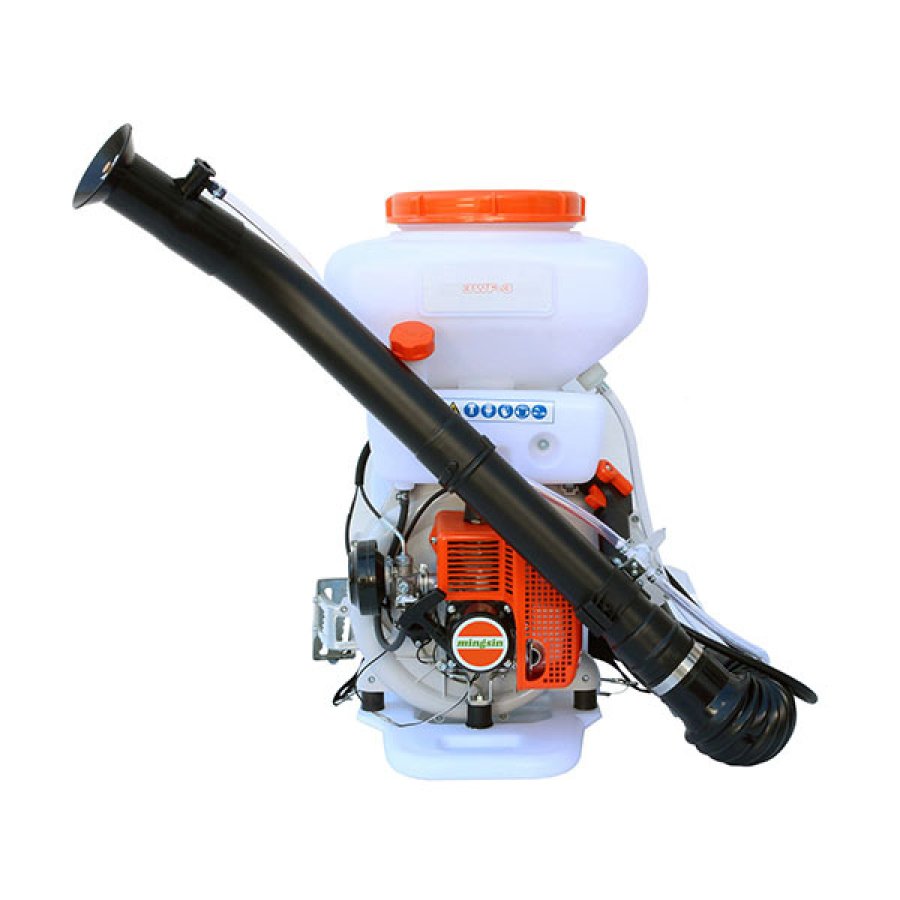

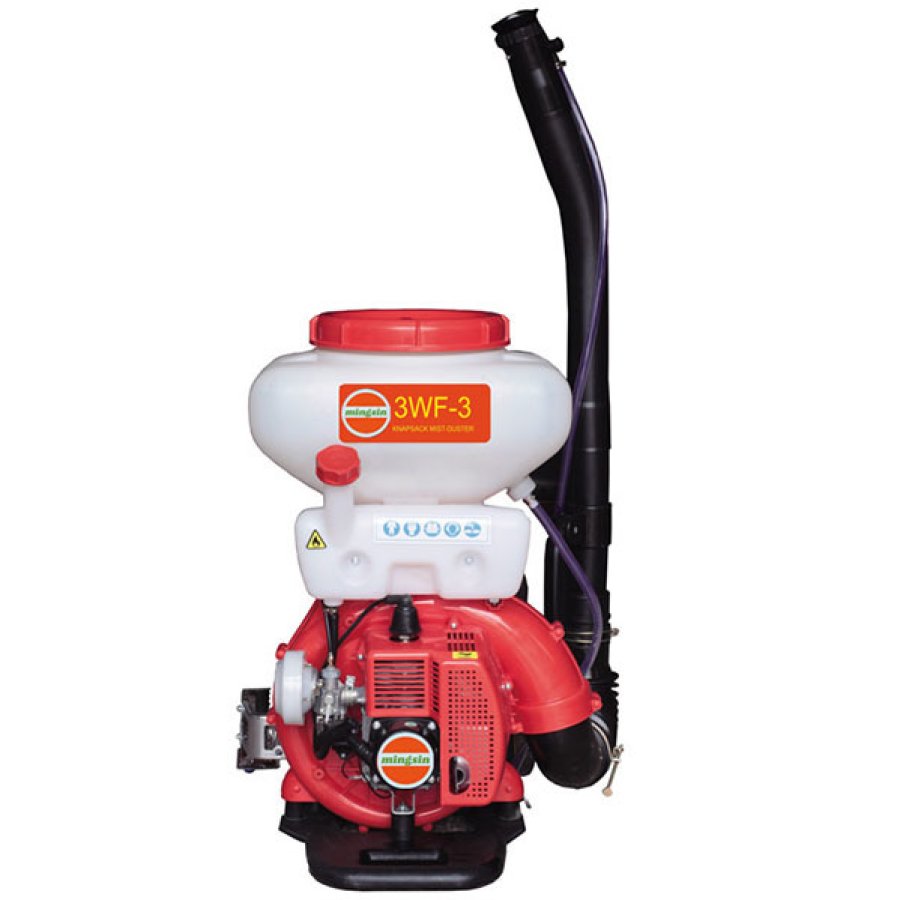

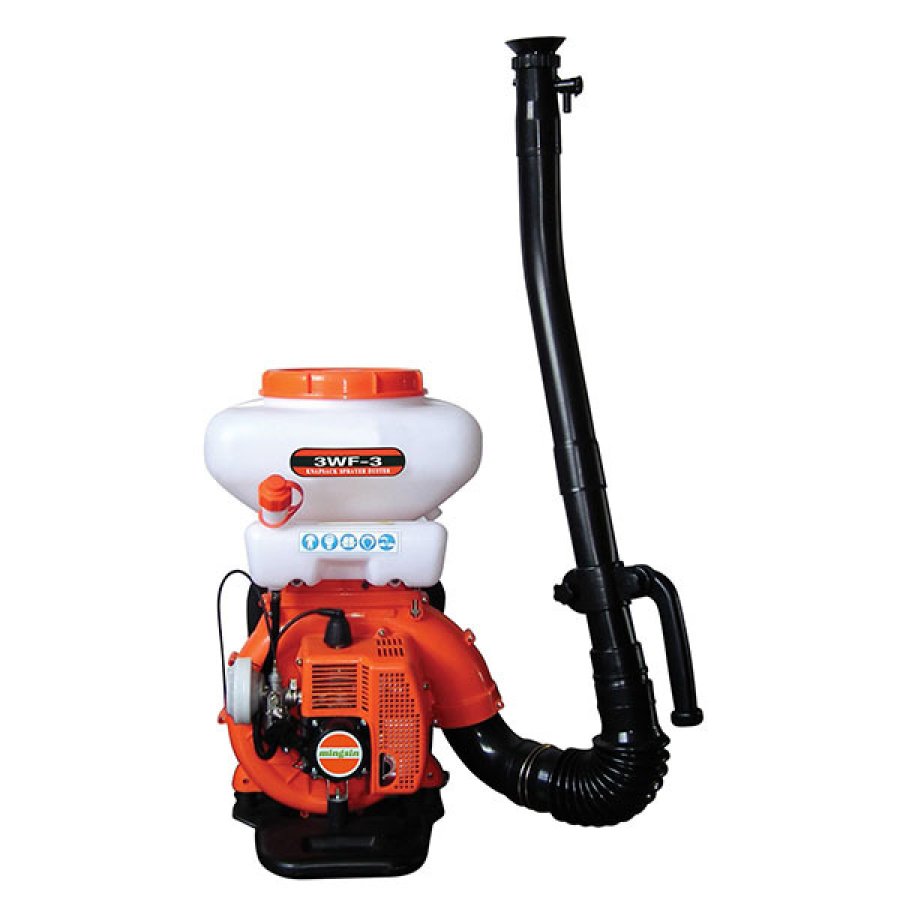

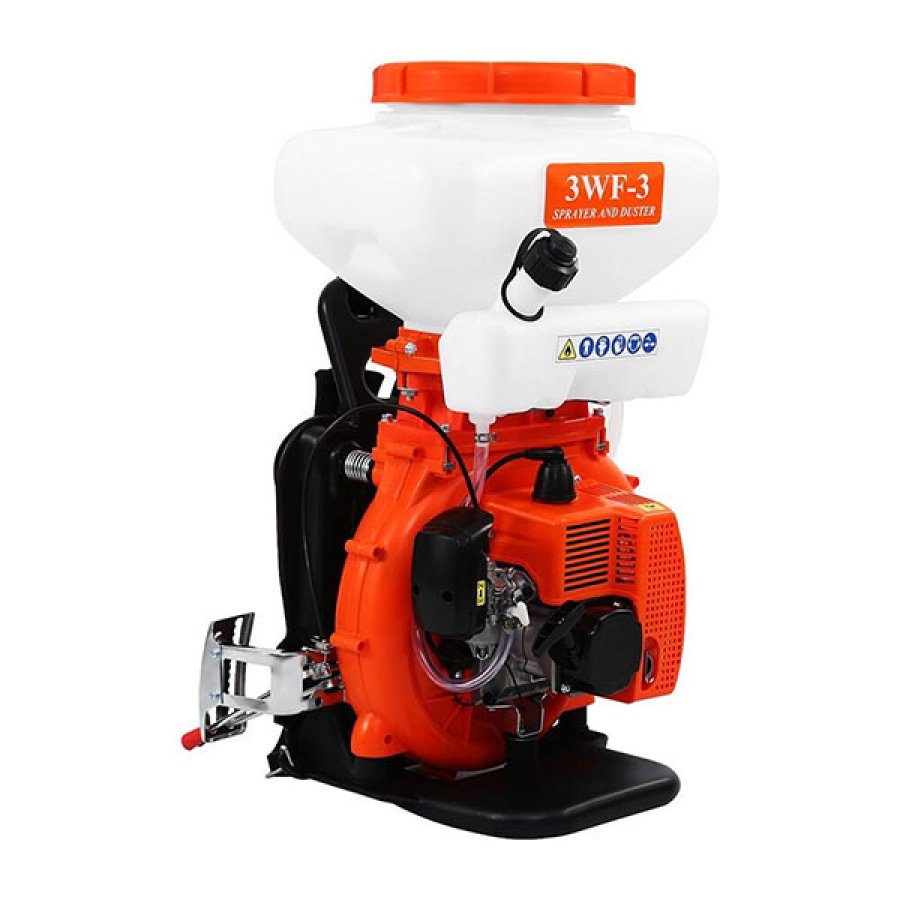

3WF-3 Mist Sprayer

The model adopts unique structure design, and all the parts contacting medical are made with corrosion resistant reinforced plastics or stainless steel, so you can be at ease use and need not consider solution on the machine corrosion problems and long service life.

Key words:

3WF-3 Mist Sprayer

Category:

Mist Sprayer and Power Sprayer

Message
3WF-3 Mist Sprayer

Main Features
■ The model adopts unique structure design, and all the parts contacting medical are made with corrosion resistant reinforced plastics or stainless steel, so you can be at ease use and need not consider solution on the machine corrosion problems and long service life.
■ The mouth of the tank is big. Simple and convenient to add the pesticide, even the bag of pesticide can be added directly.
■ The bottom of the rack has a big size. Low center of gravity position makes it more stable.
■ The engine use recoil style, simple to use. There are protecting components for the high temperature.
■ There is rotation structure where the horse and volute connection. Simple to use, and have a long life.
■ Can be used for kill the pests of the cotton, wheat, rice, and fruit. It also can be used for weeding. It can be used in mountainous areas, hilly areas and scattered land.


Technical Specifications

Model

3WF-3 Mist Sprayer

Package Dimension (mm)

532×452×730

Net weight (kg)

11

container capacity (L)

14

风机转速 (r/min)

7500-8000

Dusting the amount of  (Powder) (L/min)

0-4

The spraying dosage  ( Liquid) (kg/min)

0-6

Horizontal range (m)

11

Mating power

1E40FP-3Z

Gasoline And Oil Volume Mixing Ratio

30:1

Maximum power (kw/r/min)

2.13/8000

Ignition

CDI

Starting method

Recoil start

 Shutdown method

 Throttle full-closure
