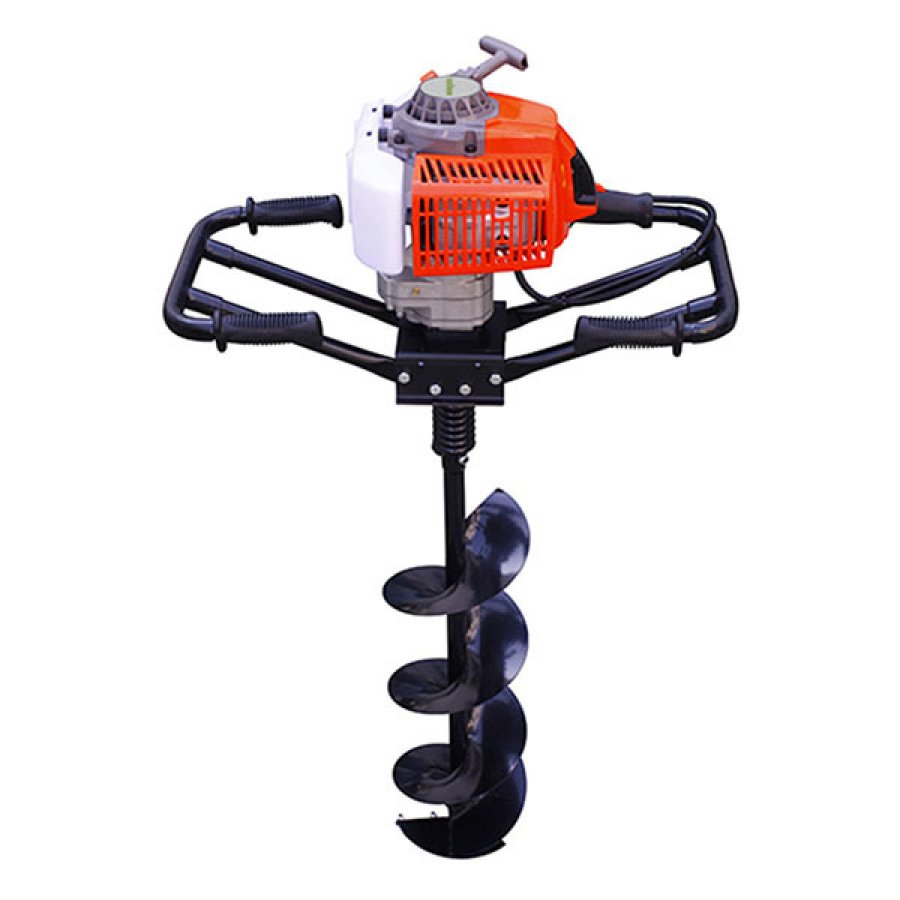

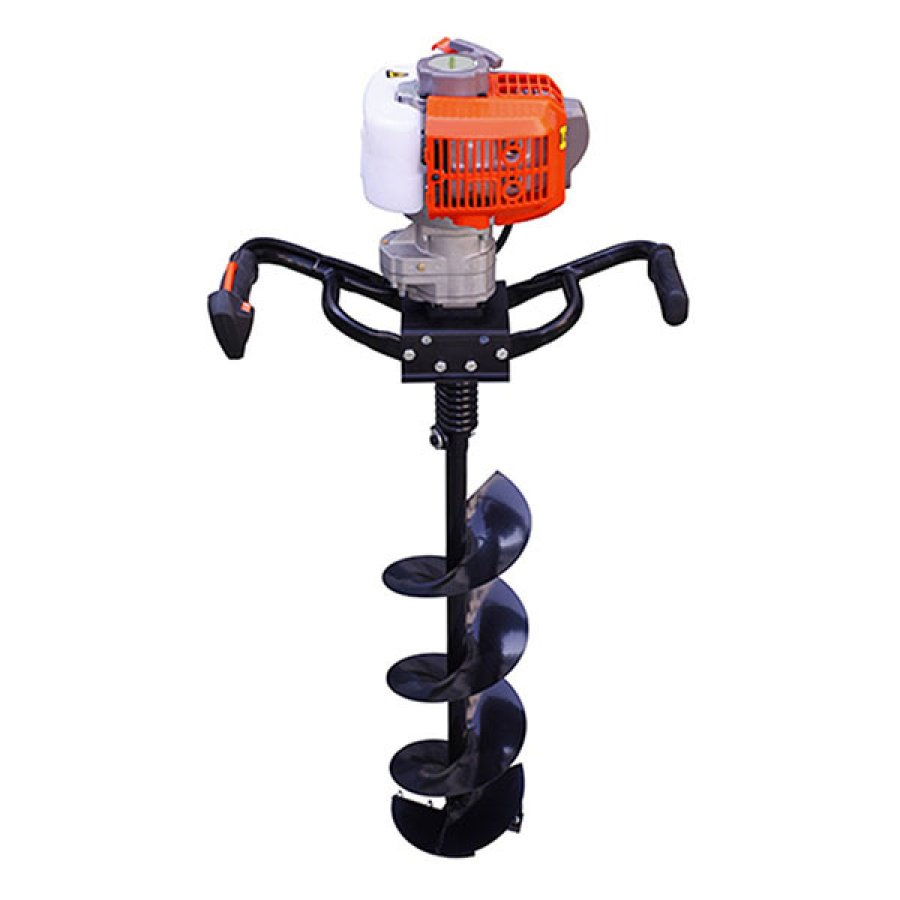

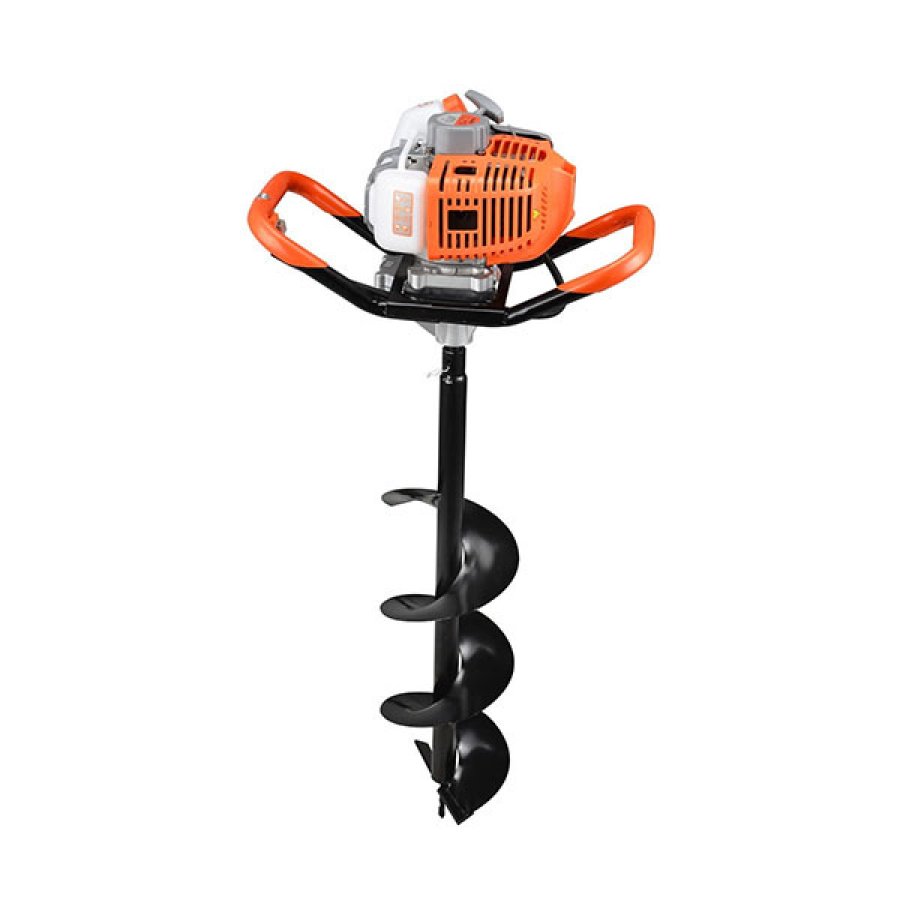

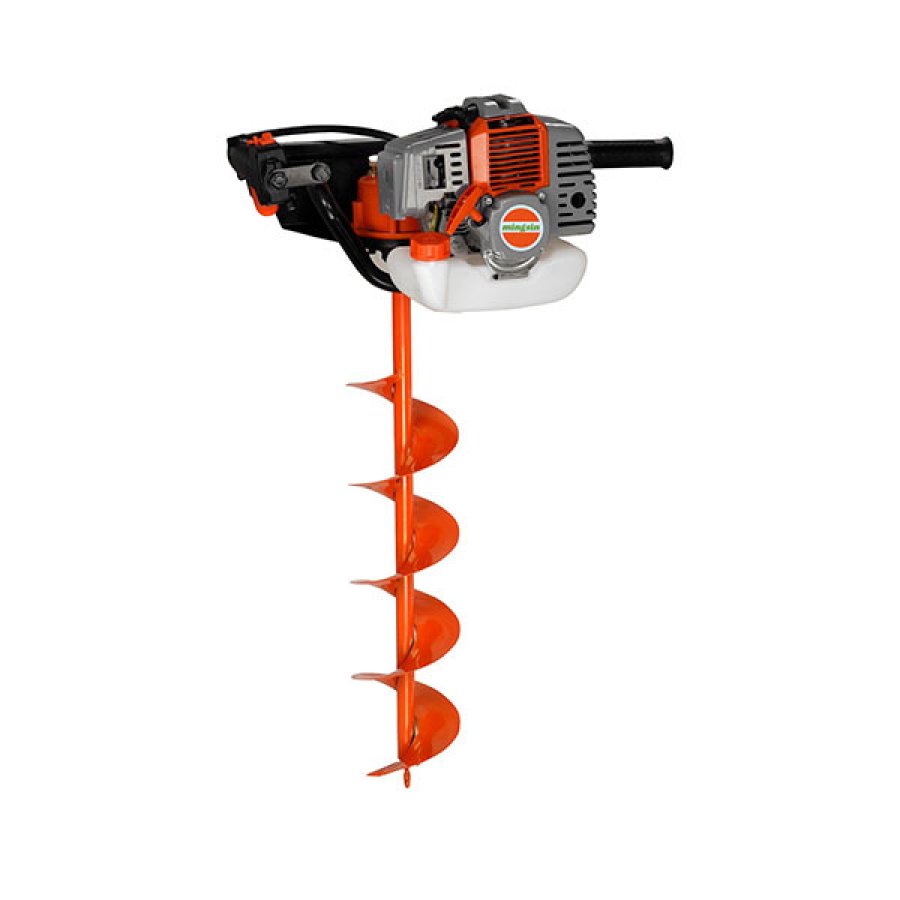

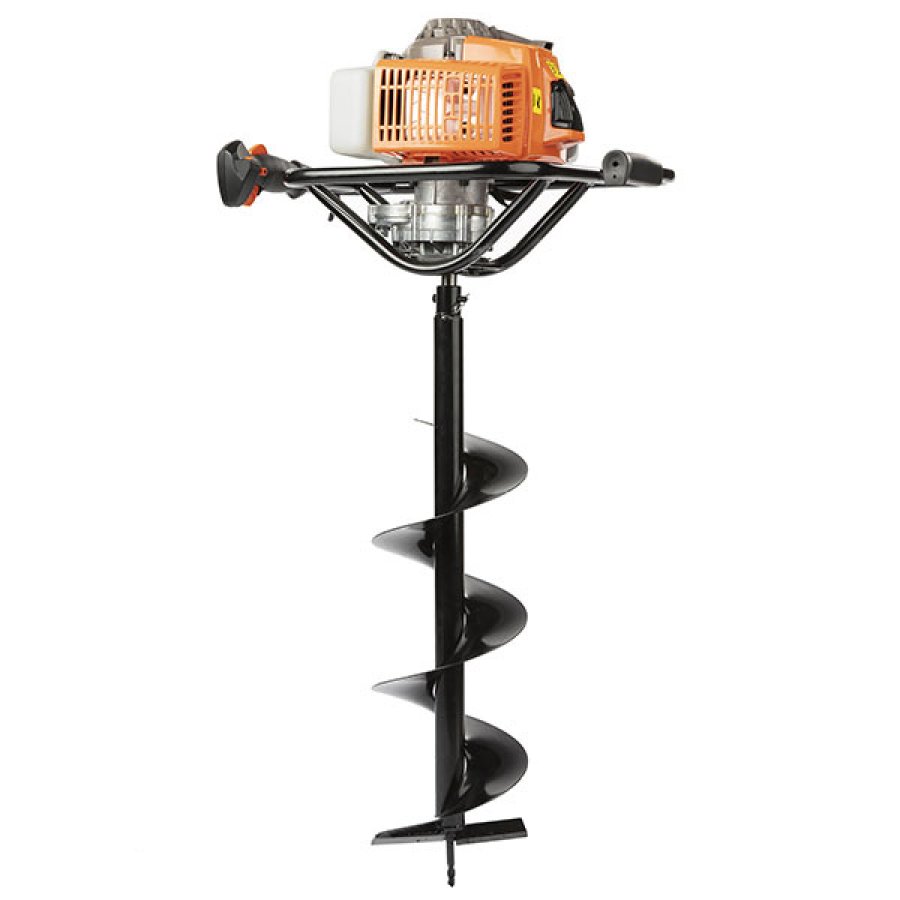

Earth Drill

The power earth auger is going to make boring boles easier and faster for fence installation,tree and bulb planting and other outdoor needs.

Key words:

Earth Drill

Category:

Earth Drill

Message
Earth Drill

Main Features

■ A more smooth and flexible steering
■ The power earth auger is going to make boring boles easier and faster for fence installation,tree and bulb planting and other outdoor needs.
■ The engine provides powerful,efficient performance
■ Large manual recoil startup provides reliability and allows for quick starting ability.
■ Anti-vibration foam grip handles that reduce fatigue.
■ Translucent fuel tank allow you easily keed an eye on fuel levels.

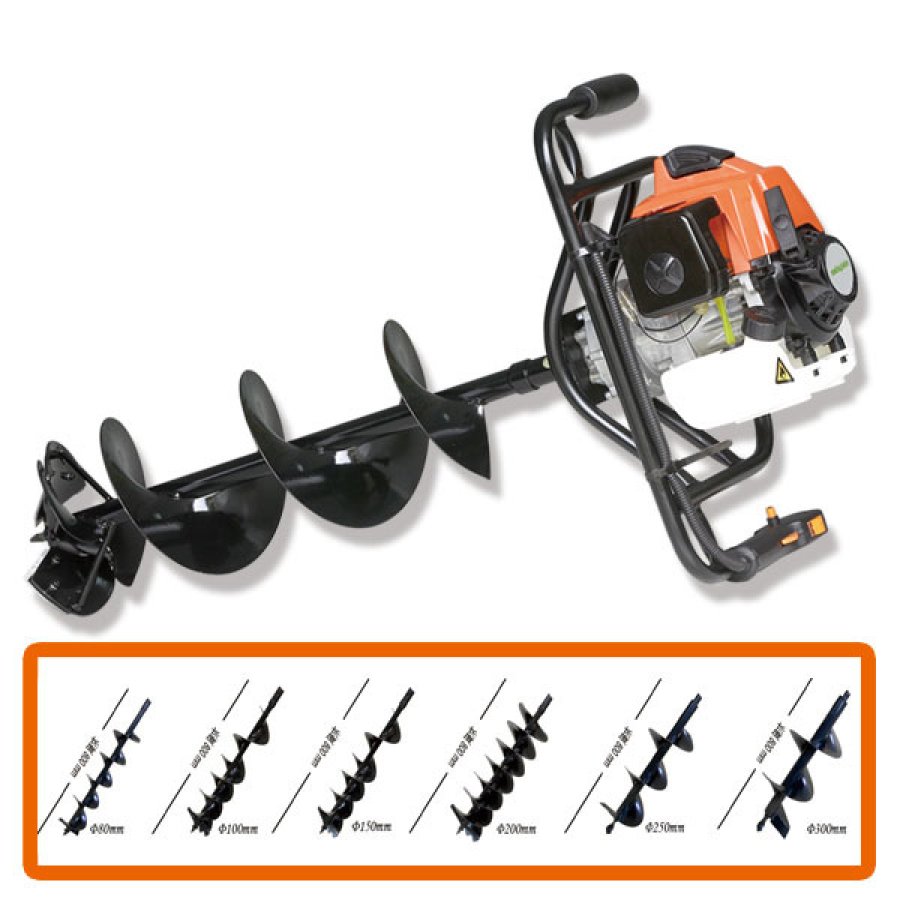

■ Works with angers from 3 in. to 14 in. in diameter for versatile auger uses.


Application:
■ The ground auger is widely used for planting digging in the seedling garden greening projects on slope, sand, and hard land, the peripheral unearthed of digging up big trees, digging holes of fence buried pile, fertilization burrowed of fruit trees, intertilling and weeding of landscaping projects, etc.
■ The ground auger digs not less than 80 pits/h, and can dig 640 pits one day counted by 8 working hours, that is, it works more than 30 times as much as manual work.
■ For intertilling and weeding, the digging width is greater than 50 centimeters, and the area is not less than 800 square meters/h, really accomplishing full automatic operation process.


Technical Specifications

Model

Double operation

Single operation

Main Unit



Net weight (kg)

10.4

9.5

Reduction gear box

Spur-gear two stage reducer

Reduction ratio

1:37

Idle speed  (r/min)

2800±150

2800±280

Clutch engaging speed (r/min)

4000±300

4200±350

Drill diameter (mm)

standard configuration:200
optional: 150/200/250/300

standard configuration:100 optional:80/100/150

Pit size (diameter×depth) (mm)

200×600

Frame box dimension (mm)

670×360×440

550×320×440

Drill box dimension (mm)

210×210×940

Engine



Model

1E48F

1E44FL-E

Type

Single cylinder, air cooled, two stroke gasoline engine

Displacement (ml)

63.3

51.7

Max power

2.0kW/7500r/min

1.3kW/7000r/min

Fuel

90# gasoline or gasohol of equal grades  mix with 2 stroke oil (JASO-FC or above grades),ratio 30:1
