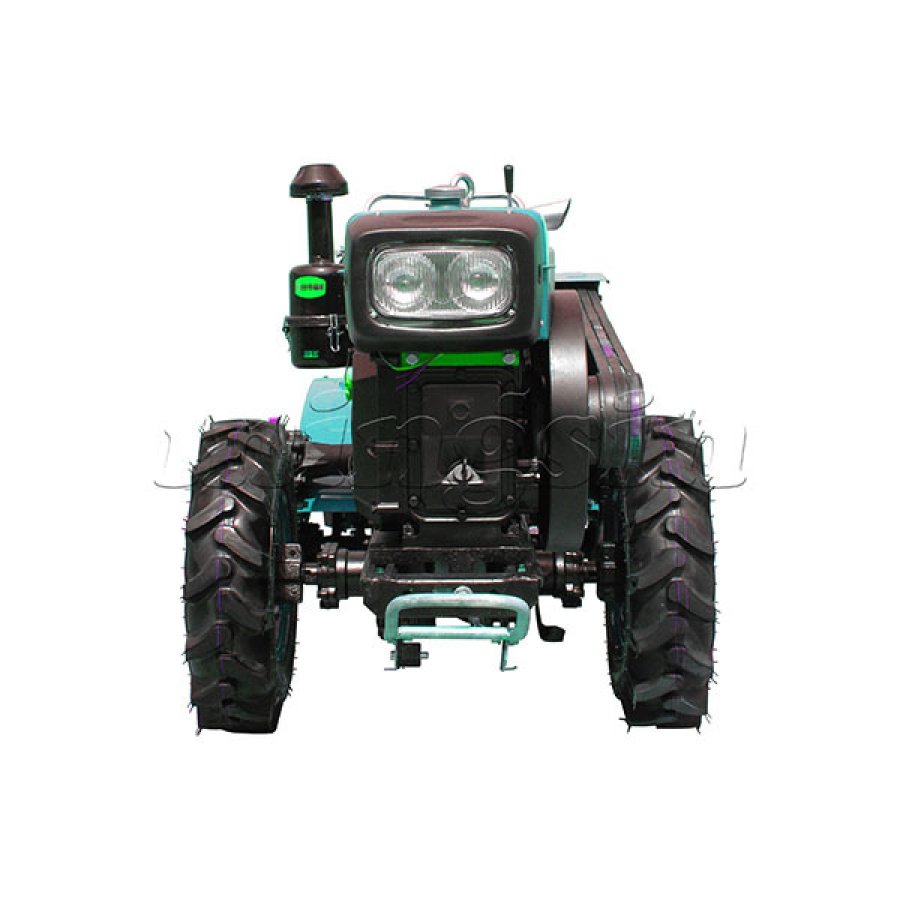

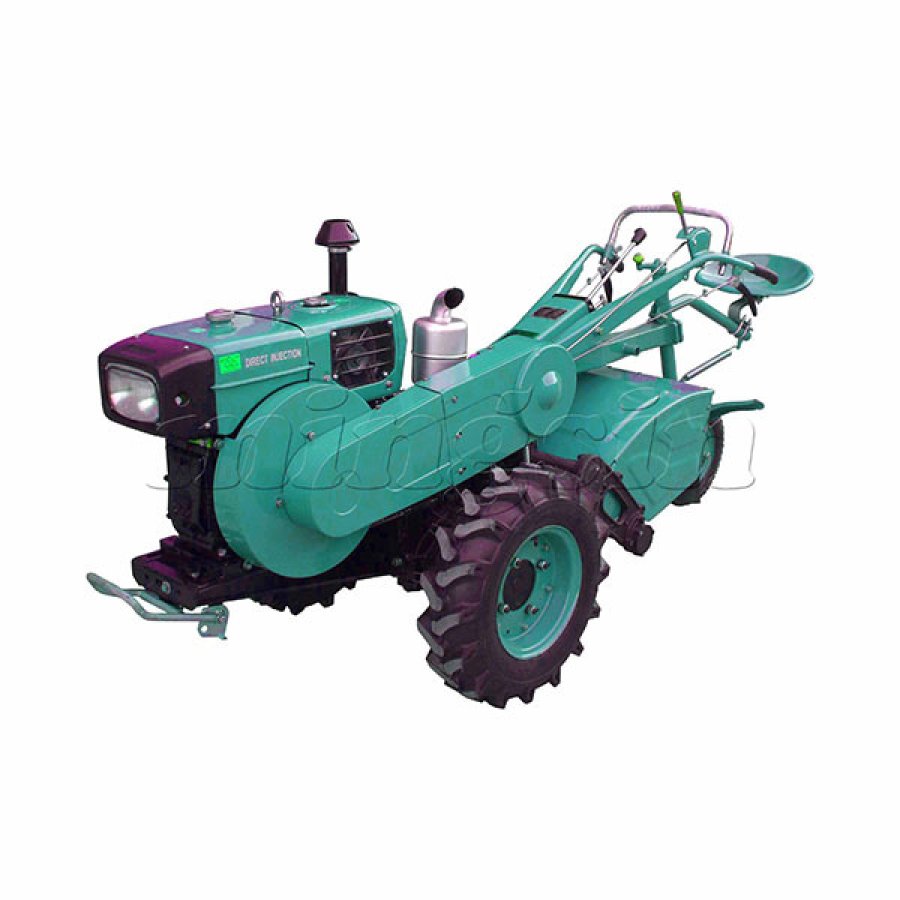

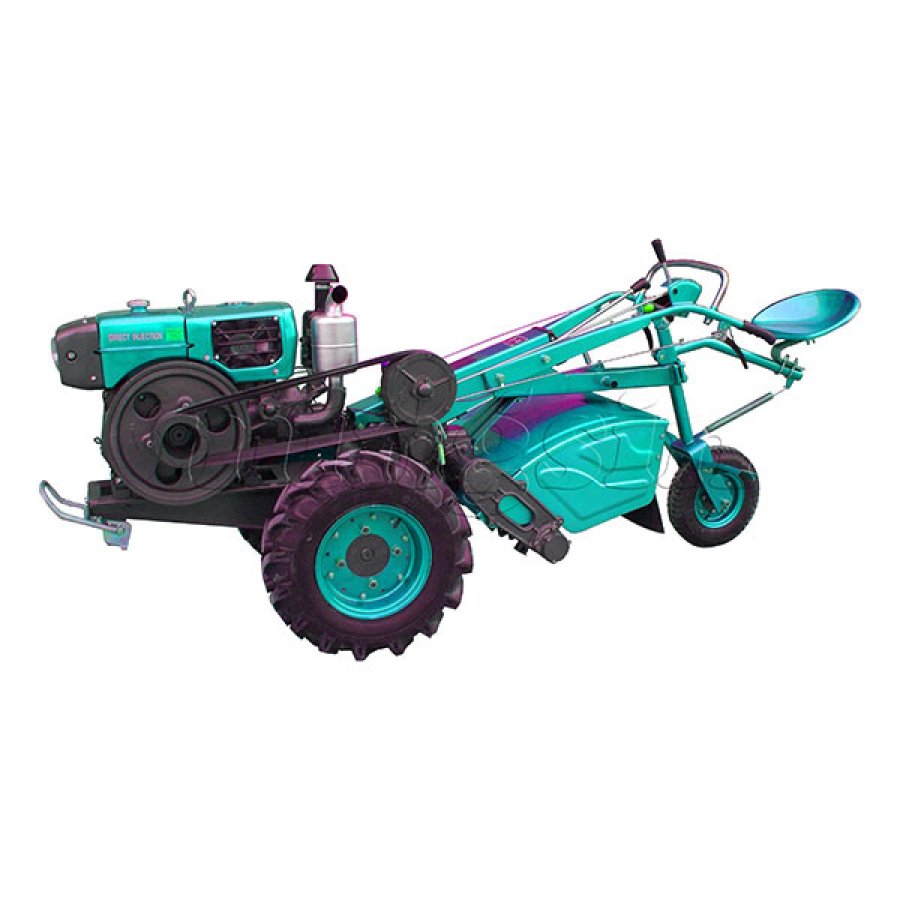

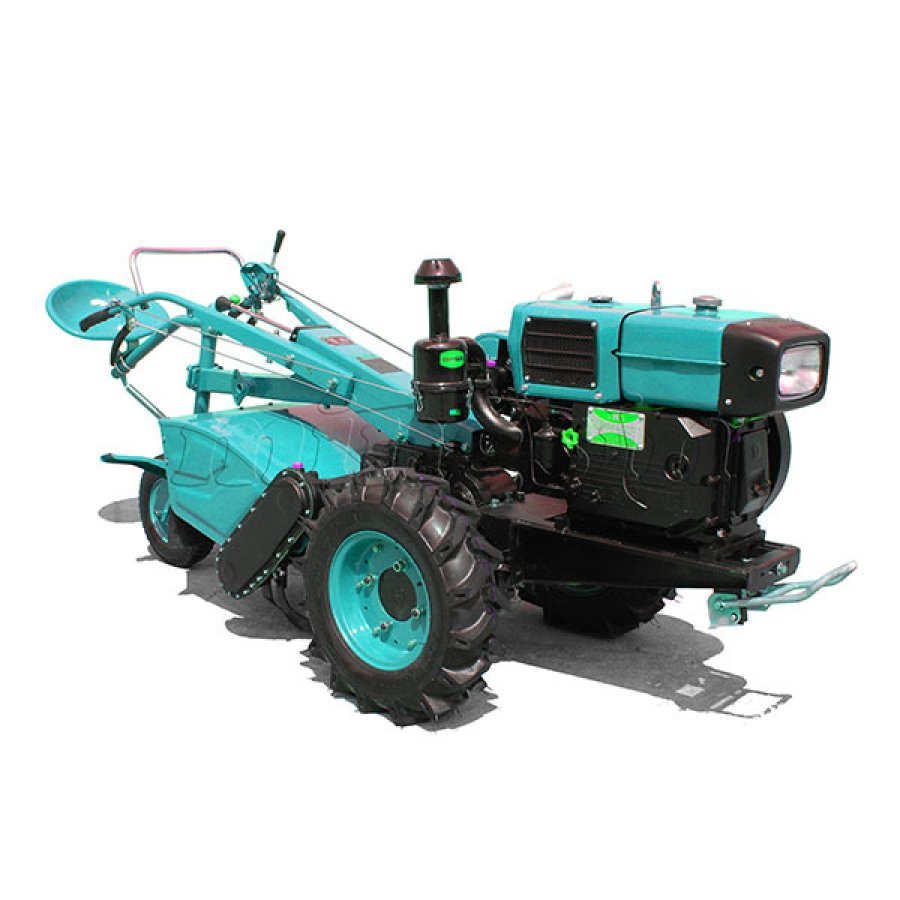

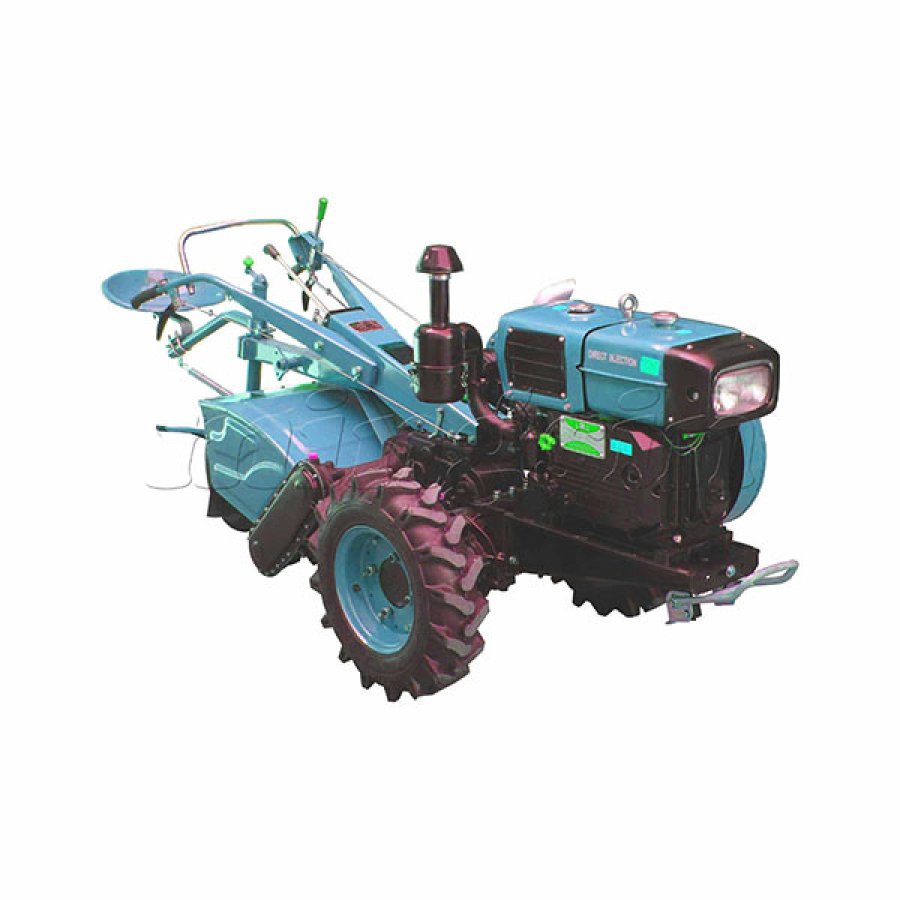

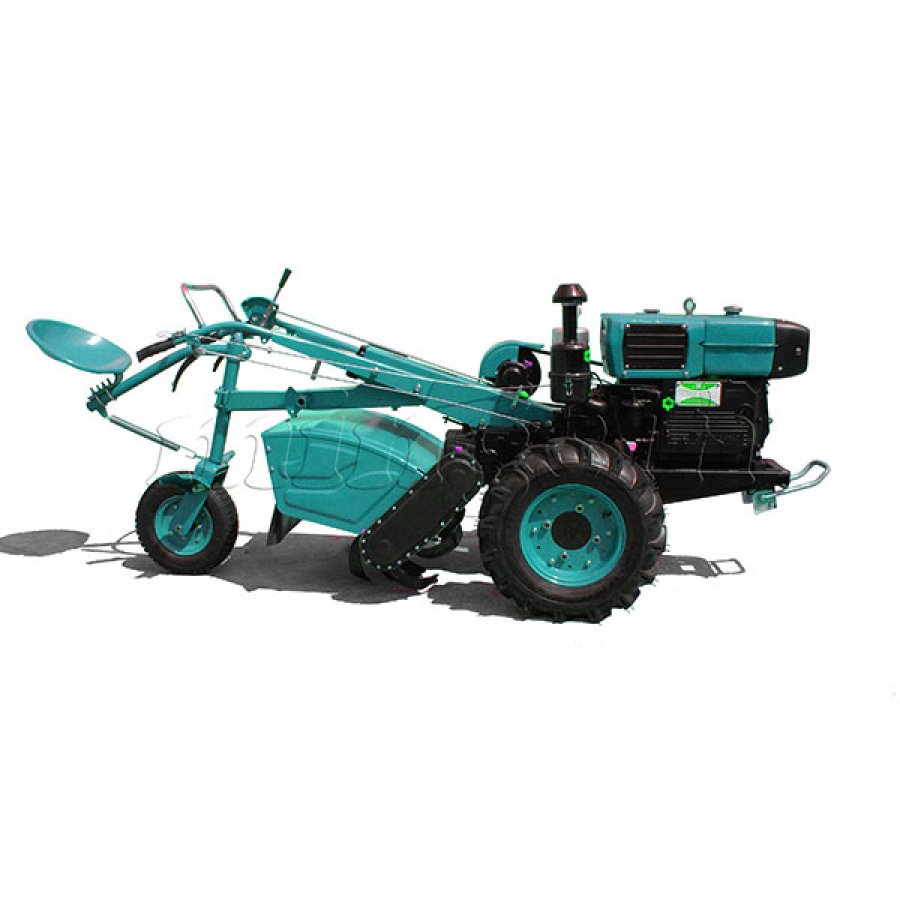

GN151 power tiller is of dual-function type that can be used as a means of traction as well as drive. It is featured by its simple and compact structure, good reliability, long service life, easy operation, ample output, light weight and good cross-country ability.
GN151
Walking Tractor
Good Description:
GN151 power tiller is of dual-function type that can be used as a means of traction as well as drive. It is featured by its simple and compact structure, good reliability, long service life, easy operation, ample output, light weight and good cross-country ability.
GN151 power tiller walking tractor is more powerful and efficient than GN-121. It is very suitable for use in paddy fields, dry fields, orchards, vegetable gardens and hilly land with a little inclination. It can be used for plough, rotary tilling, harrowing in paddy fields, harvesting, drilling, ditching, transportation and etc. If suitable farm implements or accessories are attached. In addition, it can also be extensively used as a stationary power source for small scale drainage and irrigation, sprinkling, grain threshing, cotton ginning, flour milling, fodder cutting and so on.
Parameters:
Model | Unit | GN151 | |
Structure weight | Without rotavator | kg | 360 |
With rotavator | 470 | ||
Working weight (with rotavator) | kg | 513 | |
Turning speed of rototilling shaft | rpm | 199/250 | |
Overall dimensions (LxWxH) | mm | 2950 x 980 x 1240 | |
Number of blades | PCS | 18/20 | |
Rototilling width | mm | 600 | |
Type of tractor | Single axle, dual-purpose for both traction & drive | ||
Travelling speed | Forword | Km/h | 1.55, 2.76, 4.63, 5.74, 10.19, 17.11 |
Reverse | 1.22, 4.53 | ||
Type size | 6.00-12 | ||
Wheel track | mm | 810, 750, 690, 570(normally use 810) | |
Min. ground clearance | mm | 210 | |
Min. turning radius | m | 1.1(with no rotavator) | |
Model of engine | ZS1100N | ||
Type of engine | Horizontal 4-stroke | ||
Bore x stroke | mm | 100*115 | |
Total displacement | L | 0.903 | |
Compression ratio | 20:01 | ||
Turing speed of crankshaft | rpm | 2200 | |
1-hour rated output | KW/hphp | 12.13/16.5 | |
12-hour rated output | KW/hp | 11.03/15 | |
Specific fuel consumption | g/kw.h | ≤245 | |
Specific lube oil consumption | g/kw.h | ≤2.04 | |
Cooling mode | Condenser (Radiator) | ||
Main farm implements (optional) | Anti-skid steel wheel Model 100-680 | ||
