MX81D

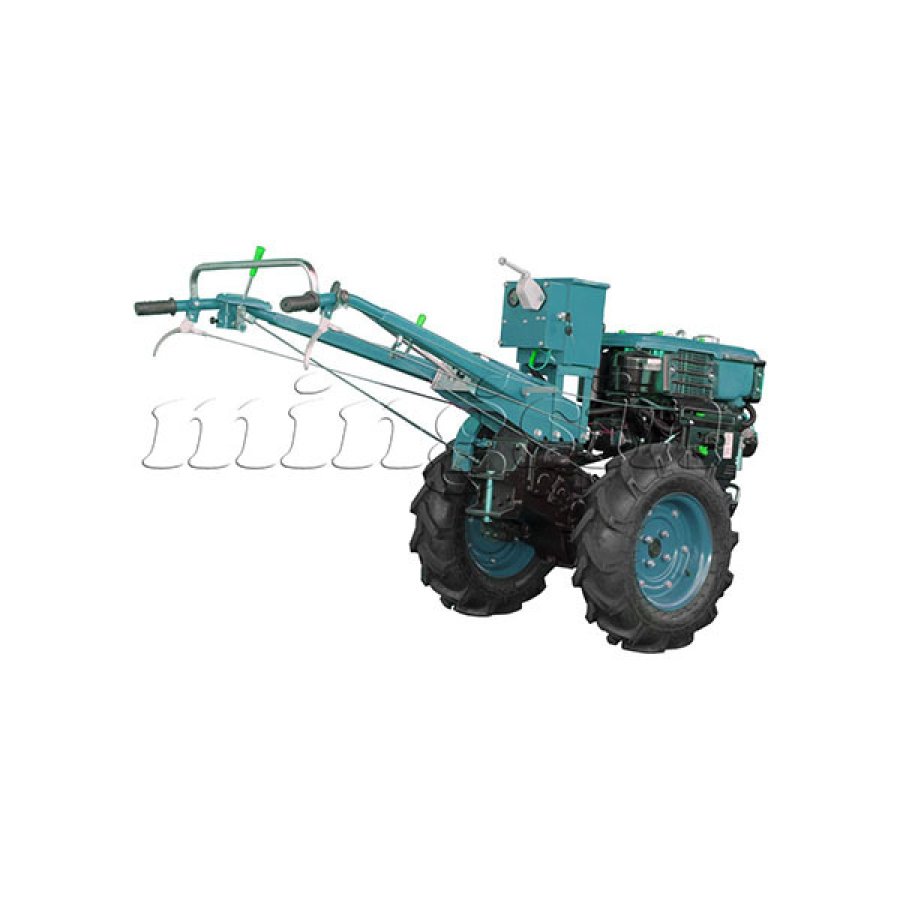

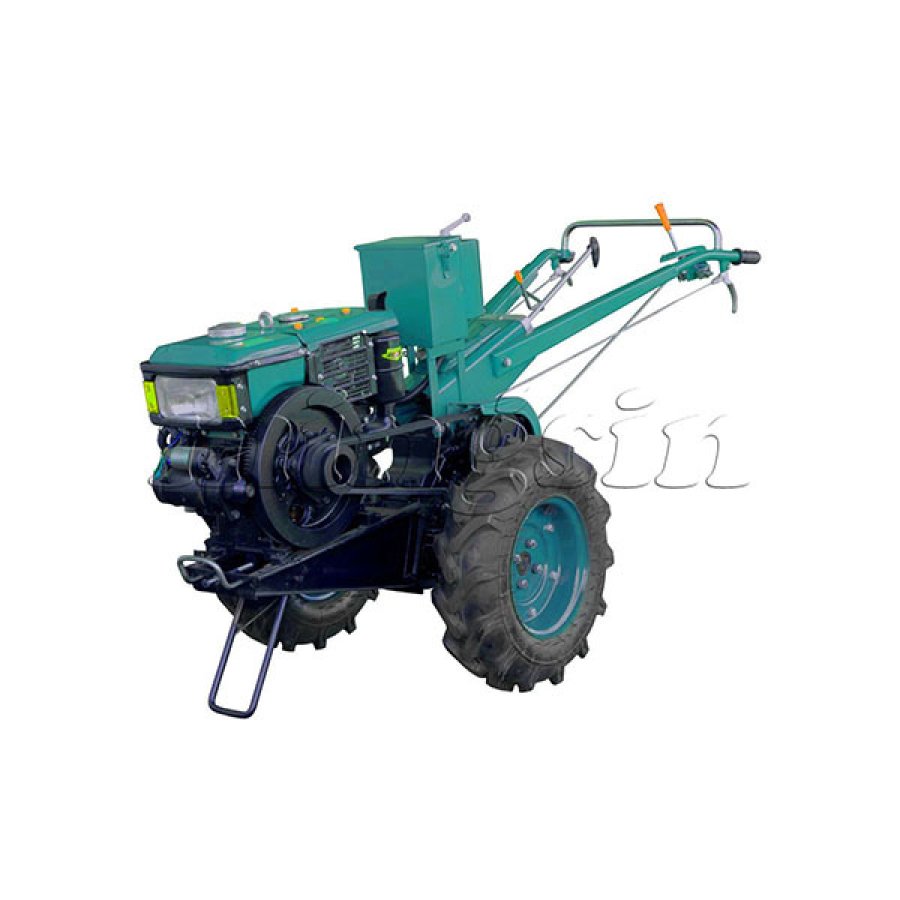

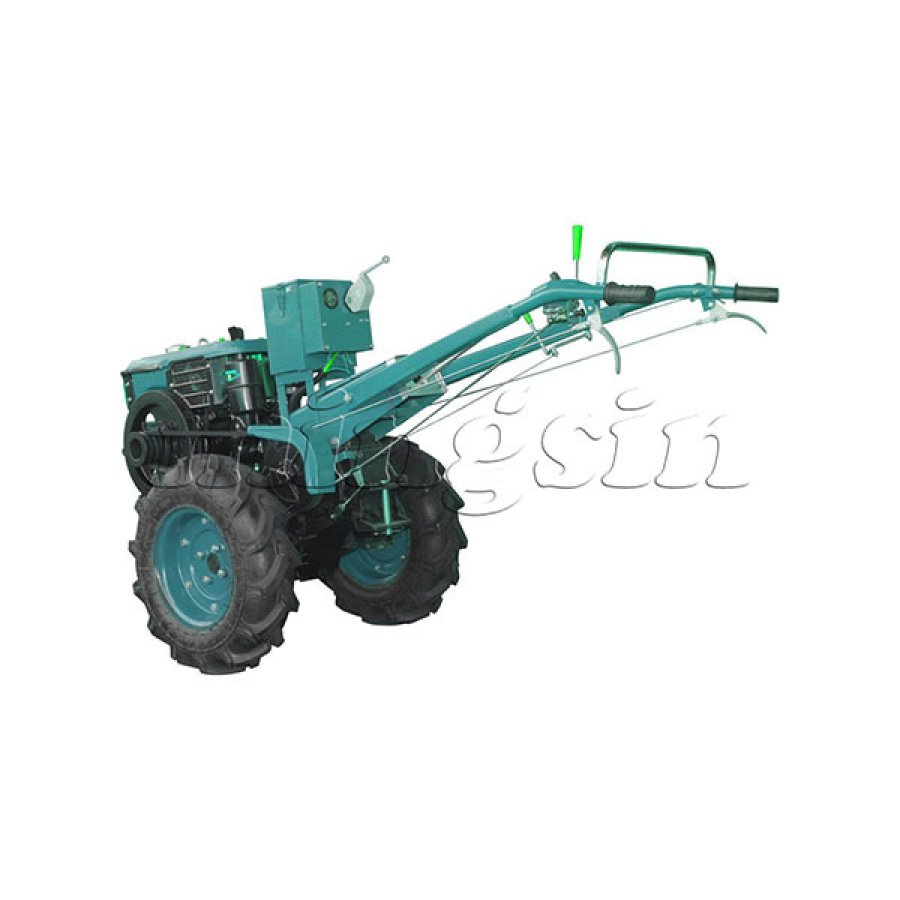

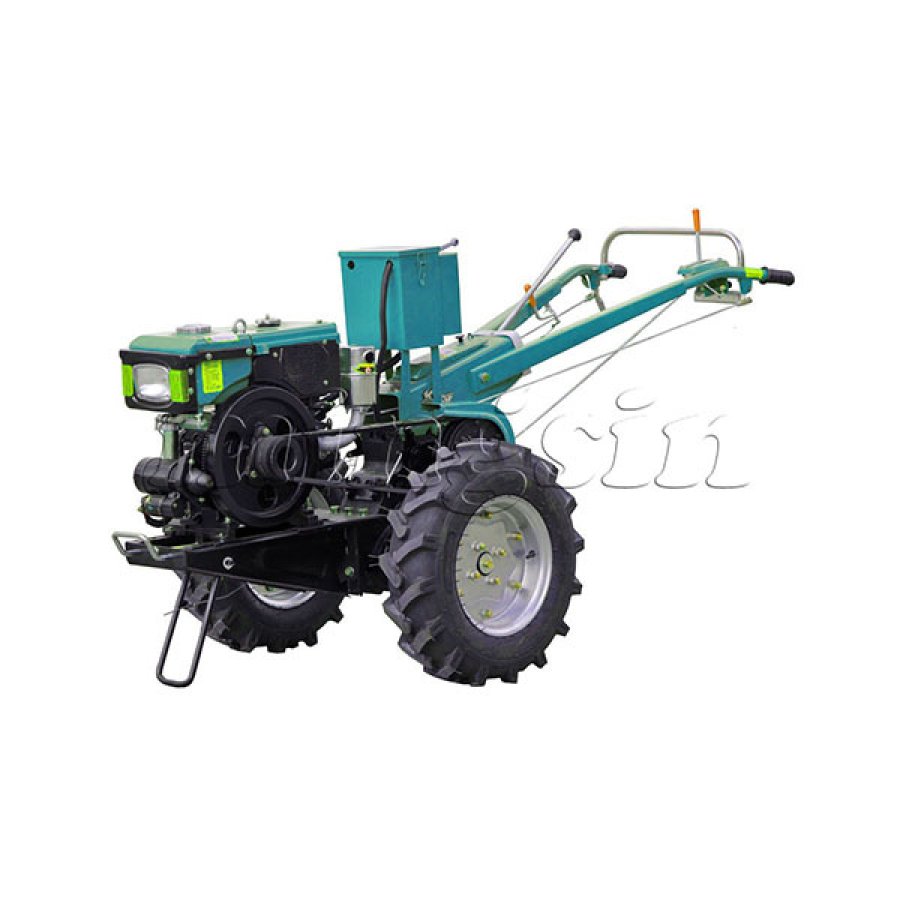

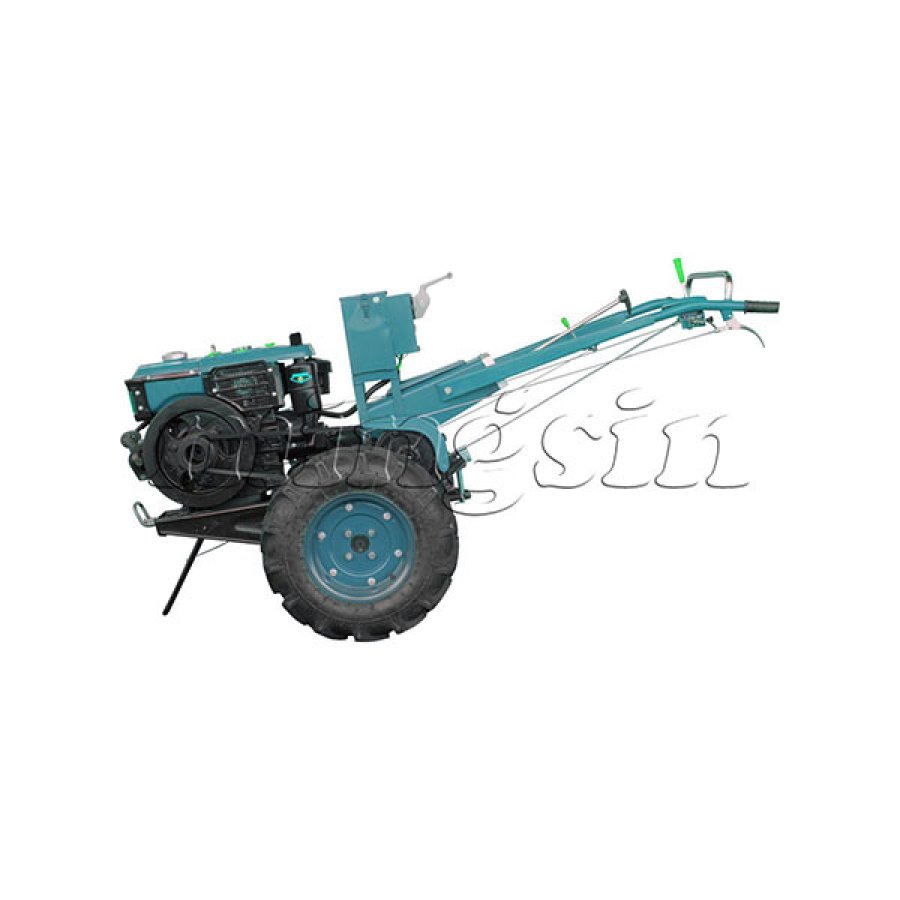

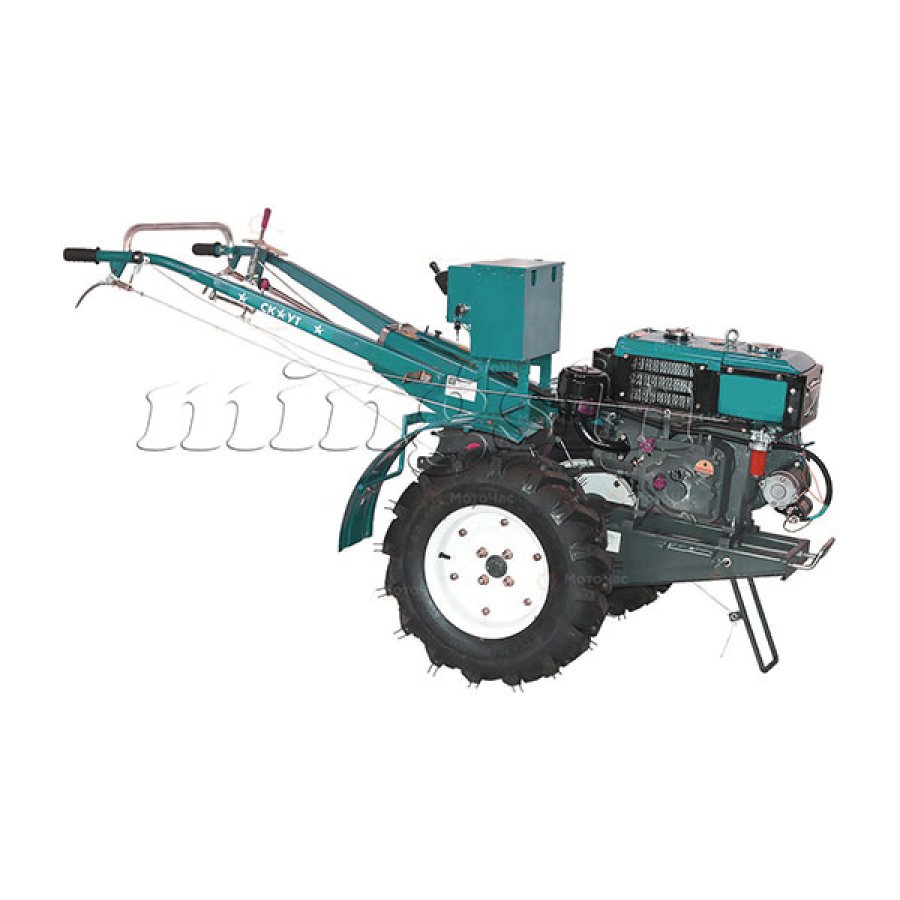

The Mingsin Brand 8hp power tiller is of dual-function type that can be used as a means of traction as well as drive. It is featured by its simple and compact structure, good reliability, long service life, easy operation, ample output, light weight and good cross-country ability.

Key words:

MX81D

Category:

Walking Tractor

Message
MX81D

Good Description:
The Mingsin Brand 8hp power tiller is of dual-function type that can be used as a means of traction as well as drive. It is featured by its simple and compact structure, good reliability, long service life, easy operation, ample output, light weight and good cross-country ability. MX81 walking tractor is more powerful and efficient than MX61. And the gear-box is in horizontal type which may lead to better equilibrium ratio. It is very suitable for use in paddy fields, dry fields, orchards, vegetable gardens and hilly land with a little inclination.
It can be used for plouhing, rotary tilling, harrowing in paddy fields, harvesting, drilling, ditching, transportation and etc. if suitable farm implements or accessories are attached. In addition, it can also be extensively used as a stationary power source for small scale drainage and irrigation, sprinkling, grain threshing, cotton ginning, flour milling, fodder cutting and so on.


Parameters:

Model

Unit

MX81D Electric starting type

Structure weight

Without rotavator

kg

223

With rotavator

280

Working weight (with rotavator)

kg

292

Overall dimensions (LxWxH)

mm

2170x845 x 1150

Number of blades

PCS

14-20

Rototilling width

mm

700, 800, 900, 1000

Type of tractor


Single axle, dual-purpose for both traction & drive

Travelling speed

Forward

Km/h

1.98, 3.08, 4.98, 8.04, 12.49, 20.2

Reverse

1.53, 6.18

Type size


6.00-12

Wheel track

mm

680~740(adjustable)

Min. ground clearance

mm

210

Min. turning radius

m

0.71 (without rotavator)

Model of engine


R180AN

Type of engine


Horizontal 4-stroke

Bore x stroke

mm

80*80

Total displacement

L

0.402

Compression ratio


22±1

Turing speed of crankshaft

rpm

2600

1-hour rated output

KW/hp

5.67/8

12-hour rated output

KW/hp

5.15/7

Specific fuel consumption

g/kw.h

≤278.8

Specific lube oil consumption

g/kw.h

≤2.72

Cooling mode


Condenser (Radiator)

Main farm implements (optional)

     Anti-skid steel wheel Model 100-640
     Single-furrow plough Model 1LS-125
     Turnover plough
     Rotary tiller Model MX80D-1
     Sprinkler Model 50BPZ-45
     reaper Model 4GL-100
     Trailer 7C-0.8 (Standard)
