The Mingsin Brand power tiller MX111 is of dual-function type that can be used as a means of traction as well as drive. Compared to the MX101, it has the speed changing lever of high speed and low speed. It is featured by its simple and compact structure, good reliability, long service life,

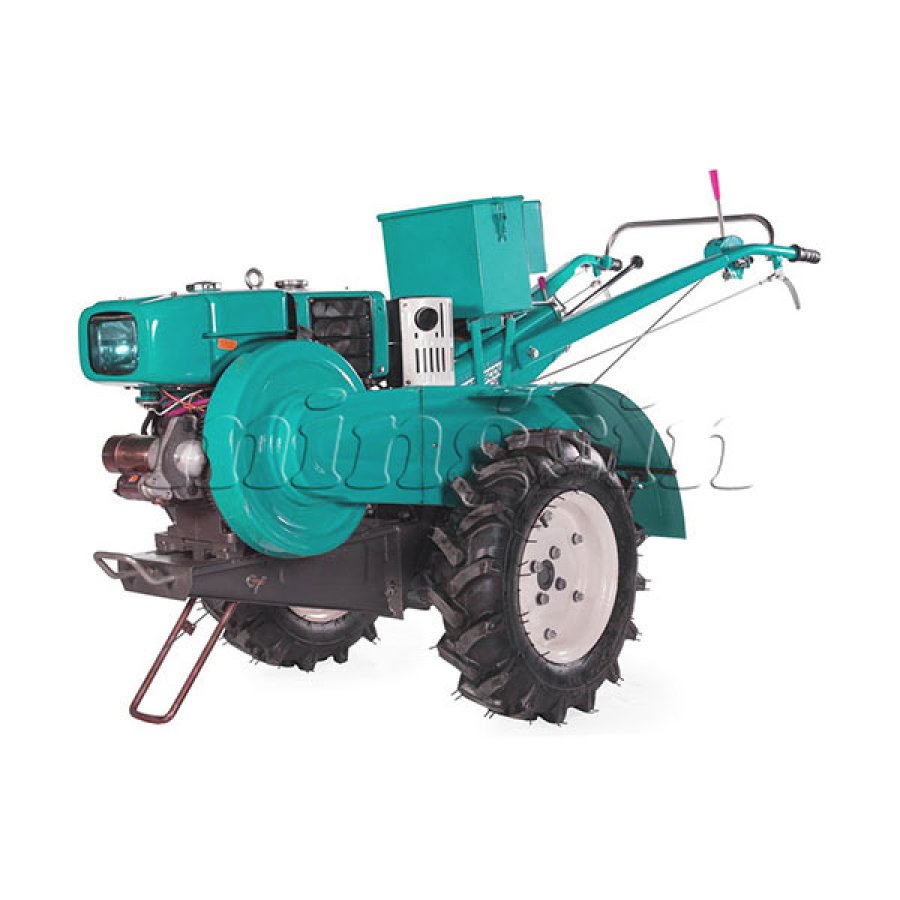

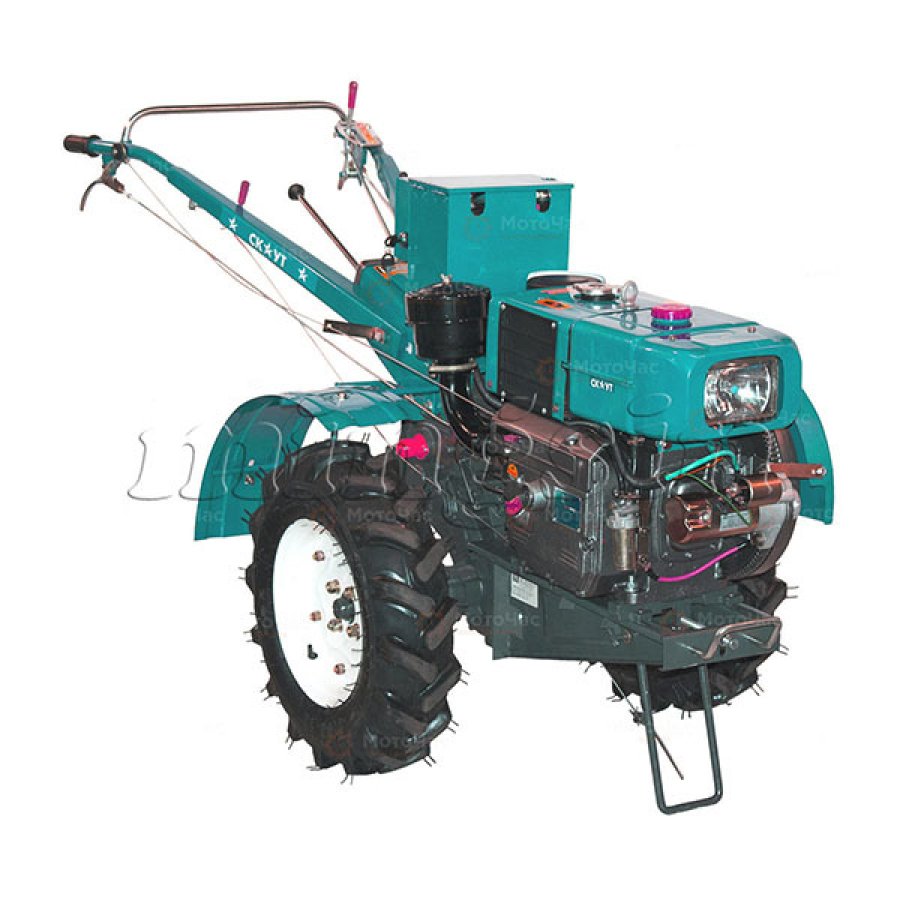

MX111
Walking Tractor
Good Description:
The Mingsin Brand power tiller MX111 is of dual-function type that can be used as a means of traction as well as drive. Compared to the MX101, it has the speed changing lever of high speed and low speed. It is featured by its simple and compact structure, good reliability, long service life, easy operation, ample output, light weight and good cross-country ability. And the gear-box is in horizontal type which may lead to better equilibrium ratio. It is very suitable for use in paddy fields, dry fields, orchards, vegetable gardens and hilly land with a little inclination.

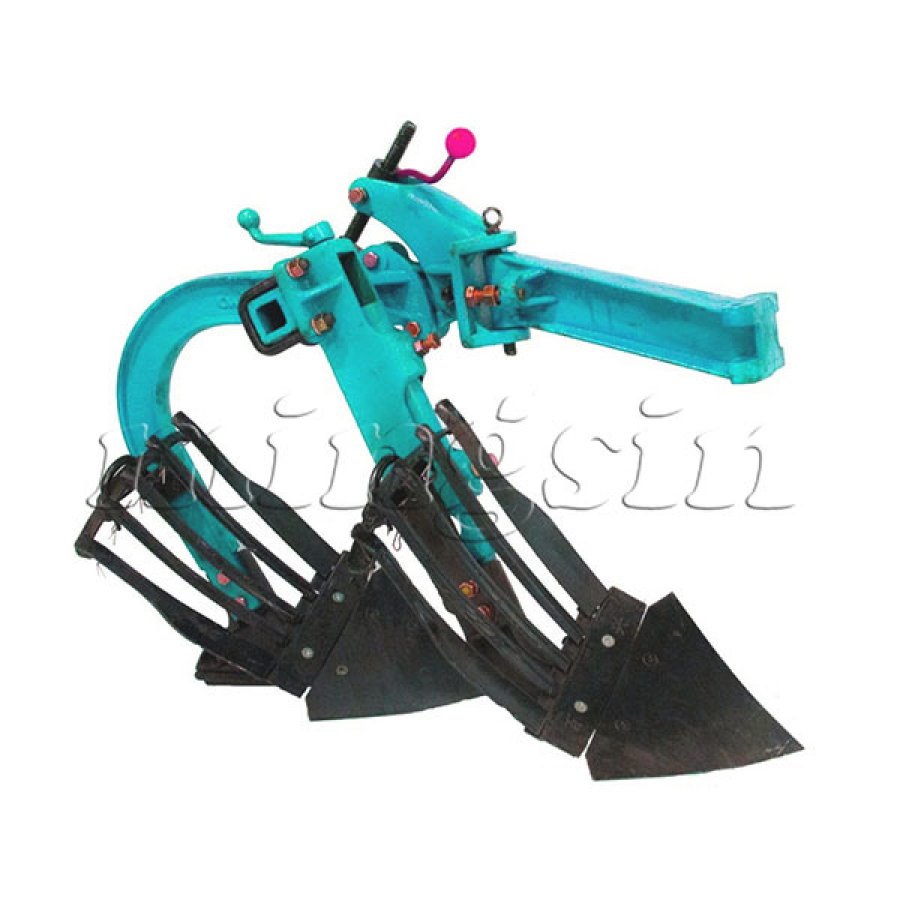

It can be used for plough rotary tilling, harrowing in paddy fields, harvesting, drilling, ditching, transportation and etc. If suitable farm implements or accessories are attached. In addition, it can also be extensively used as a stationery power source for small scale drainage and irrigation, sprinkling, grain threshing, cotton ginning, flour milling, fodder cutting and so on.
Supplying with Walking Tractor price consultation, it is one of the leading China manufacturers and suppliers, with 12hp walk behind tractor for sale, please feel free to wholesale cheap products from our factory.
Parameters:
Model | Unit | MX111 | |
Structure weight | Without rotavator | kg | 255 |
With rotavator | 313 | ||
Working weight (with rotavator) | kg | 325 | |
Overall dimensions (LxWxH) | mm | 2170x845 x 1150 | |
Number of blades | PCS | 14-22 | |

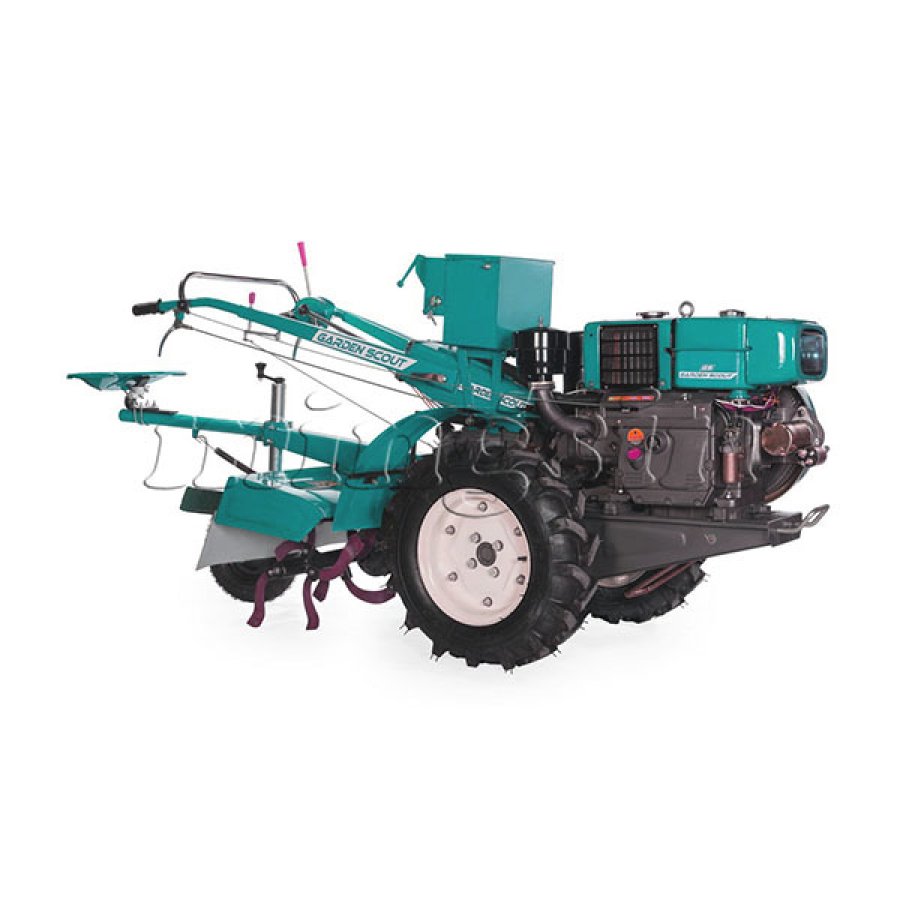

Rototilling width | mm | 700, 800, 900, 1000 | |
Type of tractor | Single axle, dual-purpose for both traction & drive | ||
Travelling speed | Forward | Km/h | 1.98, 3.08, 4.98, 8.04, 12.49, 20.2 |
Reverse | 1.53, 6.18 | ||
Type size | 6.00-12 | ||
Wheel track | mm | 680~740(adjustable) | |
Min. ground clearance | mm | 210 | |
Min. turning radius | m | 0.71 (without rotavator) | |

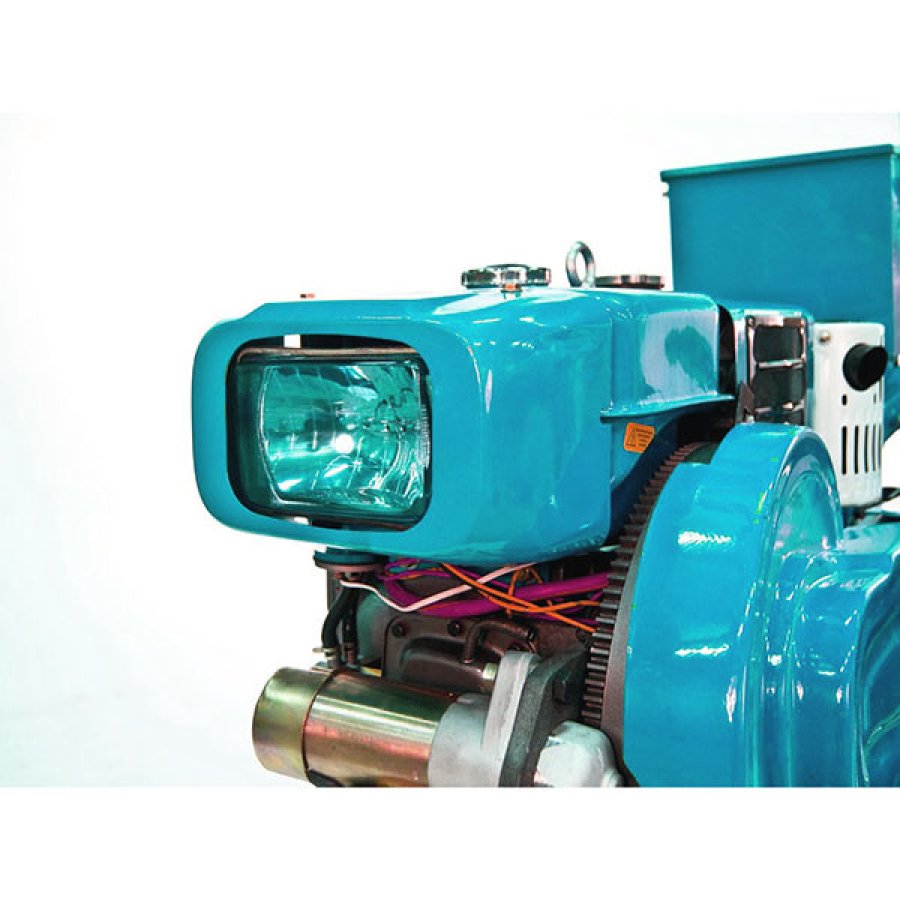

Model of engine | R195AN | ||
Type of engine | Horizontal 4-stroke | ||
Bore x stroke | mm | 95*100 | |
Total displacement | L | 0.709 | |
Compression ratio | 21:01 | ||
Turing speed of crankshaft | rpm | 2200 | |
1-hour rated output | KW/hp | 8.82/12 | |
12-hour rated output | KW/hp | 8.10/11 | |
Specific fuel consumption | g/kw.h | ≤244.80 | |
Specific lube oil consumption | g/kw.h | ≤ | |
Cooling mode | Condenser (Radiator) | ||

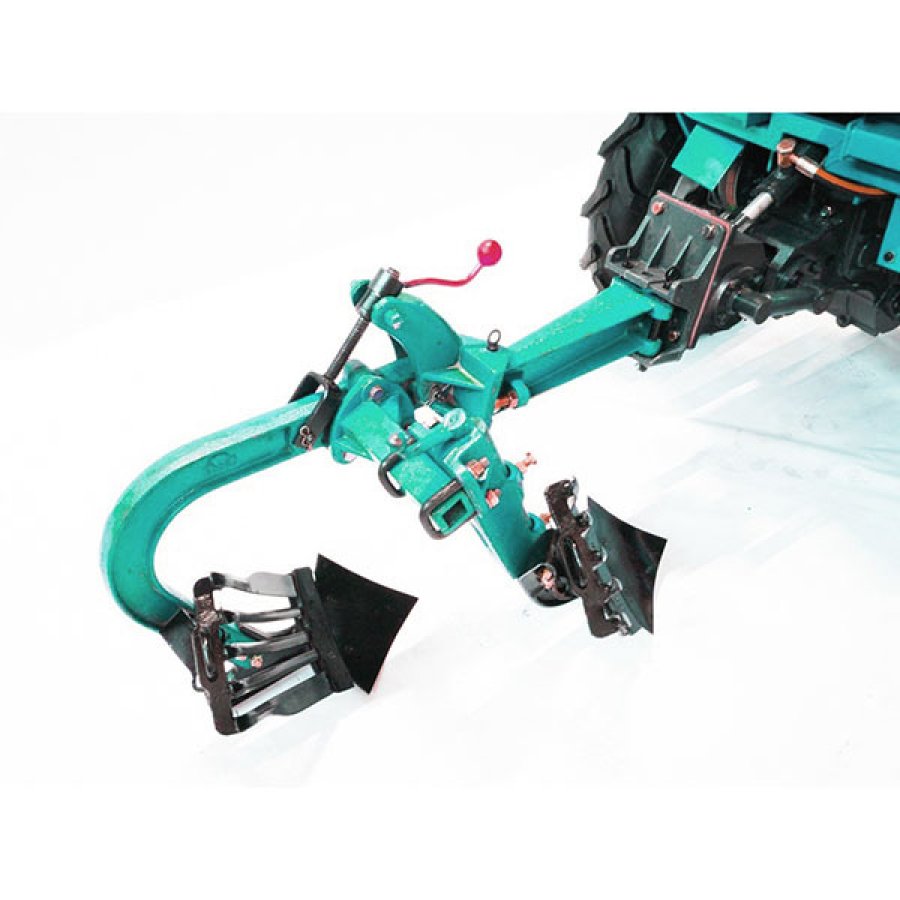

Main farm implements (optional) | Anti-skid steel wheel Model 100-640 | ||
