DF type DF-15L walking tractor of dual-function type can be used as a means of traction as well as P.T.O. power transmission. The tractor is featured b its simple and compact construction, reliability, long service life, easy operation, ample output, light weight and high versatility.

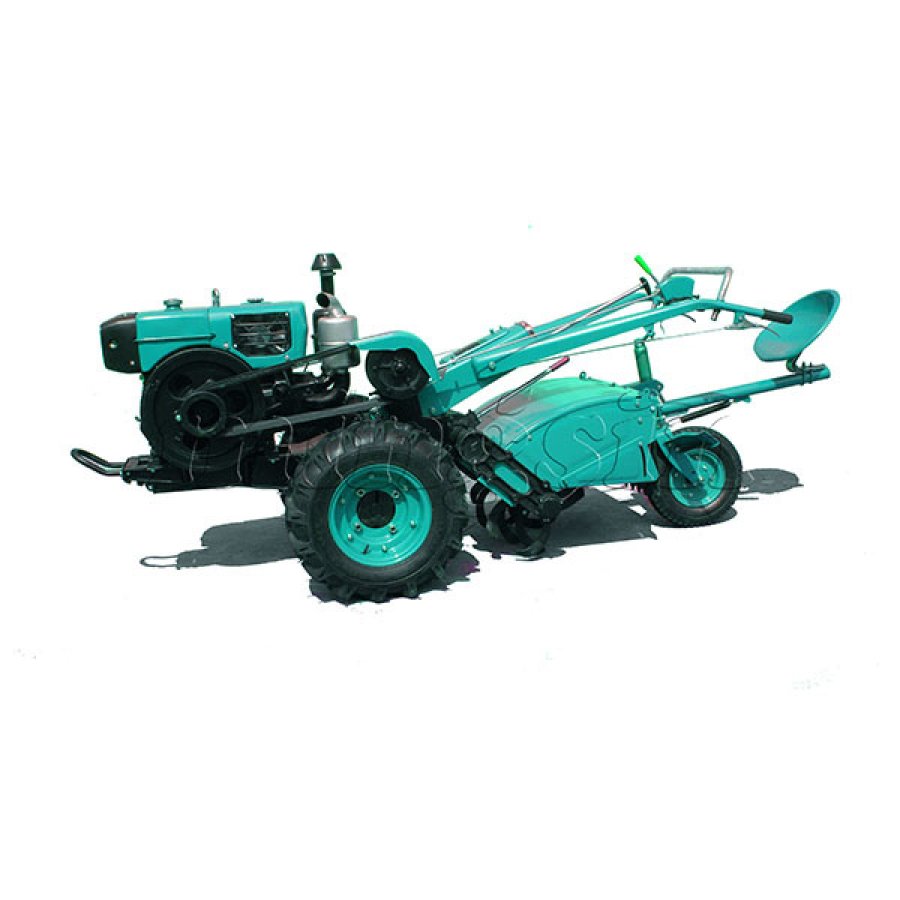

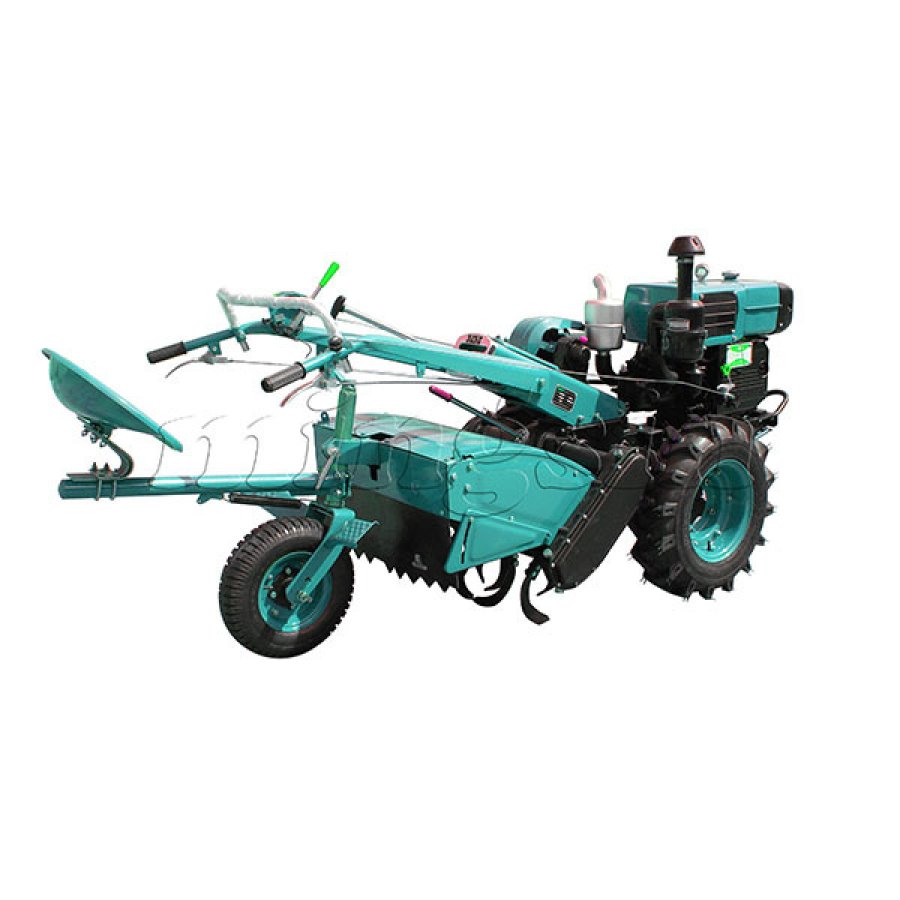

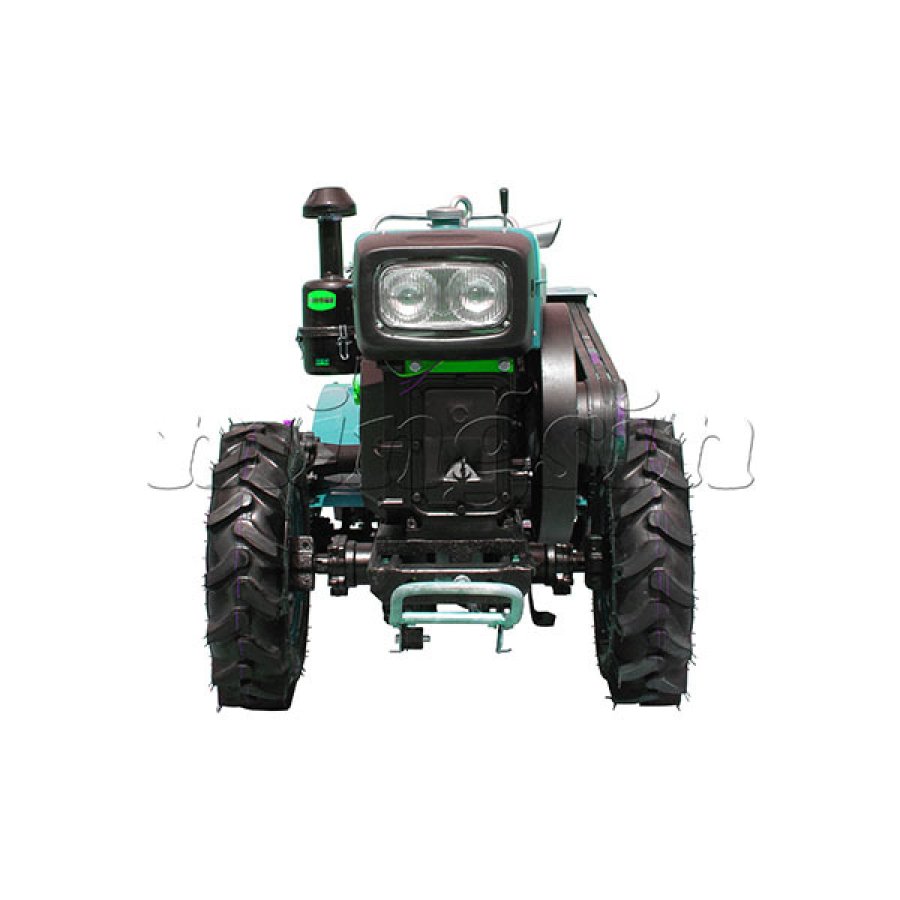

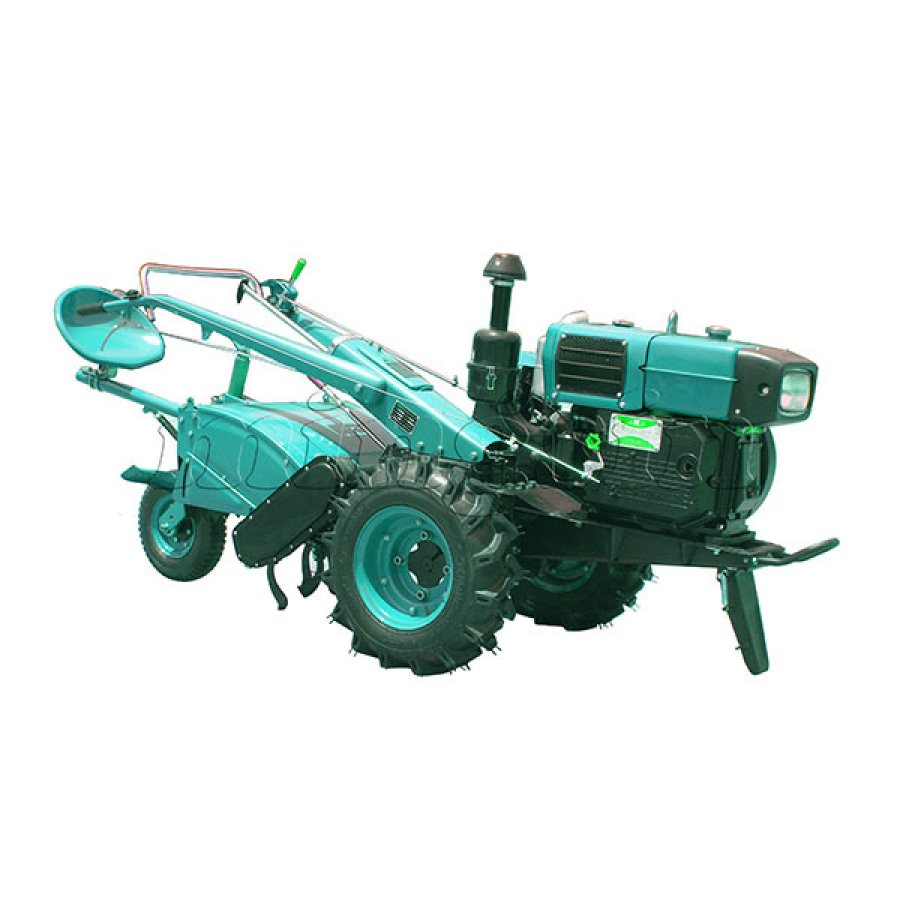

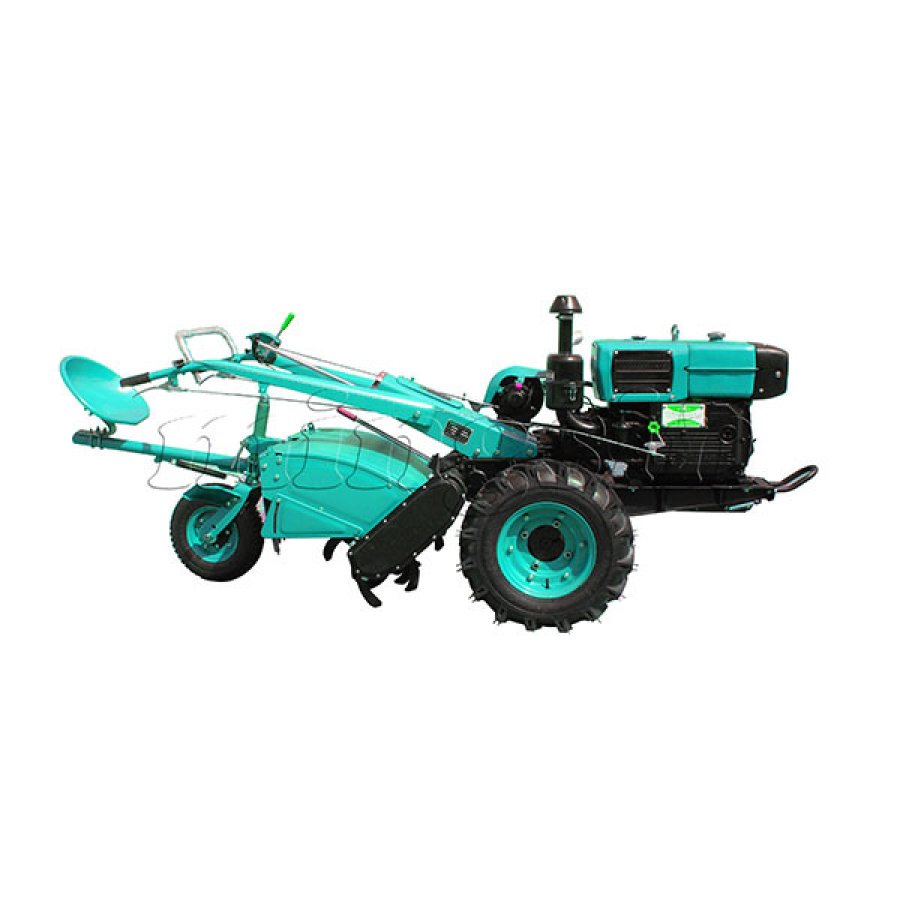

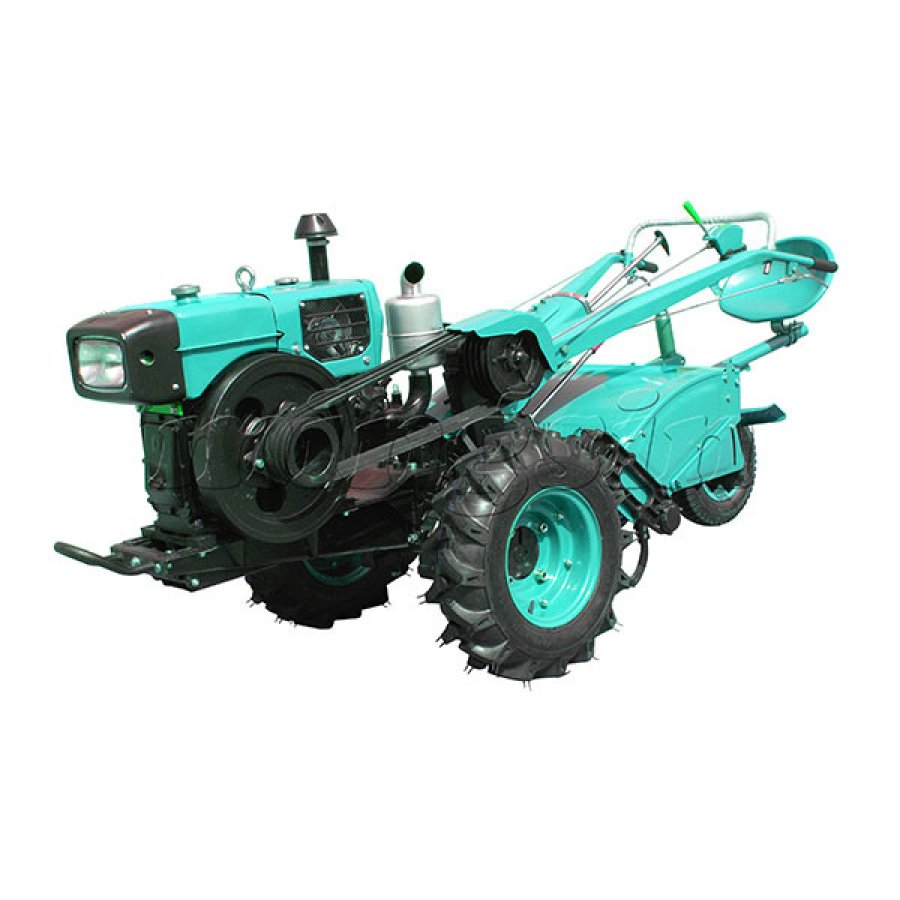

DF-15L
Walking Tractor
Good Description:
DF type DF-15L walking tractor of dual-function type can be used as a means of traction as well as P.T.O. power transmission. The tractor is featured b its simple and compact construction, reliability, long service life, easy operation, ample output, light weight and high versatility.This actor is very suitable for use in paddy field, small dry fields, orchards, vegetable gardens of hilly land with small inclination. It can be used for plowing, rotary cultivating, harrowing in paddy field, harvesting, transportation, etc., if suitable implements or accessories are attached. In addition, the tractor can be extensively used as a stationary power station for small scale drainage and irrigation, spraying, gran threshing, cottons ginning, flour milling, fodder cutting, etc.
Parameters:
Model | Unit | DF-15L | |
Structure weight | Without rotavator | kg | 363 |
With rotavator | 468 | ||
Working weight (with rotavator) | kg | 508 | |
Turning speed of rototilling shaft | rpm | 188/300 | |
Overall dimensions (LxWxH) | mm | 2680 x 960 x 1250 | |
Number of blades | PCS | 18 | |
Rototilling width | mm | 600 | |
Type of tractor | Single axle, dual-purpose for both traction & drive | ||
Travelling speed | Forward | Km/h | 1.4,2.5,4.1,5.3,9.4,15.3 |
Reverse | 1.1, 3.8 | ||
Type size | 6.00-12 | ||
Wheel track | mm | 800, 740, 640, 580(normally use 800) | |
Min. ground clearance | mm | 185 | |
Min. turning radius | m | 0.9（without rotavator） | |
Model of engine | ZS1100N | ||
Type of engine | Horizontal 4-stroke | ||
Bore x stroke | mm | 100*115 | |
Total displacement | L | 0.903 | |
Compression ratio | 19.5：1 | ||
Turing speed of crankshaft | rpm | 2000 | |
1-hour rated output | KW/hp | 10.5/14.3 | |
12-hour rated output | KW/hp | 9.8/13.33 | |
Specific fuel consumption | g/kw.h | ≤250 | |
Specific lube oil consumption | g/kw.h | ≤2.00 | |
Cooling mode | Condenser (Radiator) | ||
Main farm implements (optional) | Anti-skid steel wheel Model 100-640 | ||
