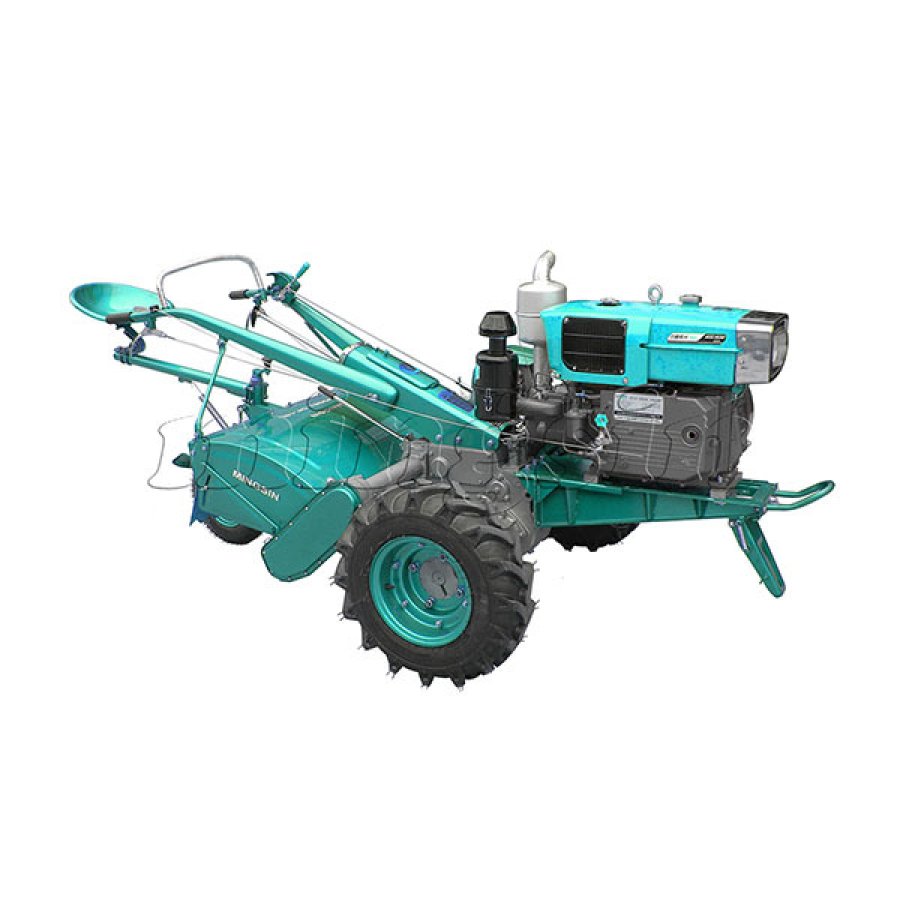

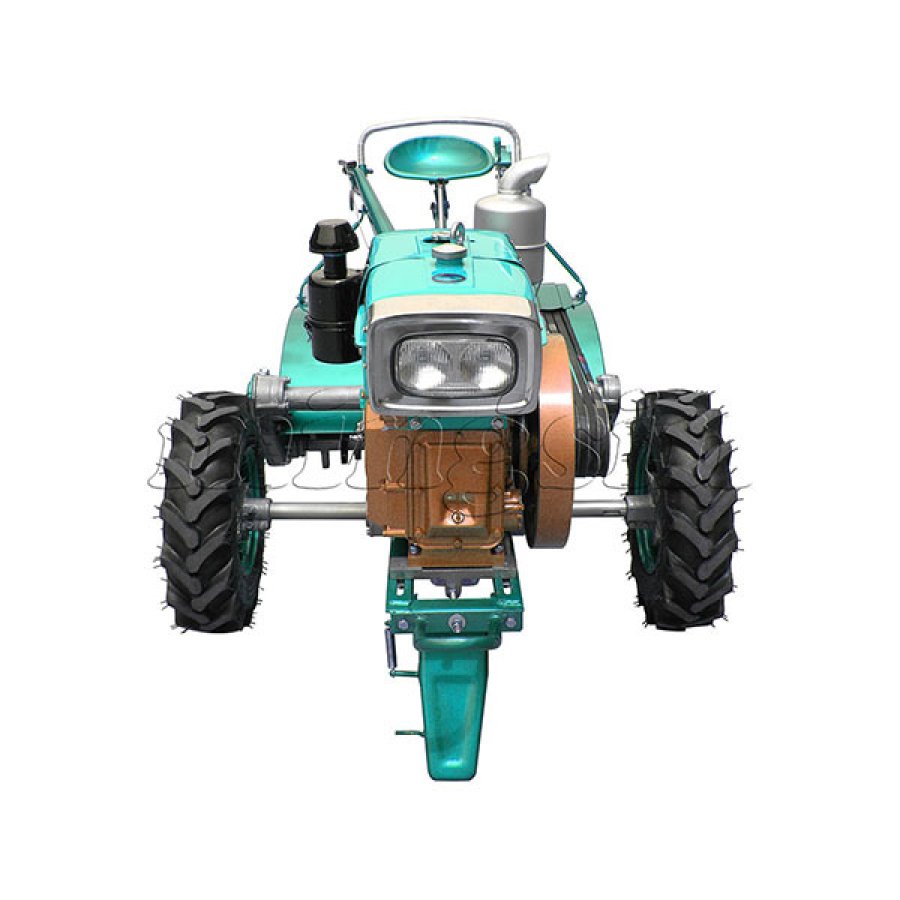

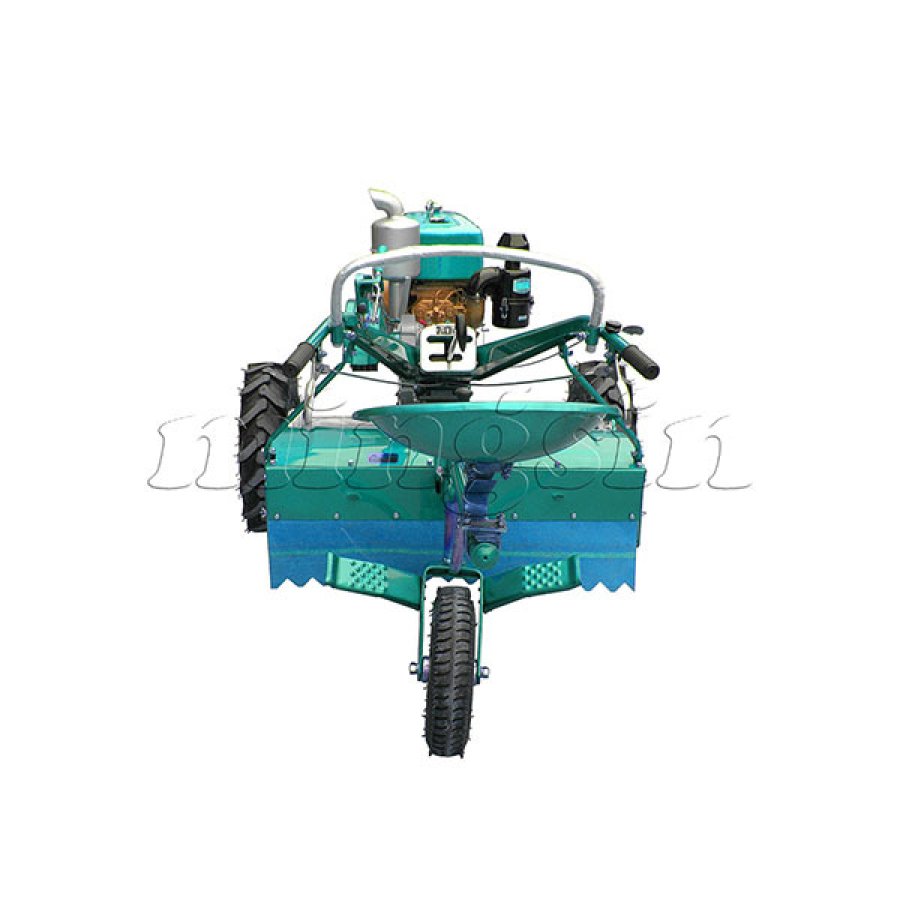

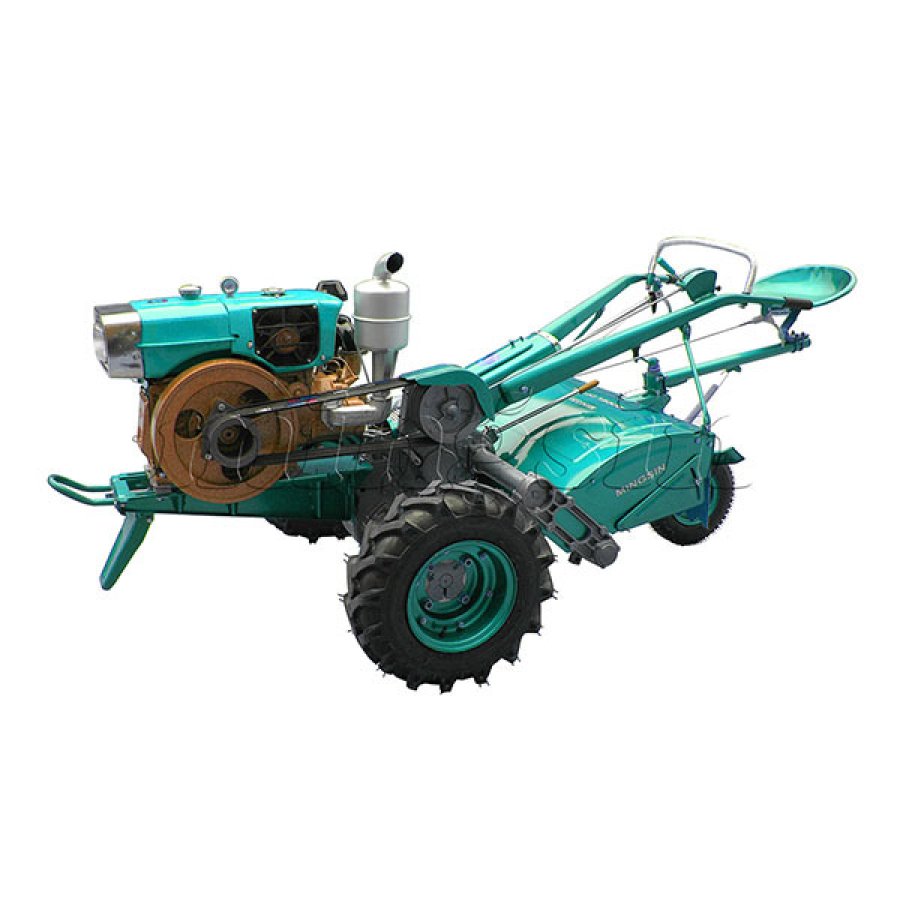

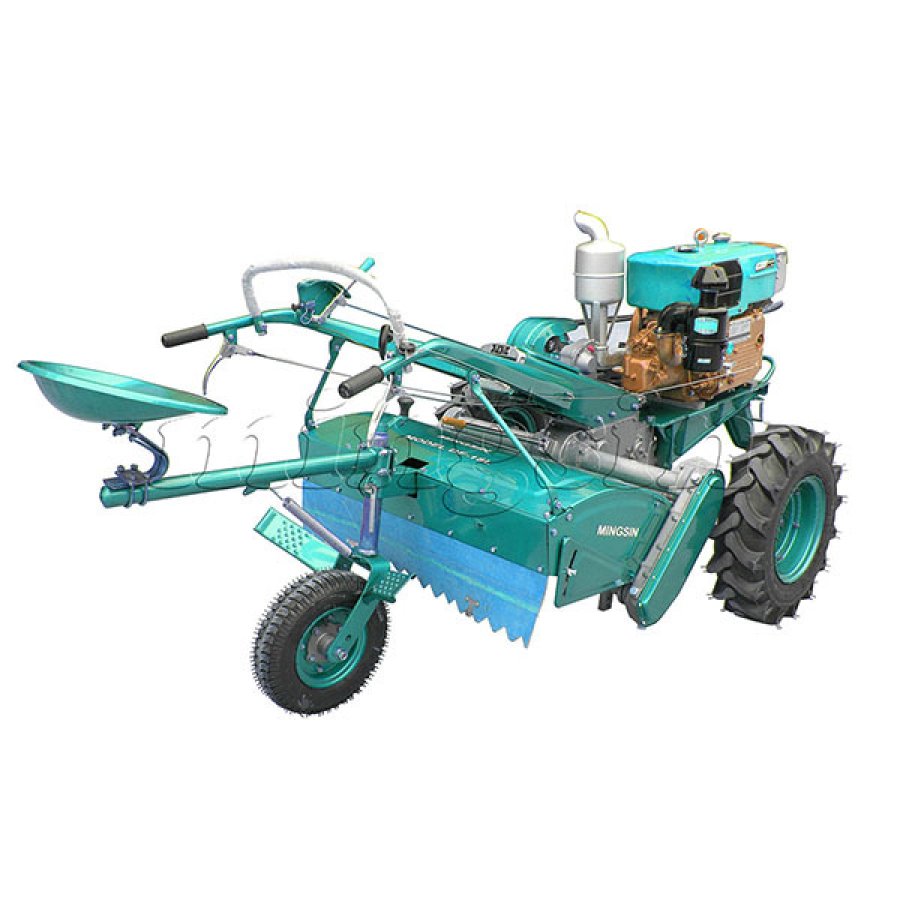

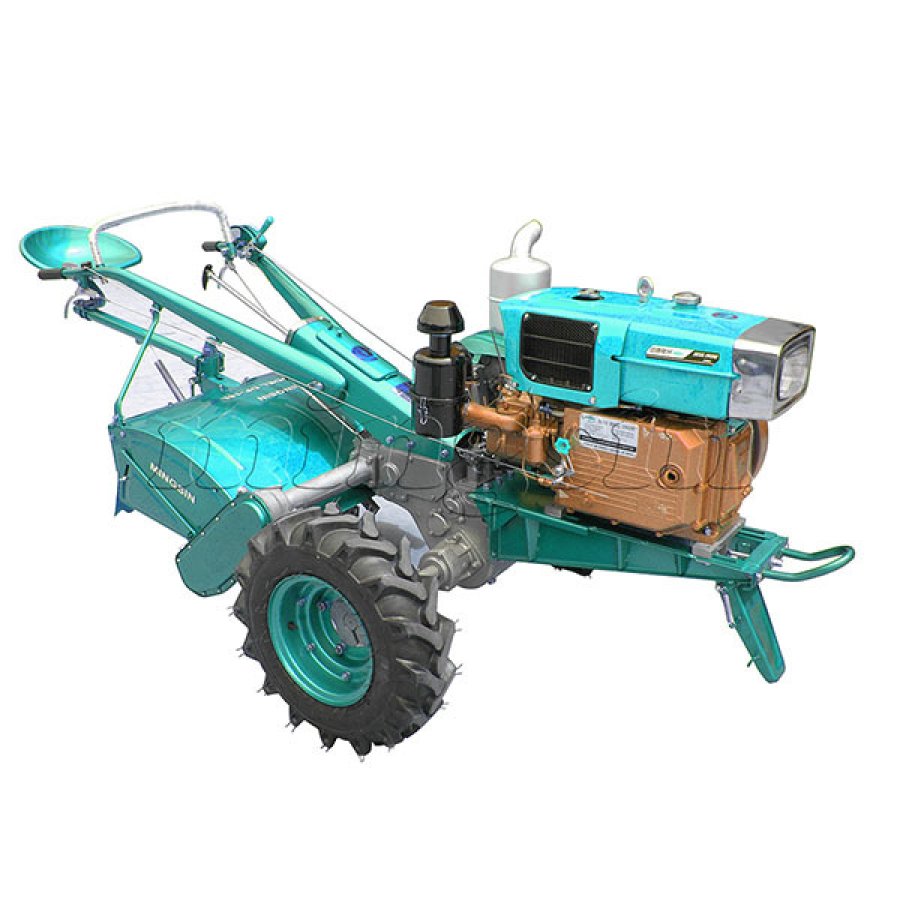

DF type DF-18L walking tractor of dual-function type can be used as a means of traction as well as P.T.O. power transmission. The tractor is featured b its simple and compact construction, reliability, long service life, easy operation, ample output, light weight and high versatility.
DF-18L
Walking Tractor
Good Description:
1) 20HP DF power tiller two wheel tractors modelDF-18L the dual-function type that can be used as a means of traction as well as drive. With its strong and heavy type chassis, it is suitable for the paddy and dry field with bigger field areas and long working time.
2) Simple and compact structure, good reliability, long service life, easy operation, ample output, light weight and good cross-country ability.
Working conditions:
It is very suitable for use in paddy fields, dry fields, orchards, vegetable gardens and hilly land with a little inclination. It can be used for plough, rotary tilling, harrowing in paddy fields, harvesting, drilling, ditching, transportation and etc. if suitable farm implements or accessories are attached. In addition, it can also be extensively used as a stationary power source for small scale drainage and irrigation, sprinkling, grain threshing, cotton ginning, flour milling, fodder cutting and so on.
Parameters:
Model | Unit | DF-18L | |
Structure weight | Without rotary tiller | kg | 503 |
With rotary tiller | 513 | ||
Working weight (with rotary tiller) | kg | 548 | |
Turning speed of rototilling shaft | rpm | 188/300 | |
Overall dimensions (L*W*H) | mm | 2680 x 1030 x 1250 | |
Number of blades | PCS | 24 | |
Rototilling width | mm | 800/900 | |
Type of tractor | Single axle, dual-purpose for both traction & drive | ||
Travelling speed | Forword | Km/h | 1.4,2.5,4.1,5.3,9.4,15.3 |
Reverse | 1.1, 3.8 | ||
Type size | 6.00-12 | ||
Wheel track | mm | 800, 740, 640, 580(normally use 800) | |
Min. ground clearance | mm | 185 | |
Min. turning radius | m | 0.9(without rotary tiller) | |
Model of engine | ZS1115N | ||
Type of engine | Horizontal 4-stroke | ||
Bore x stroke | mm | 110*115 or 115*115 | |
Total displacement | L | 1.0931 or 1.1941 | |
Compression ratio | 17:01 | ||
Turing speed of crankshaft | rpm | 2200 | |
1-hour rated output | KW/hphp | 20hp or 22h | |
12-hour rated output | KW/hp | 18hp or 20hp | |
Consumo especifico de combustible | g/kw.h | ≤244.8 | |
Specific lube oil consumption | g/kw.h | ≤1.47 | |
Cooling mode | Condenser (Radiator) | ||
Main farm implements (optional) | Anti-skid steel wheel Model 100-640 | ||
