Suitable for dry fields in plain, mountain and hilly areas. Attached with the implements, it could finish the work of tilling, plowing, mowing, reaping, harvesting, irrigating and so on. When attached the trailer, it also could be used for the short distance transportation.

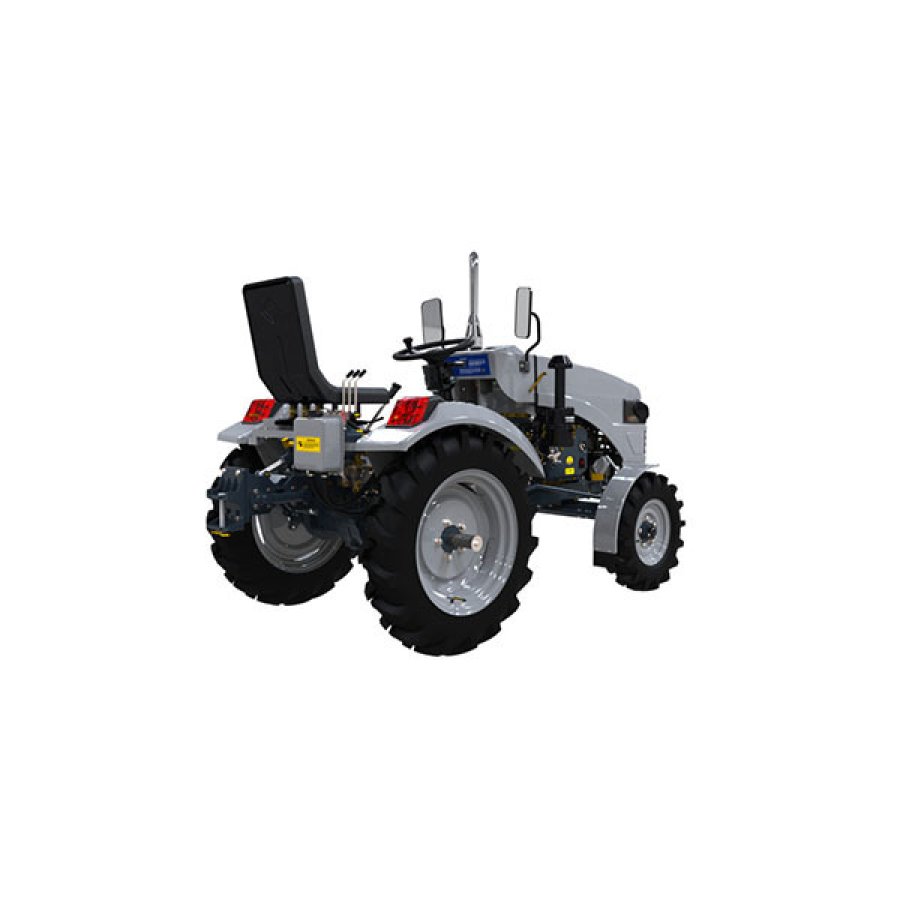

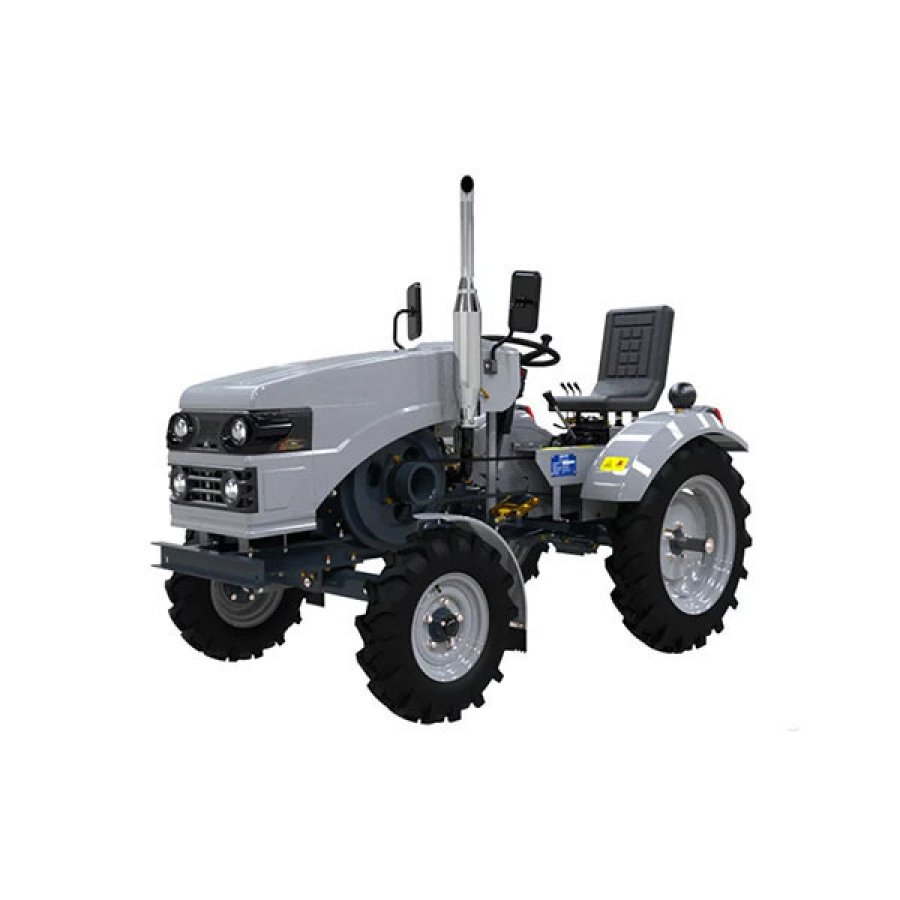

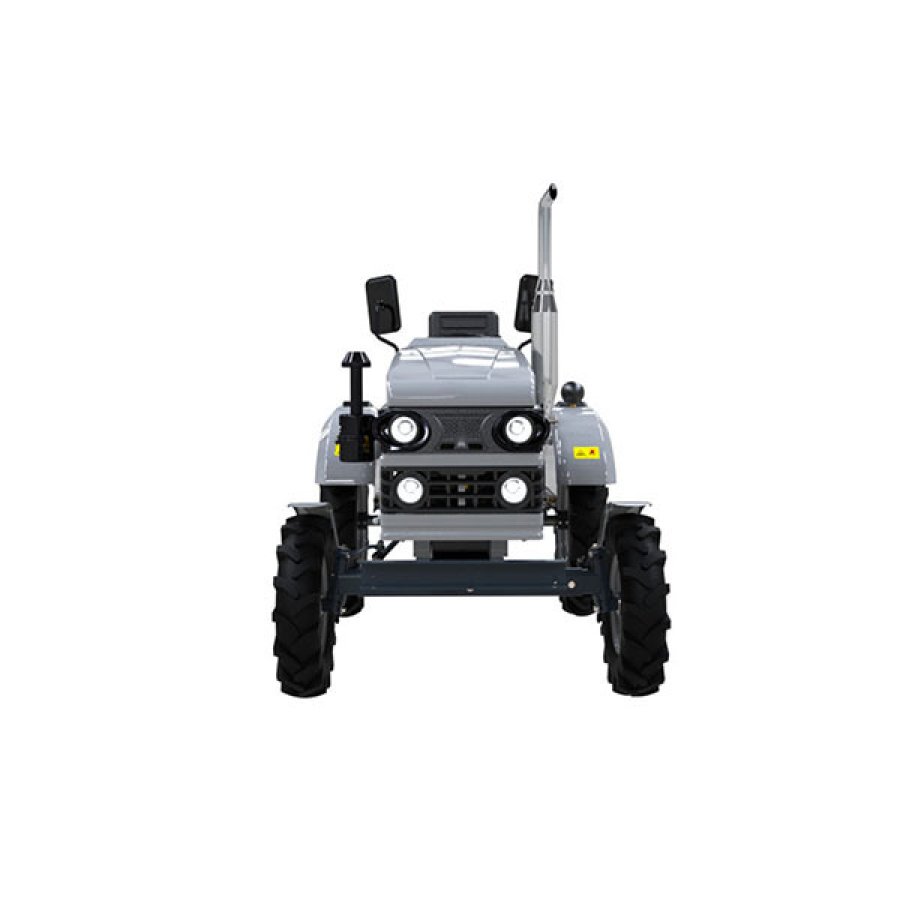

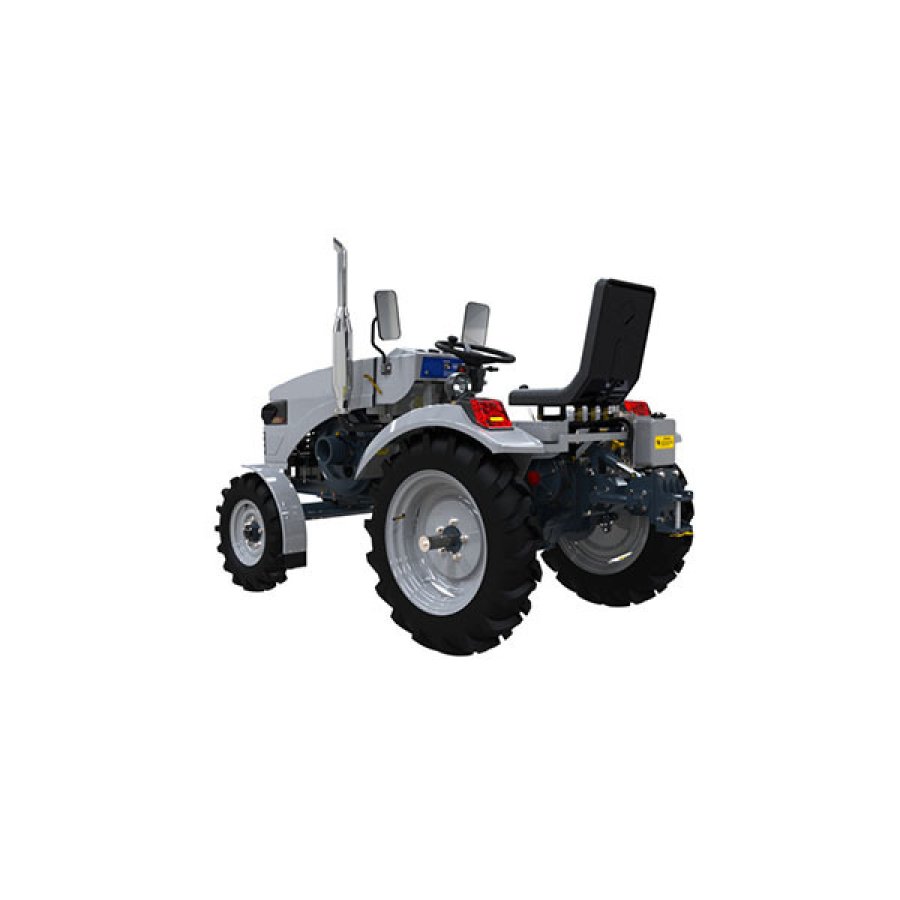

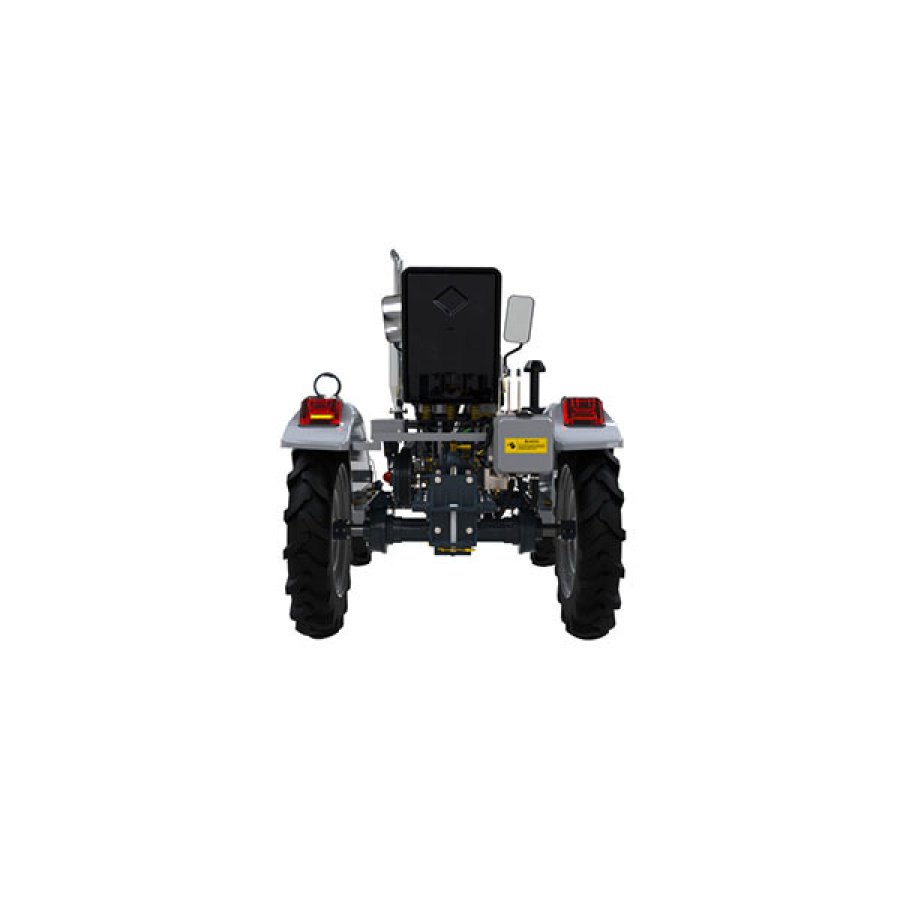

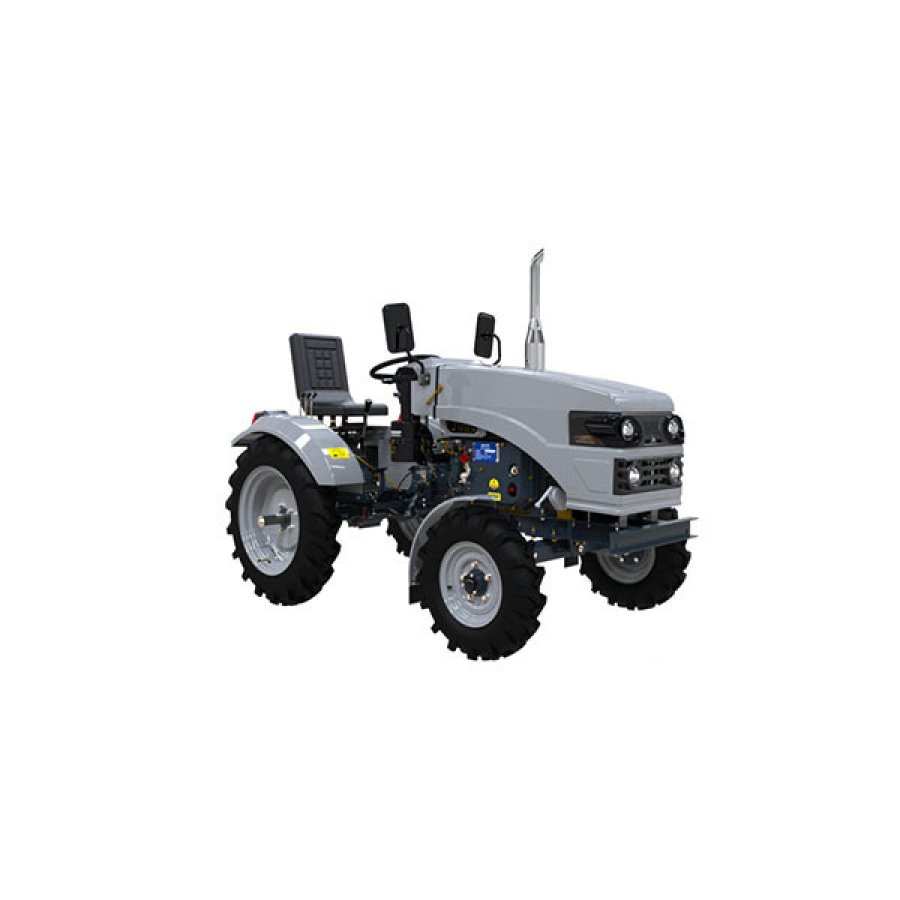

MS120 Tractor
Tractor
Main Features
■ Compact,Agile,Light,Reliable,Convenients,High Quality.
■ Suitable for dry fields in plain, mountain and hilly areas. Attached with the implements, it could finish the work of tilling, plowing, mowing, reaping, harvesting, irrigating and so on. When attached the trailer, it also could be used for the short distance transportation.
■ Can be used as a stationary power source for drainage and irrigation.
■ With quick coupling,easy to chang farming implements.
■ Different product colors is optional, to adapt to different market
Department Introduction of QC / Technical Support:
In order to get super quality, we have special QC department to control the product quality. This department is composed by experienced engineers who can offer us strong technical support easily. The engineers will inspect product quality both in order production and after order production to make sure each shipment we send to our customers is in the best status. With their strict quality control, our consistent quality wins us more and more orders from our international customers.
QC Flow:
Material inspection before production to avoid any potential problem from the very beginning.
2. Inspection for half-finished products during order production to find the problem earlier if any;
3. Inspection for finished products after production to make sure the products comply with customer’s requirement.
Full Service and Product Warranty: We offer our customers technical assistance and a full one year warranty on all products covering all manufacturing defects. ME Our manufacturing facility is completely computerized to provide our customers efficiency, reliability, high quality and timely shipments. Spare Parts:We can supply spare parts within 15 business days or sooner. Currently, part numbers are not available on-line. You may however determine the part number from your Parts Book or, if it is a simple part, you may describe the part and send us an order online. If you are not sure,
please Contact Us . Shipment: We can ship from our port in Qingdao or Shanghai, China to anywhere in the world within short days
Parameters:
Model | MS120 Tractor | MS150 Tractor | MS180 Tractor | MS200 Tractor | ||||||||||
Overall dimensions:(L×W×H) | 2140×905×1175mm Without tiller | |||||||||||||
Overall dimensions:(L×W×H) | 2600×1000×1175mm With tiller | |||||||||||||
Front wheel size | 4.00-8 (4.00-12, 4.00-14, 5.00-12) | |||||||||||||
Back wheel size | 5.00-12 (6.50-16, 7.50-16) | |||||||||||||
Ground clearance | 180mm | |||||||||||||
Working weight (with rotary tiller) | 485kg | 490kg | 530kg | 540kg | ||||||||||
Working weight (without anything) | 400kg | 405kg | 445kg | 455kg | ||||||||||
Transmission style | Vee-belt tension | |||||||||||||
Vee-belt model | B3200 | |||||||||||||
Steering style | Steering wheel power steering system | |||||||||||||
Brakes | Two side wheel brake | |||||||||||||
Starter | Electric start/Hand crank | |||||||||||||
Seat | Adjustable | |||||||||||||
Gear style | (3+1)*2; 6 Forward, 2 Reverse | |||||||||||||
Speed | Forward | 1.68, 2.61, 4.22, 6.79, 10.57, 17.08 | ||||||||||||
Reverse | 1.29, 5.22 | |||||||||||||
Rotary tiller | Transmission Type | Middle Transmission or Side Transmission | ||||||||||||
Width | 1000mm Adjustable | |||||||||||||
Number of blades | 18pcs | |||||||||||||
Working depth | 100-180mm | |||||||||||||
Up and down control | Hydraulic system | |||||||||||||
Engine | Model | 12NDL | 13NDL | 15NDL | 16NDL | |||||||||
Type | 1cylinder,4-stroke,horizontal,water-cooled,diesel | |||||||||||||
Cooling mode | Condenser (Radiator) | |||||||||||||
Rated power | 8.82kw/12hp | 9.55kw/13hp | 11.03kw/15hp | 11.76kw/16hp | ||||||||||
Combustion system | Direct Injection | |||||||||||||
Cylinder bore | 92mm | 92mm | 95mm | 100mm | ||||||||||
Piston stroke | 90mm | 95mm | 98mm | 100mm | ||||||||||
Compression ratio | 18:01 | |||||||||||||
Rated speed | 2400rpm | |||||||||||||
Fuel efficiency: | ≤2264gl/kw.hr | ≤257gl/kw.hr | ≤245gl/kw.hr | ≤240.2gl/kw.hr | ||||||||||
Displacement | 0.598L | 0.632L | 0.695L | 0.785L | ||||||||||
Overall dimensions:(L*W*H) | 2140*905*1175mm Without tiller | |||||||||||||
Overall dimensions:(L*W*H) | 2600*1000*1175mm With tiller | |||||||||||||
Front wheel size | 4.00-8 | |||||||||||||
Back wheel size | 6.00-12 | |||||||||||||
Ground clearance | 180mm | |||||||||||||
Working weight | 485kg | 490kg | 530kg | 540kg | ||||||||||
Transmission style | Belt transmission | |||||||||||||
V-belt model | B3200 | |||||||||||||
Steering style | Steering wheel power steering system | |||||||||||||
Brakes | Two side wheel brake | |||||||||||||
Starter | Electric start/Hand crank | |||||||||||||
Seat | Adjustable | |||||||||||||
Gear style | (3+1)*2; 6 Forward, 2 Reverse | |||||||||||||
Speed | Forward | 1.68, 2.61, 4.22, 6.79, 10.57, 17.08 | ||||||||||||
Reverse | 1.29, 5.22 | |||||||||||||
Rotary tiller | Transmission Type | Middle Gears Transmission, or side gears transmission | ||||||||||||
Width | 1000mm Adjustable | |||||||||||||
Number of blades | 22pcs | |||||||||||||
Working depth | 150-250mm | |||||||||||||
Up and down control | Hydraulic system |
