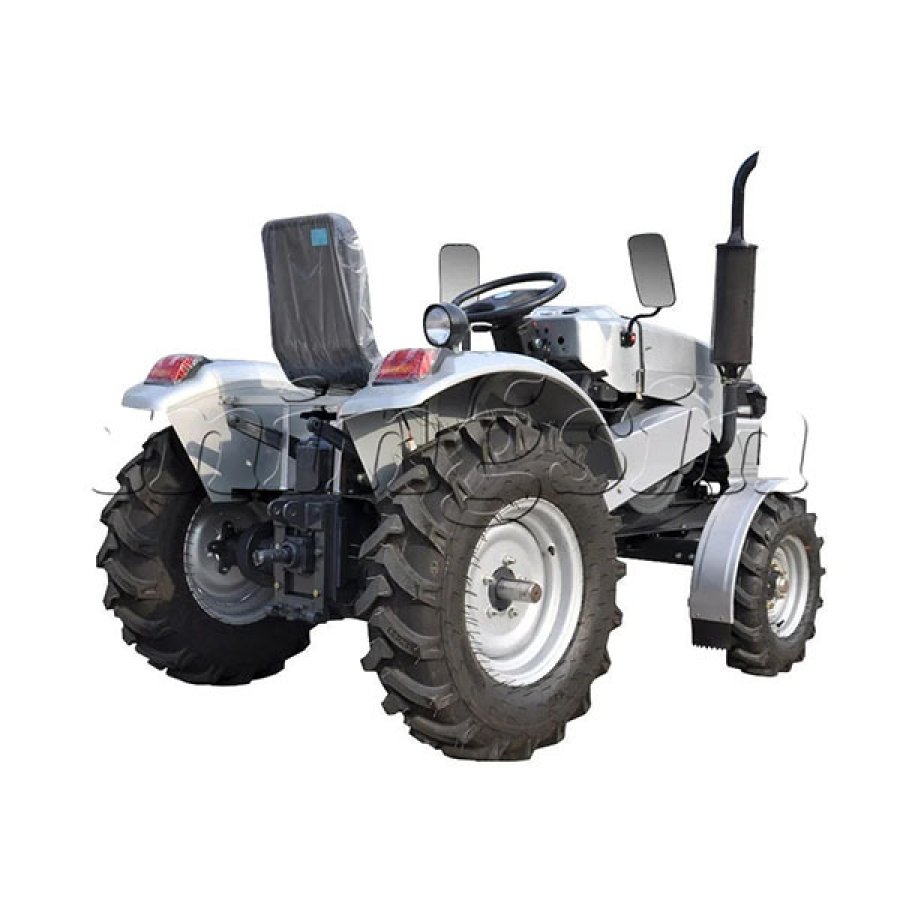

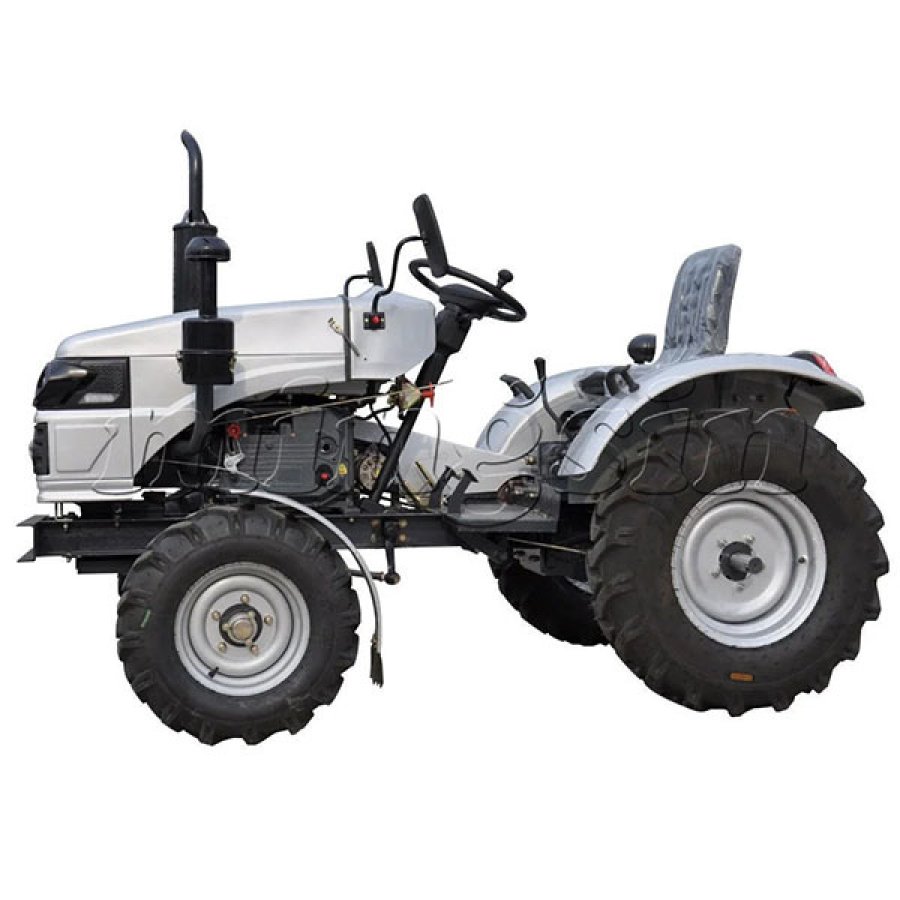

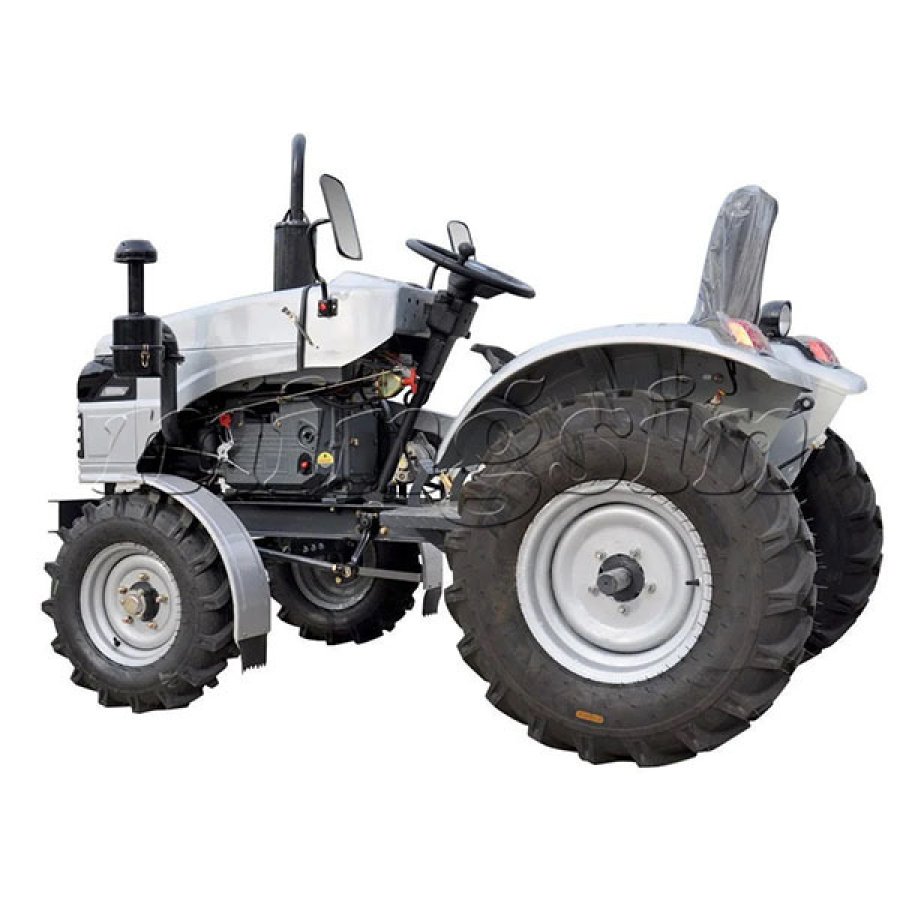

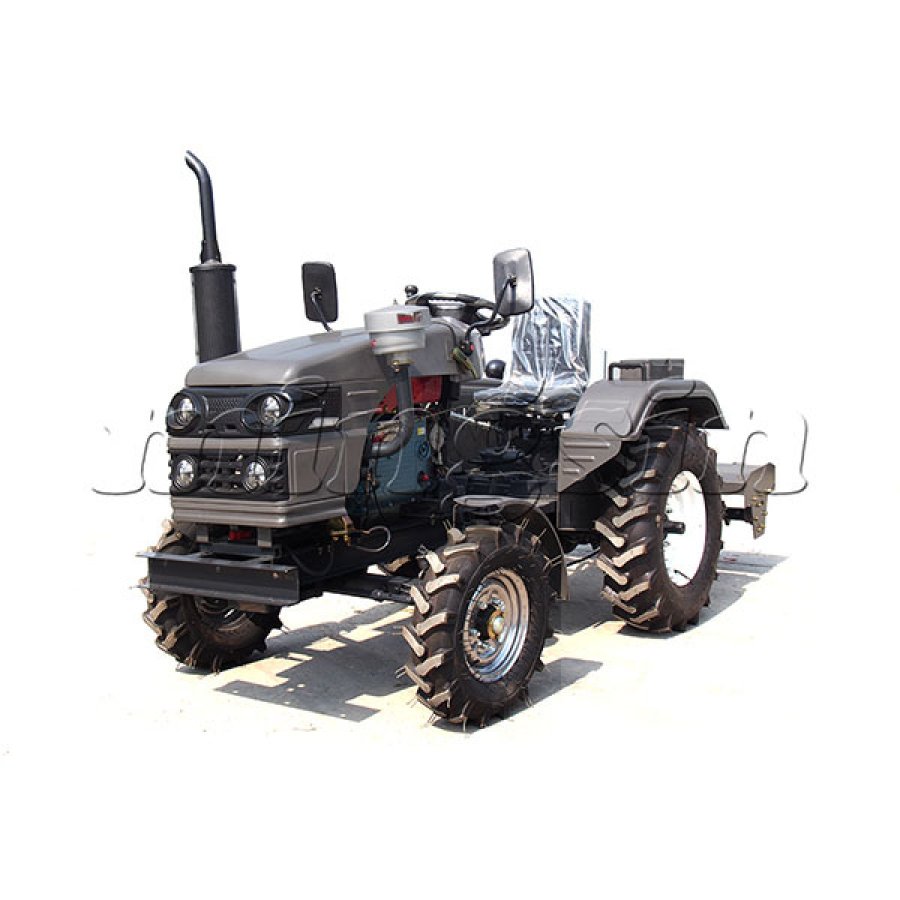

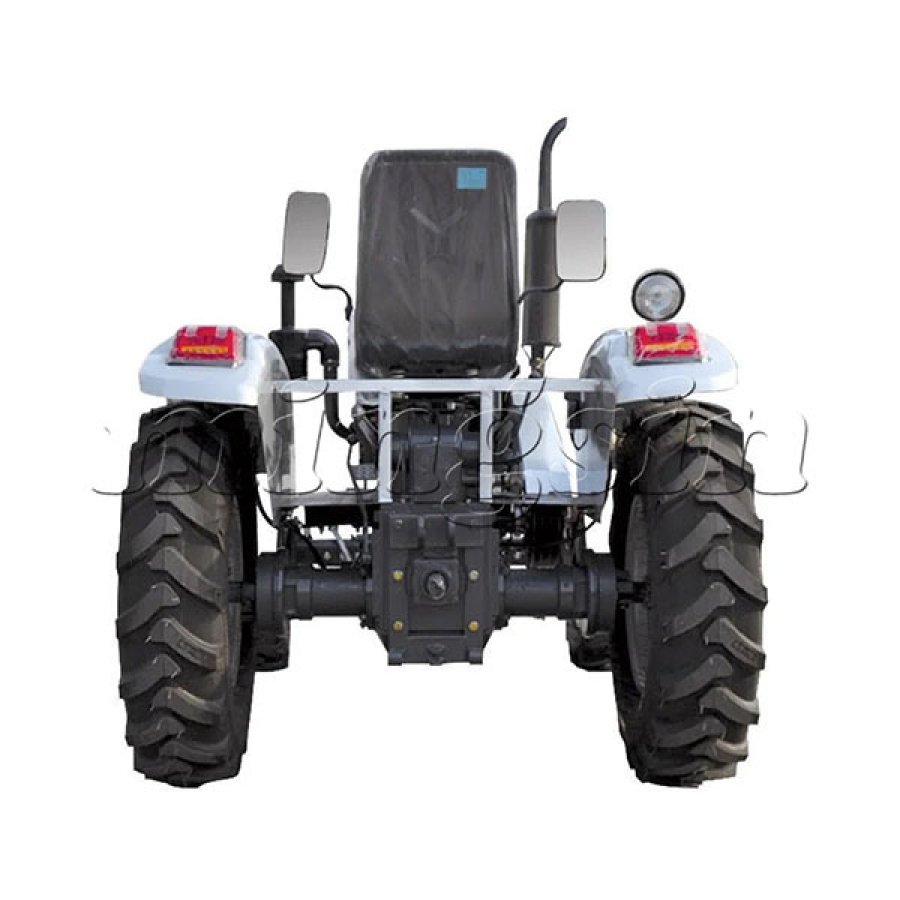

The MSD200 tractor is an agricultural tractor mounted on a frame chassis with a classic three-point attachment system and a 540 rpm splined PTO.
MSD200 Tractor
Tractor
GOODS DESCRIPTION:
The MSD200 tractor is an agricultural tractor mounted on a frame chassis with a classic three-point attachment system and a 540 rpm splined PTO.
The MSD200 will perform more tasks faster than tractors with single-point suspension thanks to professional attachments using the VOM-540. For example, for this tractor, such works as collecting hay in rolls with a baler, drilling soil with a mounted punch, working with a film stacker or trencher are available
Parameters:
Model | MS150 Tractor |
Overall dimensions, mm: | Length 2815 | Width 1470 | Steering wheel height 1450 | Muffler Height 1745 |
Ground clearance, mm: | 320 |
Structural weight, without attachments, kg: | 700 |
Cabin with heating: | Отсутствует |
Rear Wheel: | 7,50" - 16"；9,50" - 16"；9,50" - 20"；9,50" - 24" |
Front Wheel:: | 6,00" - 12" |
Wheelbase, mm : | 1050-1350 |
Type and speed of PTO : | Non-autonomous hexagon shaft Ø35 with flat key, 540 rpm. |
Drive by engine: | Connecting the engine to the gearbox through constant tension belts |
Gear Type: | Manual |
Number of gears | (3 forward + 1 reverse) x 2 |
Differential Lock | Automatic planetary lock |
Driving type | Two wheel driving |
Power Steering | None |
Rear linkage type | Three-point linkage | 360 kg payload |
Brake Type | Sealed Disc Brake |
Clutch Type | Single Disc Single Stage, Dry, Constant Engagement |
Hydraulic distributor | Regular distributor for three-point suspension |
Number of additional hydraulic outlets | No additional hydraulic outlet |
Light System | High and Low Beam | Turn Signals | Marker Lights | Brake light | Rear suspension |
Sound signal | Horn |
Instrument panel | Voltmeter | Water Temperature | Oil pressure | Clock |
Minimum turning radius, cm | 220 |
Trailer hitch | Mechanical hitch and electrical outlet |
Compressor | None |
