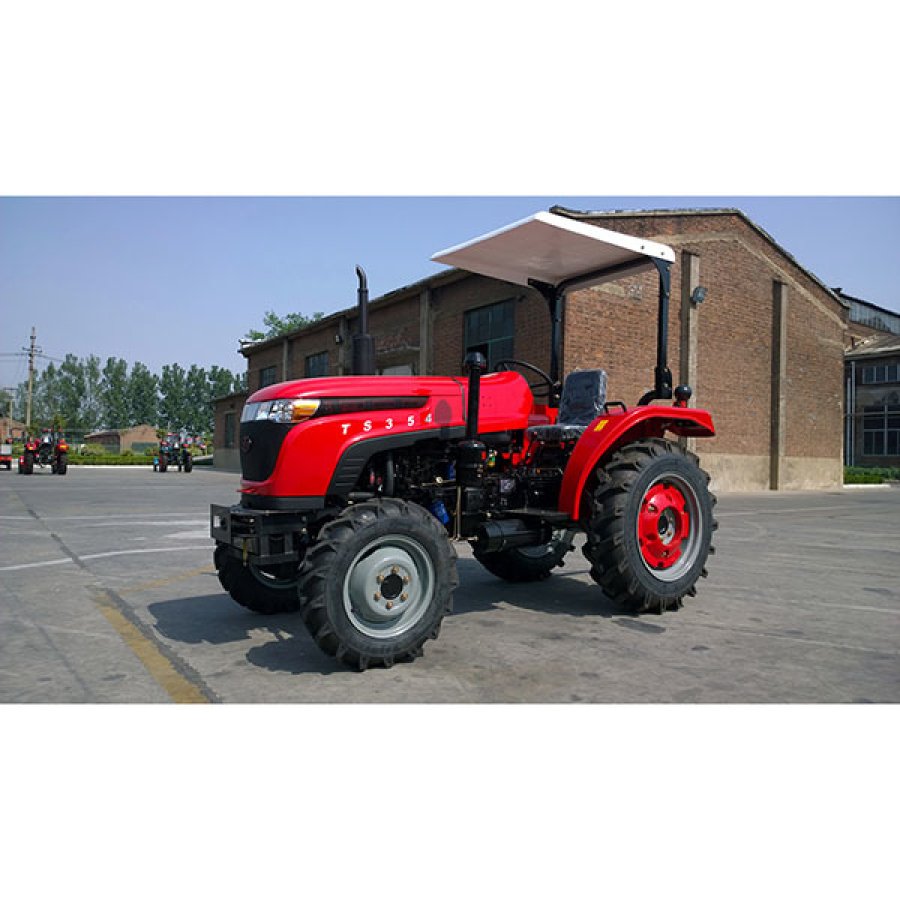

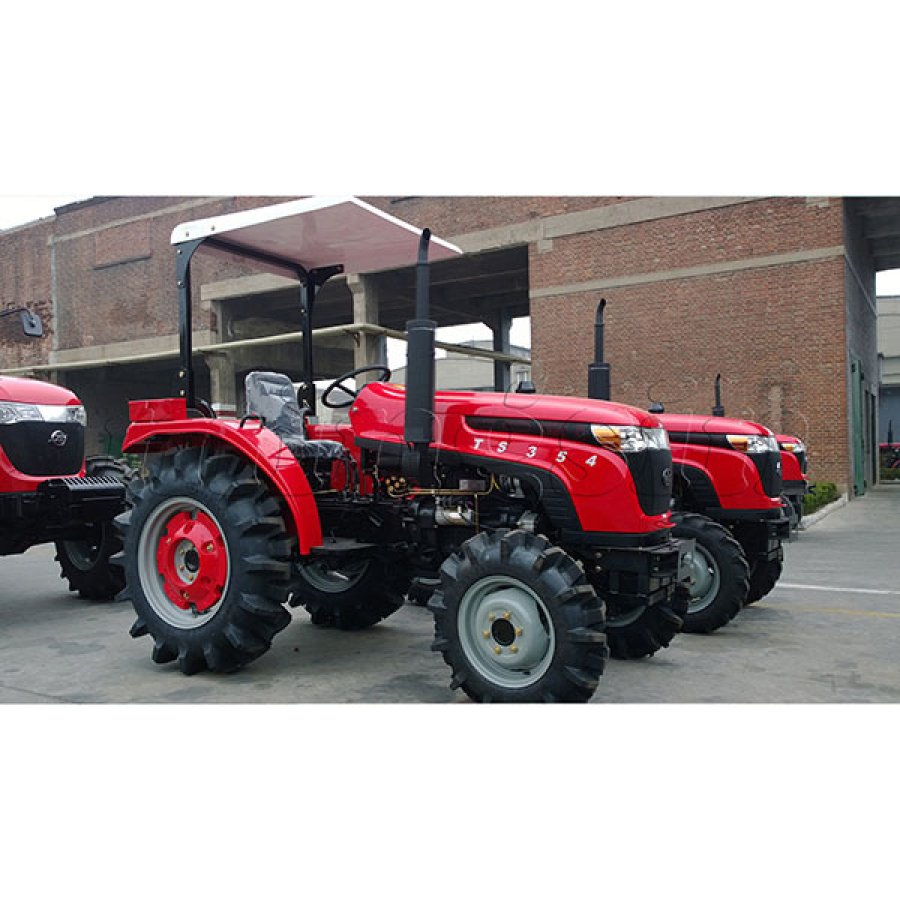

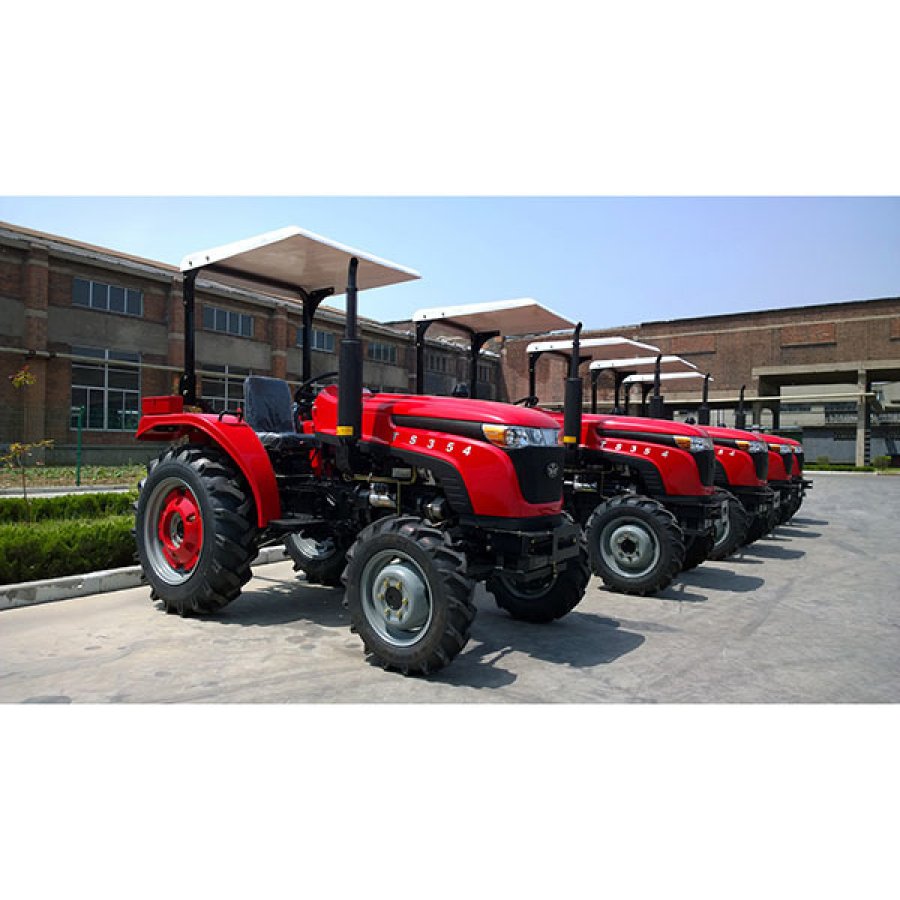

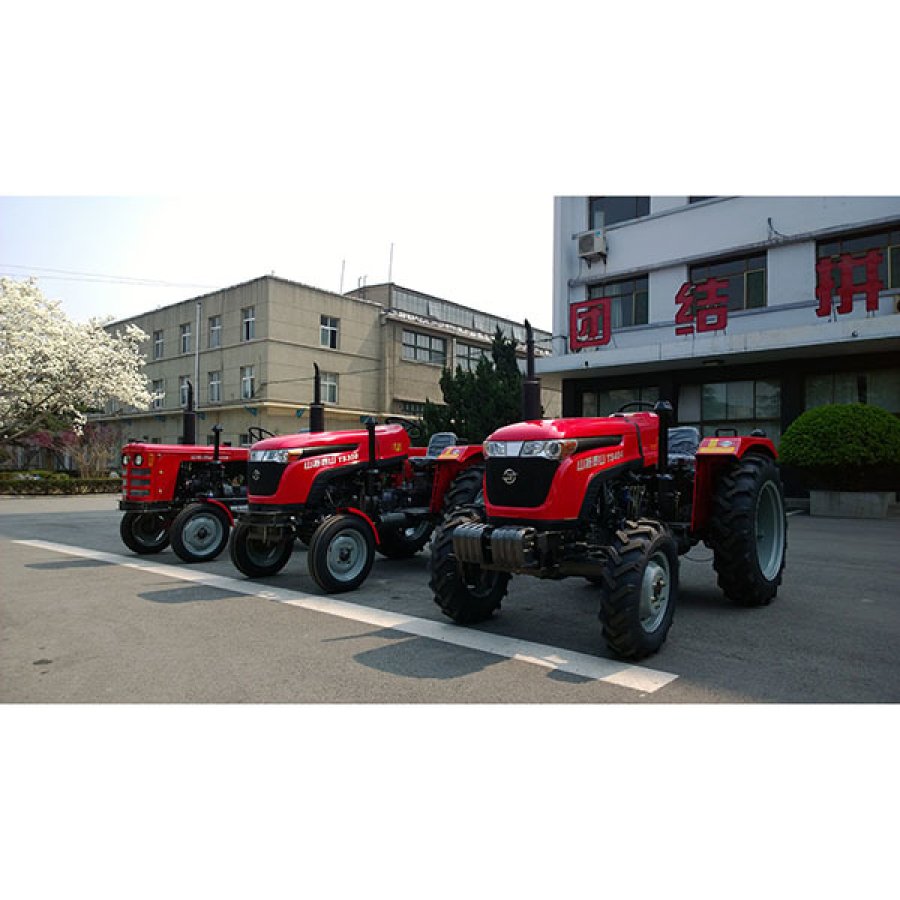

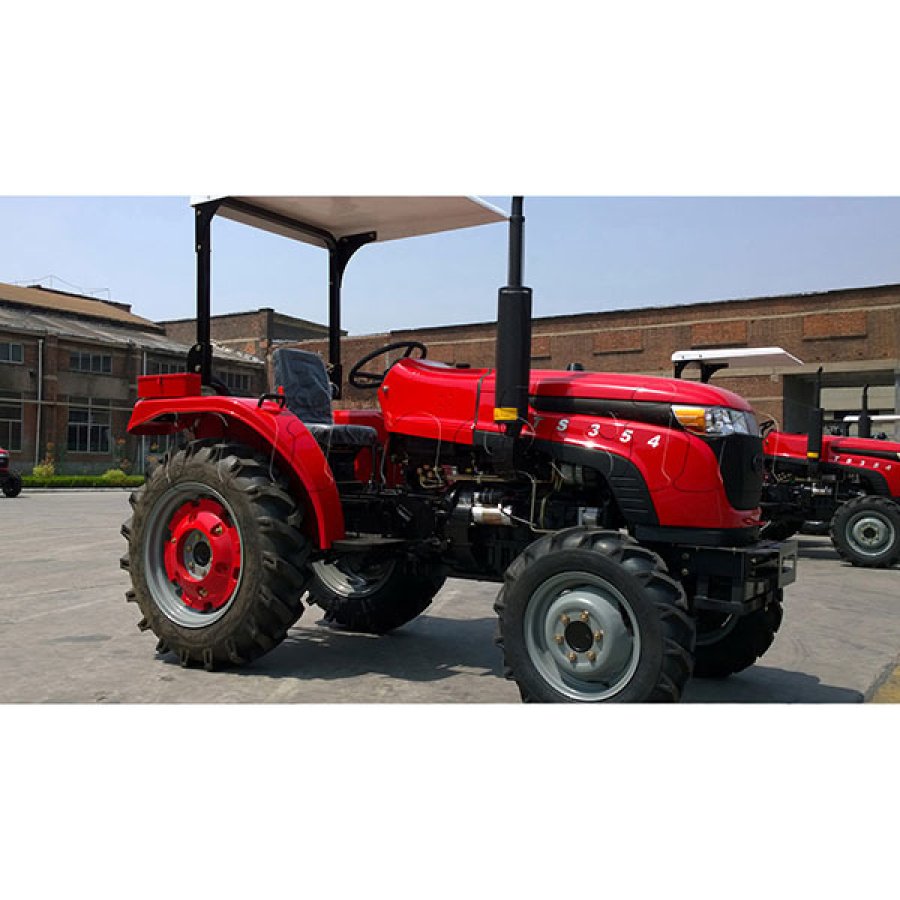

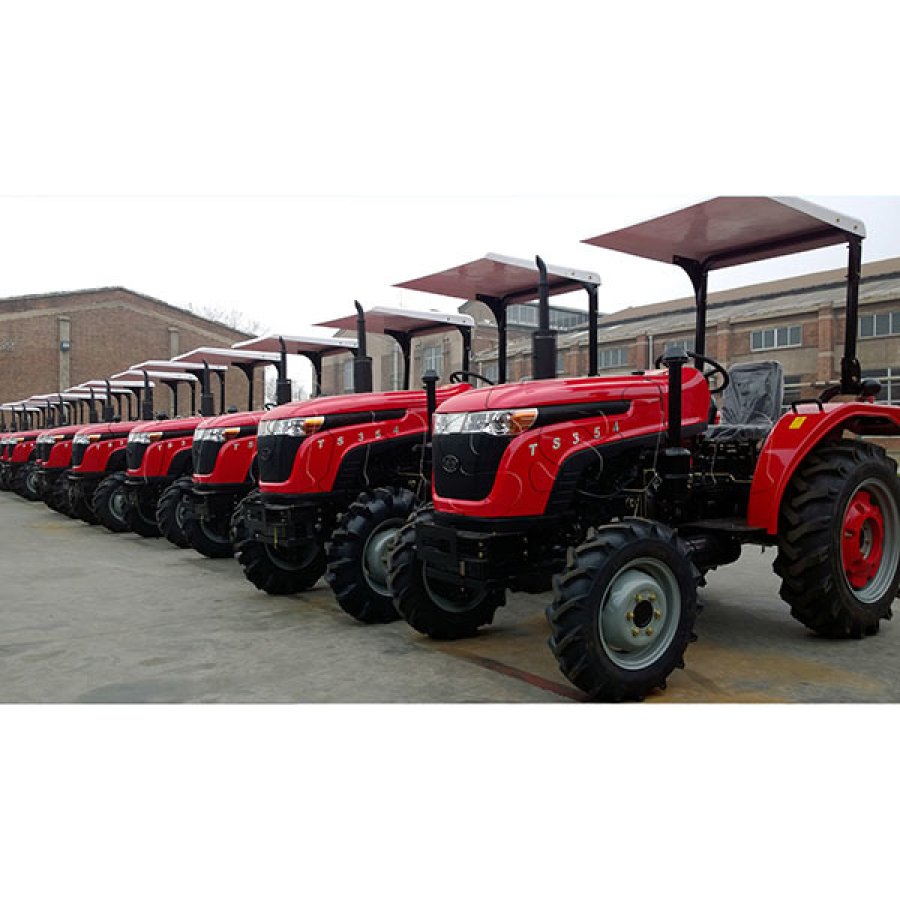

TS350-TS354 Tractor

TS350-TS354 Tractor

Integral type flat floor, side-mounted transmission control, suspended pedal,beautiful shape and driving comfort;

Key words:

TS350-TS354 Tractor

Category:

Tractor

E-mail:

sales@mingsin.com

Message

TS350-TS354 Tractor

Main Features:
■ Integral type flat floor, side-mounted transmission control, suspended pedal,beautiful shape and driving comfort;
■ Optional safety frame or heating cab;
■ Optional EPAIV engine in order to meet different emission requirement area;
■ Double-acting clutch, 8+2 /10+2 shuttle type shiftgear,with working efficiently;
■ Optional synchronizer shuttle-type shiftgear, lightness control and flexible and reliable;
■ Hydraulic steering,front drive axle of puncturing fuel cylinder, steering control and light and flexible;
■ Provide EC,EPA,GOST certification model.

Technical Specifications:

Model		TS350			TS354
Drive Type		4×2			4×4
Engine
Engine Manufacturer		Jiangsu,Jianghuai
Engine Model		TY3100IT
Engine Type		inline,vertical,water-cooled,four-stroke
Cylinder diameter（mm）		100
Stroke（mm）		105
Max Torque(N·m)/Revolving Speed(rpm)		≥121/≤1400
Displacement(L)		2.47
Fuel Tank Capacity(L)		51
Engine Rated Power (kW/rpm)		25.7
Rated Operating Conditions Fuel Consumption Rate(g/kW·h)		≤243
Drive Train
Clutch		Dry,single-stage
Standard PTO speed(rpm)		(540，1000)/(750，1000)/(540，750)
Gears		8F+2R/10F+2R
Speed range（Km）		2.35~30.09			1.98~25.33
Steering type		mechanical steering			hydraulic steering
Gear Shift Mode		sliding gear shift
Break System
Service Brake		pedal,mechanical drive,closed shoe type
Parking Brake		locked pedal
Hydraulic System
Hydraulic Output Flow(L/min)		30
Hydraulic Output Valve		1 way(optional)
Working Device
Three-Point Suspension		postposition,Category I
Max.Lifting Capacity(kN）		≥5.78
Tillage Depth Adjustment		draft and position adjustable
General Parameter
Overall Dimension(L×W×H)mm	With cab	/
	Without cab	3195×1510×2065			3235×1455×2070
Wheelbase(mm)		1840			1830
Min. operating weight(kg)	With cab	/
	Without cab	1540		1830
Min. Ground Clearance(mm)			440	345
Min.turning radius(mm)			3200	3300
Maximum Pull（KN）			7.5	10.3
Front Tire			5.0-15	6.5-16
Rear Tire			11.2-24	11.2-24
Optional Disposition			hydraulic steering, dual-stage clutch, shuttle gear(creeper gear), paddy tire, swing draw bar, ROPS with canopy, 1 group hydraulic output	dual-stage clutch, shuttle gear(creeper gear), paddy tire, swing draw bar, rear counter weight, ROPS with canopy, 1 group hydraulic output
