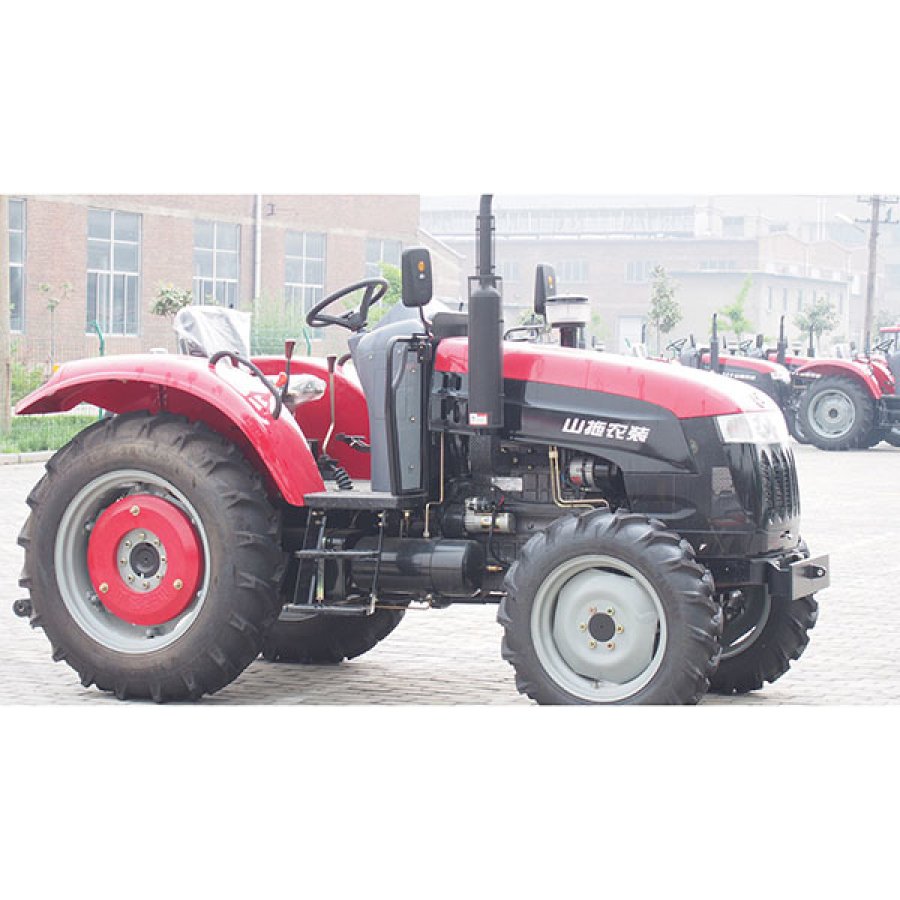

TS400-TS404 Tractor
Tractor
Main Features:
■ Equipped with 4 cylinder engine,direct injection engine, start convenient,low fuel consumption,high tractiong,high reliability and high coefficient of torque reserve.
■ With heavy-duty chassis,high traction,and high double-speed PTO shaft,it works more efficiency.
■ Transmission gears 8F+2R ,optional reversing device 10F+2R,featuring reasonable speed-matching,high working efficiency,and good fuel economy in all kinds of farmland homework and transportation.
■ Equipped with the side operation control device and the shift sleeve device,featuring convenient,comfortable,and reliable control.
■ Reinforced dual-speed power take-off, featuring the wide range of optional machinery and tools and high reliability.
■ Hydraulic lifting device adopted position control and float control, easy to operate and provides reliable performance.
■ The complete vehicle adopts the optimized ergonomic design to improve the driver’s safety feeling,and the comfort to control.
■ A new generation of steamline hood,with beautiful and elegant appearance,conforming to the safety,dust-proof,noise-reduction,heat-removal and other performance requirements.
■ Light and better sealed, give it high performance in paddy field farming.
■ Provide EC,EPA,GOST certification model.
Technical Specifications:
Model | TS400 Tractor | TS404 Tractor | |||
Drive Type | 4×2 | 4×4 | |||
Engine | |||||
Engine Manufacturer | Jiangsu,Jianghuai | ||||
Engine Model | JD490T | ||||
Engine Type | inline,vertical,water-cooled,four-stroke | ||||
Cylinder diameter（mm） | 90 | ||||
Stroke（mm） | 105 | ||||
Max Torque(N·m)/Revolving Speed(rpm) | ≥165/≤1725 | ||||
Displacement(L) | 2.67 | ||||
Fuel Tank Capacity(L) | 51 | ||||
Engine Rated Power (kW/rpm) | 29.4 | ||||
Rated Operating Conditions Fuel Consumption Rate(g/kW·h) | ≤245 | ||||
Drive Train | |||||
Clutch | Dry,single-stage | ||||
Standard PTO speed(rpm) | (540，1000)/(750，1000)/(540，750) | ||||
Gears | 8F+2R/10F+2R | ||||
Speed range（Km） | 2.17-27.7 | 2.17-27.7 | |||
Steering type | mechanical steering | hydraulic steering | |||
Gear Shift Mode | sliding gear shift | ||||
Break System | |||||
Service Brake | pedal,mechanical drive,closed shoe type | ||||
Parking Brake | locked pedal | ||||
Hydraulic System | |||||
Hydraulic Output Flow(L/min) | 30 | ||||
Hydraulic Output Valve | 1 way(optional) | ||||
Working Device | |||||
Three-Point Suspension | postposition,Category I | ||||
Max.Lifting Capacity(kN） | ≥6.62 | ||||
Tillage Depth Adjustment | draft and position adjustable | ||||
General Parameter | |||||
Overall Dimension(L×W×H)mm | With cab | / | |||
Without cab | 3315×1490×21055 | 3360×1490×2100 | |||
Wheelbase(mm) | 1960 | 1960 | |||
Min. operating weight(kg) | With cab | / | |||
Without cab | 1630 | 1890 | |||
Min. Ground Clearance(mm) | 485 | 365 | |||
Min.turning radius(mm) | 3200 | 3300 | |||
Maximum Pull（KN） | 7.8 | 12 | |||
Front Tire | 6.0-16 | 7.5-16 | |||
Rear Tire | 11.2-28 | 11.2-28 | |||
Optional Disposition | hydraulic steering, | dual-stage clutch, | |||
