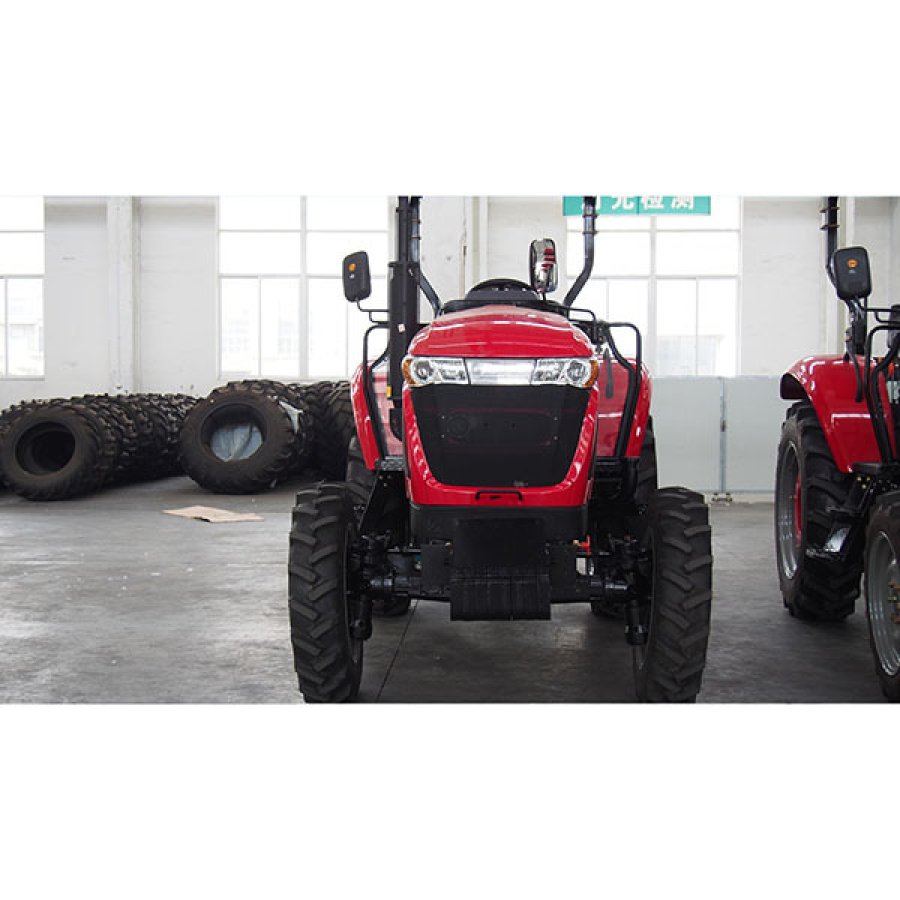

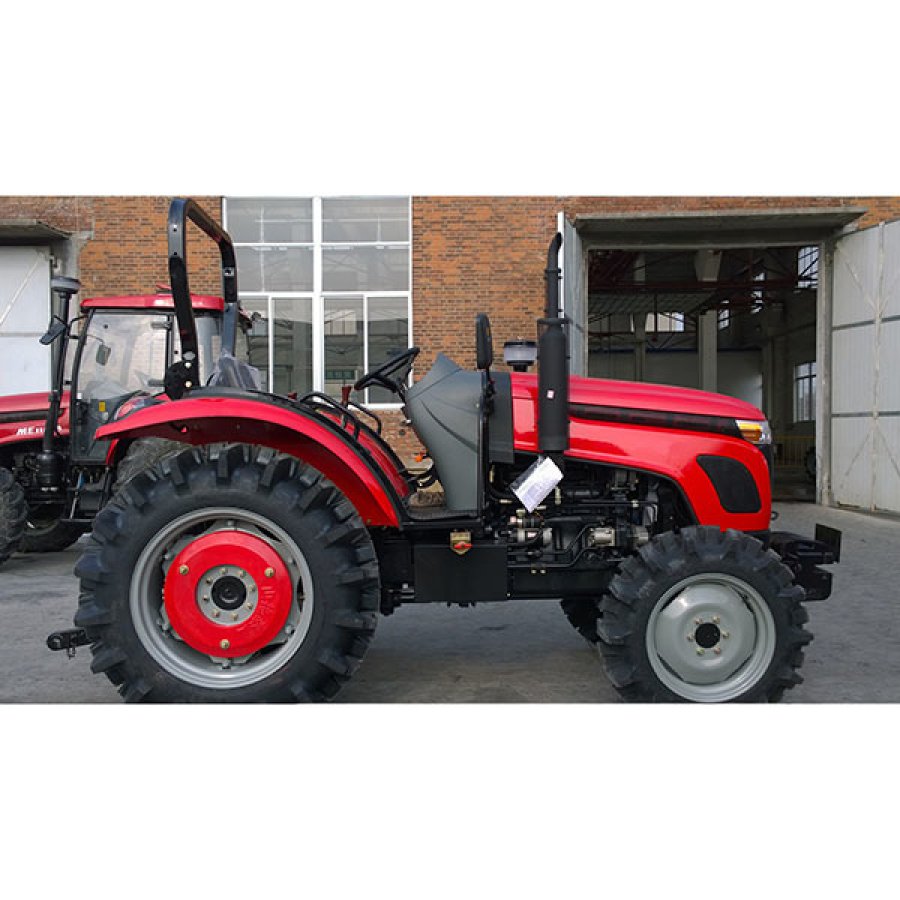

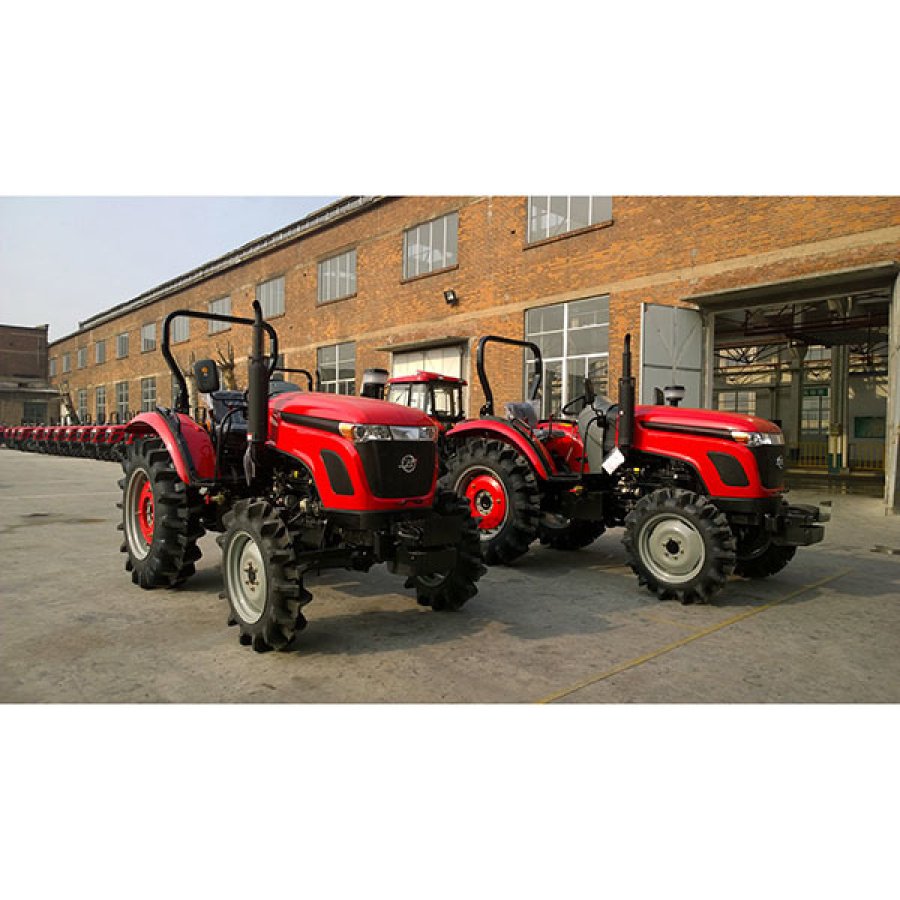

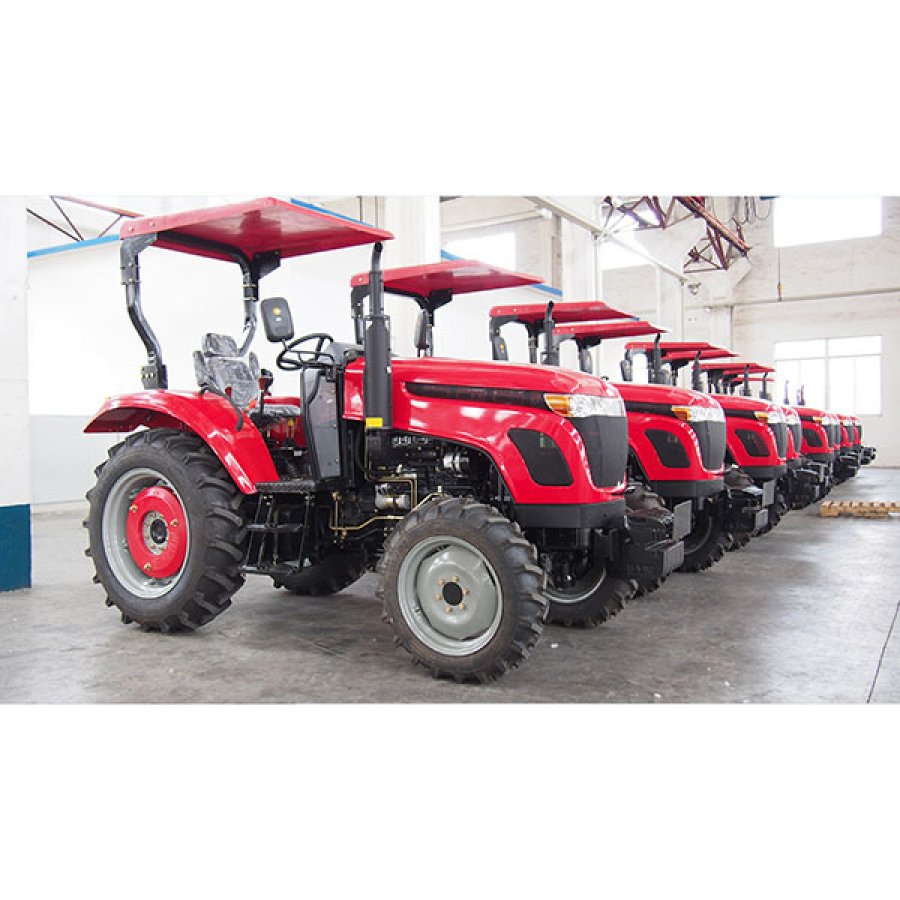

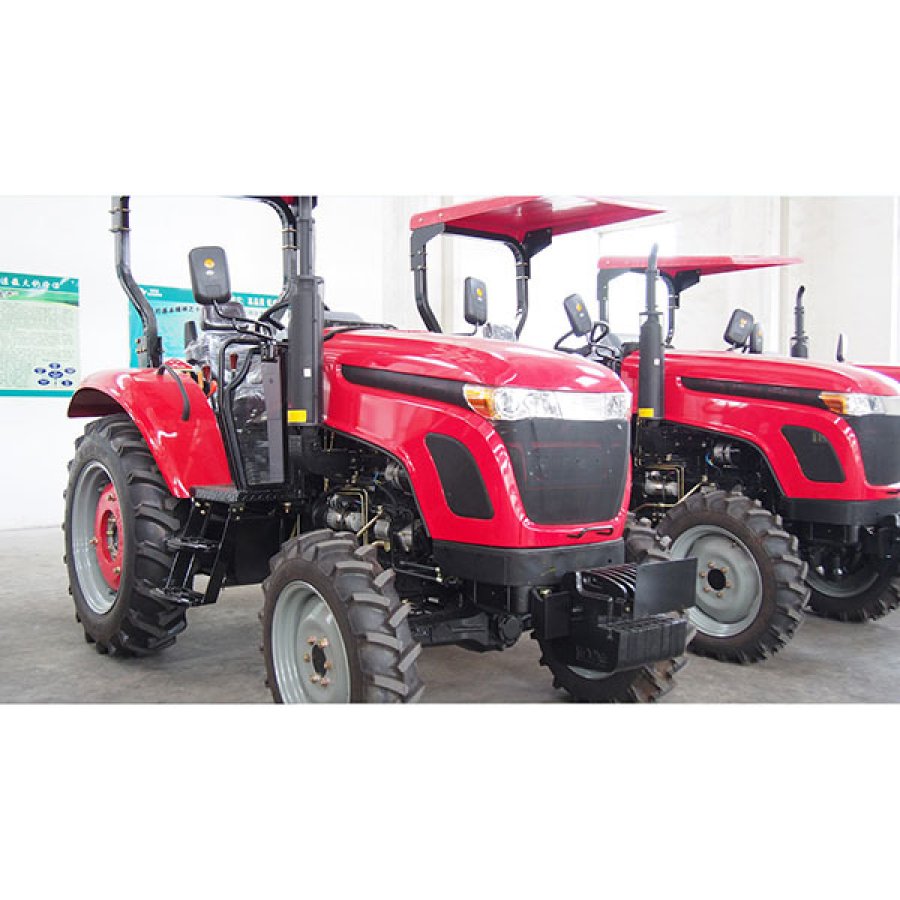

TS500-TS504 Tractor
Tractor
Main Features:
■ Adopt Jianghuai diesel engines, better reliability,more back coefficient for torsion.
■ 10 inch clutch with double actions.
■ Gear-box shows 4X(2+1),namely 8 forwards speed,8 rears speed,exchange in joggle;
■ Driving force output device with postposition,peaceful and stable transmission,stronger bear the weight of loading.
■ Adopt front-wheel turning with full liquid-pressure and independent oil way,turn agilely,reliably,power-saving;
■ Adopt tray-style arrester,stronger brake moment,reliable brake;
■ Adopt semiseparation lifter,plough depth control way is force adjusting,place adjusting,force and place both adjusting.
■ The final driving is planet-gear style,smaller volume,bigger decelerating ratio;
■ Installed adjustable chair with elasticity and shock absorption,comfortable driving.
■ The whole tractor is beautiful,taste,modern,fashion.
Technical Specifications:
Model | TS500 | TS504 | |
Drive Type | 4x2 | 4x4 | |
Engine | |||
Engine Manufacturer | Jiangsu,Jianghuai | Jiangsu,Jianghuai | |
Engine Model | JD4100BT1 | JD4100BT1 | |
Engine Type | inline,vertical,water-cooled,four-stroke | inline,vertical,water-cooled,four-stroke | |
Cylinder diameter（mm） | 100 | 100 | |
Stroke（mm） | 105 | 105 | |
Max Torque(N·m)/Revolving Speed(rpm) | ≥175.7/1725 | ≥175.7/1725 | |
Displacement(L) | 3.52 | 3.52 | |
Fuel Tank Capacity(L) | 80 | 80 | |
Engine Rated Power (kW/rpm) | 36.8 | 36.8 | |
Rated Operating Conditions Fuel Consumption Rate(g/kW·h) | ≤245 | ≤245 | |
Drive Train | |||
Clutch | dry,single disc,dual stage,constant meshed | dry,single disc,dual stage,constant meshed | |
Standard PTO speed(rpm) | (540，1000)/(720，1000)/(540，720) | (540，1000)/(720，1000)/(540，720) | |
Gears | 8F+8R | 8F+8R | |
Speed range（Km） | 2.59~29.42 | 2.59~29.42 | |
Steering type | hydraulic steering | hydraulic steering | |
Gear Shift Mode | meshing gear shift | meshing gear shift | |
Break System | |||
Service Brake | mechanical,wet,disc | mechanical,wet,disc | |
Parking Brake | locked pedal | locked pedal | |
Hydraulic System | |||
Hydraulic Output Flow(L/min) | 30 | 30 | |
Hydraulic Output Valve | 1 /2 ways | 1 /2 ways | |
Working Device | |||
Three-Point Suspension | postposition,Category I | postposition,Category I | |
Max.Lifting Capacity(kN） | ≥8.3 | ≥8.3 | |
Tillage Depth Adjustment | draft and position adjustable | draft and position adjustable | |
General Parameter | |||
Overall Dimension(L×W×H)mm | With cab | 3885x1708x2550 | 3885x1708x2550 |
Without cab | 3885x1708x2200 | 3885x1708x2200 | |
Wheelbase(mm) | 2049 | 2068 | |
Min. operating weight(kg) | With cab | 2330 | 2420 |
Without cab | 1950 | 2040 | |
Min. Ground Clearance(mm) | 420 | 360 | |
Min.turning radius(mm) | 3400 | 3500 | |
Maximum Pull（KN） | 9.3 | 13.5 | |
Front Tire | 6.0-16 | 8.3-20 | |
Rear Tire | 12.4-28 | 12.4-28 | |
Optional Disposition | shuttle gear(creeper gear), | shuttle gear(creeper gear), | |
