TS550-TST554 Tractor

Driving force output device with postposition,peaceful and stable transmission,stronger bear the weight of loading.

Key words:

TS550-TST554 Tractor

Category:

Tractor

Message
TS550-TST554 Tractor

Main Features:
■ Smooth shifting performance
Our smooth-shifting, fully synchronized transmission with 16 forward gears and 8 reverse gears could provide you amazing efficiency. With the high range for travel speed, medium range for mowing and low range for hard-pull applications and loader work, provide you the power you need for the task at hand. That means you`ll always be able to make a proper gear selection in a wide speed range according to the changes of circumstances, the function of different farm implements, the changing of speed.
You can also choose to install the crawling gear structure which could double the number of the gears and provide you better traction when you have tougher tasks.
■ Tilting traction structure
Tilting traction structure effectively reduces the impact load and tractor vibration, the driving experience is more comfortable while making the connection structure more durable.

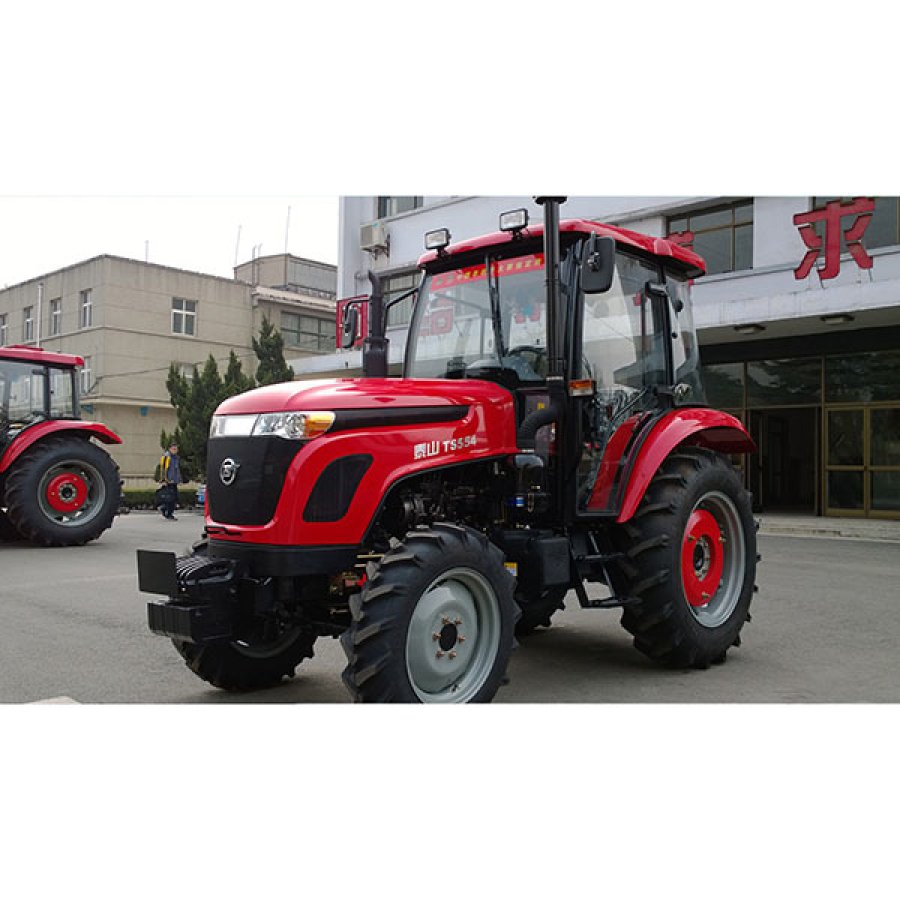

Full Vision cab with frameless glass cover, provides maximum field of vision for you, making it safer to operate the tractor.
Using plastic strips to seal the whole cab, which could effectively cut off the noise from external environment, gives you an excellent sealing performance.
The operator-oriented designing idea and ergonomic interior layout, make every button in the cab around you clearly marked and easy to touch. Equipped with heater, you can choose to install air conditioning get a more comfortable and pleasant driving experience.
Mechanical hydraulic seat with armrests and headrest could provide you an adequate support. That means it could provide you complete comfort and confidence by effectively reducing turbulence generated during operation when you operate in the toughest of territory.
■ Hydraulic output
Hydraulic output is optional, making your tractor match more kinds of farm machinery and implements, to meet your different demands.
Paddy wheel is optional, making it adapt to different working conditions


Technical Specifications:

Model

TS550 Tractor

TS554 Tractor

Drive Type

4x2

4x4

Engine



Engine Manufacturer

YTO Group Corporation

YTO Group Corporation

Engine Model

YTR4105T86A-1

YTR4105T86A-1

Engine Type

inline,vertical,water-cooled,four-stroke

inline,vertical,water-cooled,four-stroke

Cylinder Diameter (mm)

105

105

Stroke(mm)

120

120

Max Torque(N·m)/Revolving Speed(rpm)

≥230/1725

≥230/1725

Displacement(L)

4.15

4.15

Fuel Tank Capacity(L)

80

80

Engine Rated Power (kW/rpm)

40.5

40.5

Rated Operating Conditions Fuel Consumption Rate(g/kW·h)

≤242

≤242

Drive Train



Clutch

dry,single disc,dual stage,constant meshed

dry,single disc,dual stage,constant meshed

Standard PTO speed(rpm)

(540,1000)/(720,1000)/(540,720)

(540,1000)/(720,1000)/(540,720)

Gears

8F+8R

8F+8R

Speed Range(Km)

2.69~30.59

2.69~30.59

Steering type

hydraulic steering

hydraulic steering

Gear Shift Mode

meshing gear shift

meshing gear shift

Break System



Service Brake

mechanical,wet,disc

mechanical,wet,disc

Parking Brake

locked pedal

locked pedal

Hydraulic System



Hydraulic Output Flow(L/min)

30

30

Hydraulic Output Valve

1 /2 ways

1 /2 ways

Working Device



Three-Point Suspension

postposition,Category I

postposition,Category I

Max.Lifting Capacity(kN)

≥9.1

≥9.1

Tillage Depth Adjustment

draft and position adjustable

draft and position adjustable

General Parameter



Overall Dimension(L×W×H)mm

Without cab

3885x1708x2185

3885x1708x2185


2044

2068

Min. operating weight(kg)

2110

2425

Min. Ground Clearance(mm)


420

360


3400

3500

Maximum Pull(KN)

13.5

13.5

Front Tire

6.5-16

8.3-20

Rear Tire

13.6-28

13.6-28

Optional Disposition

paddy tire,
swing draw bar,
cab or ROPS with canopy,
air brake

  paddy tire,
swing draw bar,
cab or ROPS with canopy,
air brake
