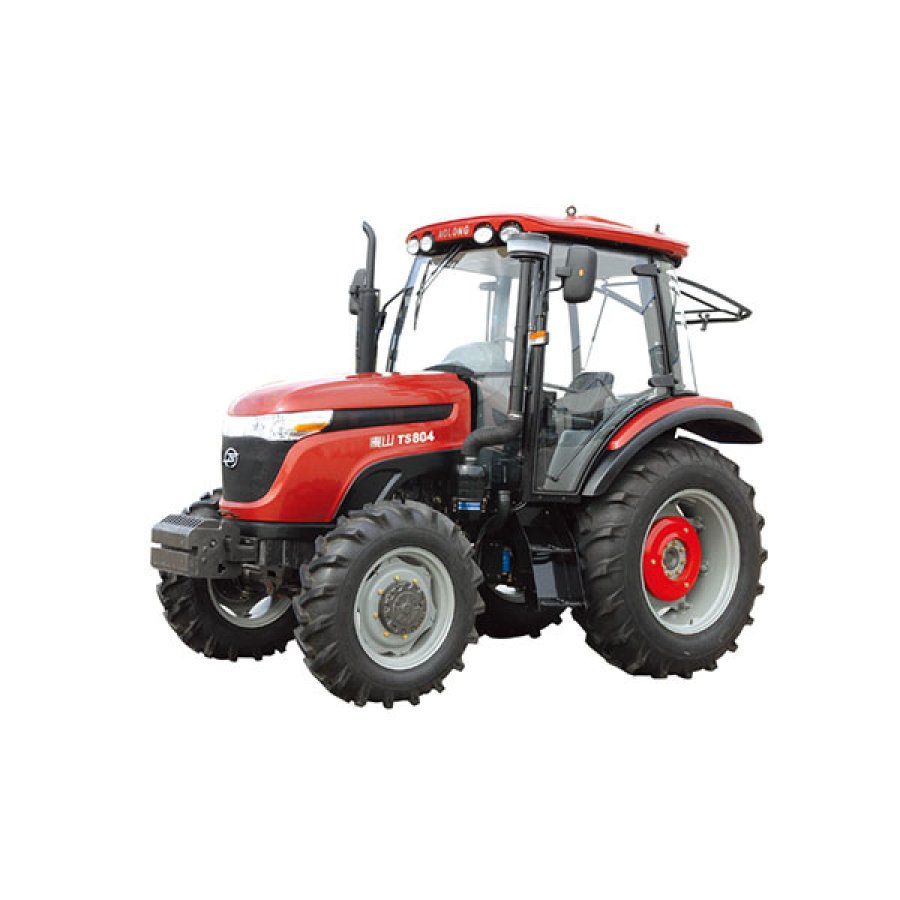

TS800-TS804 Tractor
Tractor
Main Features:
■ A transmission even smoother than your car`s
Using clutch transmission, which could provide you a large range of speed with 16 forward gears and 8 reverse gears, speed covers the range of 2.34-33.7kM / h. That means gear shifting is more convenient and comfortable. You could always make a proper gear selection in a wide speed range according to the changes of circumstances, the function of different farm implements, the changes of speed and the undulating of the ground.
■ Tilting traction structure
Full Vision cab with frameless glass cover, provides maximum field of vision for the driver, making it safer to operate the tractor.
Using plastic strips to seal the whole cab, which could effectively cut off the noise from external environment, gives you an excellent sealing performance.
The operator-oriented designing idea and ergonomic interior layout, make every button in the around you clearly marked and easy to touch. Equipped with heater, you can choose to install air conditioning for the driver to bring more comfortable and pleasant driving experience.
Tilting traction structure effectively reduce the impact load and tractor vibration, the driving experience is more comfortable while making the connection structure more durable.
Mechanical hydraulic seat with armrests and headrest could provide you an adequate support. That means It could provide you complete comfort and confidence by effectively reducing turbulence generated during operation when you operate in the toughest of territory.
■ Independent double-acting clutch
An efficient hydraulic power steering systems means your steering will be more smooth and flexible, just enjoy your driving.
Full Vision cab equipped with frameless glass could give you better driving vision in the complicated situation.
Using independent double-acting clutch, realizes independent controlling to the farm machinery. According to this system, you could cut off or adjust the power output without stopping the tractor, simplifies the process and reduces fatigue, improves work efficiency.
■ Hydraulic output
Paddy wheel is optional, making it adapt to different working conditions
Hydraulic output is optional, making your tractor match more kinds of farm machinery and implements, to meet your different demands.
Technical Specifications:
Model | TS800 Tractor | TS804 Tractor | |
Drive Type | 4×2 | 4×4 | |
Engine | |||
Engine Manufacturer | YTO Group Corporation | YTO Group Corporation | |
Engine Model | LR4B5-23 | LR4B5-23 | |
Engine Type | vertical,water-cooled,four-stroke,direct injection | vertical,water-cooled,four-stroke,direct injection | |
Max Torque(N·m)/Revolving Speed(rpm) | ≥330/1700 | ≥330/1700 | |
Displacement(L) | 4.95 | 4.95 | |
Cylinder Diameter * Stroke | 108×135 | 108×135 | |
Fuel Tank Capacity(L) | 150 | 150 | |
Engine Rated Power (kW/rpm) | 59 | 59 | |
Rated Operating Conditions Fuel Consumption Rate(g/kW·h) | ≤242 | ≤242 | |
Drive Train | |||
Clutch | dry,single disc,independent dual-stage | dry,single disc,independent dual-stage | |
Standard PTO speed(rpm) | (760，1000)/(540，1000) | (760，1000)/(540，1000) | |
Gears | 8F+4R/16F+8R(creeper) | 8F+4R/16F+8R(creeper) | |
Steering type | hydraulic steering | hydraulic steering | |
Gear Shift Mode | meshing gear shift | meshing gear shift | |
Speed Range(Km/h) | 0.41～31.11 | 0.46～34.85 | |
Break System | |||
Service Brake | pedal,mechanical drive,hydrostatic,disc | pedal,mechanical drive,hydrostatic,disc | |
Parking Brake | handle operation, | handle operation, | |
Hydraulic System | |||
Hydraulic Output Flow(L/min) | 50 | 50 | |
Hydraulic Output Valve | 2 ways | 2 ways | |
Working Device | |||
Three-Point Suspension | postposition,Category Ⅱ | postposition,Category Ⅱ | |
Max.Lifting Capacity(kN） | 14.2 | 14.2 | |
Tillage Depth Adjustment | draft and position adjustable,floating control | draft and position adjustable,floating control | |
General Parameter | |||
Overall Dimension(L×W×H)mm | With cab | 4027×2050×2670 | 4027×2050×2750 |
Without cab | 4027×2050×2670 | 4027×2050×2750 | |
Wheelbase(mm) | 2210 | 2195 | |
Min. operating weight(kg) | With cab | 3600 | 3873 |
Without cab | 3350 | 3683 | |
Min. Ground Clearance(mm) | 418 | 375 | |
Min.turning radius(mm) | 3400 | 4200 | |
Front Tire | 6.5-20 | 11.2-24 | |
Rear Tire | 14.9-30 | 16.9-34 | |
Rated Pull | 15.5 | 18.6 | |
Optional Disposition | hydraulic pressure lifter, | hydraulic pressure lifter, | |
