Using clutch transmission, which could provide you a large range of speed with 16 forward gears and 8 reverse gears, speed covers the range of 2.34-33.7kM / h. That means gear shifting is more convenient and comfortable. You could always make a proper gear selection in a wide speed range according to the changes of circumstances, the function of different farm implements, the changes of speed and the undulating of the ground.

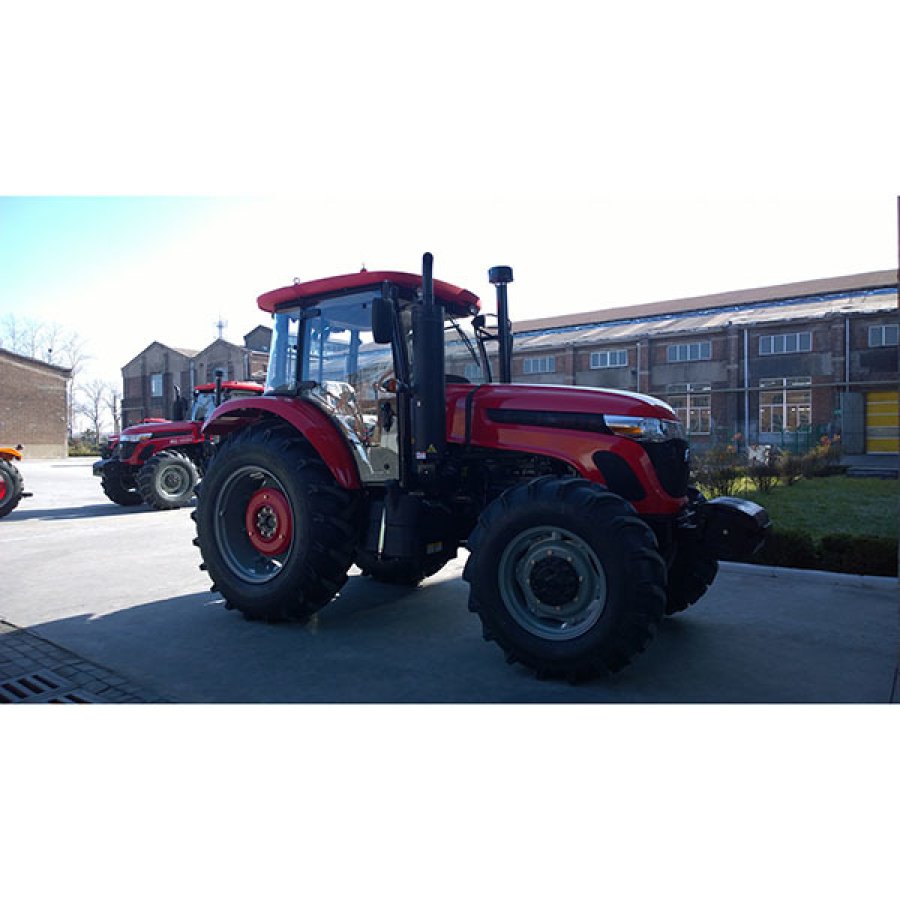

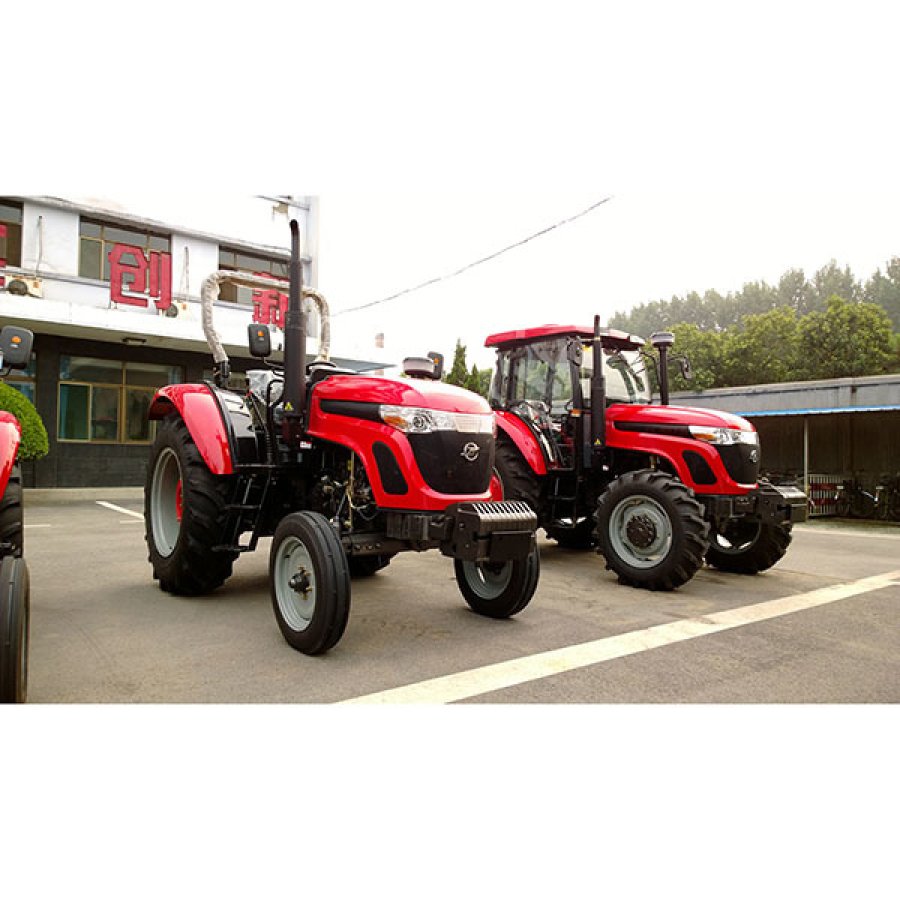

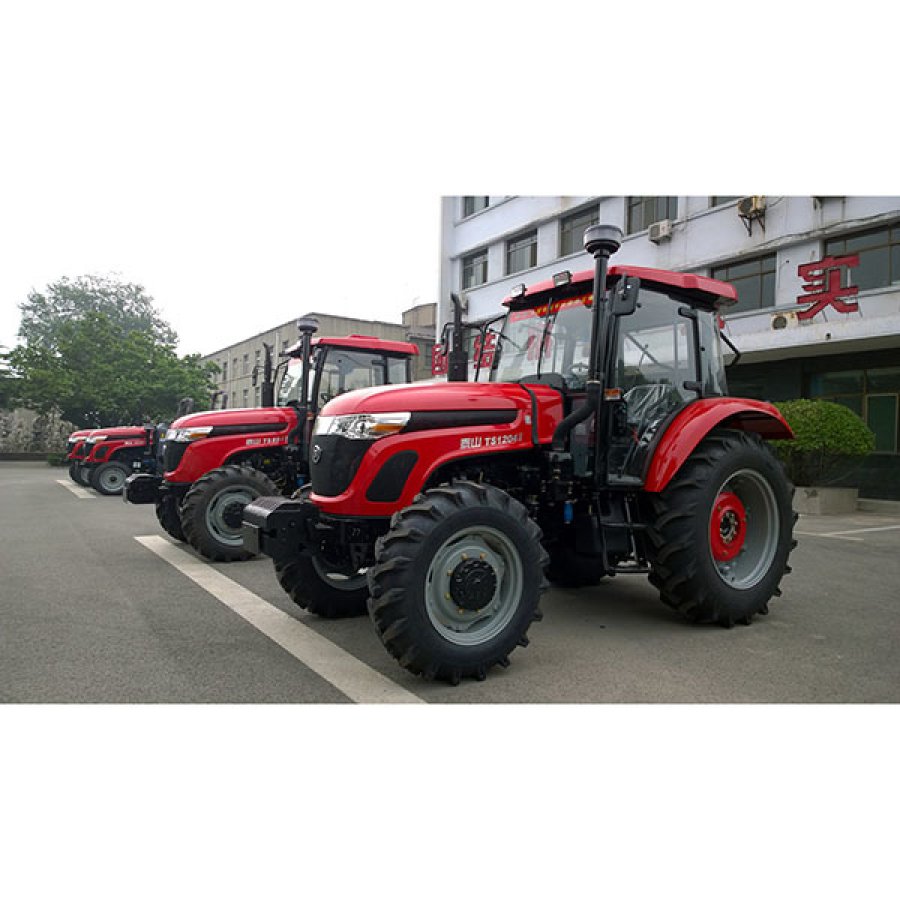

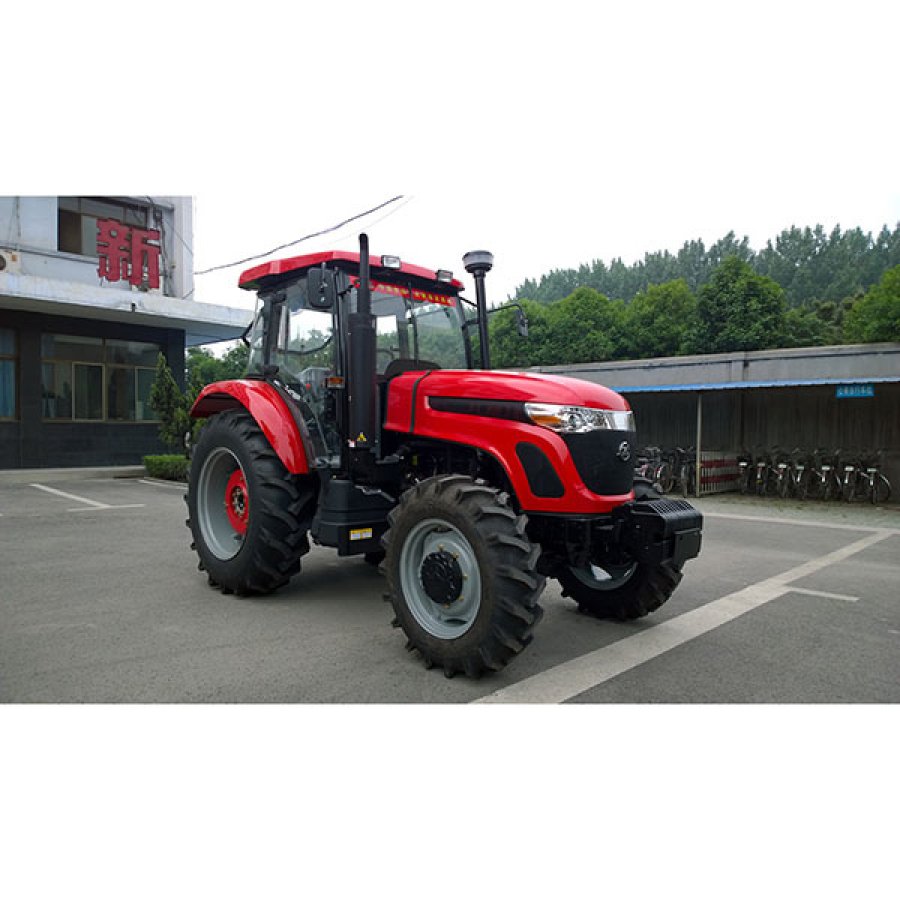

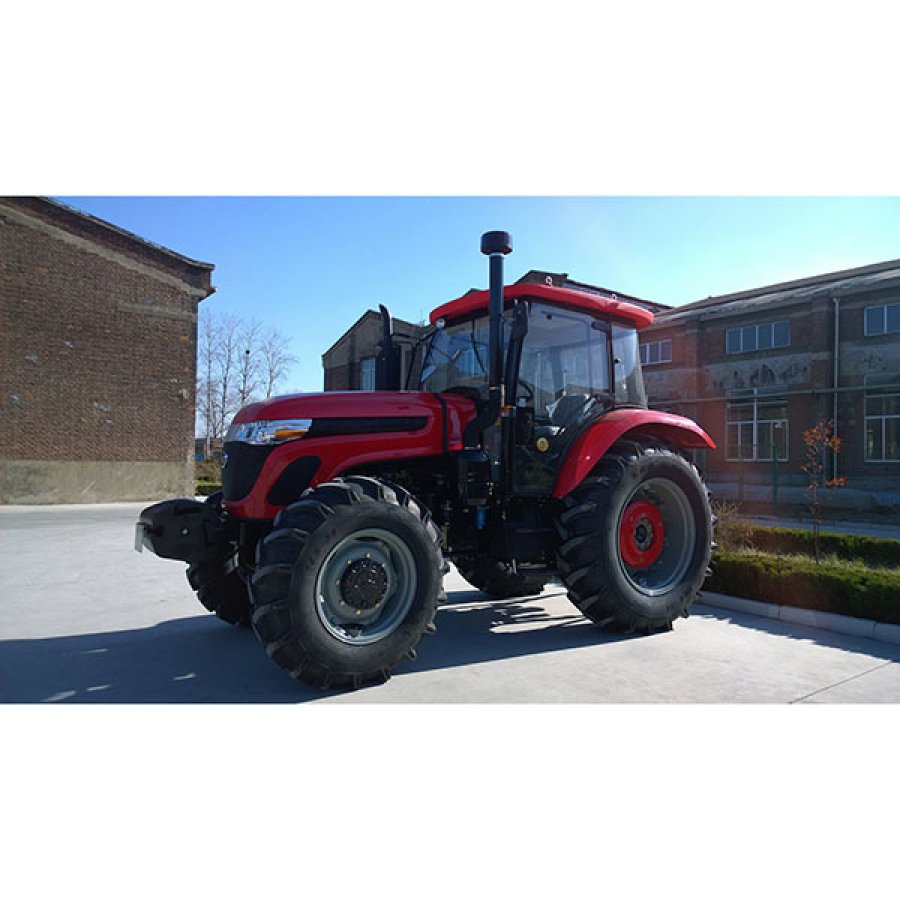

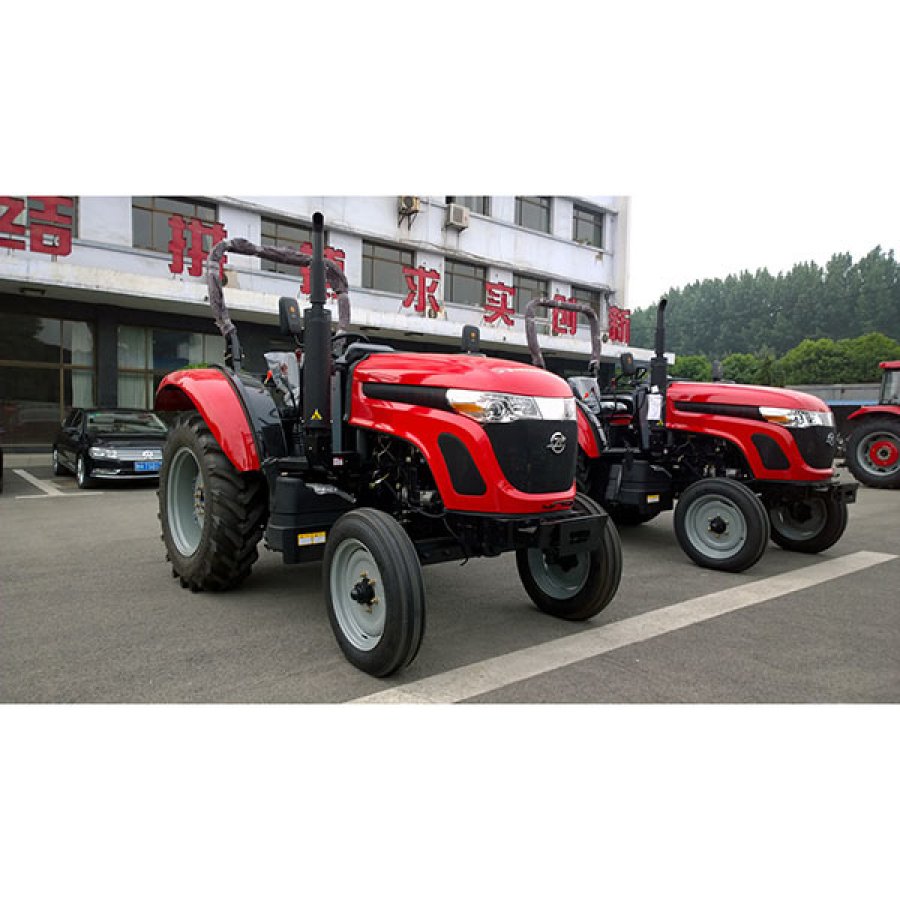

TS850-TS854 Tractor
Tractor
Main Features:
■ Adopt Dongfanghong diesel engines, better reliability, more back coefficient for torsion.
■ Clutch with independent operation double actions.
■ Gear-box shows 4X(2+1),namely 8 forwards,4 returns,if choosing climbing shift,then 16 forwards,8 returns,shift in mesh;
■ Driving force output device with postposition,peaceful and stable transmission,stronger bear the weight of loading.
■ Adopt front-wheel turning with full liquid-pressure and independent oil way,turn agilely,reliably,power-saving;
■ Adopt static hydraulic tray-style arrester,stronger brake moment,reliable brake;
■ Adopt strong pressure lifter,independent oil supply,system performance reliable;multi-liquid output optional
■ The final driving is planet-gear style,smaller volume,bigger decelerating ratio;
■ Installed adjustable chair with elasticity and shock absorption,comfortable driving.
■ The whole tractor is beautiful,taste,modern,fashion.
Technical Specifications:
Model | TS850 Tractor | TS854 Tractor | |
Drive Type | 4×2 | 4×4 | |
Engine | |||
Engine Manufacturer | YTO Group Corporation | YTO Group Corporation | |
Engine Model | LR4M5 | LR4M5 | |
Engine Type | vertical,water-cooled,four-stroke,direct injection | vertical,water-cooled,four-stroke,direct injection | |
Max Torque(N·m)/Revolving Speed(rpm) | ≥350/2300 | ≥350/2300 | |
Displacement(L) | 5.13 | 5.13 | |
Cylinder Diameter * Stroke | 110×135 | 110×135 | |
Fuel Tank Capacity(L) | 150 | 150 | |
Engine Rated Power (kW/rpm) | 62.5 | 62.5 | |
Rated Operating Conditions Fuel Consumption Rate(g/kW·h) | ≤242 | ≤242 | |
Drive Train | |||
Clutch | dry,single disc,independent dual-stage | dry,single disc,independent dual-stage | |
Standard PTO speed(rpm) | (760，1000)/(540，1000) | (760，1000)/(540，1000) | |
Gears | 8F+4R/16F+8R(creeper) | 8F+4R/16F+8R(creeper) | |
Steering type | hydraulic steering | hydraulic steering | |
Gear Shift Mode | meshing gear shift | meshing gear shift | |
Speed Range(Km/h) | 0.41～31.11 | 0.46～34.85 | |
Break System | |||
Service Brake | pedal,mechanical drive,hydrostatic,disc | pedal,mechanical drive,hydrostatic,disc | |
Parking Brake | handle operation, | handle operation, | |
Hydraulic System | |||
Hydraulic Output Flow(L/min) | 50 | 50 | |
Hydraulic Output Valve | 1 /2 ways | 1 /2 ways | |
Working Device | |||
Three-Point Suspension | postposition,Category Ⅱ | postposition,Category Ⅱ | |
Max.Lifting Capacity(kN） | 15 | 15 | |
Tillage Depth Adjustment | draft and position adjustable,floating control | draft and position adjustable,floating control | |
General Parameter | |||
Overall Dimension(L×W×H)mm | With cab | 4027×2050×2670 | 4027×2050×2750 |
Without cab | 4027×2050×2670 | 4027×2050×2750 | |
Wheelbase(mm) | 2210 | 2195 | |
Min. operating weight(kg) | With cab | 3600 | 3873 |
Without cab | 3350 | 3683 | |
Min. Ground Clearance(mm) | 418 | 375 | |
Min.turning radius(mm) | 3400 | 4200 | |
Front Tire | 6.5-20 | 11.2-24 | |
Rear Tire | 14.9-30 | 16.9-34 | |
Rated Pull | 16.5 | 19.6 | |
Optional Disposition | hydraulic pressure lifter, | hydraulic pressure lifter, | |
