Tractors model TS900 and TS904 are 90hp tractors, specially used in mountain areas and muddy roads.

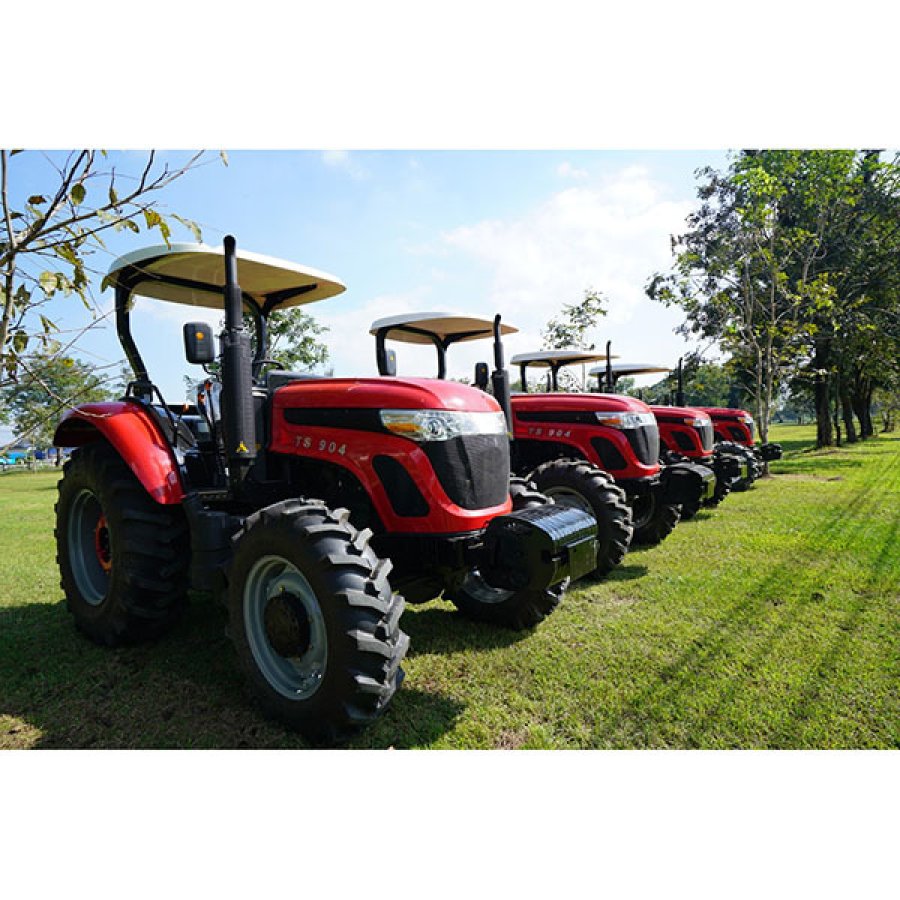

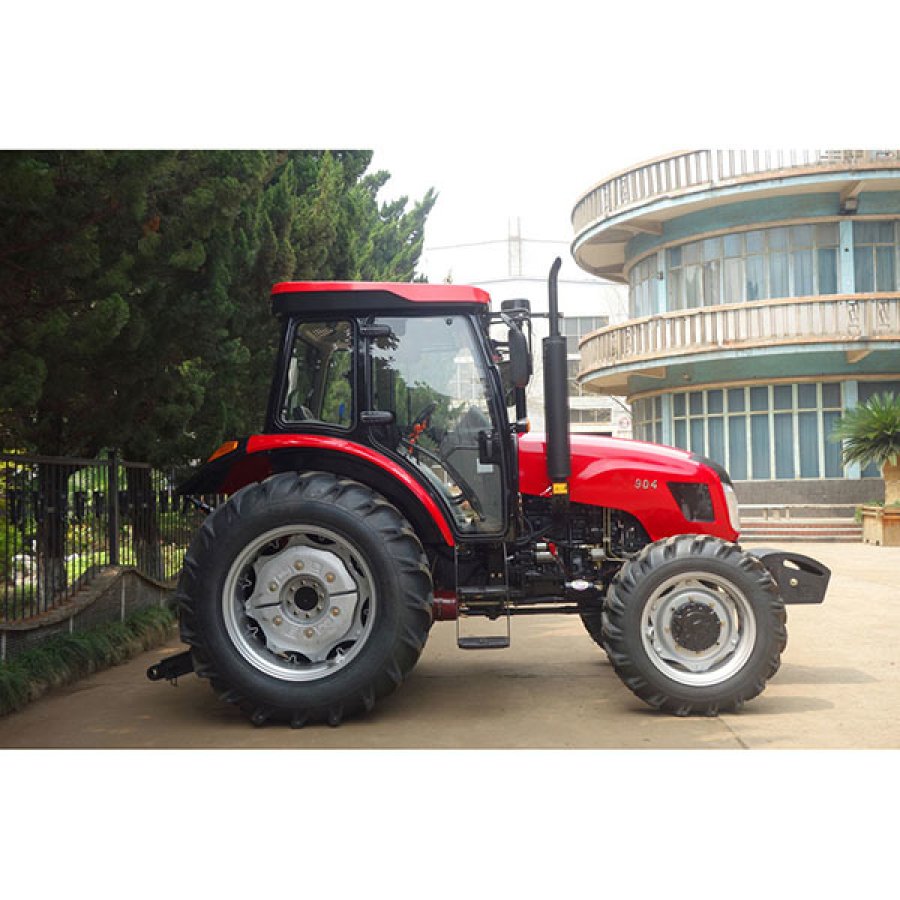

TS900-TS904 Tractor
Tractor
Main Features:
■ Tractors model TS900 and TS904 are 90hp tractors, specially used in mountain areas and muddy roads.
■ It is adopted Chinese famous brand YTO engine, which has a big rated power, low noise, low emissions, in line with the European III emission standards, environmental protection and energy saving.
■ Successfully passed ISO9001 International Quality Certification System;
■ It has the characteristics of high transmission efficiency, low tremble, high traction, high adaptability and easy start.
■ Hydraulic output interface can make direct connection with the dump trailer, mower, backhoe, plough, harrow, etc.
Technical Specifications:
Model | TS900 Tractor | TS904 Tractor | |
Drive Type | 4×2 | 4×4 | |
Engine | |||
Engine Manufacturer | YTO Group Corporation | YTO Group Corporation | |
Engine Model | LR4M5-23 | LR4M5-23 | |
Engine Type | vertical,water-cooled,four-stroke,direct injection | vertical,water-cooled,four-stroke,direct injection | |
Max Torque(N·m)/Revolving Speed(rpm) | ≥372/2300 | ≥372/2300 | |
Displacement(L) | 5.13 | 5.13 | |
Cylinder Diameter * Stroke | 110×135 | 110×135 | |
Fuel Tank Capacity(L) | 150 | 150 | |
Engine Rated Power (kW/rpm) | 66.2 | 66.2 | |
Rated Operating Conditions Fuel Consumption Rate(g/kW·h) | ≤242 | ≤242 | |
Drive Train | |||
Clutch | dry,single disc,independent dual-stage | dry,single disc,independent dual-stage | |
Standard PTO speed(rpm) | (760，1000)/(540，1000) | (760，1000)/(540，1000) | |
Gears | 8F+4R/16F+8R(creeper) | 8F+4R/16F+8R(creeper) | |
Steering type | hydraulic steering | hydraulic steering | |
Gear Shift Mode | meshing gear shift | meshing gear shift | |
Speed Range | 0.41～31.11 | 0.46～34.85 | |
Break System | |||
Service Brake | pedal,mechanical drive,hydrostatic,disc | pedal,mechanical drive,hydrostatic,disc | |
Parking Brake | handle operation,multi friction surface mechanical compress,oil bath type | handle operation,multi friction surface mechanical compress,oil bath type | |
Hydraulic System | |||
Hydraulic Output Flow(L/min) | 50 | 50 | |
Hydraulic Output Valve | ways | 2 ways | |
Working Device | |||
Three-Point Suspension | postposition, Category Ⅱ | postposition, Category Ⅱ | |
Max.Lifting Capacity(kN） | 15.9 | 15.9 | |
Tillage Depth Adjustment | draft and position adjustable,floating control | draft and position adjustable,floating control | |
General Parameter | |||
Overall Dimension(L×W×H)mm | With cab | 4027×2050×2670 | 4027×2050×2750 |
Without cab | 4027×2050×2670 | 4027×2050×2750 | |
Wheelbase(mm) | 2210 | 2195 | |
Min. operating weight(kg) | With cab | 3600 | 3873 |
Without cab | 3350 | 3683 | |
Min. Ground Clearance(mm) | 418 | 375 | |
Min.turning radius(mm) | 3400 | 4200 | |
Front Tire | 6.5-20 | 11.2-24 | |
Rear Tire | 14.9-30 | 16.9-34 | |
Rated Pull | 18.5 | 21.8 | |
Optional Disposition | hydraulic pressure lifter,air brake, swing draw bar,creeper gear,paddy tire,2 group hydraulic output | pressure lifter,air brake, swing draw bar,creeper gear,paddy tire,2 group hydraulic output | |
