The use of flat floors, hanging pedals, side manipulation, 8+4shuttle shift transmission, and various gear selections can provide a reasonable velocity distribution. Optional 16+8 synchronizer shuttle shift models make the manipulation more convenient;

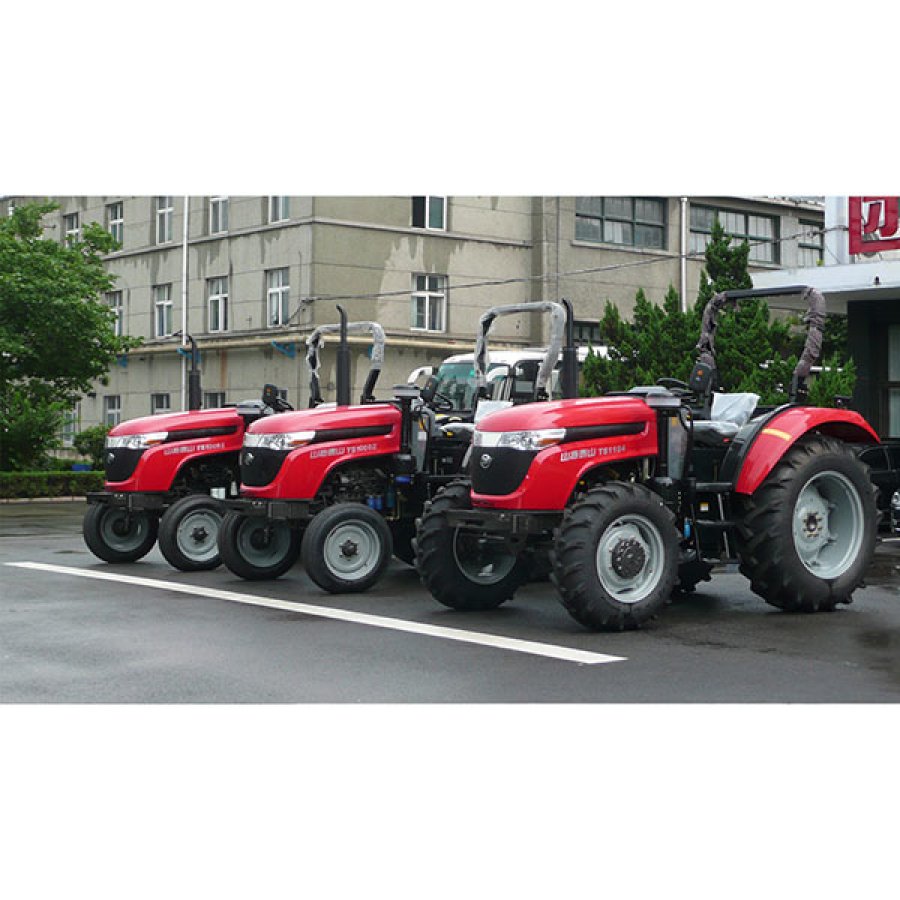

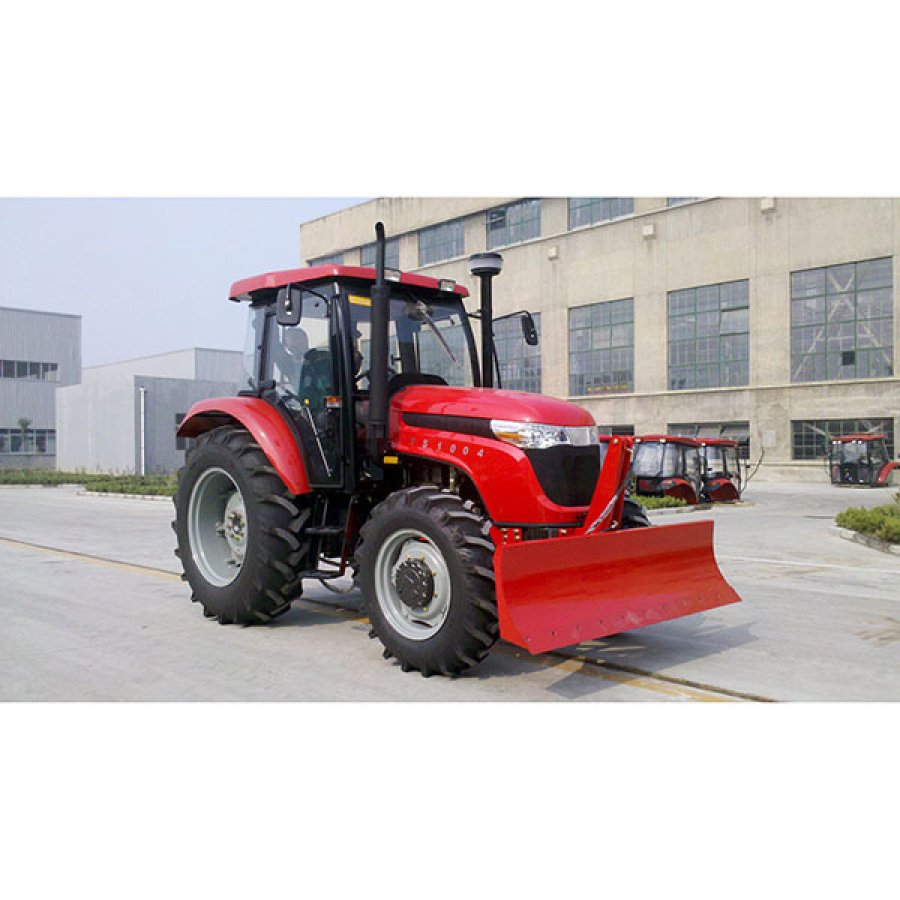

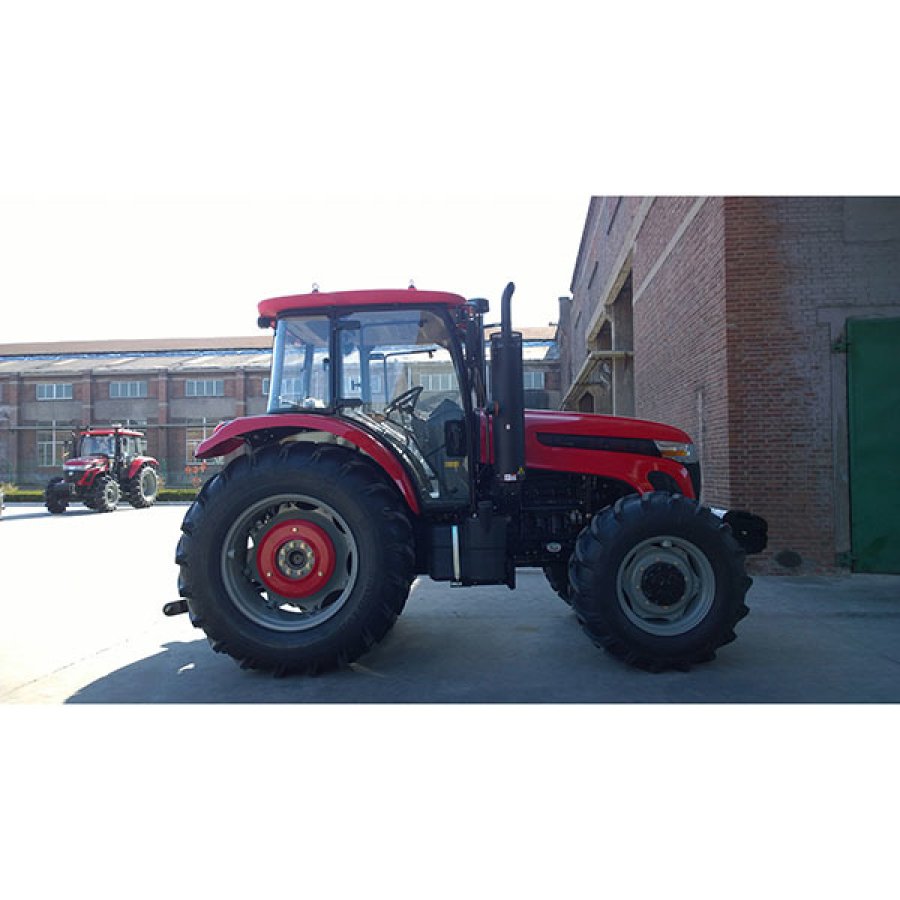

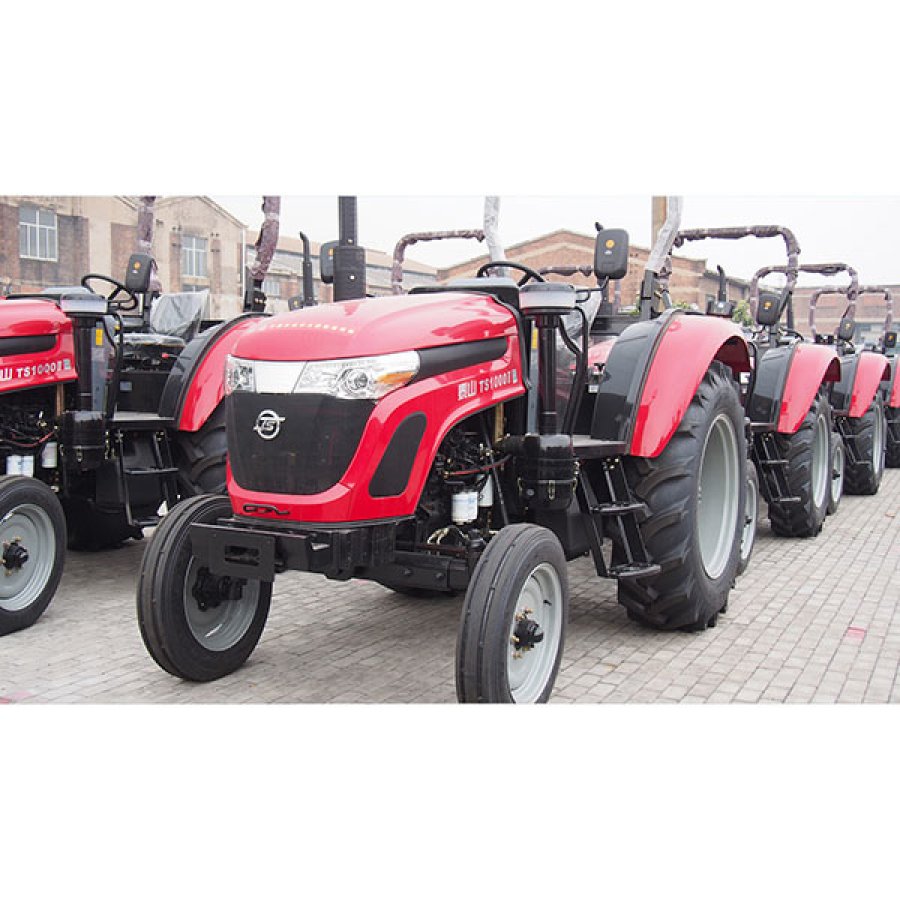

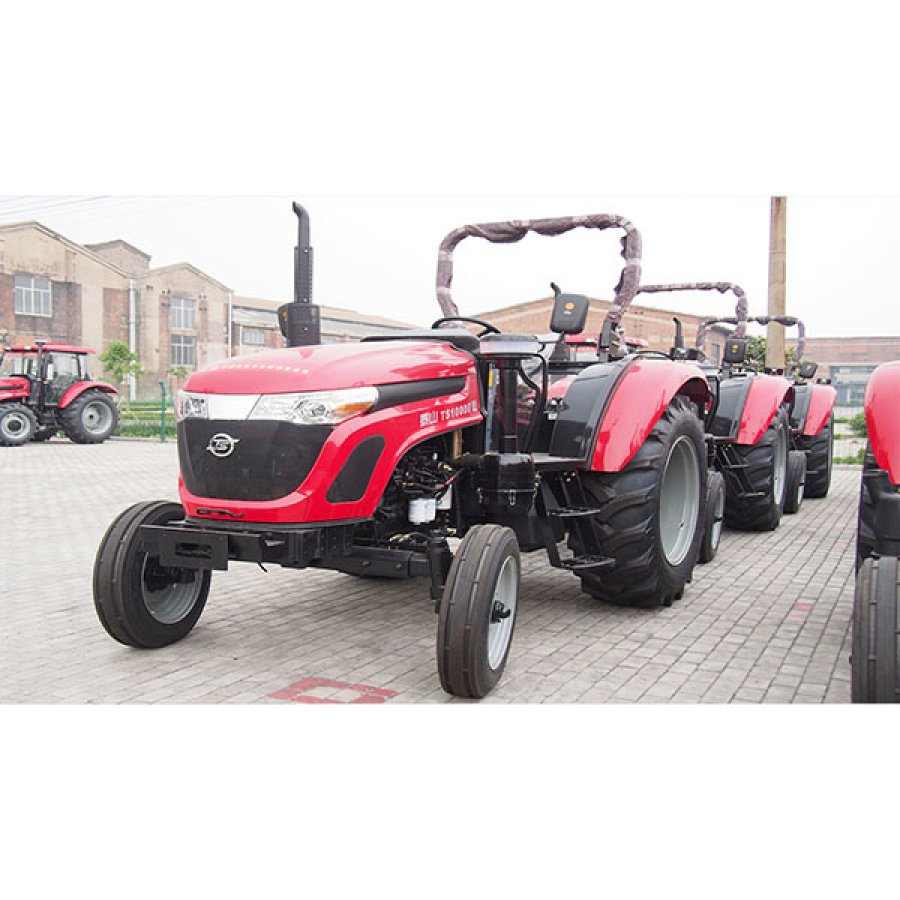

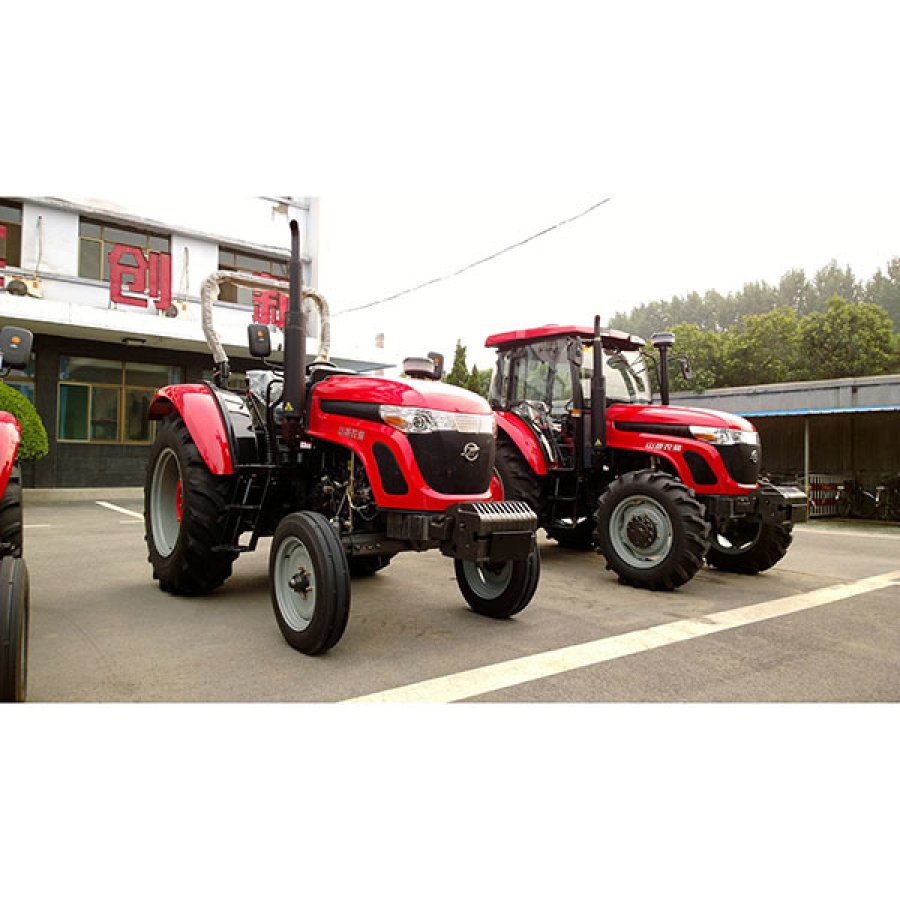

TS1000-TS1004 Tractor
Tractor
Main Features:
■ The use of flat floors, hanging pedals, side manipulation, 8+4shuttle shift transmission, and various gear selections can provide a reasonable velocity distribution. Optional 16+8 synchronizer shuttle shift models make the manipulation more convenient;
■ The imported German LUK clutch has a reliable performance, a large torque reserve coefficient and a high transmissiton ability;
■ 240-liter lower large fuel tank, a long operation time;
■ The optional U.S. ACTUANT combination instruments can achieve a stable work and a high reliability;
■ GOST certification model is available.
Technical Specifications:
Model | TS1000 Tractor | TS1004 Tractor | |
Drive Type | 4×2 | 4×4 | |
Engine | |||
Engine Manufacturer | Anhui Tanli Engine Co., Ltd. | Anhui Tanli Engine Co., Ltd. | |
Engine Model | QC4115T | QC4115T | |
Engine Type | vertical,water-cooled,four-stroke,direct injection | vertical,water-cooled,four-stroke,direct injection | |
Max Torque(N·m)/Revolving Speed(rpm) | ≥390/2300 | ≥390/2300 | |
Displacement(L) | 5.61 | 5.61 | |
Fuel Tank Capacity(L) | 150 | 150 | |
Cylinder Diameter * Stroke | 115×135 | 115×135 | |
Engine Rated Power (kW/rpm) | 73.5 | 73.5 | |
Rated Operating Conditions Fuel Consumption Rate(g/kW·h) | ≤240 | ≤240 | |
Drive Train | |||
Clutch | dry,single disc,independent dual-stage | dry,single disc,independent dual-stage | |
Standard PTO speed(rpm) | (760，1000)/(540，1000) | (760，1000)/(540，1000) | |
Gears | 8F+4R/16F+8R(creeper) | 8F+4R/16F+8R(creeper) | |
Steering type | hydraulic steering | hydraulic steering | |
Gear Shift Mode | meshing gear shift | meshing gear shift | |
Speed Range | 2.65～38.18 | 2.34～33.69 | |
Service Brake | pedal,mechanical drive,hydrostatic,disc | pedal,mechanical drive,hydrostatic,disc | |
Parking Brake | handle operation,multi friction surface mechanical compress,oil bath type | handle operation；multi friction surface；mechanical compress,oil bath type | |
Hydraulic System | |||
Hydraulic Output Flow(L/min) | 50 | 50 | |
Hydraulic Output Valve | 2 ways | 2 ways | |
Working Device | |||
Three-Point Suspension | postposition, Category Ⅱ | postposition, Category Ⅱ | |
Max.Lifting Capacity(kN） | 17.6 | 17.6 | |
Tillage Depth Adjustment | draft and position adjustable,floating control | draft and position adjustable,floating control | |
General Parameter | |||
Overall Dimension(L×W×H)mm | With cab | 4040×2050×2750 | 4270×2050×2750 |
Without cab | 4040×2050×2750 | 4270×2050×2750 | |
Wheelbase(mm) | 2223 | 2208 | |
Min. operating weight(kg) | With cab | 3735 | 4003 |
Without cab | 3545 | 3814 | |
Min. Ground Clearance(mm) | 465 | 415 | |
Min.turning radius(mm) | 3400 | 4200 | |
Front Tire | 6.5-20 | 12.4-24 | |
Rear Tire | 16.9-34 | 16.9-34 | |
Rated Pull | 19 | 22 | |
Optional Disposition | hydraulic pressure lifter, | hydraulic pressure lifter, | |
