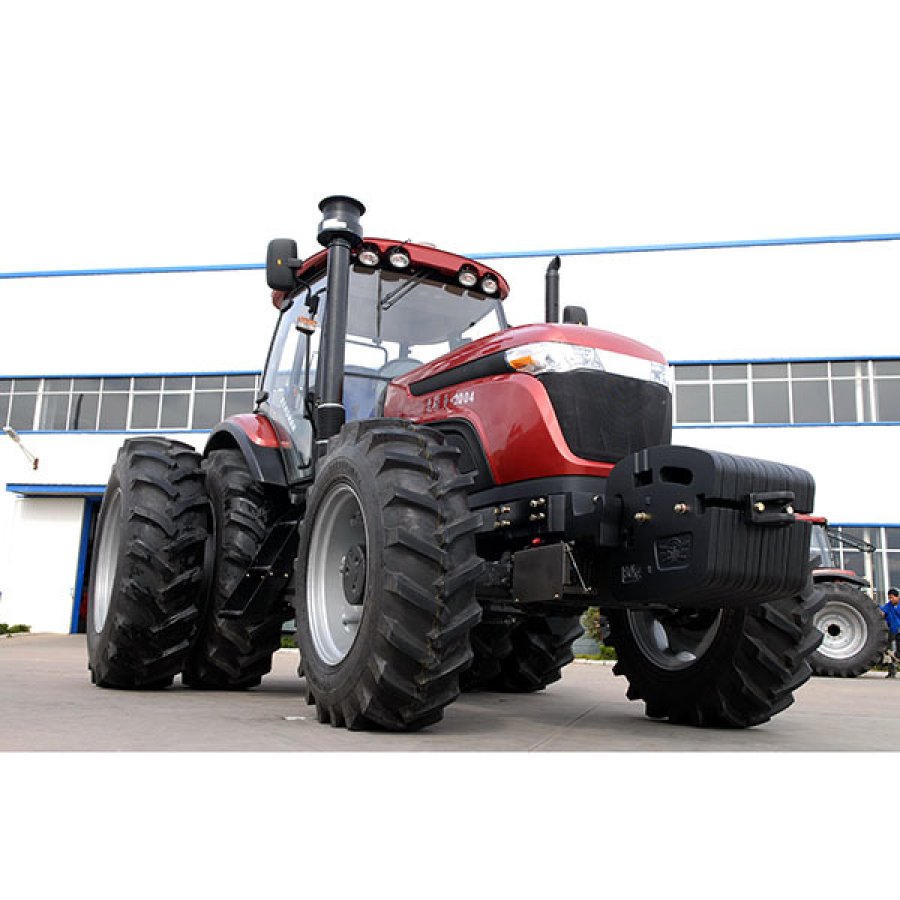

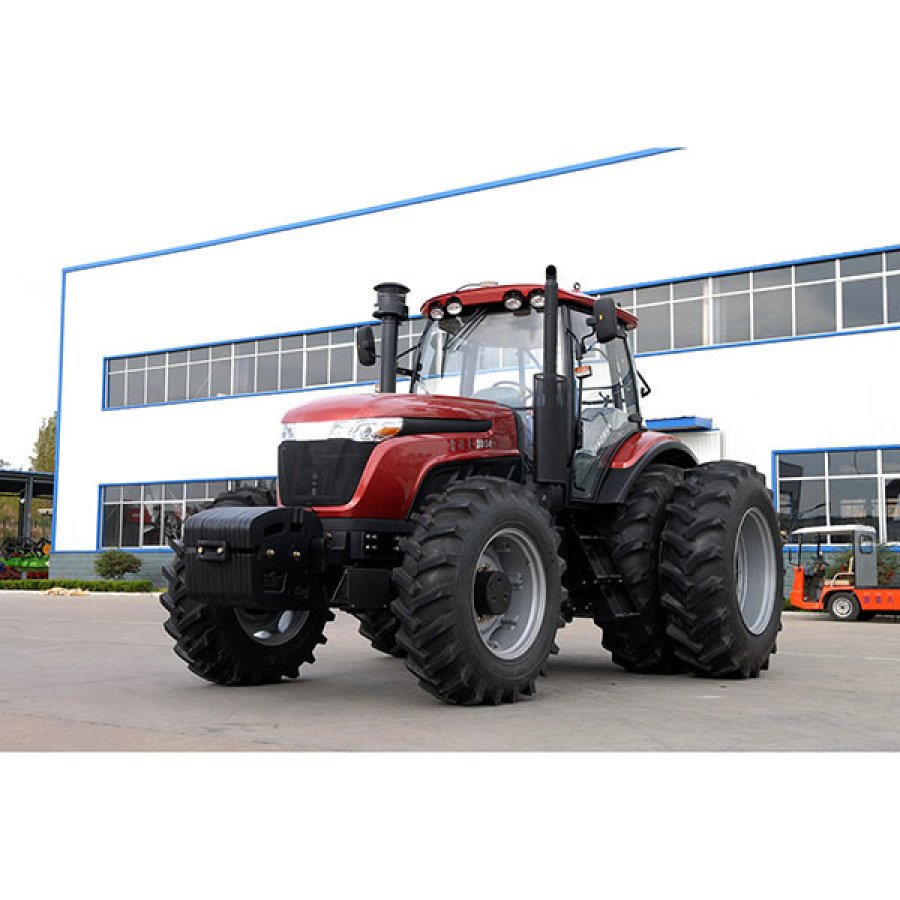

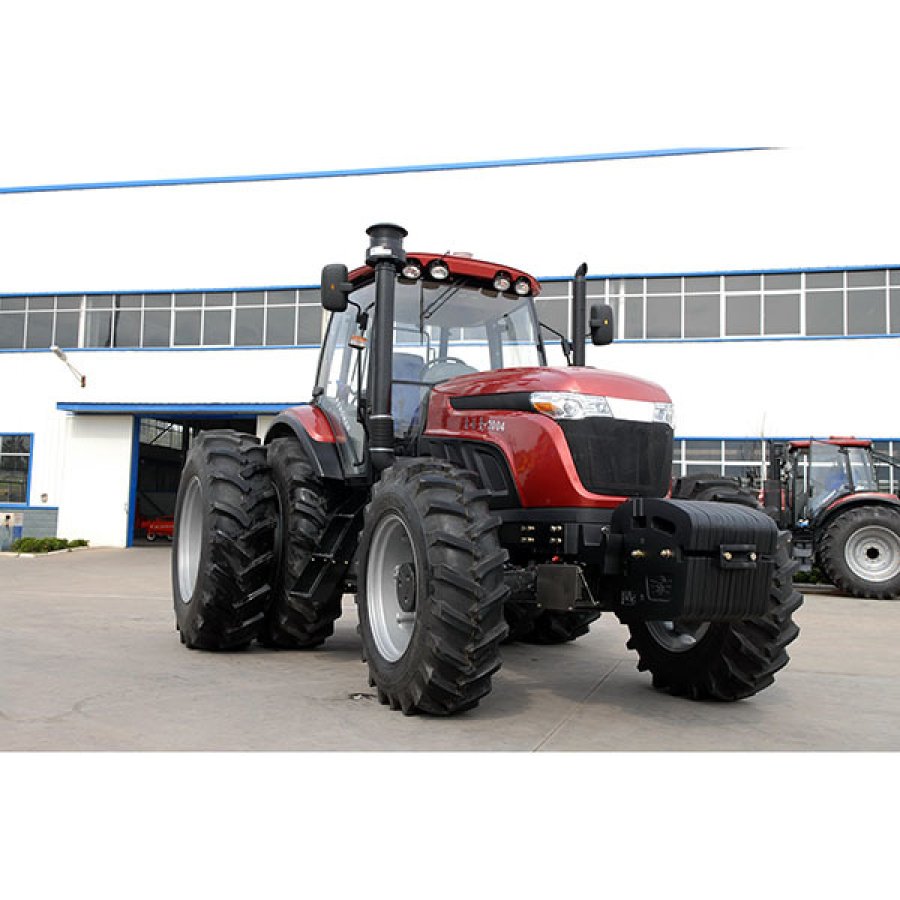

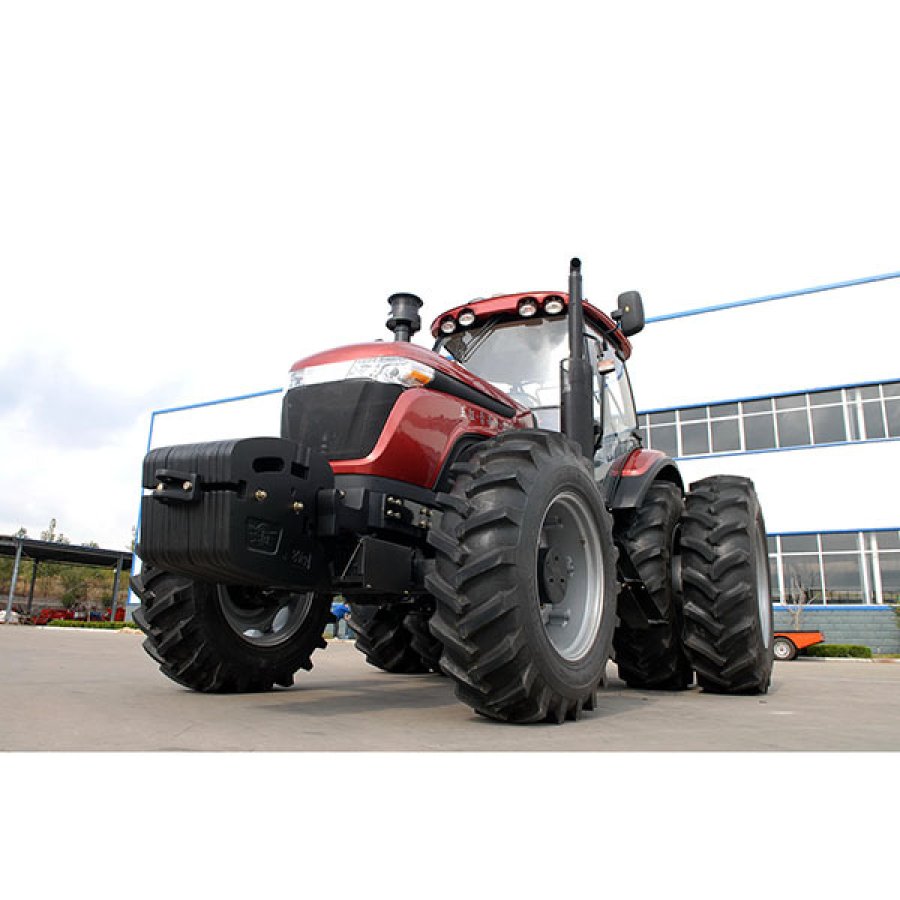

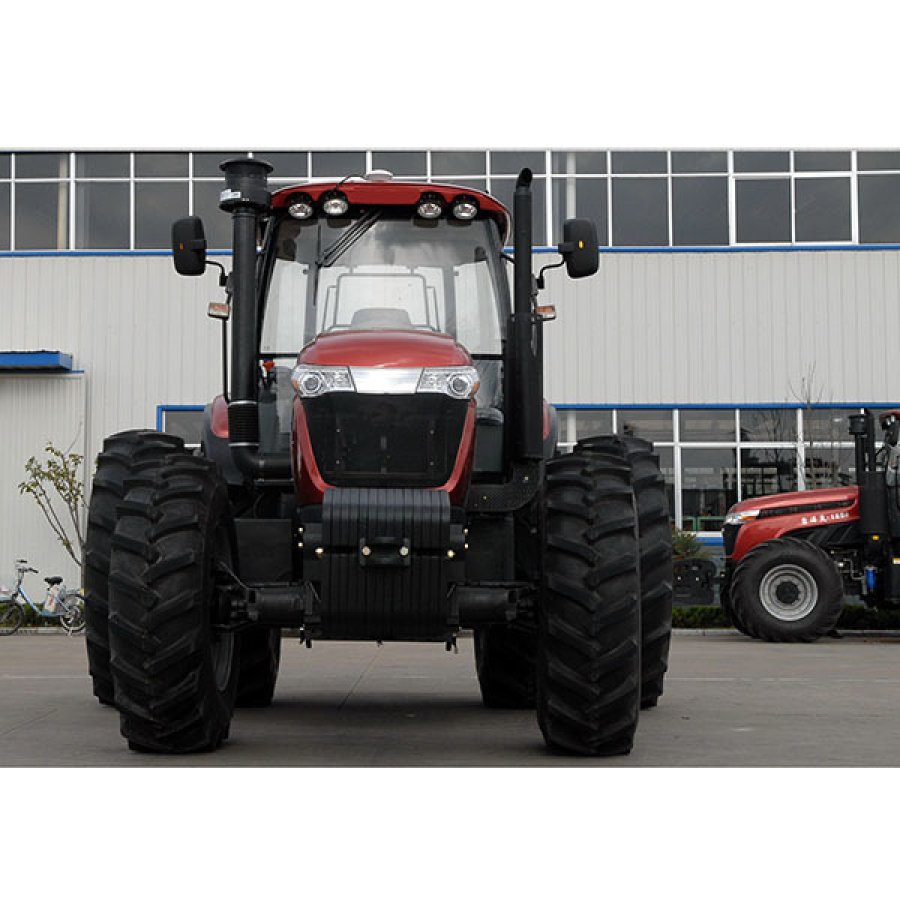

TS2004 Tractor

With crawling gear structure installed fully synchronizer main transmission and power shift sub-transmission, which has total gear number up to 40 forward gear and 40 reverse gear, covers the speed range 0.36-47.77km / h.

Key words:

TS2004 Tractor

Category:

Tractor

Message
TS2004 Tractor

Main Features:
■ A transmission even smoother than your car`s
With crawling gear structure installed fully synchronizer main transmission and power shift sub-transmission, which has total gear number up to 40 forward gear and 40 reverse gear, covers the speed range 0.36-47.77km / h. It could provide you different range of speed for your different tasks. With the high range for travel speed, medium range for mowing and low range for hard-pull applications and loader work, you’ll always have the power you need for the task at hand.
Electrical fluid control wet multi-plate disc clutch with chassis fault diagnosis system can diagnose chassis fault itself, enhance the ability of continuous operation, give you a superior efficiency.
■ An air suspension seat better than your Sofa.
Air suspension seat, can effectively reduce the turbulence generated during operation of the vehicle, deliver a more comfortable and pleasant driving experience. Four-direction adjustable steering wheel, six-direction adjustable seat, helps you find the most suitable driving position.
Full vision cab with frameless glass cover, provides maximum field of vision for you and makes it safer to operate the tractor.
Using sound-absorbing insulation materials, to seal the whole cab, gives you an excellent sealing performance, effectively cut off the noise and heat from external environment.
The operator-oriented designing idea and ergonomic interior layout, make every button around you clearly marked and easy to touch. An easy-to-reach control lever controls the rear implements operating height and makes sure it’s always right where you need it. Equipped with Air-conditioner, brings you a more comfortable and pleasant driving experience.
Tilting traction structure effectively reduces the impact load and tractor vibration, the driving experience is more comfortable while making the connection structure more durable.
■ Excellent autopilot system liberates your hands and brain
Excellent autopilot system liberates your hands and brain. When the autopilot system controls machine ridge, planting, spraying, harvesting and other agricultural operations, the convergence of accuracy for the spacing is up to 2 cm. It can greatly reduce the cost of crop production inputs, effectively improve the agronomic quality of operations and reduce fatigue. That’s getting every job done faster than ever
Electronically controlled clutch system, it means you can smoothly transform two-wheel drive and four-wheel drive or shift the forward gear and reverse gear just by pressing a button without stopping. So what you need to do next is enjoying your controlling, even during the toughest tasks, allowing you to work smarter and reduce fatigue.
Hydraulic power steering systems with reverse camera makes steering smoother and more flexible, reduce fatigue.
Easily change direction of travel with the quick-shifting -shuttle system. Shift from forward to reverse in different speeds without stopping. You’ll greatly increase loader work productivity and make your entire to-do list easier.
Compact body design, small turning radius , more lightweight and flexible hydraulic power steering, makes it easy to operate and greatly reduces the your fatigue.
■ 3-way hydraulic output
Equipped with 3-way hydraulic output, makes your tractor match more kinds of farm implements. That means you can always get the function you need for whatever task you may face.


Technical Specifications:

Model

TS2004 Tractor

Drive Type

4×4

Engine


Engine Manufacturer

     Weichai Power Co.,Ltd.

Engine Model

WP6T200E200

Engine Type

turbocharge-Intercooled

Max Torque(N·m)/Revolving Speed(rpm)

860/1400-1600

Displacement(L)

6.75

Engine Rated Power (kW/rpm)

147/2200

Rated Operating Conditions Fuel Consumption Rate(g/kW·h)

≤230

Drive Train


Clutch

electric control,wet multiple disc

Standard PTO speed(rpm)

540/540E/1000/1000E

Gears

40F+40R

Steering type

 hydraulic steering

Gear Shift Mode

main transmission synchronizer shift, auxiliary transmission meshing gear shift

Break System


Service Brake

pedal,hydraulic transmission, multi-disc,wet

Parking Brake

handle operation, multi friction plate

Hydraulic System


Hydraulic Output Flow(L/min)

80

Hydraulic Output Valve

 3 ways

Working Device


Three-Point Suspension

Category Ⅲ

Max.Lifting Capacity(kN)

≥35.28

Tillage Depth Adjustment

draft/ position/draft and position,floating adjustable

General Parameter


Overall Dimension(L×W×H)mm

With cab

5750×2320×3210

Without cab

/

Wheelbase(mm)

2950

Min. operating weight(kg)

With cab

6500

Without cab

/

Min. Ground Clearance(mm)

400

Min.turning radius(mm)

8500

Front Tire

16.9-30

Rear Tire

20.8-38
