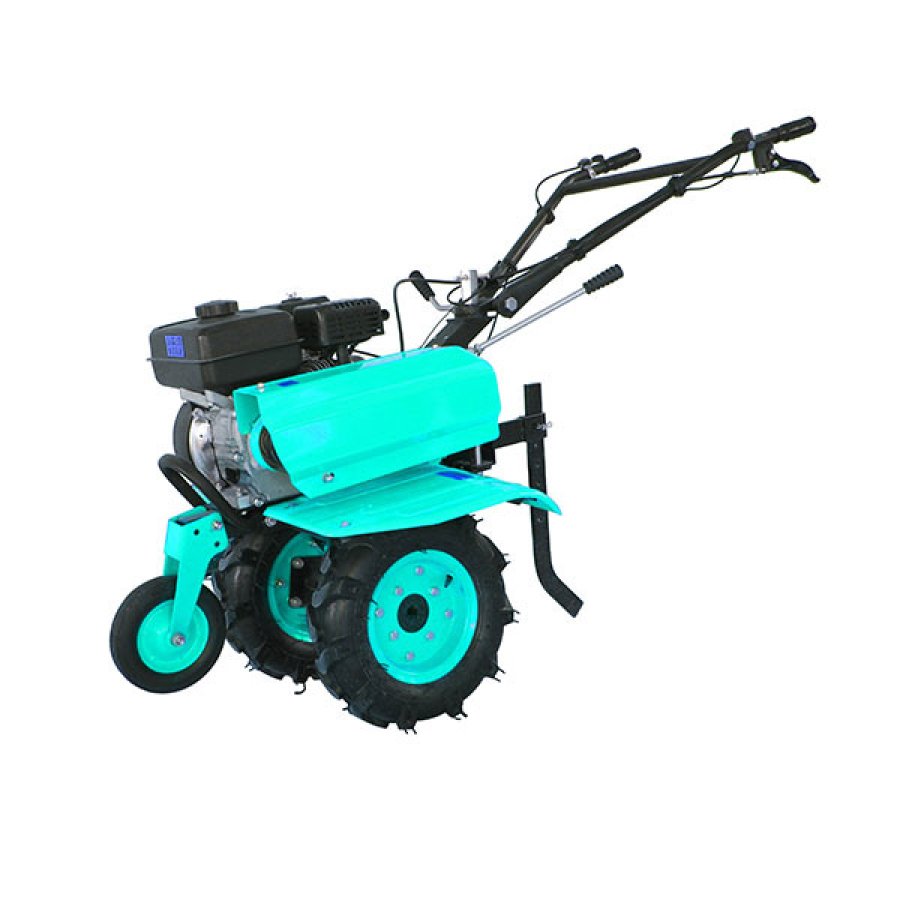

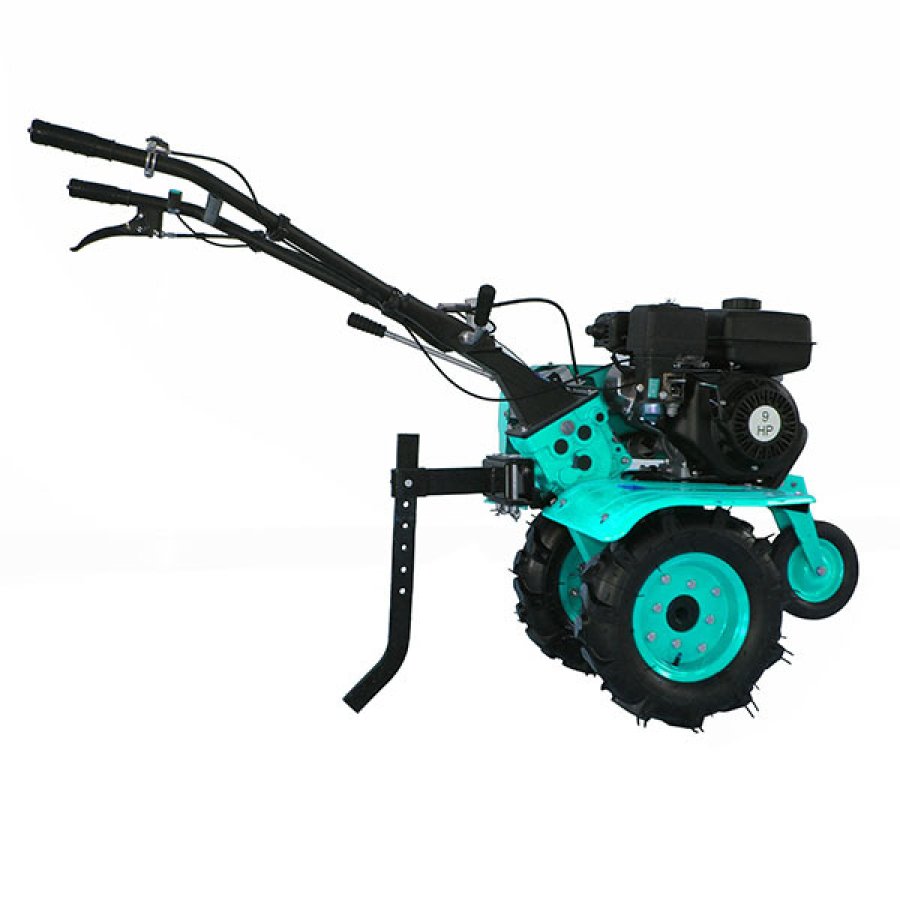

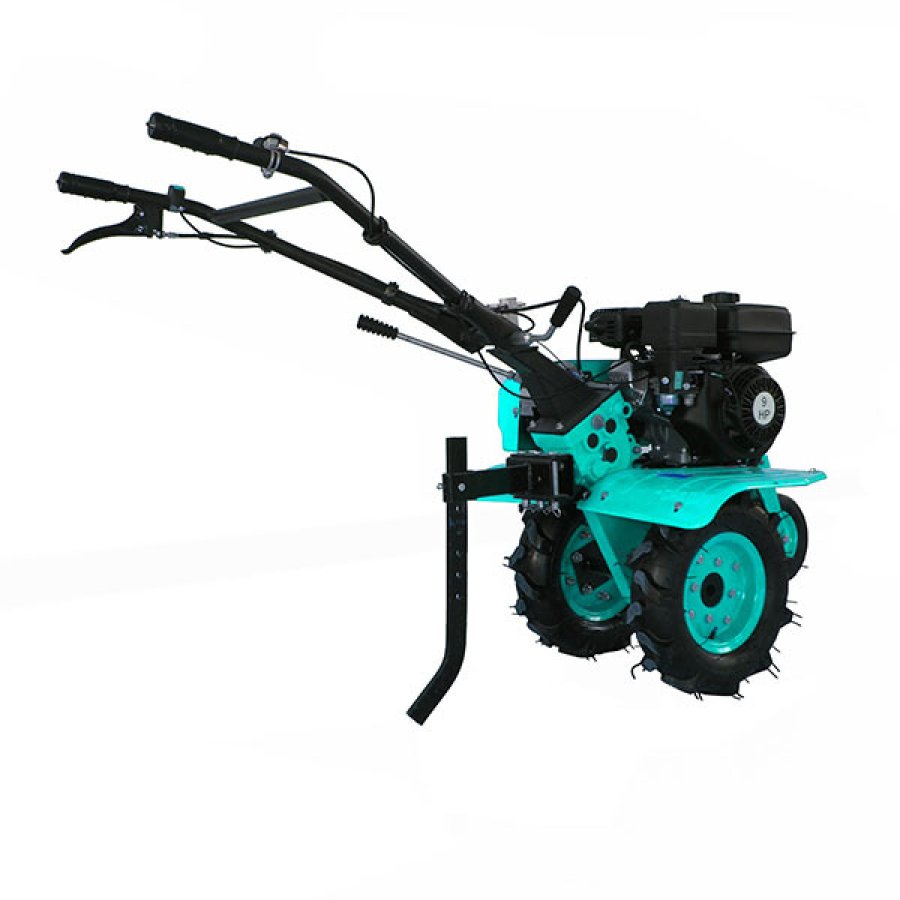

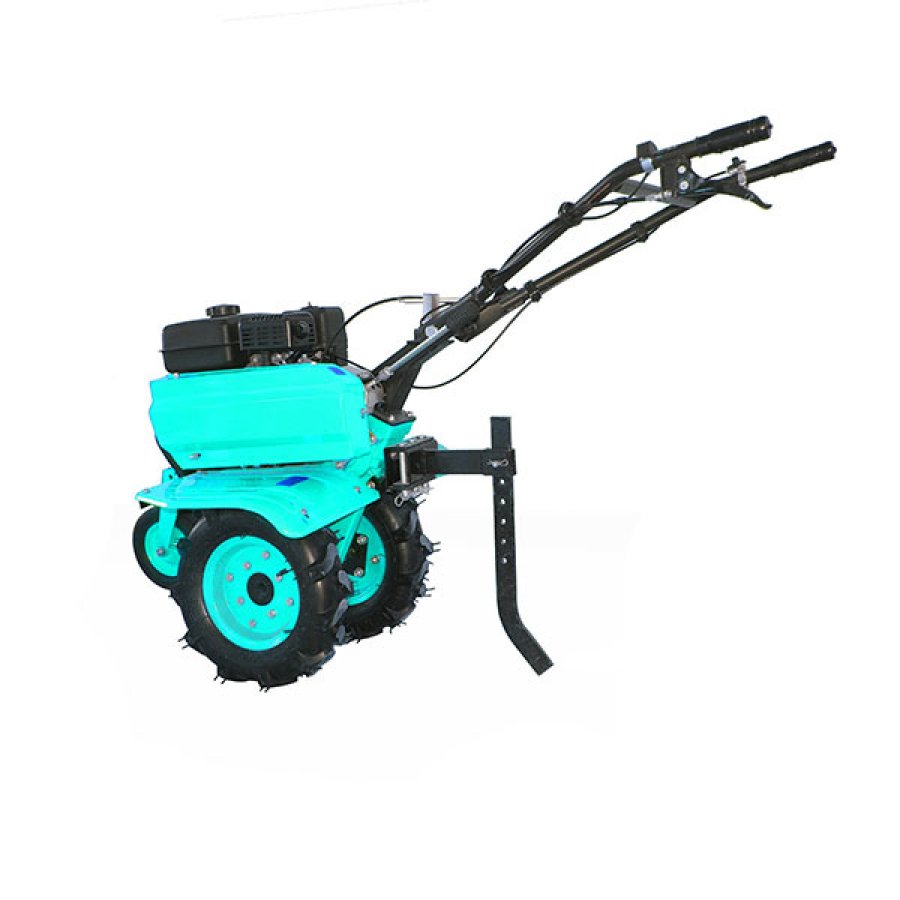

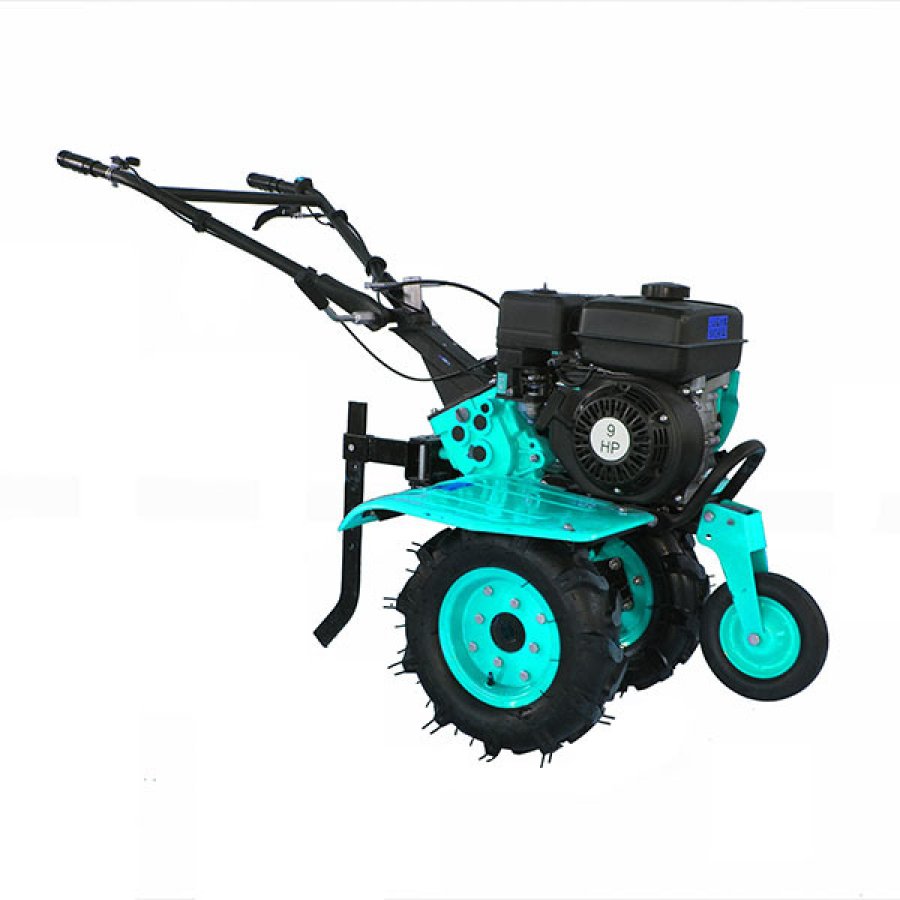

GT900A

Suitable for the plains, mountains, hilly area of paddy field, dry and vegetable greenhouses, especially suitable for mountain terraces, Small piece of farmland and deep mud field operations.

Key words:

GT900A

Category:

Power Tiller

Message
GT900A

GOODS DESCRIPTION:
1.The handle bar could be adjusted right and left, up and down
2.Original famous brand engine
3.Bumper:The engine can be effectively protected
4.Gear shift lever:2 forward one reverse gear.
5.Deep furrowing drag strut:You can adjust this to adjust the depth of the tillage.
6.Fender:The fender uses waterproof paint.the double fender’s width can be adjusted according the blades
7.Tow-bar:It can be connected with trailer,furrow,etc.
8.Tyre/Blade: Tyre 3.50-6, 4.00-8, 5.00-12 are optional.  Blade  It can be equipped with dry land blade,paddy wheel and anti-wrap blade,etc.
The Main Features
* Mini tiller cultivator  uses small diesel or gasoline engine as its power, has the advantages of light weight, small volume, simple
* Suitable for the plains, mountains, hilly area of paddy field, dry and vegetable greenhouses, especially suitable for mountain terraces, Small piece of farmland and deep mud field operations.
* It can do farm works of rotary tillage, weeding, deep plowing, ridging, ditching, sowing, fertilizing, spraying chemicals etc.


Parameters:

Model

Unit

GT900A

Tilling width

mm

800-1050

Tilling depth

mm

≥150

Transmission type


Belt transmission

Gearbox oil capacity

l

1.1

Tyre


4.00-8

Gear shifting


0, 1, 2, -1

Gear speed

rpm

0/92/126/69

Engine


170F gasoline engine

Engine type


Single cylinder, 4 strokes, air-cooled

Displacement

cc

210

Fuel Tank Capacity

l

3.6

Fuel


Gasoline

Ignition System


T.C.I (Transistorized Magneto Ignition)

Max.output

Hp/rpm

7/4000

Maximum Torque


14N/m

Compression ration


8.5:1

Fuel consumption

g/kw.h.

≤395g

Net weight

kg

83

Gross weight

kg

94

Packing size

mm

840*540*660
