GT1050

GOODS DESCRIPTION:

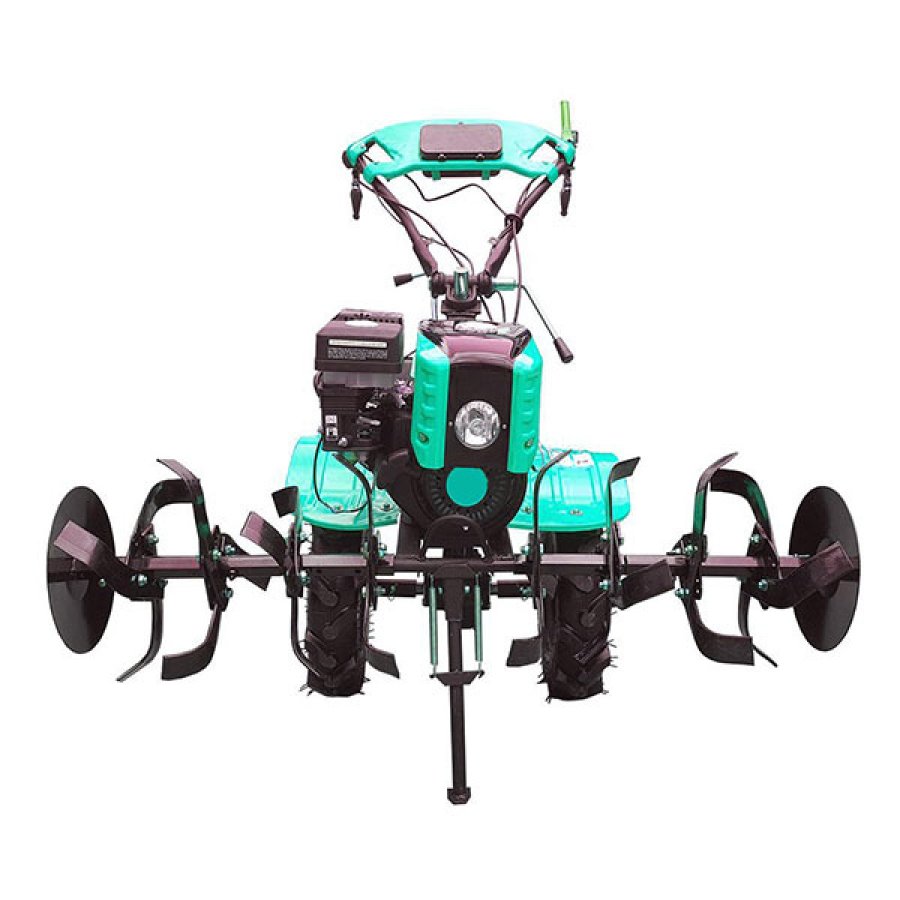

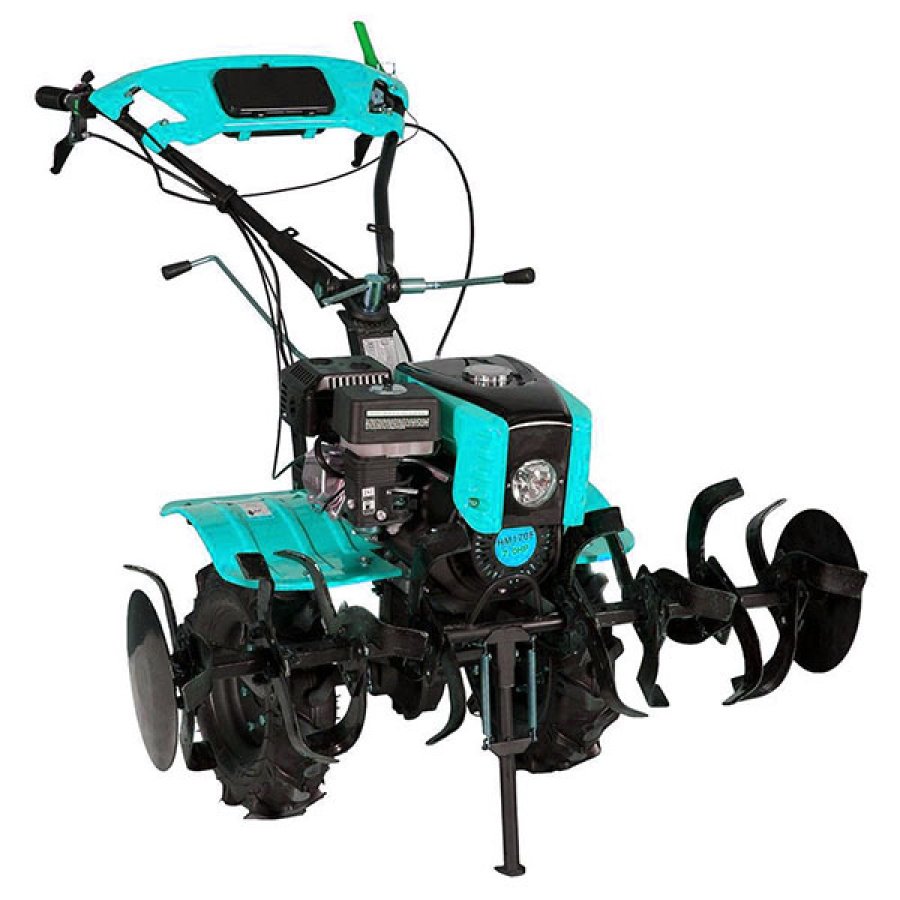

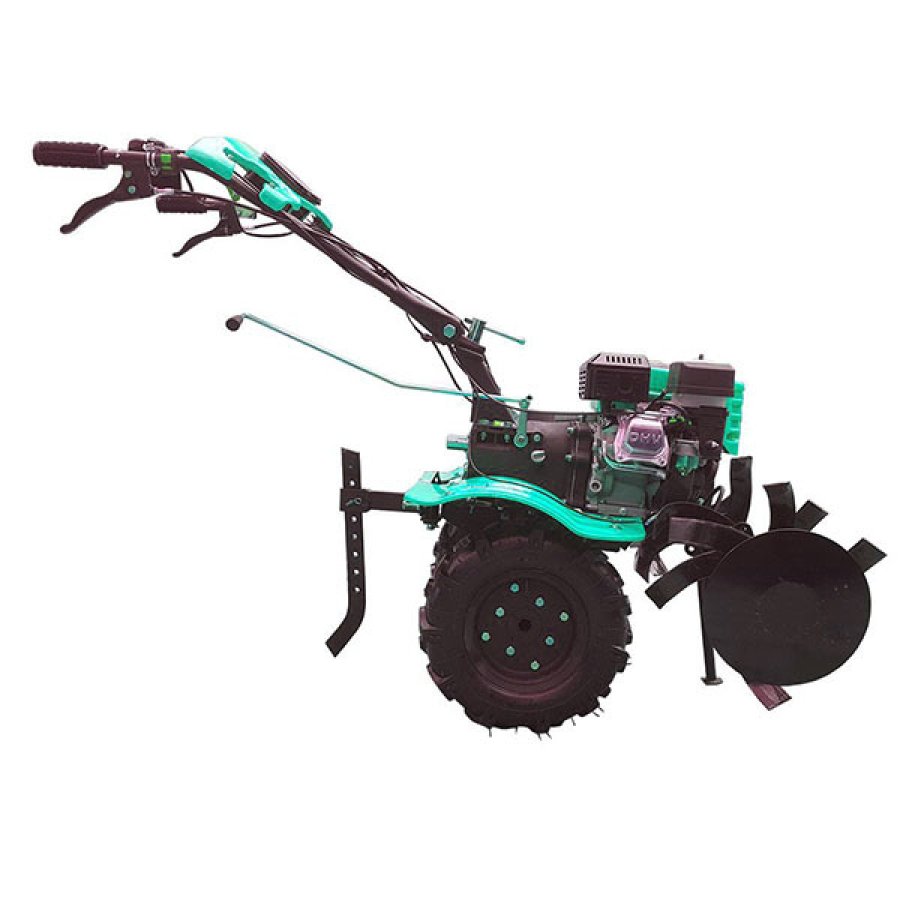

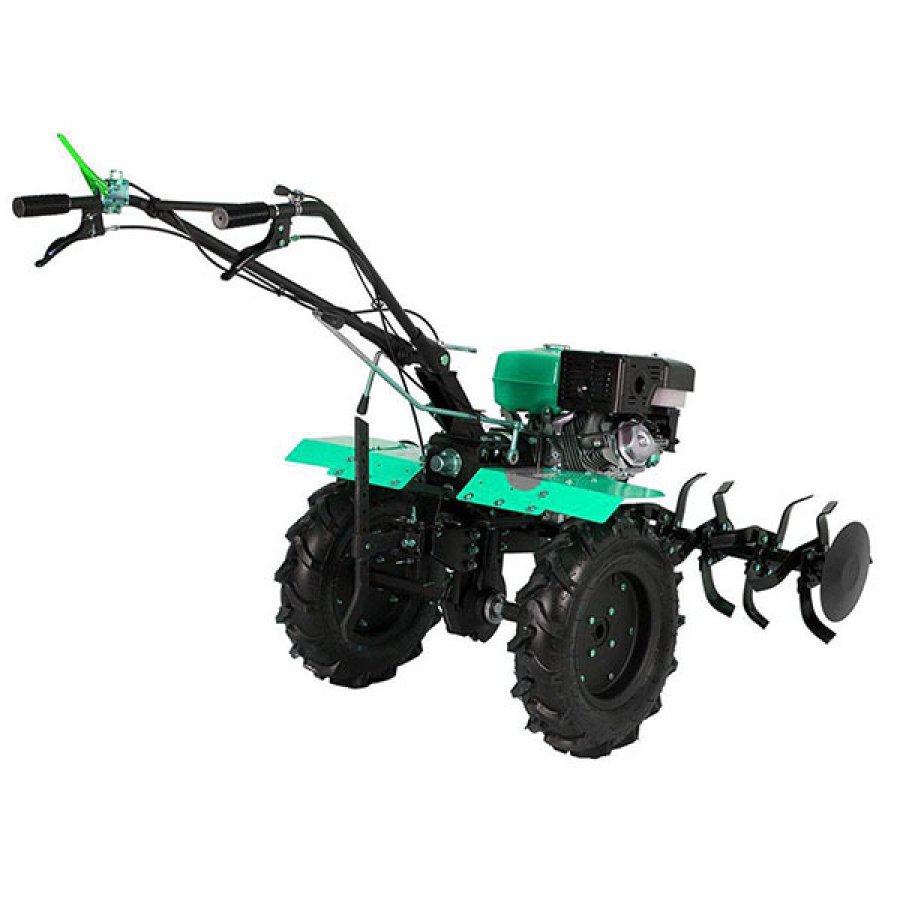

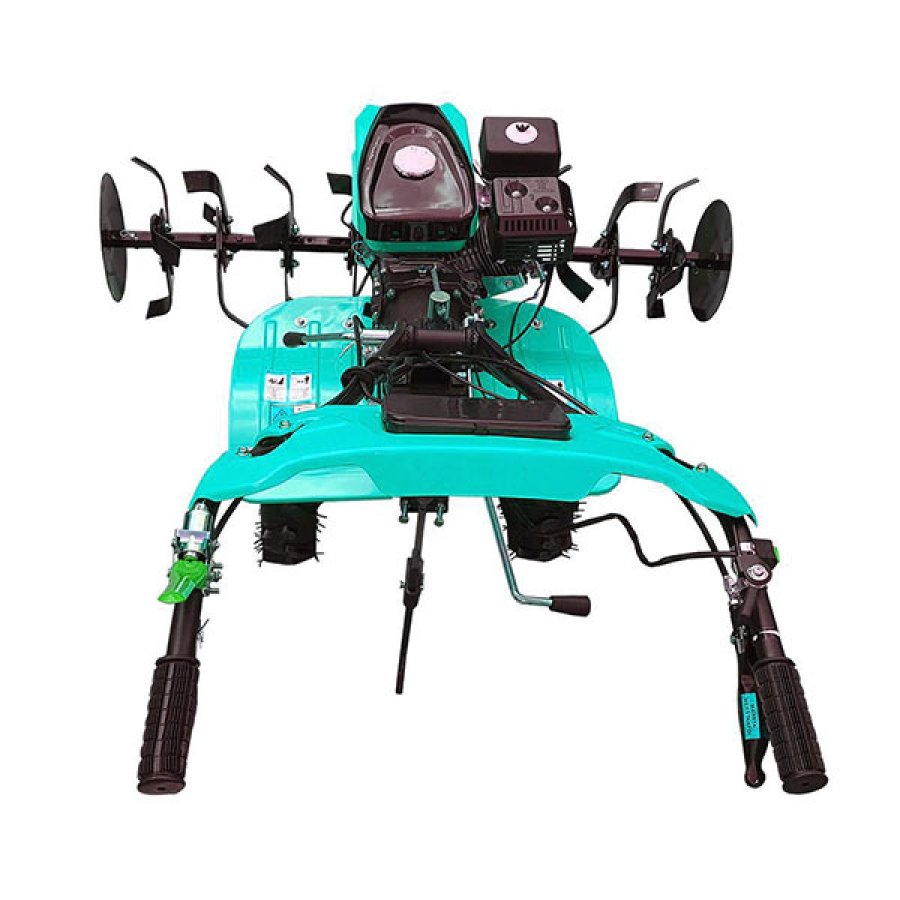

GT1050 power  tiller (rotary hoe or rototiller) fits for all kinds of landform and the place where the large tiller can't do.
They will be the best substitutes of farm cattle. It is widely applied to cultivating, ditching, ridging for dry land and paddy field and managing the broth vegetable, nursery garden, orchard and so on.
Main Applications of Power tiller
I. Revolving Farming
Mount the revolving farming device onto the left and right of the transmission shaft of the running part of the power tiller, then use two M8*55 screw bolts for axial positioning purpose, finally the machine can start revolving farming .
II. Ditching &Ridging
Under the velocity adjustment screw before the ditcher is mounted. Subject to the adjustment of the width and height for ditcher, then the ditching can be conducted.
III. Short Distance Transport
After mounting the forearm of the wagon box on the trailer and wheels one the transmission shaft of the running part, the machine can do a transportation job. The rated load is 250kg, under normal rotated speed of the diesel engine, speed of the fast shift is about 10km/h and that of the slow shift is about 5km/h.
IV. Multi-Functional Working
Dismount protection cover of the gear-box, unscrew the bolts away from the rear part of the main shaft, take the cover for keys out of the shaft, fasten the self-contained belt pulley or coupling onto the gear-box's main shaft's rear part with screws. Type A of common V belt is adopted for belt pulley's cross section. Rated rpm of the belt pulley is 3000 rpm.
When the corresponding devices are equipped pumping water, spraying,threshing, reaping, generating electricity, etc are realized.
(Above additional implements are in exploitation process. Please contact with the local distributor if you need above implements.)

Parameters:
