Enhanced transmission with a large load-bearing capacity and high operational reliability.

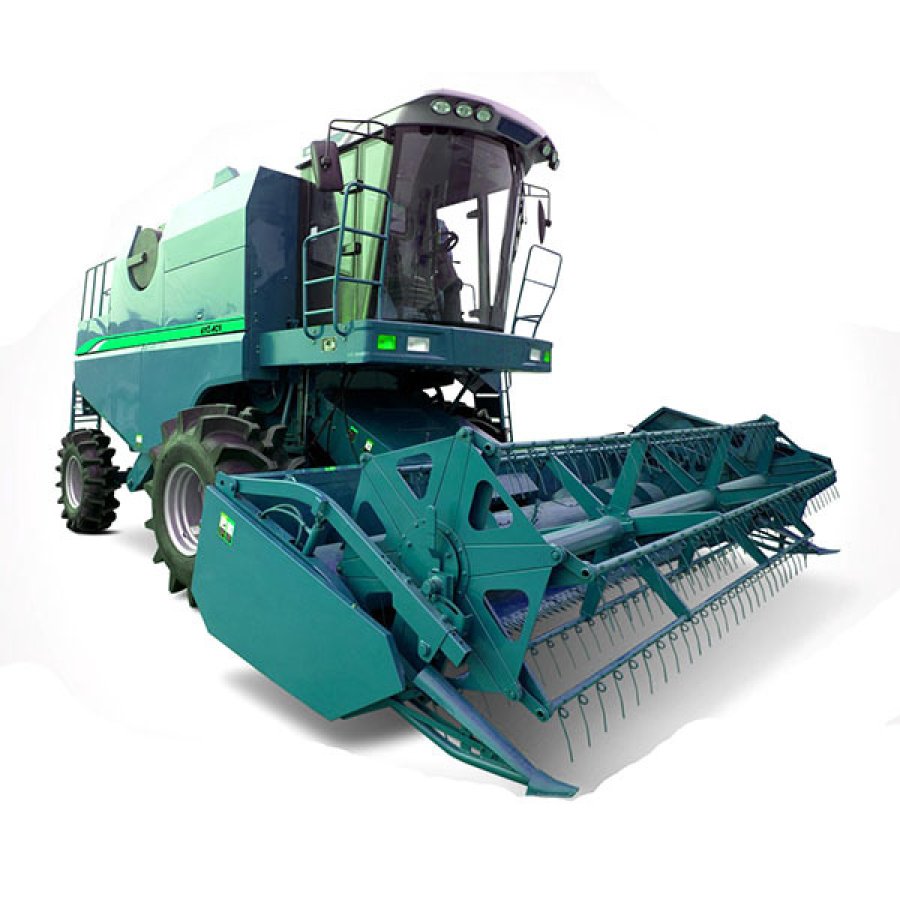

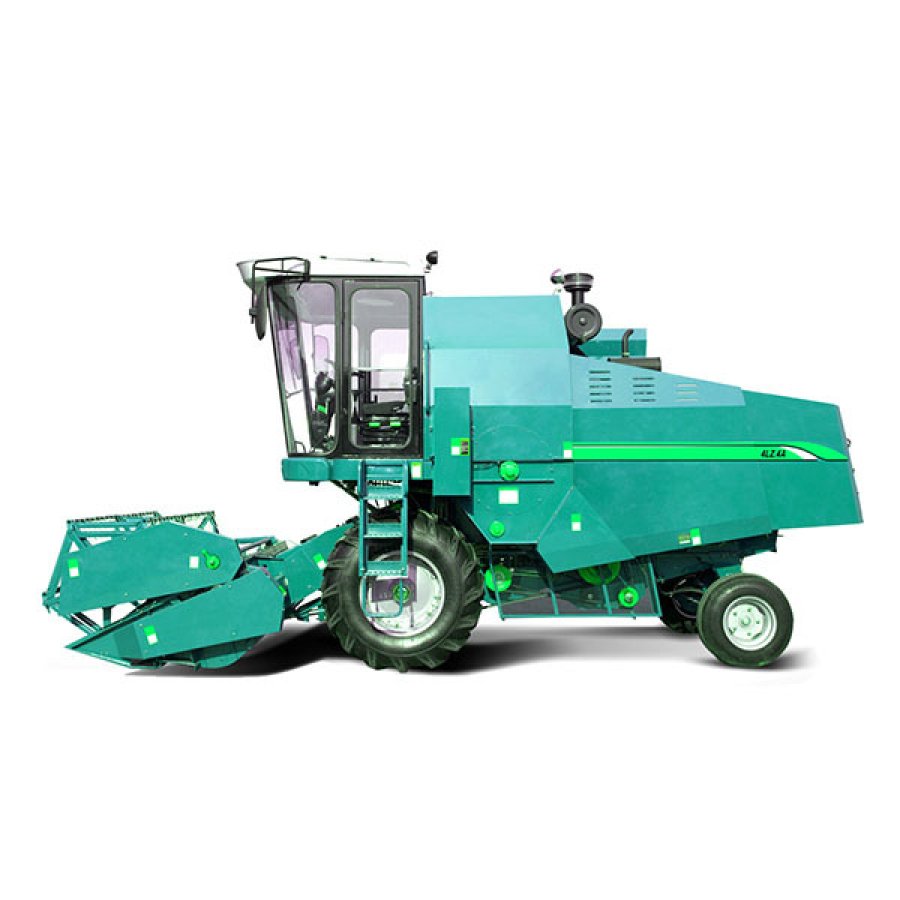

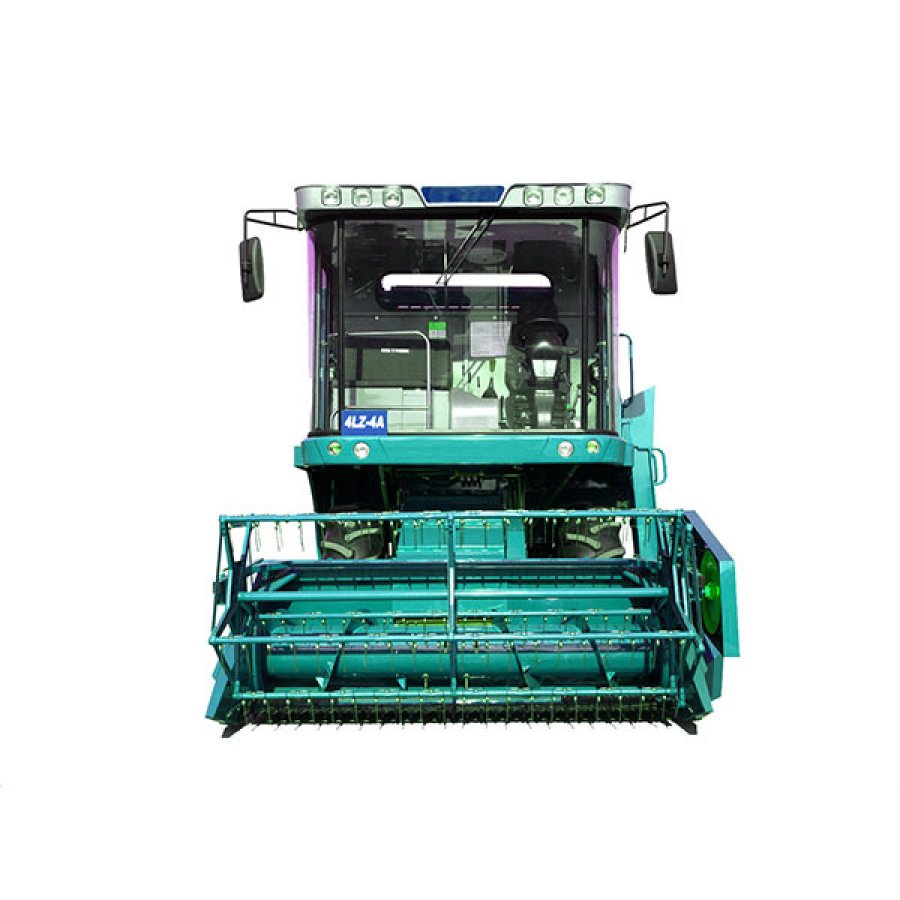

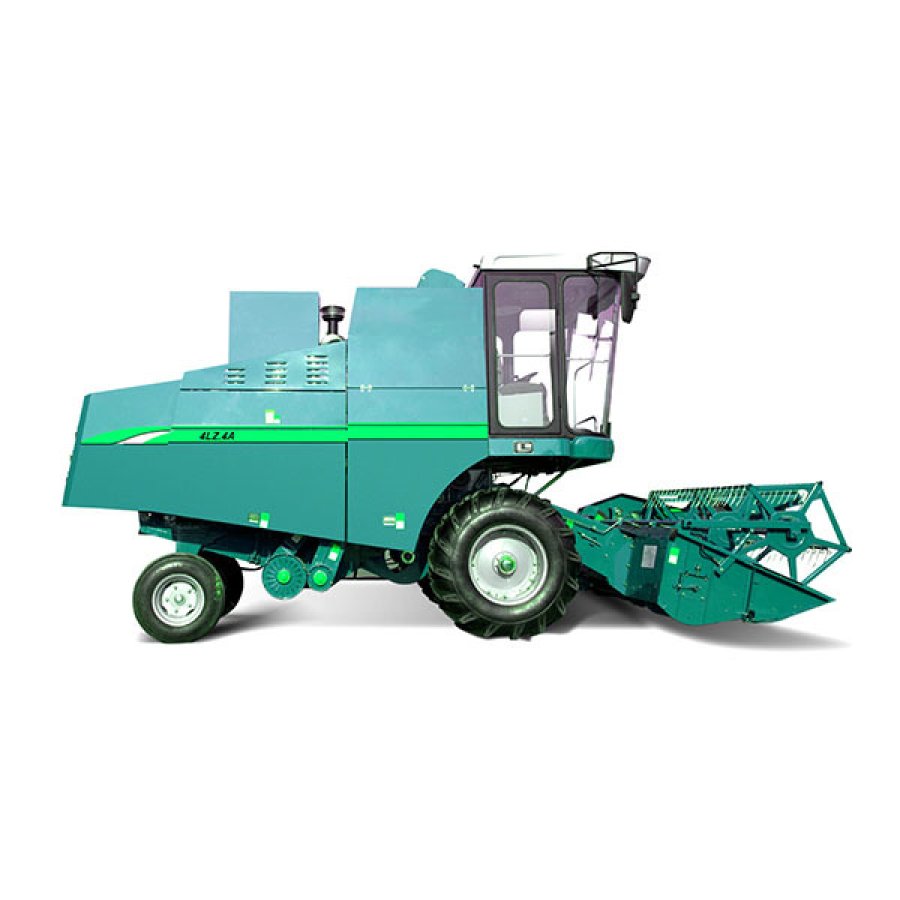

4LZ-4
Wheat combine harvester
GOODS DESCRIPTION:
■ Large feed capacity, high efficiency.
■ Easy Operation, reliable Performance.
■ Enhanced transmission with a large load-bearing capacity and high operational reliability.
■ Equipped with GPS navigation system （optional） and alarm device for monitoring revolving speeds flow drum, re-thresher and elevator. It provides a high degree of automation to allow the machine to operate at its best working conditions.
■ Brand new radiator dust proof cover with high efficiency, providing easy usage and maintenance.
Parameters:
Model | 4LZ-4 Combine Harvester | |
Overall parameter | Feed Quantity （kg/s） | 4 |
Min.ground clearance （mm） | 280 | |
Dimension (L×W×H) （mm） | 6600×3250×3420 | |
Weight (kg) | 5100 | |
Fuel Consumption（kg/h㎡） | ≤35 | |
Engine | Brand | Yuchai |
Model | YC4B110Z-T21 | |
Type | Water-cooled 4-Cycle Turbocharged Vertical Diesel | |
Rated Power （kw） | 81 | |
Rated Speed（ r/min） | 2200 | |
Fuel | Diesel | |
Fuel Tank Capacity（L） | 245 | |
Chassis | Transmission type | Mechanical |
Driving wheel space （mm） | 1900 | |
Steering wheel space （mm） | 1760/1660/1860 | |
Front and rear wheel space（mm） | 2767 | |
Walking speed （m/s） | I gear：1.6-3.5; II gear：3.5-7.7; III gear：9.7-20.5; | |
Header | Reel | Eccentric spring-tooth |
1000 | ||
5 | ||
Cutting width （mm） | 2600 | |
Blade type | Standard Ⅱ type | |
Auger diameter （mm） | 500 | |
Auger type | Spiral propulsive type | |
Threshing and cleaning | Cylinde type | Tangential flow +transverse flow |
Cylinder | 2 | |
rasp bar+separating plate | ||
tooth plate | ||
500 | ||
900 | ||
550 | ||
1700 | ||
Plate tooth cylinder | 500 | |
Concave sieve type | Grid type | |
Cleaning type | Air-screen | |
Fan quantity | 1 | |
Fan type | centrifugal | |
Re-thresher | volute +impeller | |
364 | ||
cleaning room width （mm） | 920 | |
Grain unloading | unloading type | Mechanical |
Grain tank capacity （m³） | 2 | |
Working standard quality | Total loss rate （%） | wheat : ≦1.2 ，rice: ≦3 |
Broken rate （%） | wheat: ≦1 ，rice: ≦1.5 | |
Impurity rate （%） | wheat ≦ 2 ，rice: ≦2 | |
Plant | wheat/rice | wheat/rice/corn |
Productivity | 0.33-0.53 （hm²/h） | 0.4-0.67 （hm²/h） |
