Widened header conveying axle which increases fluent flow of material and feed capacity;

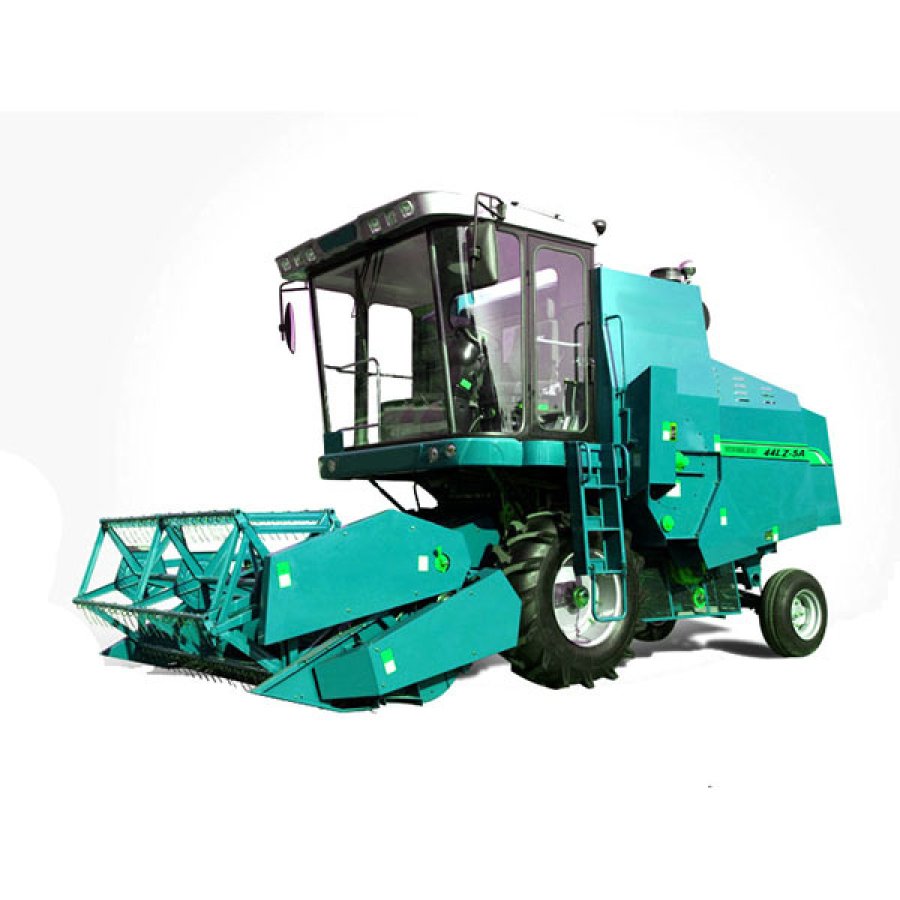

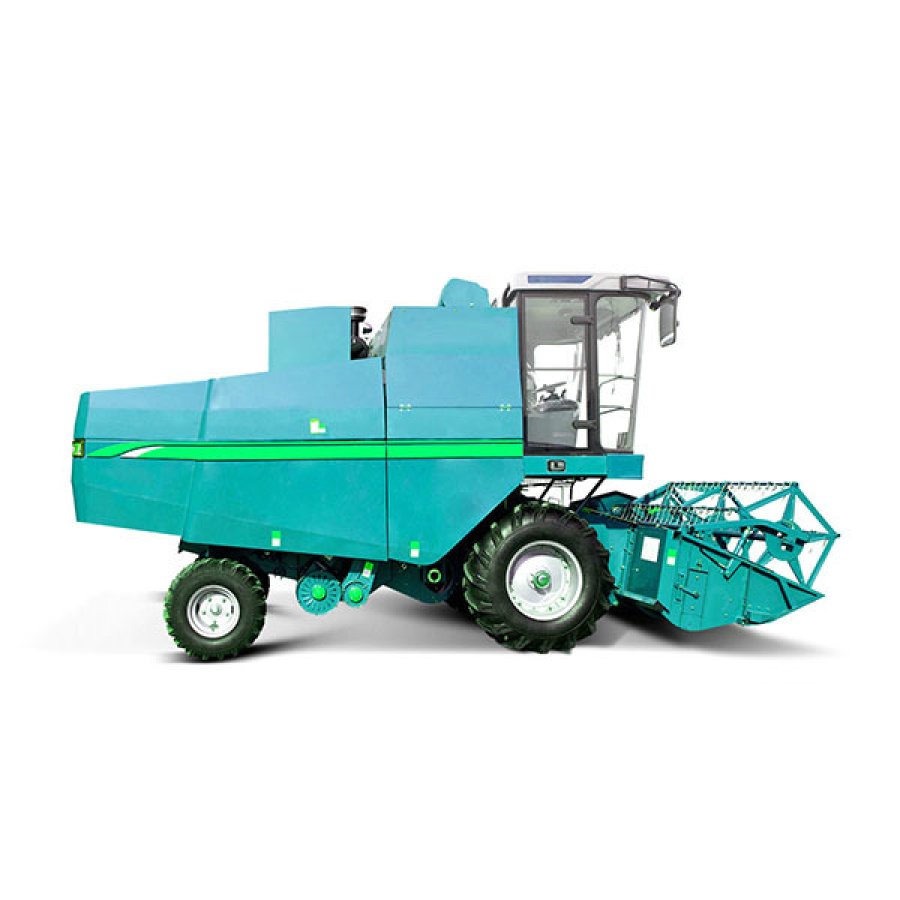

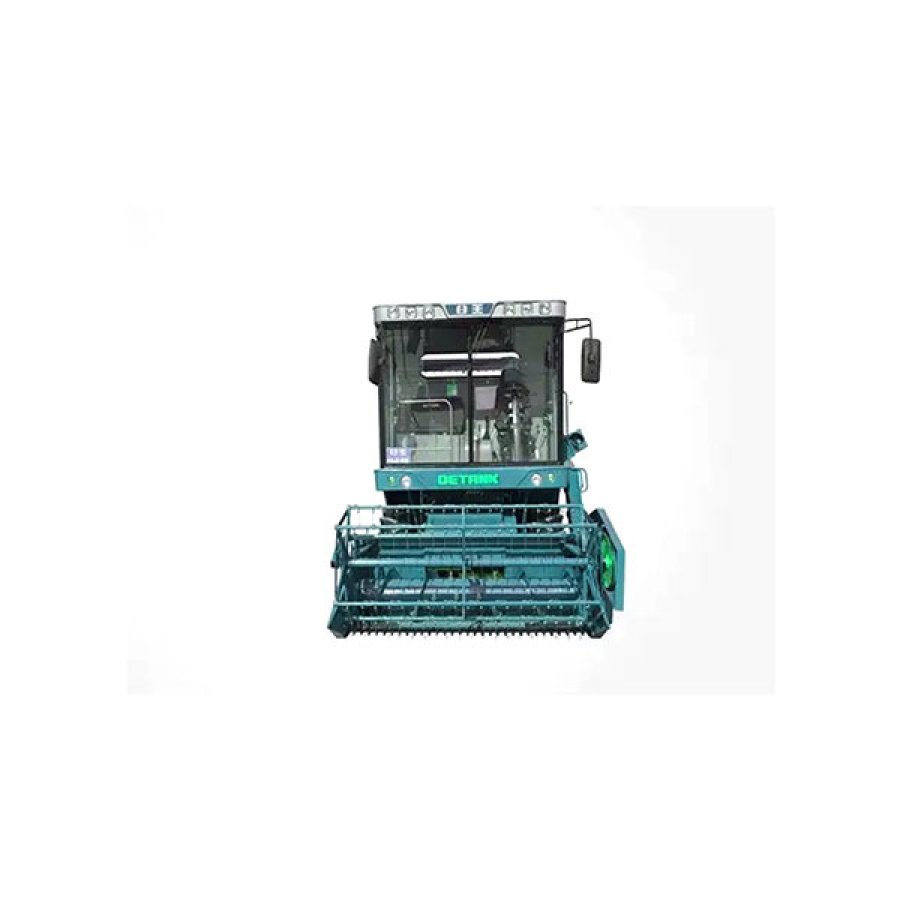

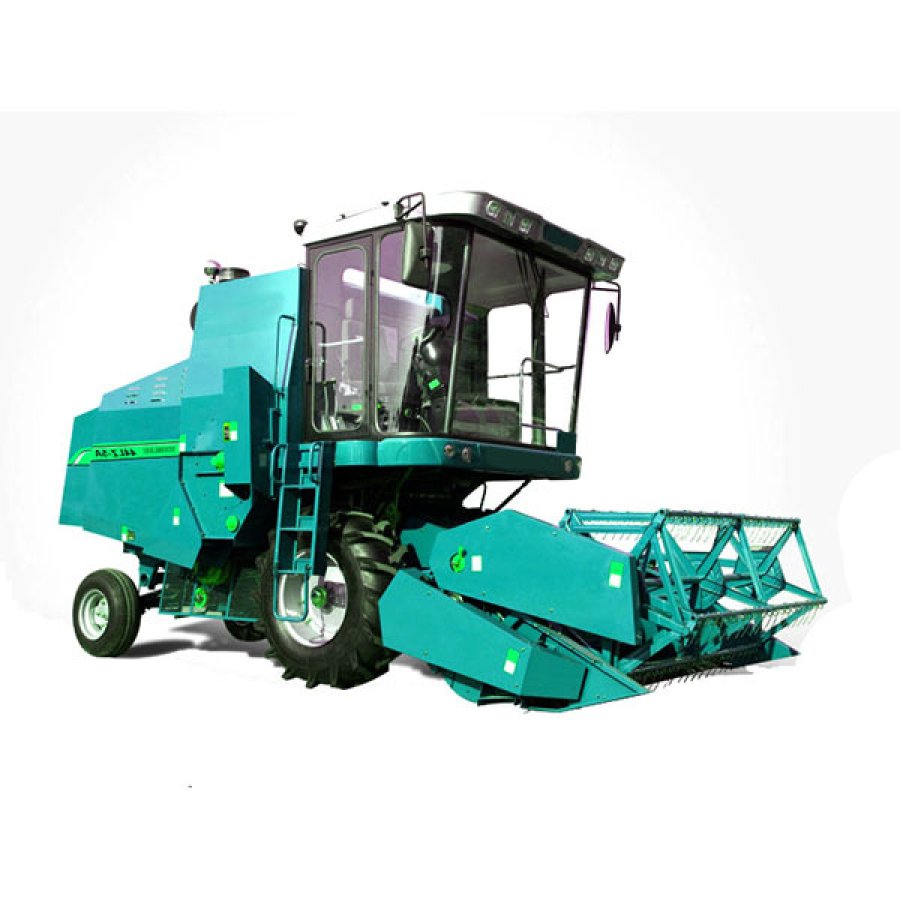

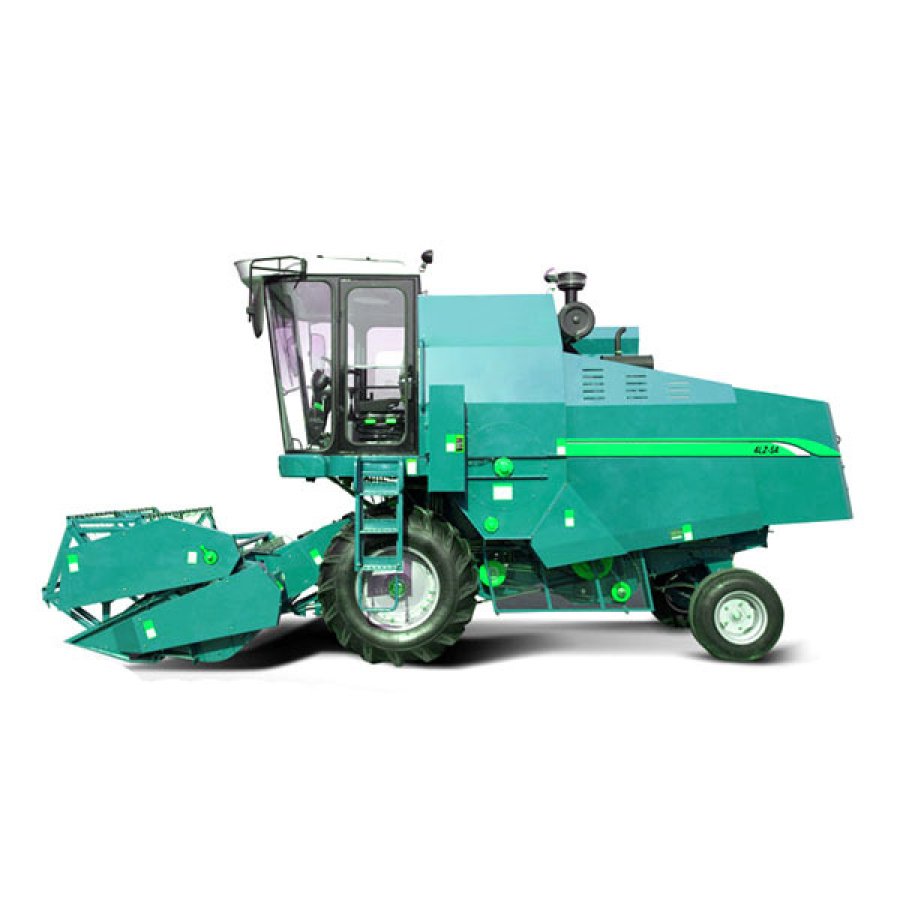

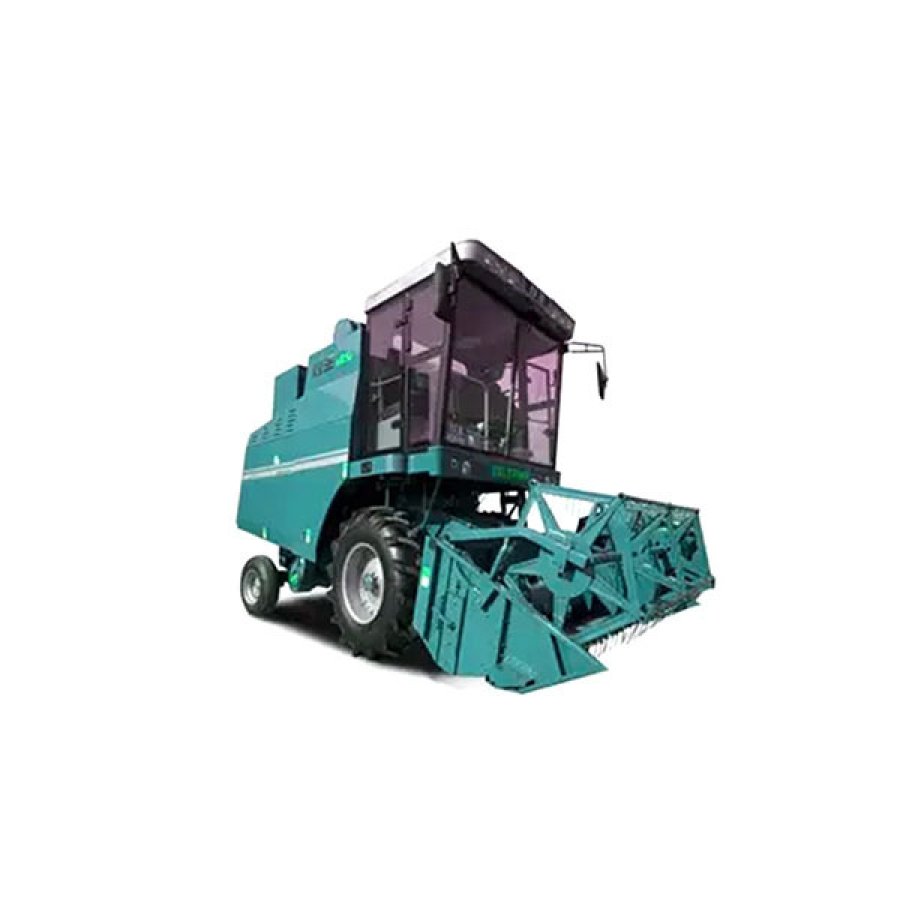

4LZ-5
Wheat combine harvester
GOODS DESCRIPTION:
■ Widened header conveying axle which increases fluent flow of material and feed capacity;
■ Equipped with 110HP engine, featuring strong power and lengthened threshing drum;
■ Improving threshing components to achieve better threshing and separating effects and a high harvest efficiency;
■ Capable of threshing and perform a complete and full separation by using tangential flow+transverse axial flow drum and separating technology;
■ The bidirectional reciprocating-type screening system, with vibrating plate and screen moving in opposite directions, would reduce the overall vibration and increase the screening capability, providing a better screening effect.
Parameters:
Model | 4LZ-5 Combine Harvester | |||||
Overall parameter | Feed Quantity （kg/s） | 5 | ||||
Min.ground clearance （mm） | 280 | |||||
Dimension (L×W×H) （mm） | 6600×3000×3420 | |||||
Weight （kg） | 5100 | |||||
Fuel Consumption（kg/h㎡） | ≤25 | |||||
Engine | Brand | Yuchai | ||||
Model | YC4A125Z-T21 | |||||
Type | Water-cooled 4-Cycle Turbocharged Vertical Diesel | |||||
Rated Power （kw） | 92 | |||||
Fuel Tank Capacity（L） | 245 | |||||
Chassis | Transmission type | Mechanical | ||||
Driving wheel space （mm） | 1847 | |||||
Steering wheel space （mm） | 1760 | |||||
Front and rear wheel space （mm） | 2765 | |||||
Walking speed （km/h） | I gear：1.6～3.5; II gear：3.5～7.7; III gear：9.7～20.5; reverse gear：3.6～8.0 | |||||
Header | Cutting width （mm） | 2510 | ||||
Blade type | Standard Ⅱ type | |||||
Reel diameter （mm） | 1000 | |||||
Auger type | Spiral propulsive type | |||||
Threshing and cleaning | Cylinde type | Tangential flow +transverse flow | ||||
Cylinder | Quantity | 2 | 2 | |||
Type | Main cylinder | rasp bar+separating plate | Main cylinder | rasp bar+separating plate | ||
Vice cylinder | tooth plate | Vice cylinder | tooth plate | |||
Tangential flow cylinder | external diameter（mm） | 500 | external diameter （mm） | 500 | ||
Length （mm） | 596 | Length （mm） | 900 | |||
transverse flow cylinder | external diameter （mm） | 550 | external diameter （mm） | 550 | ||
Length （mm） | 1445 | Length （mm） | 1700 | |||
Plate tooth cylinder | Diameter （mm） | 500 | 500 | |||
Concave sieve type | Grid type | |||||
Cleaning type | Air-screen | |||||
Fan quantity | 1 | |||||
Fan type | centrifugal | |||||
cleaning room width （mm） | 920 | |||||
Grain unloading | unloading type | Mechanical | ||||
Grain tank capacity （m³） | 2 | |||||
Working standard quality | Total loss rate （%） | wheat:≦1.2 | ||||
Broken rate（%） | wheat:≦1 | |||||
Impurity rate（%） | wheat:≦ 2 | |||||
Plant | wheat / rice | |||||
Productivity （hm²/h） | 0.5～1.1 | |||||
