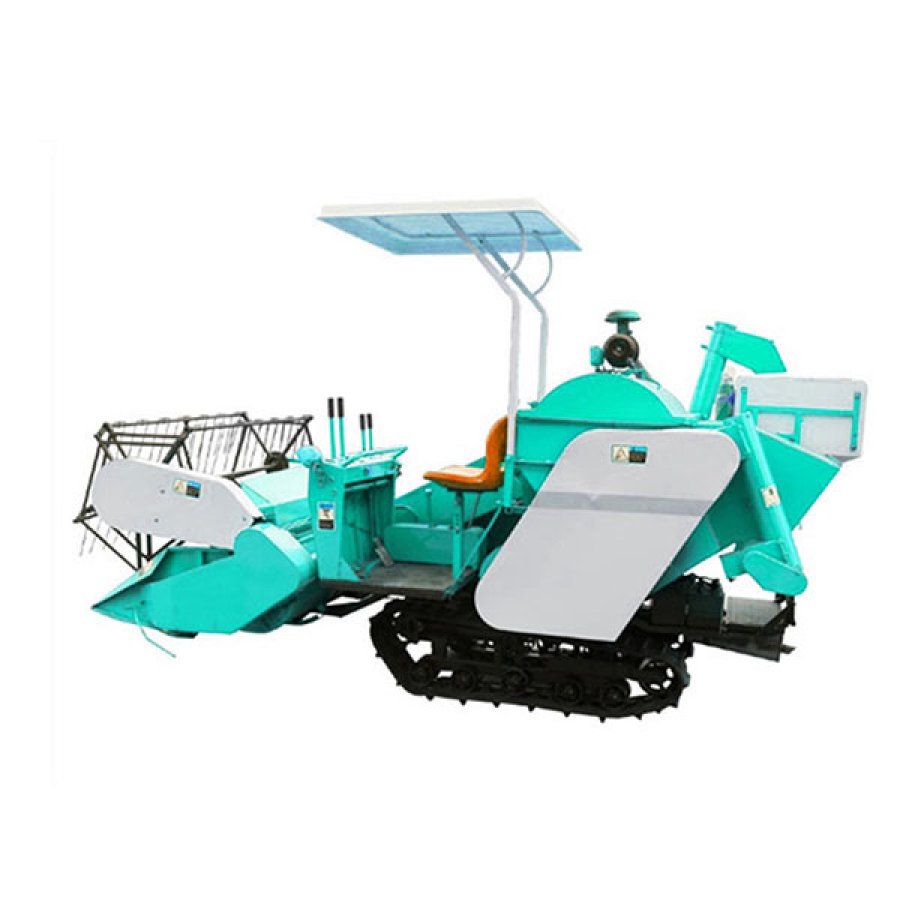

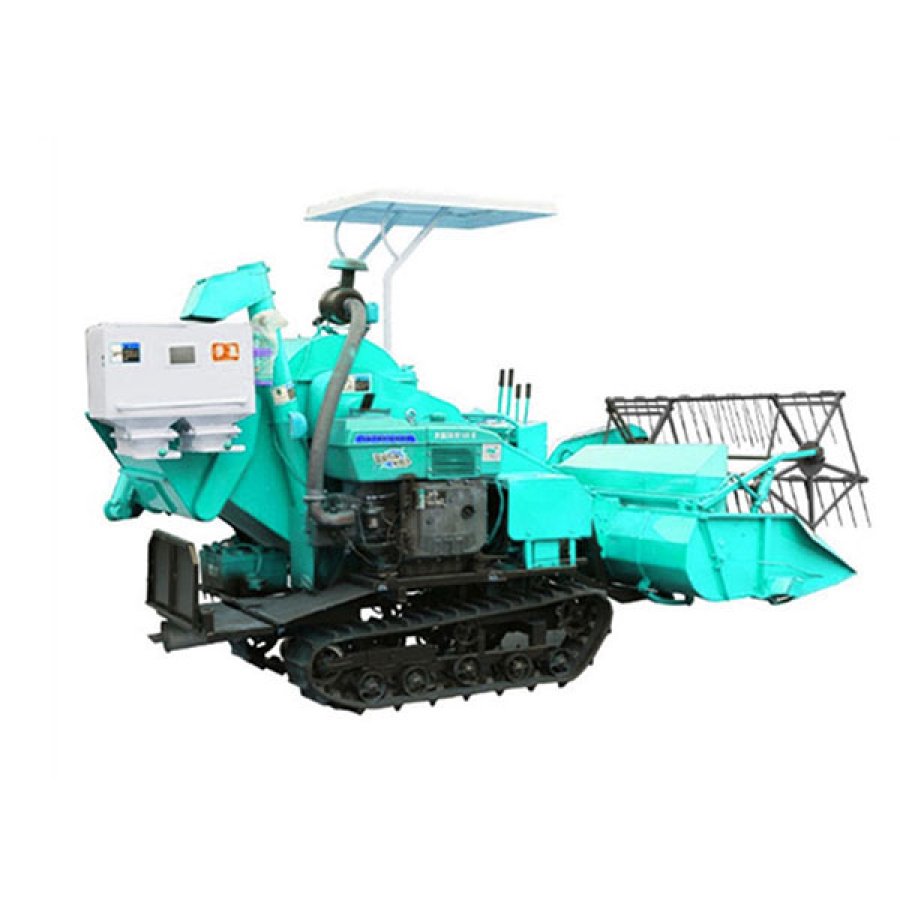

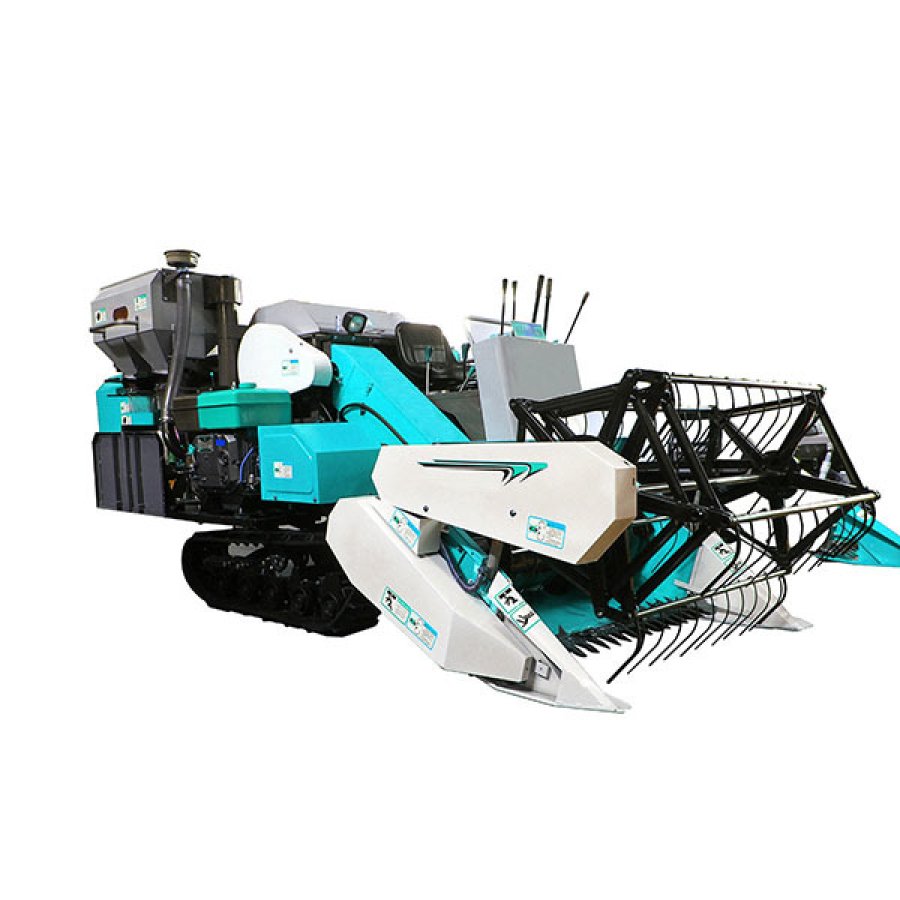

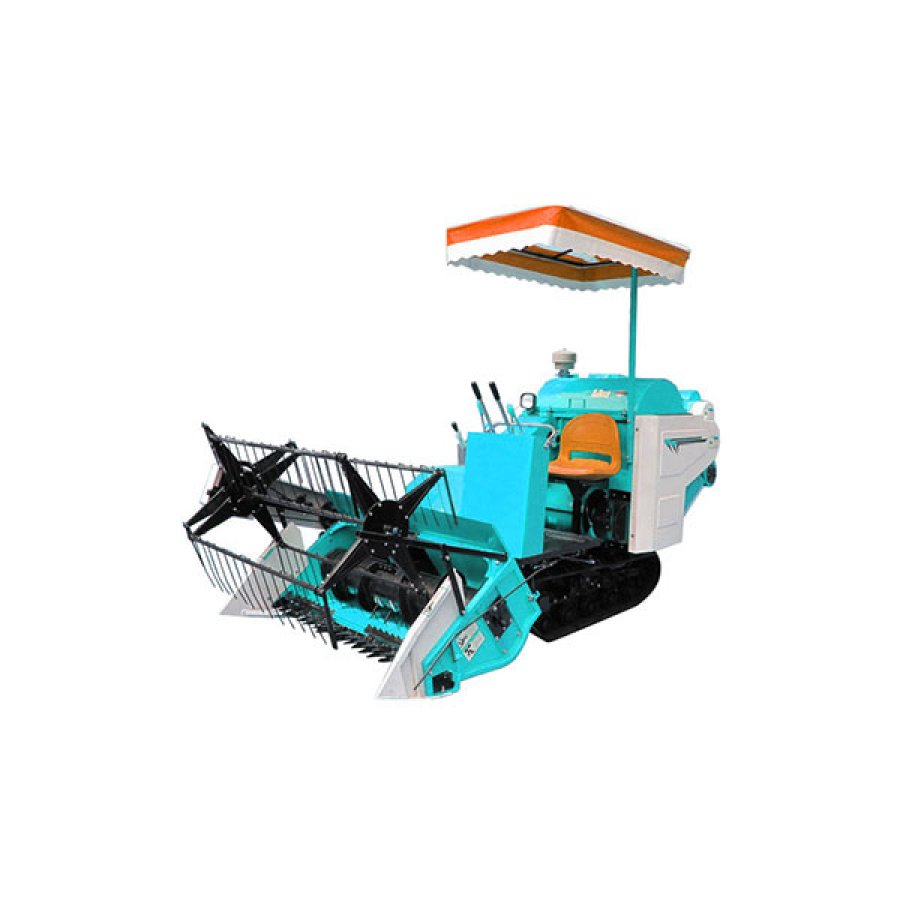

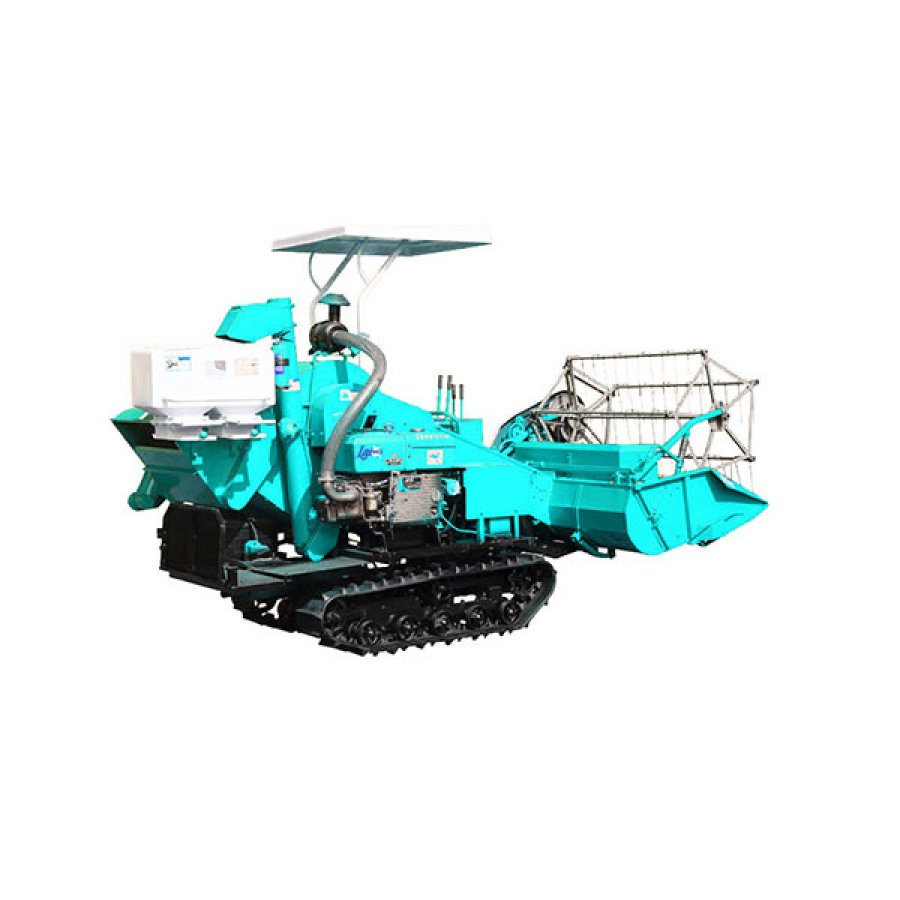

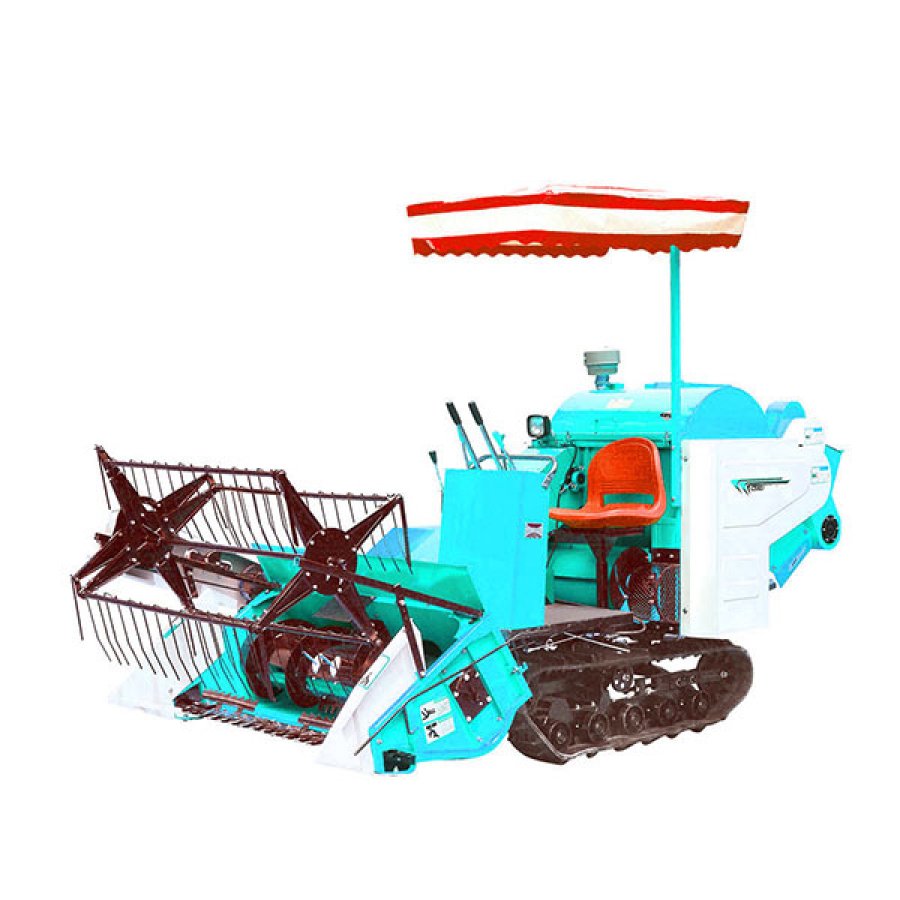

Combine Harvester Model 4LZ-1.0 is a newly developed whole-feed harvester used for wheat and rice. It features light weight, low ground pressure and reliable paddy field moving.
4LZ-1.0
Rice combine harvester
Good Description:
■ Combine Harvester Model 4LZ-1.0 is a newly developed whole-feed harvester used for wheat and rice. It features light weight, low ground pressure and reliable paddy field moving.
■ The machine has advantages of reliable performance and stable quality for special harvester gearbox, combination of fan and sieve system and twice grain cleaning device.
■ It is easy to make maintenance with outer assembling of diesel engine and it is convenient for us to operate for reasonable design of control system and comfortable driver’s seat.
■ It is suitable for harvesting in small field of hilly land for its small turning radius and flexible operation.
Parameters:
Model | 4LZ-1.0 Rice Combine Harvester | ||
Overall parameter | Feed Quantity （kg/s） | 1 | |
Min.ground clearance （mm） | 200 | ||
Dimension (L×W×H) （mm） | 3980×1980×1900 | ||
Weight (kg) | 1300 | ||
Fuel Consumption（kg/h㎡） | ≤22 | ||
Engine | Brand | Jianghuai | |
Model | S1115M-2 | ||
Type | Water-cooled, single cylinder, 4-stroke, horizontal | ||
Rated Power （kw） | 16.18kw | ||
Rated Speed (r/min） | 2200 | ||
Fuel | Diesel | ||
Type | Self-propelled, whold-feeding | ||
Cutting width (mm) | 1360 | ||
Rubber track (Caterpillar width/Link distance/Tooth quantity/Gauge) | 280×90×38 LINKS×280 | ||
Ground clearance (mm) | 200 | ||
Productivity (m2/h.) | 1200-2000 | ||
Working standard quality | Wheat | Rice | |
Total loss rate （%） | wheat : ≦1.2 ， | rice: ≦3 | |
Broken rate （%） | wheat: ≦1 ， | rice: ≦1.5 | |
Impurity rate （%） | wheat ≦ 2 ， | rice: ≦2 | |
