4LZ-2.0

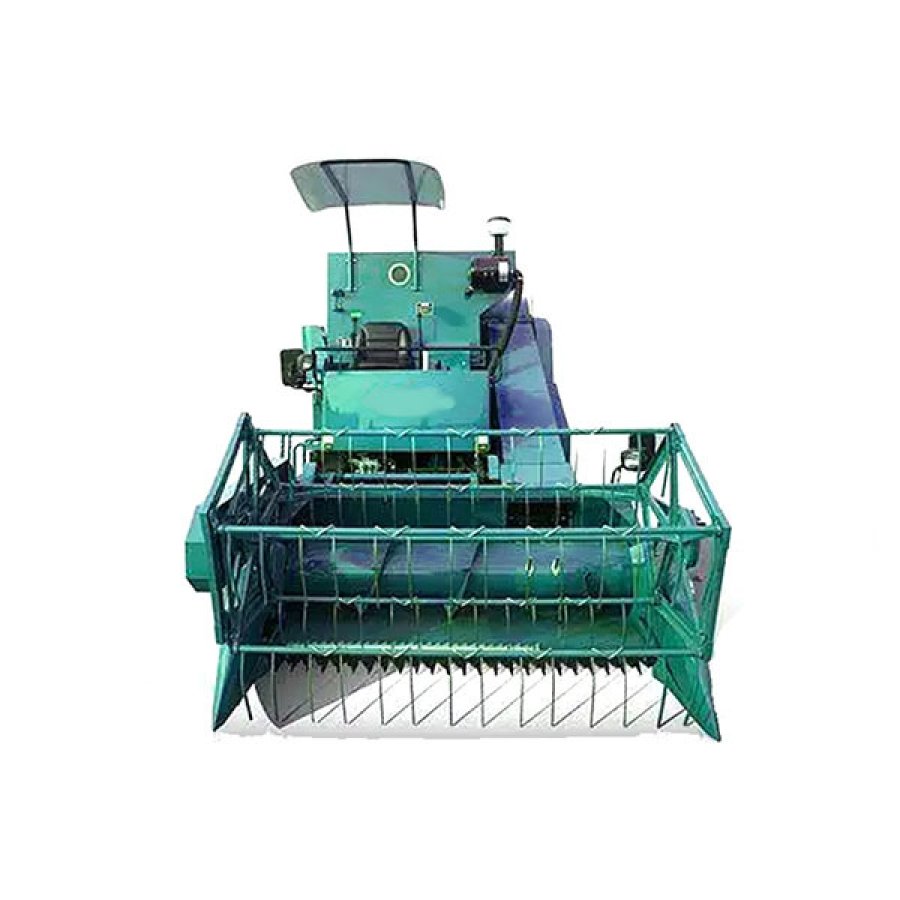

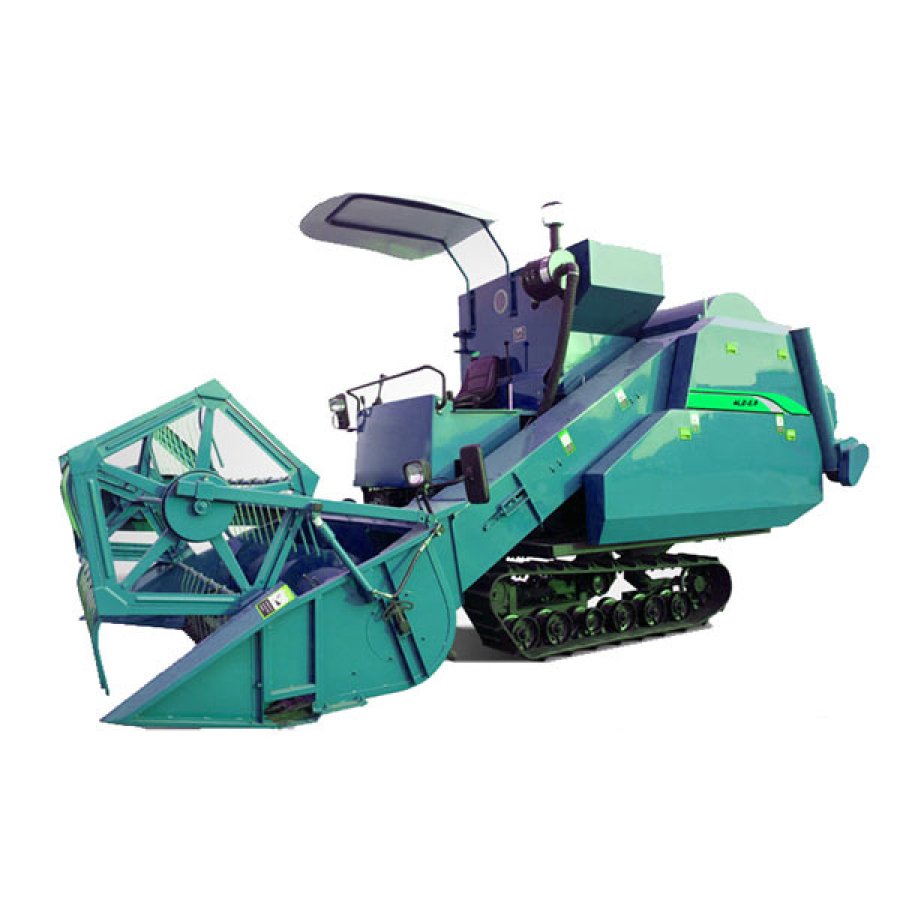

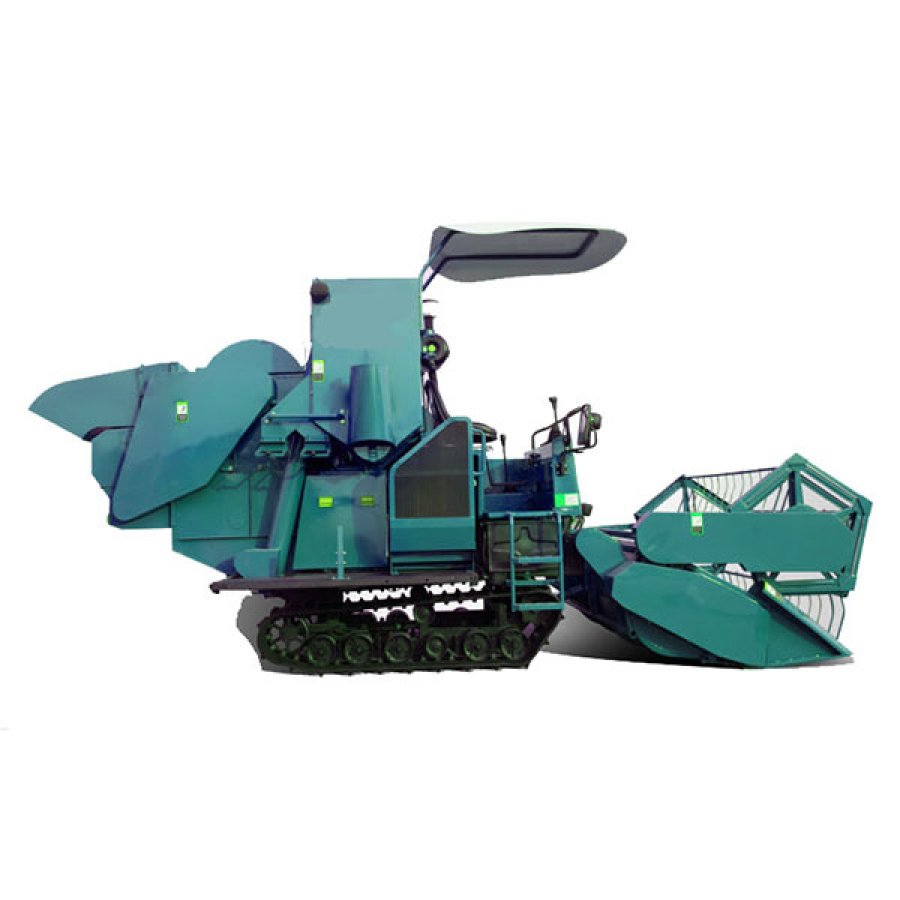

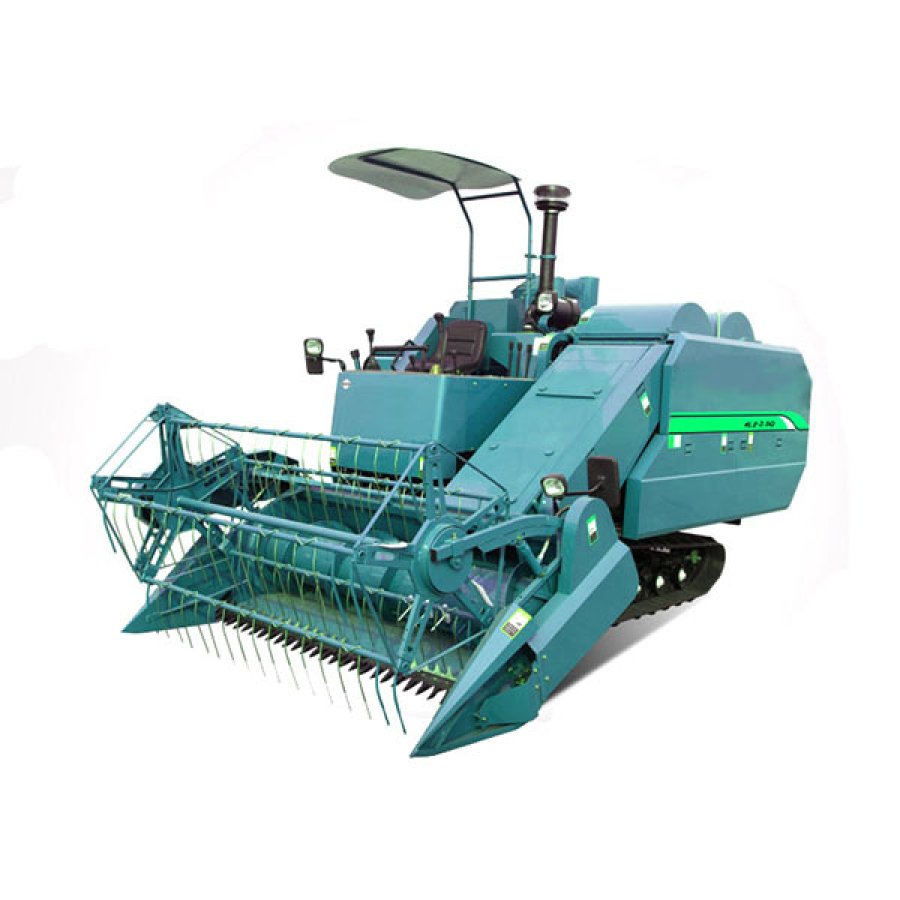

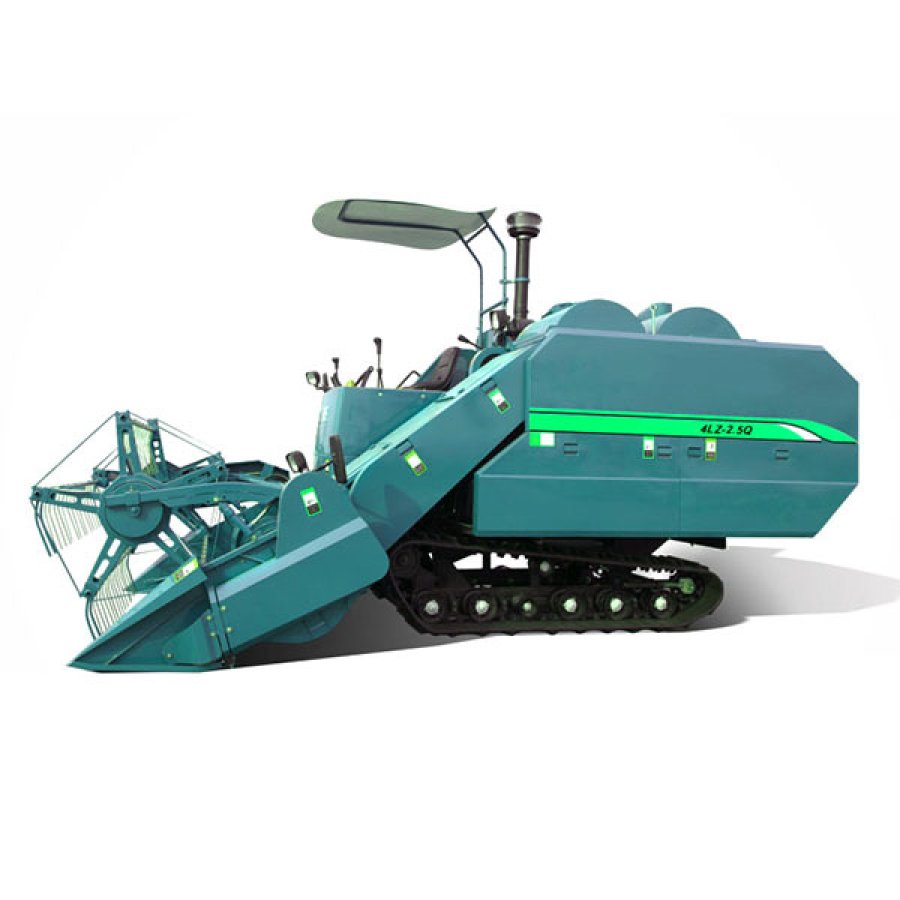

Rice combine harvester
Good Description:
■ Large feed capacity, high efficiency.
■ Easy Operation, reliable Performance.
■ Enhanced transmission with a large load-bearing capacity and high operational reliability.
■ Equipped with GPS navigation system （optional） and alarm device for monitoring revolving speeds flow drum, re-thresher and elevator. It provides a high degree of automation to allow the machine to operate at its best working conditions.
■ Brand new radiator dust proof cover with high efficiency, providing easy usage and maintenance.
Parameters:
Model | 4LZ-2 Combine Harvester | |||
Type | Wheel full feed self-propelled | |||
Cutting Width (mm) | 1800 | |||
Feed (Kg/s) | 2 | |||
Running speed (Km/h) | 2.48-16 | |||
Diesel Engine | Model | Jiangsu Star 4102 | ||
Power (kW) | 48 | |||
Rotate Speed (r/min) | 2600 | |||
Average Oil Consumption per Hectare (Kg/hm²) | ≤27 | |||
Working Productivity (Hec./h.) | 0.27-0.4 | |||
Total Weight (kg） | 2800 | |||
Dimension(L×W×H) (mm) | 5800×2400×3000 | |||
Ground Clearance (mm) | 310 | |||
Header | Reel Type | Spring-tined | ||
Reel Diameter (Mm) | Φ900 | |||
Reel Bat (Piece) | 5 | |||
Cross auger Type | Screw auger, eccentric extensible link | |||
Cross Auger Diameter (mm) | Φ500 | |||
Clearance between Auger and Bed Plate (mm) | 12-20 | |||
Cutter bar Stroked (mm) | 76.2 | |||
Cutter bar Type | Domestic strandard II | |||
Conveyer | Type | Flat belt raked tine | ||
Width (mm) | 400 | |||
Threshing Drum | Type | Transverse Axial Flow | ||
Diameter (mm) | Φ545 adjustable | |||
Length (mm) | 1350 | |||
Re-sthreshing Drum | Type | Axial flow cutting plate | ||
Diameter (mm) | Φ190 | |||
Concave | Type | Grid based | ||
Angle (°) | 236.8 | |||
Separation Area (m²) | 1.38 | |||
Re-threshing Concave | Type | Punch type | ||
Separation Area (m²) | 0.45 | |||
Sieves | Type | Double sieves + fan + re-threshing | ||
above sieve (m²) | 0.76 | |||
bottom sieve (m²) | 0.92 | |||
Fan | Type | Low-pressure, volute | ||
Diameter (mm) | Φ346.8 | |||
Elevator Auger Diameter×Thread Pitch (mm) | Φ120×116 | |||
Unloading type | mechanical | |||
Tank capacity (m3) | 1 | |||
Chassis | Type | 4×2 wheeled | ||
Front-wheel tread (mm) | two-stage adjustable 1300-1200 | |||
Trailing wheel tread (mm) | 1290-1210two-stage adjustable | |||
Gear box | 3×2+1 | |||
Wheelbase (mm) | 1985 | |||
Front-wheel Model | 9.5-20 | |||
Trailing Wheel Model | 6.0-16 | |||
Tire Pressure (MPa) | Front wheel 0.28 | Trailing wheel 0.36 | ||
Oil Tank Capacity (L) | 65 | |||
Operator | 1 Person | |||
Qty’/40HC (Sets) | 2 | |||
Main Performance | ||||
Loss Rate | ≤1.2% | |||
Grain Broken Rate | ≤1.0% | |||
Impurities Rate | ≤2.0% | |||
Work reliability | ≥93 | |||
