Full hydraulic stepless transmission, a control rod, flexible operation, play a maximum efficiency of the harvester;
4LZ-2.5

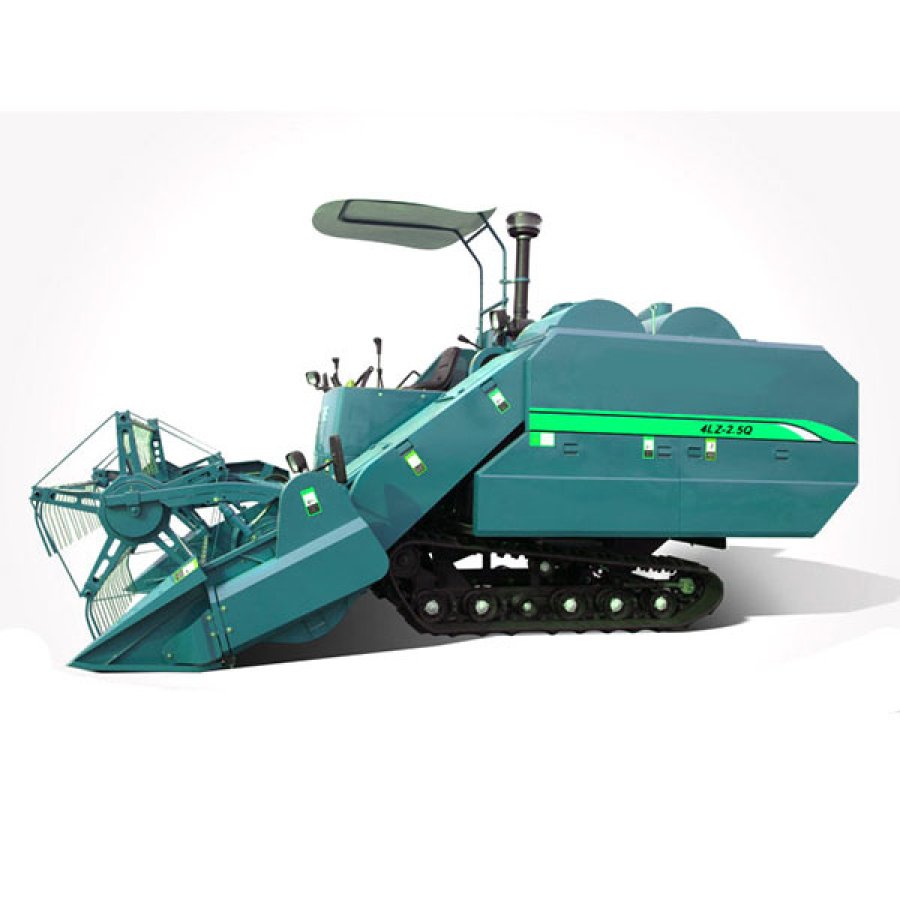

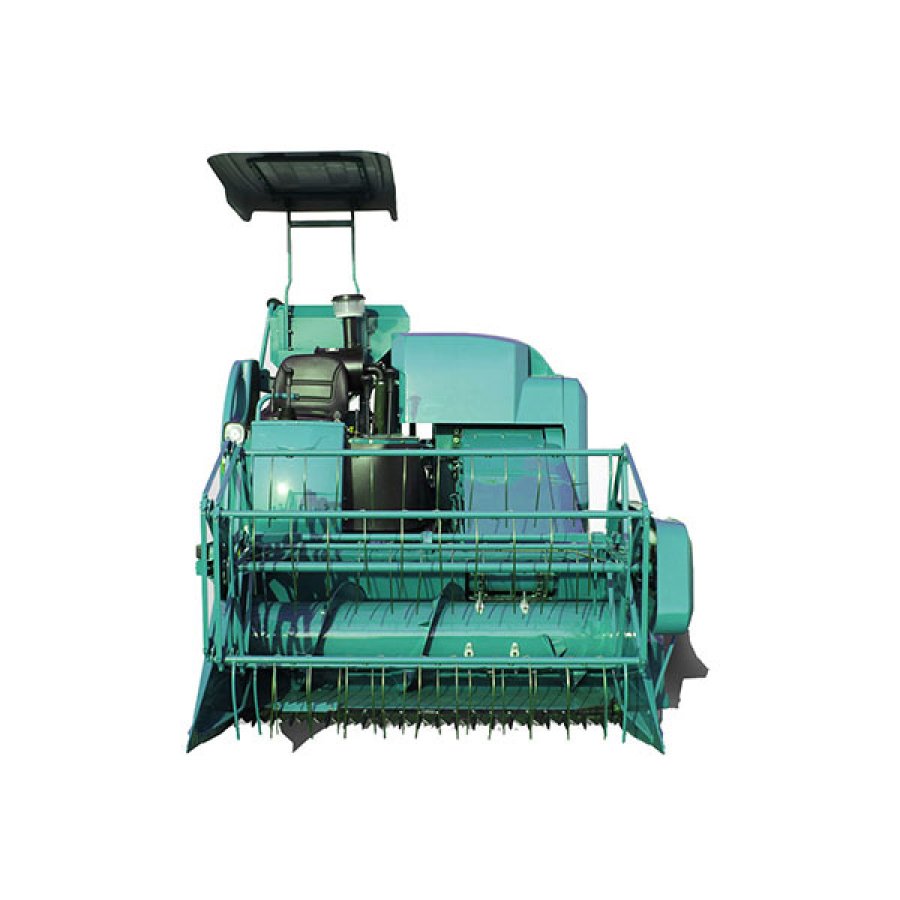

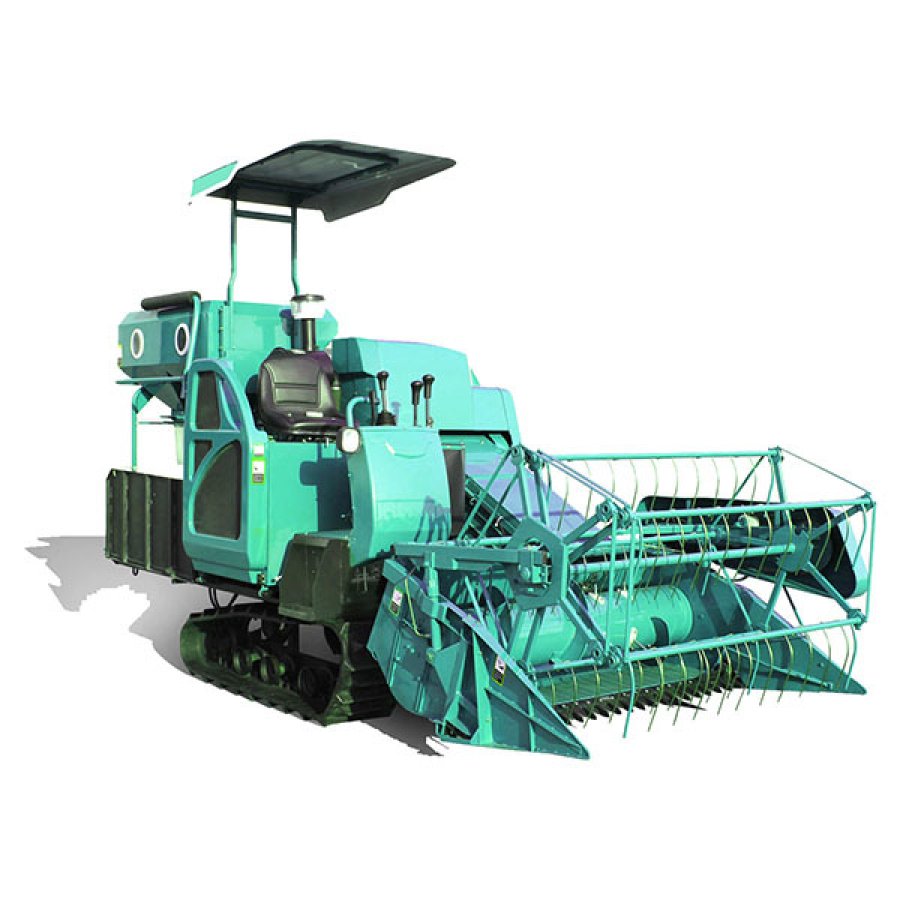

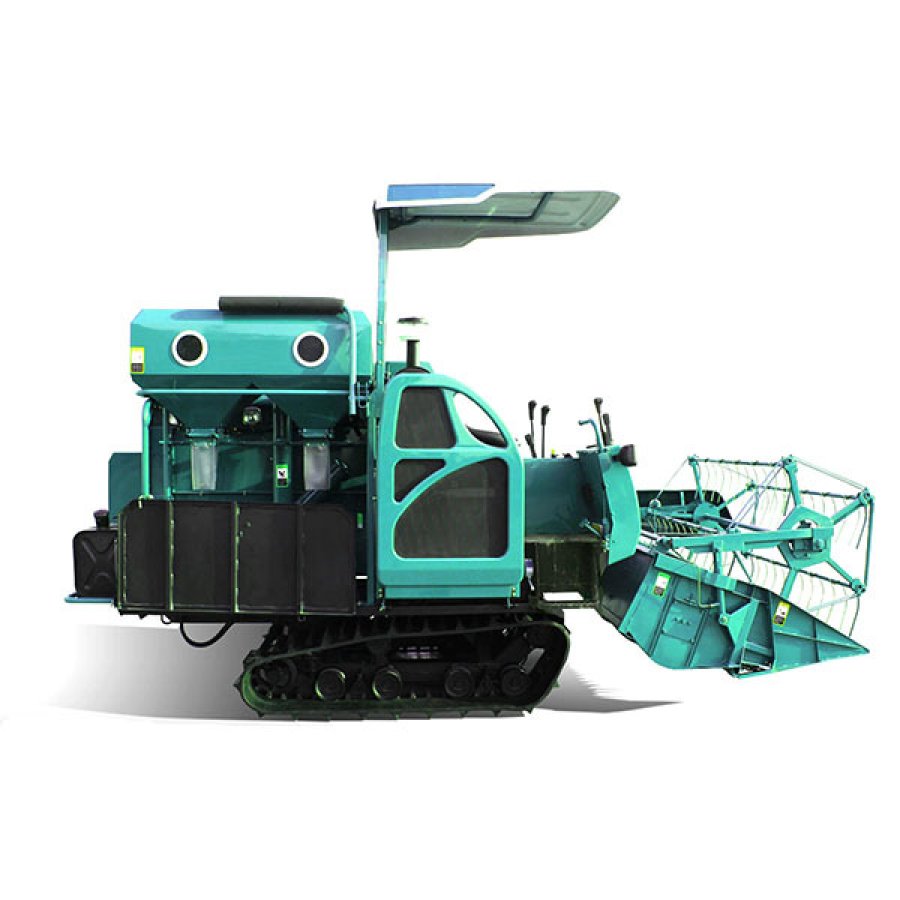

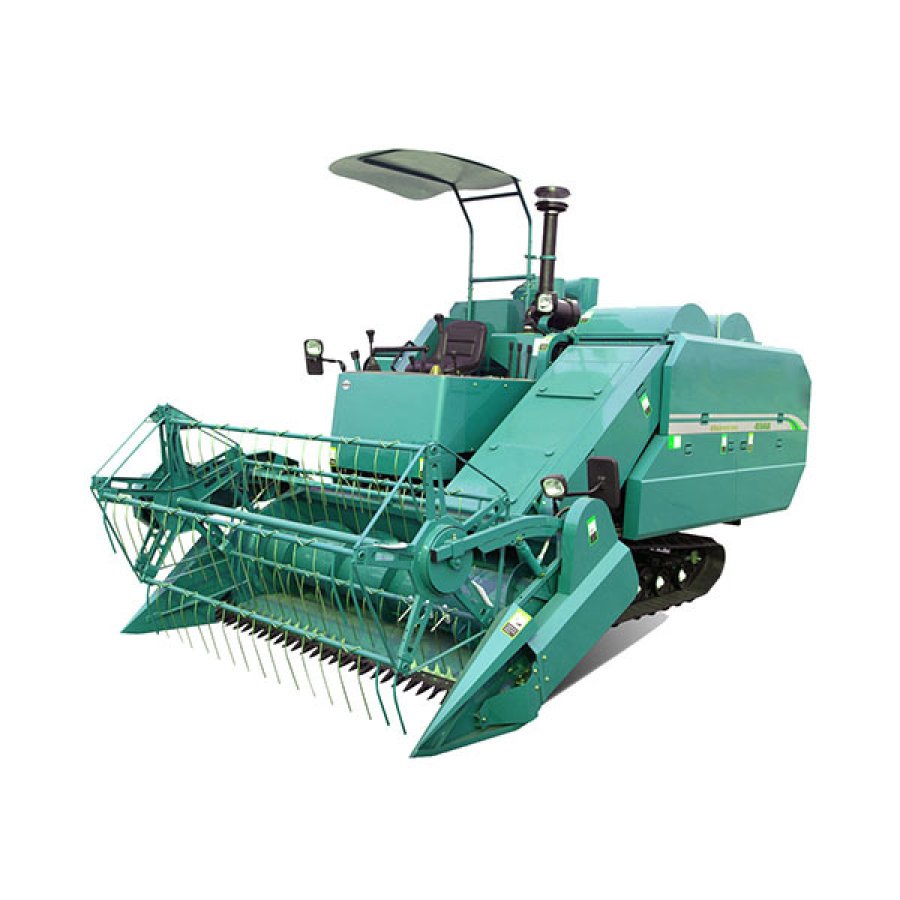

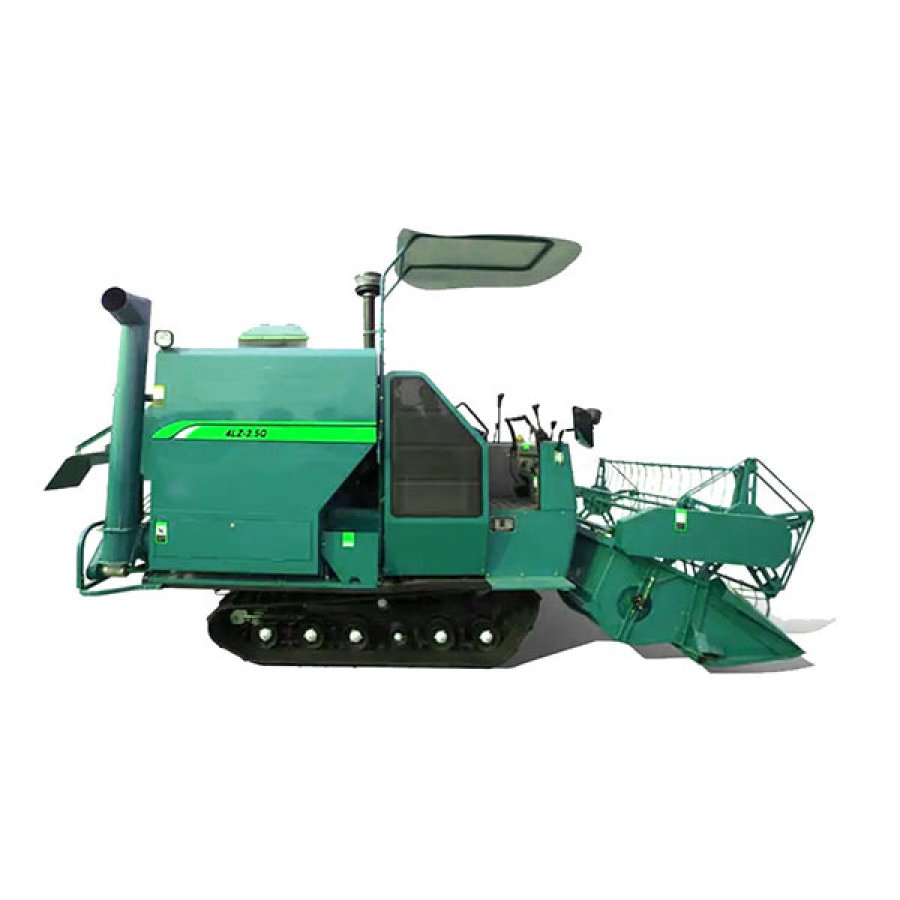

Rice combine harvester
Good Description:
· Full hydraulic stepless transmission, a control rod, flexible operation, play a maximum efficiency of the harvester;
· the machine structure is compact, short body, more adapted to small plots of land to harvest;
· Whole lightweight, small grounding pressure, more adapted to high mud depth of field;
· new threshing, optional differential cylinder, threshing cleaner;
· The front slide rail eccentric pendulum ring type vibration cleaning sieve, vibration small, physical strong processing ability, high cleanliness, less loss of the grain;
· pockets and bag holding general unloading rations, suitable for different ground food habits;
· new appearance, guard opened quickly, convenient maintenance;
· optional 0.8m ³ large granary, high efficiency.
Parameters:
Model | 4LZ-2.5 Combine Harvester |
Cutting width(M) | Cutting width 2.0m |
Feeding Capacity(KG/S) | 2.5 Kg/s |
Power | 85 Hp/2700RPM |
Engine Type | Changchai, Xinchai, Quanchai |
Transmission | Korea HST(Hydraulic Stepless Transmission) |
HST | 28cc/r |
Truck | 400*51*90 |
Grain tank | 1.2 m3 |
Ground Clearance | 245mm |
Wight(Kg) | 2700 KG |
Cleaning system | Blowing fan + Oscillating double-layer sieve + Rethresher |
Thresh drum type | Vertical type |
Lost Rate(%) | Rice≤2.5%, wheat≤2.5% |
Broken Rate | Rice≤2.0, wheat≤2.0 |
Impurity(%) | Rice≤2.0, wheat≤2.0 |
Fuel Tank | 100L |
Overall Dimension | 4800*2300*2310 |
Working efficiency | 0.3-0.5ha/h |
