Big width conveyer groove with innovated cutter bar lifting system can provide a more efficient feeding and a higher lifting level, convenient for working in paddy field and maintenance, and lower the noise and vibration.
4LZ-3.0

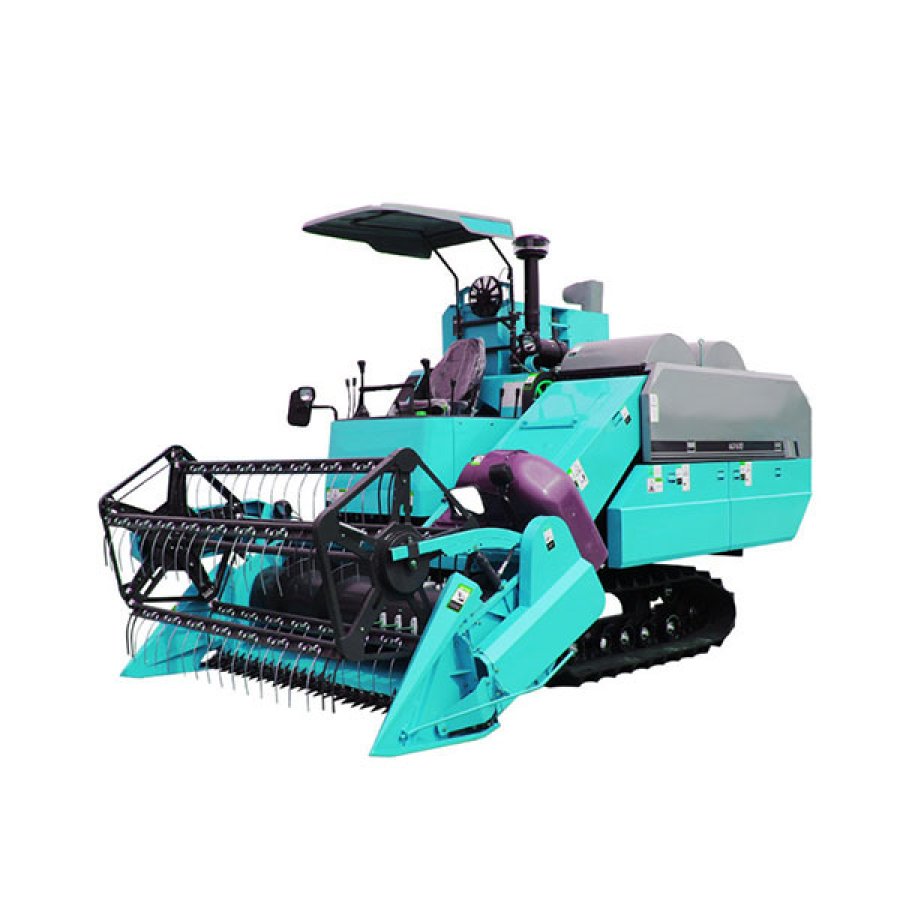

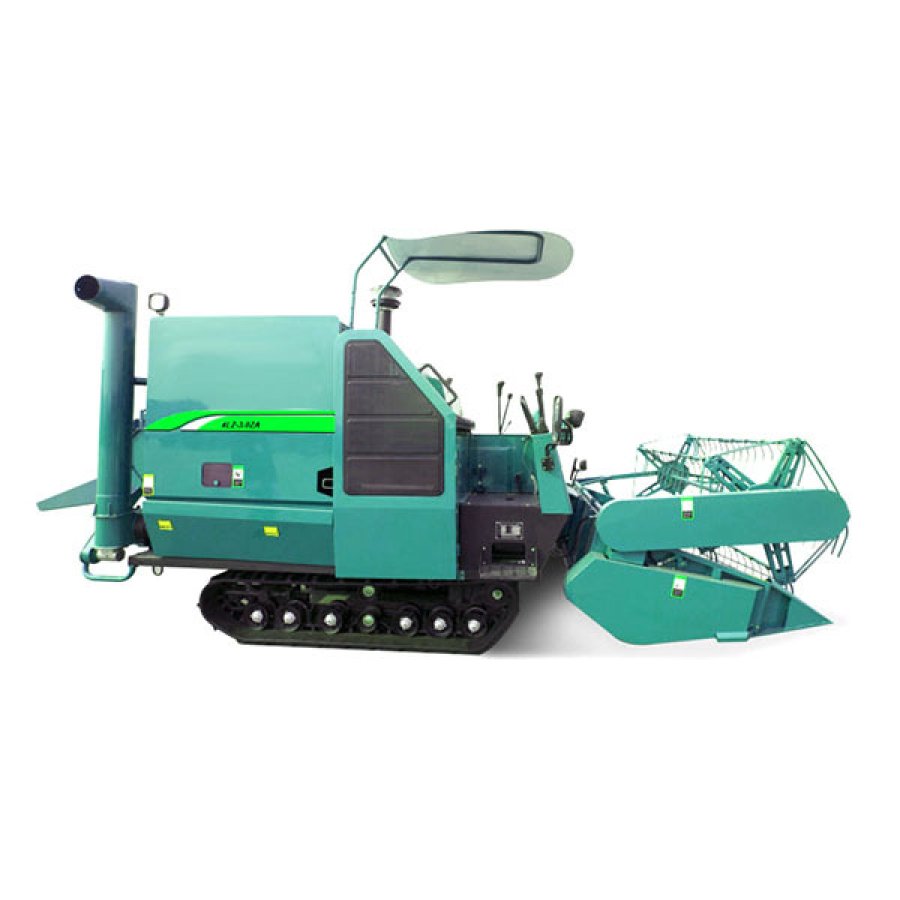

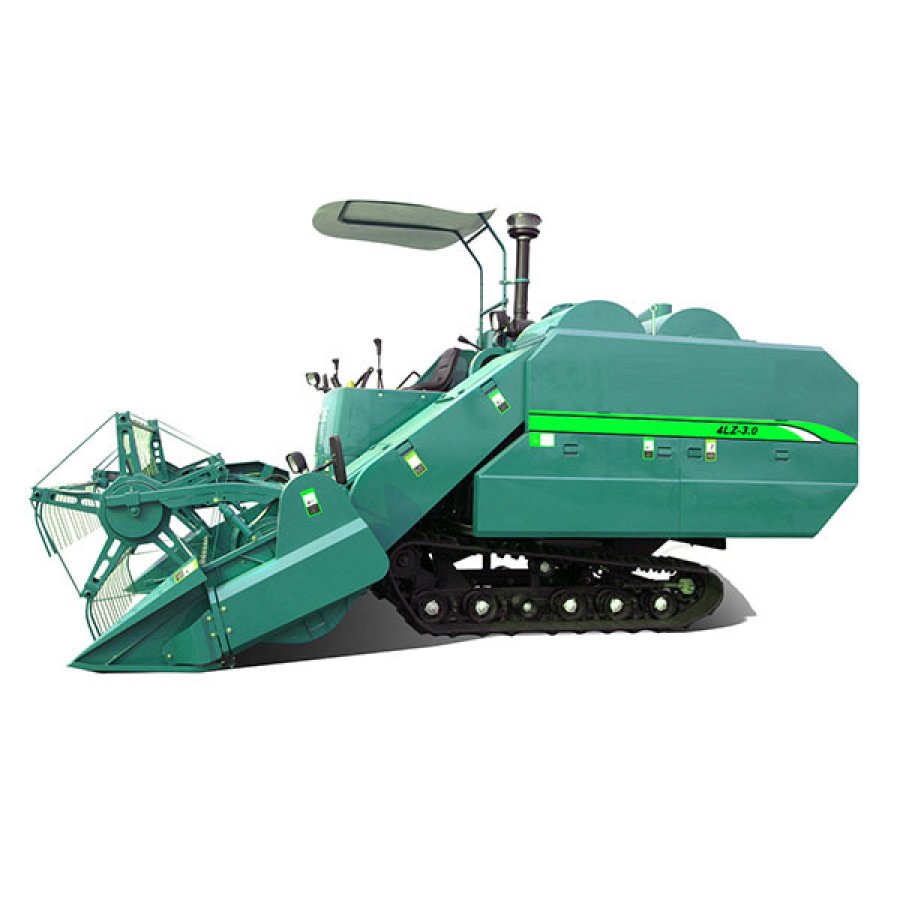

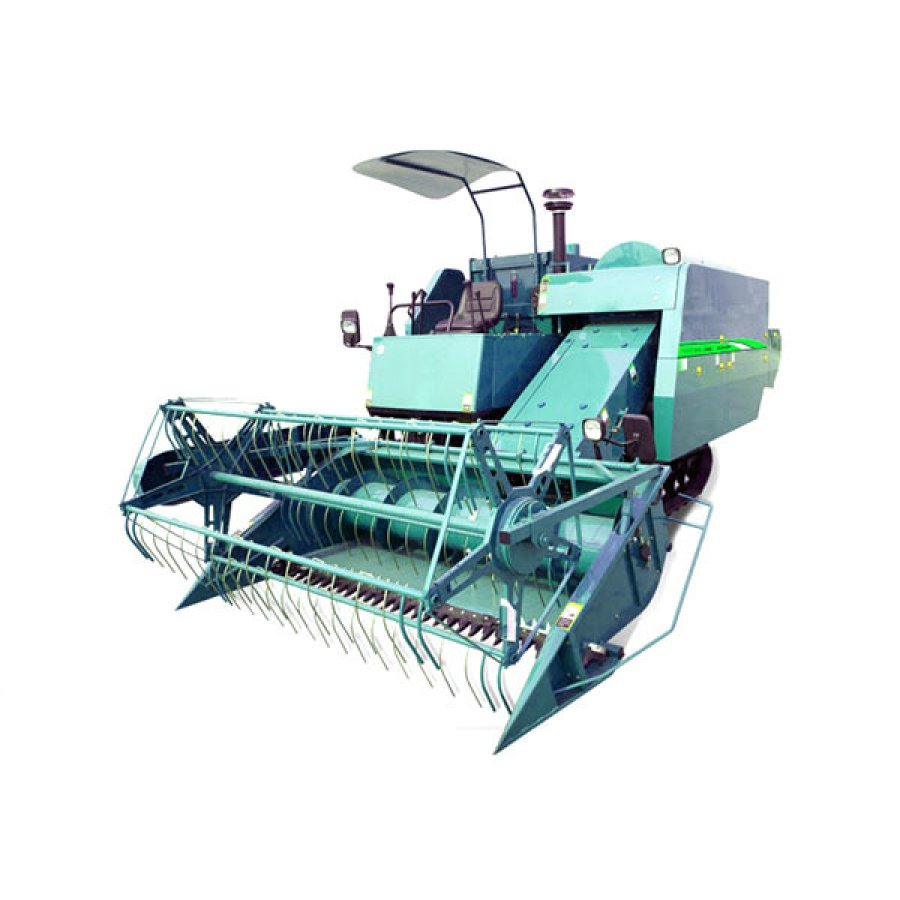

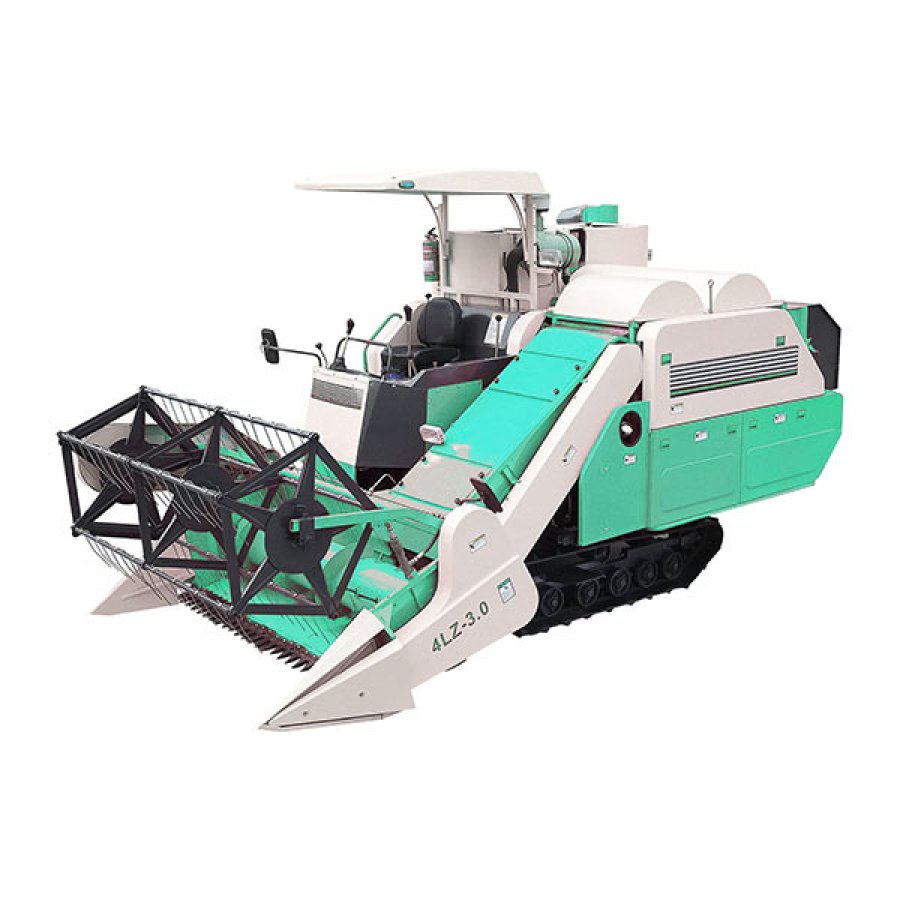

Rice combine harvester
Good Description:
1. 66kw diesel engine, 2 meters cutting width, hydrostatic transmission, high efficiency.
2. Double axial flow threshing cylinders and adjustable front & rear sieving plates ensure the grain more clean, less breakage and less loss.
3. Big width conveyer groove with innovated cutter bar lifting system can provide a more efficient feeding and a higher lifting level, convenient for working in paddy field and maintenance, and lower the noise and vibration.
4. Lower ground pressure, better for passing in paddy field.
5. Extremely strong Chassis; Excellent water proof suspension wheel system; Easier turning & control with friction disc brake and special heavy-duty gearbox for hydraulic steering combine harvester.
Parameters:
Model | 4LZ-3.0D Combine Harvester |
Total loss | ≤3.0 |
Roughage content | ≤2.0 |
Broken rate | ≤1.5 |
Reliability | ≥93% |
Structure type | Pedrail self-propelled whole-feed type |
Matched power | 66kw |
Working hour productivity | 0.2~0.47 hm2/h |
Average oil consumption per hectare | ≤28 kg/hm2 |
Dimension (length x width x height) | 4750x2350x2360mm |
Structure quality | 2350kg |
Harvesting width | 2000mm |
Feed | 3.0 kg/s |
Ground clearance | 240mm |
Steering | Hydraulic |
Gear box | Mechanical gear box +（HST）Hydrostatic transmission |
Running speed | 0~2.88,0~4.54,0~7.56 m/s |
Header auger type | Screw auger eccentric extensible link |
Reel type | Eccentric spring toothed |
Conveyer type | Harrow toothed |
Fan type | Centrifugal type |
Re-threshing type | Blade rotary type |
Unloading type | hydraulic control unloading/manual unloading |
Grain tank | 0.5/1.0 m3 |
Pedrail（distance x pitch x width） | 90 x 48 x 400 mm |
