Optimized threshing and cleaning mechanism with double shakers for re-threshing.

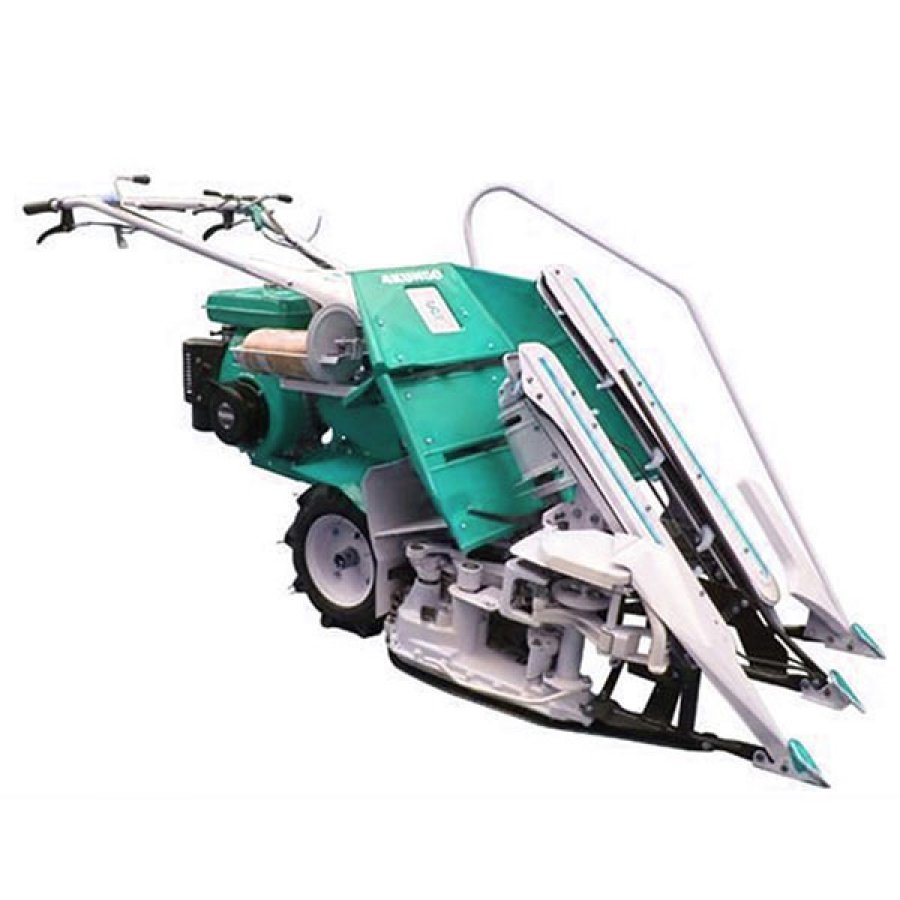

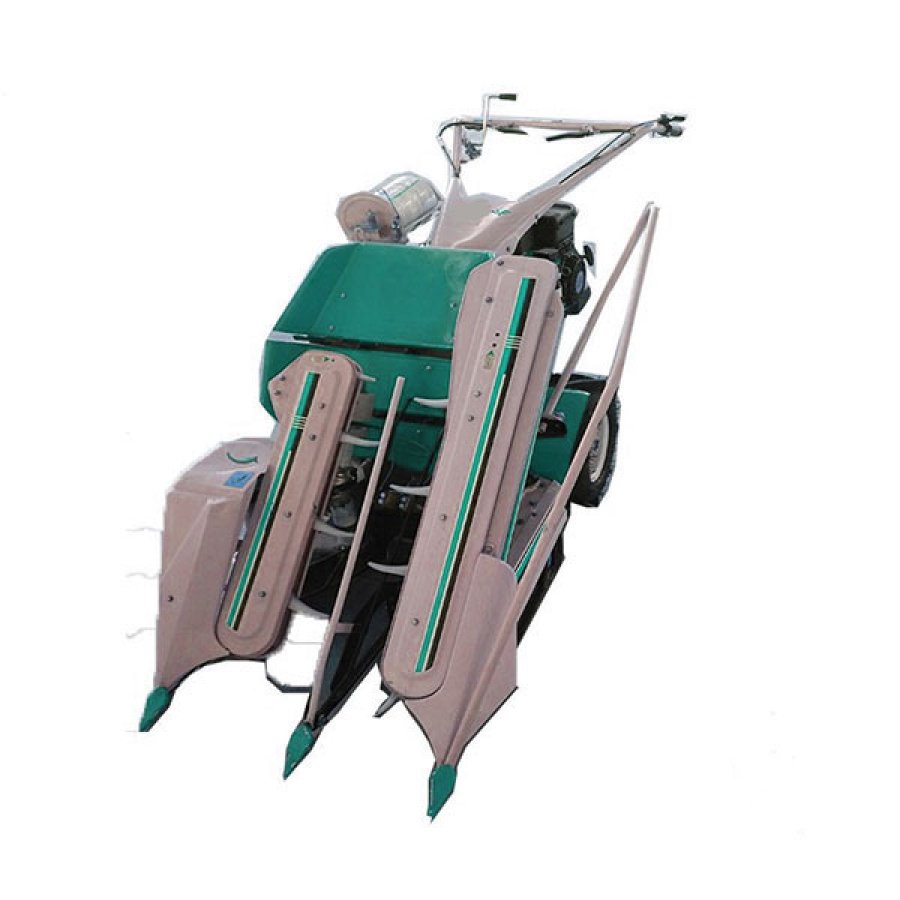

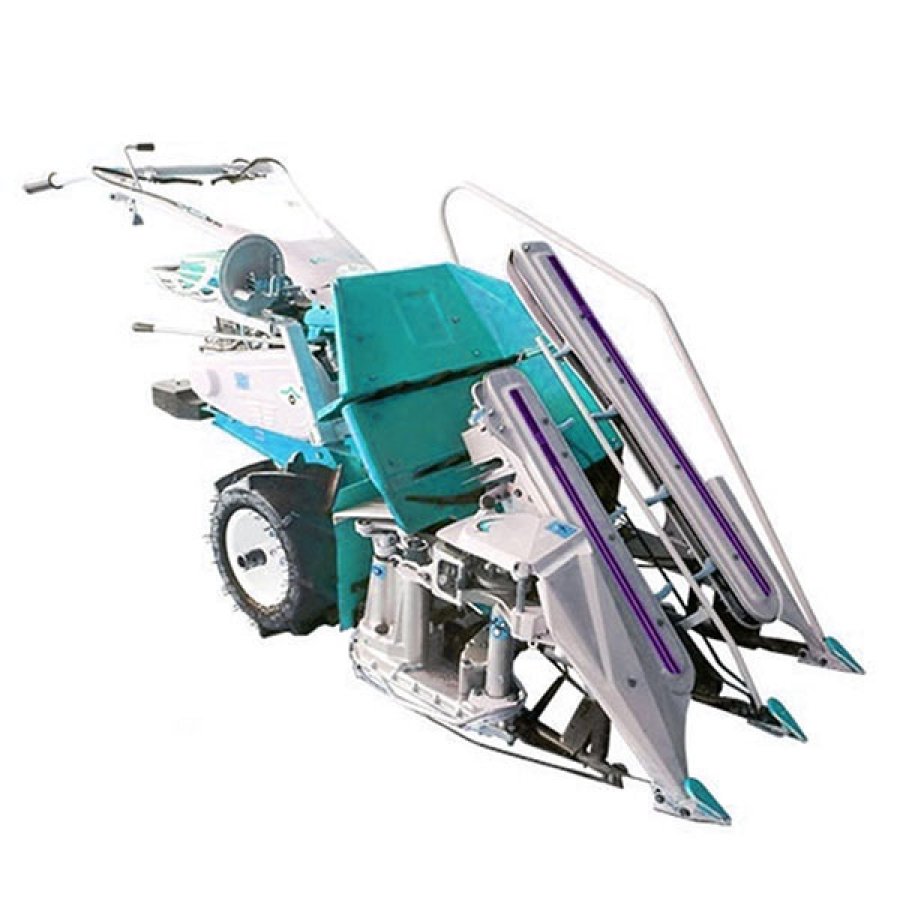

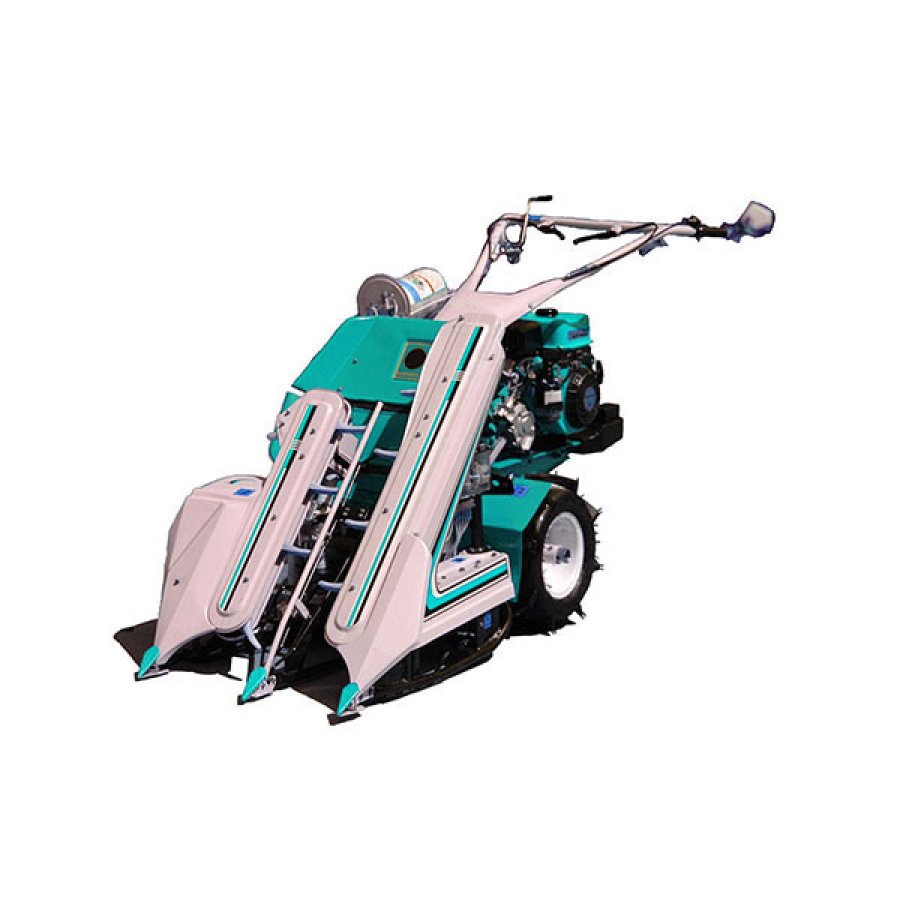

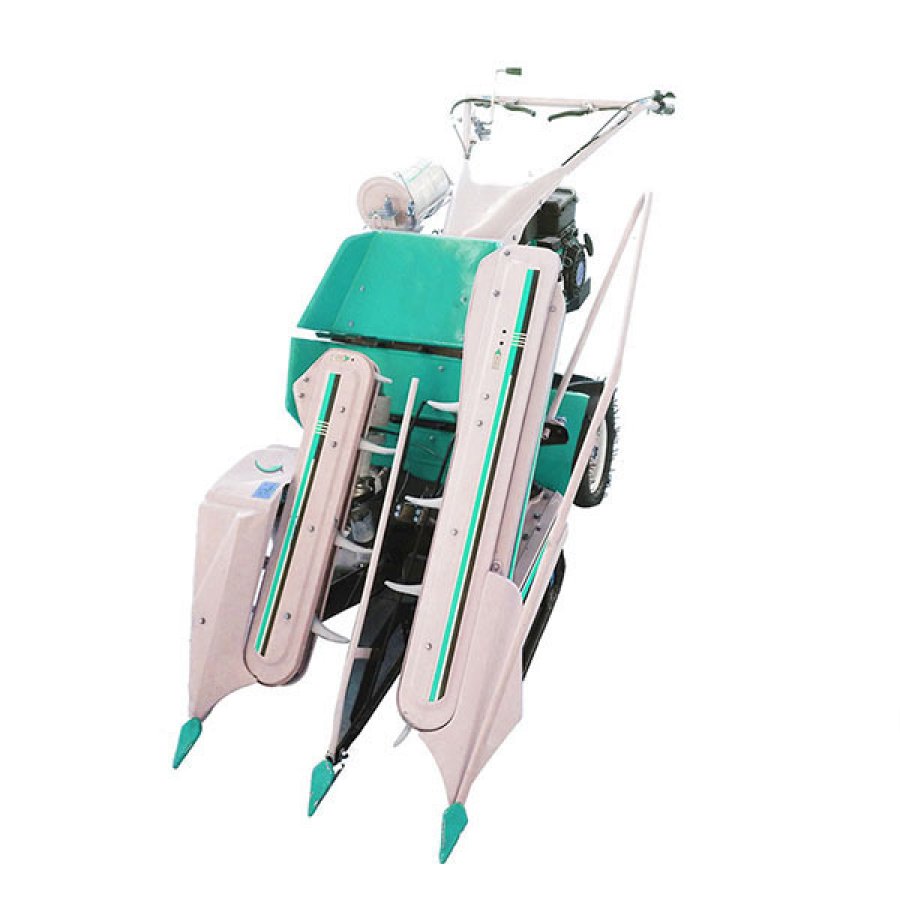

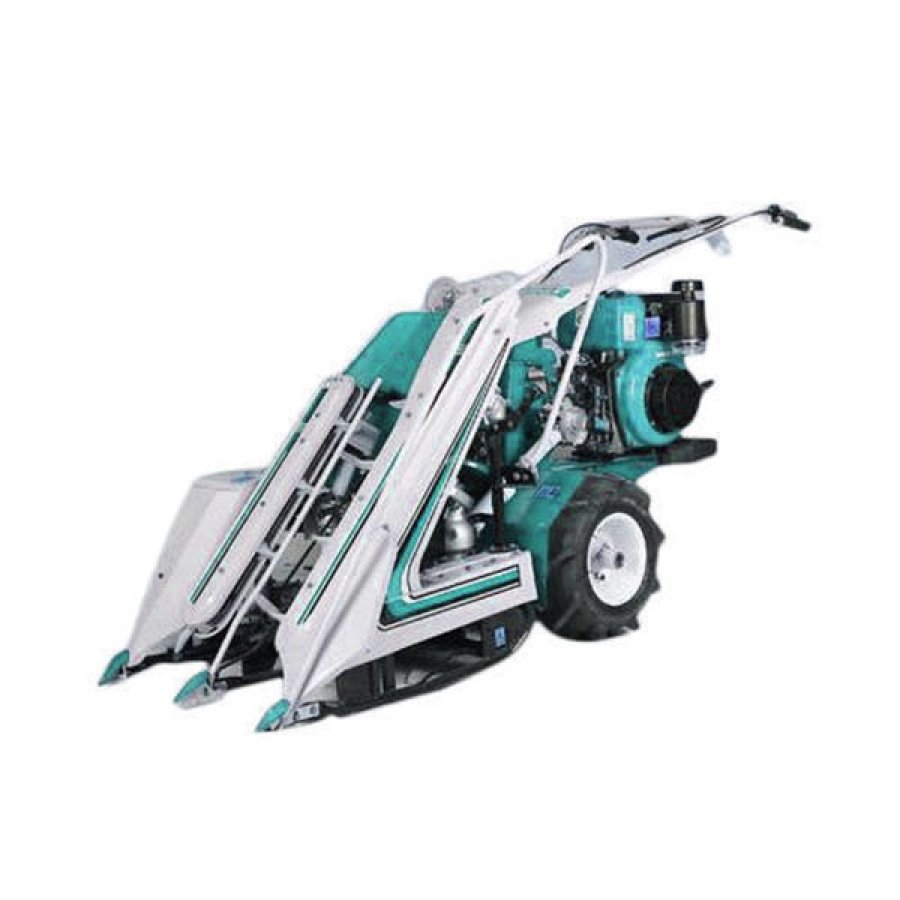

4KUN-50
Reaper & Binder
GOODS DESCRIPTION:
Main Features
■ Optimized threshing and cleaning mechanism with double shakers for re-threshing.
■ Great transmission and torque and swerve agilely.
■ Capacious grain tank with optional unloading devices.
■ Cab with bright window and comfortable operating environment.
■ This type of harvester growls like a lawnmower, and it’s not far off in size. The harvester is pushed by hand through the row.
Parameters:
Model | 4KUN-50 Reaper & Binder |
Type | Walking/ self-propelled |
Overall sizes(L*W*H) (mm) | 2050x800x1055 |
N.W. (kg) | 220 |
Matched motor | Mitsubishi GT600 |
Rated Power (kw) | 4.05 |
Rated rotor speed (r/min) | 1800 |
Main transmission | Belt and transmission shaft |
Clutch type | Up tight wheel |
Drive wheel type | Rubber wheel 19-90-8 |
Rotate balde q’ty (pc) | 9 |
Cutting height (mm) | ≥80~150 Adjustable |
Binder type | automatic |
Diameter of bale (mm) | ≥100 |
Connect type with rotate blade | directly |
Binding height (mm) | 270 |
Working rows (row) | 2 |
Working width (mm) | 600 |
Working efficiency (km/h.) | 1.4~3.8 |
Pure Productivity (hm2/h.) | more than0.12 |
Packing Size (mm) | 1810*790*1150 |
20GP Container | 20 sets |
